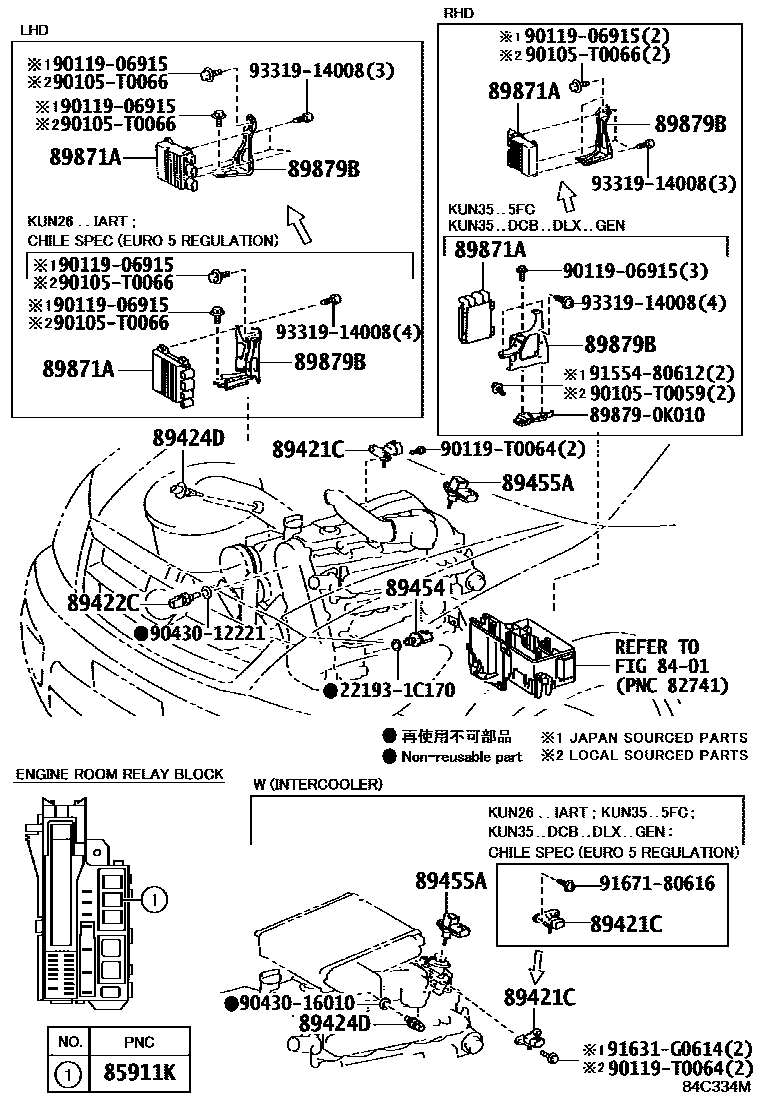

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1

8401

85911KRELAY, HEATER(FOR AIR FUEL RATIO SENSOR)

main90987-02027iKUN35..DCB..DLX..GEN201308-201504

(J)

main90987-T2001iKUN35..DCB..DLX..GEN201308-201504

(L)

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-12150iLAN15,25..RHD..SCB201108-201512

main89421-71030iKUN1#,2#,3#201107

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iLAN15,25..RHD..SCB201107-201601

89424DSENSOR, INLET AIR TEMPERATURE

main89424-12010iKUN15..XTR..GEN;KUN15,25..LHD..SA;KUN35..DCB..DLX..SA;KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN)201107

main89424-60010iKUN25..MA;KUN35..SR..SA201107-201601

89454SENSOR, FUEL TEMPERATURE

main89454-20010iKUN2#..MA201107-201601

main89454-60010iLAN15,25..RHD..SCB201108-201512

89455ASENSOR, EGR VALVE POSITION

main89455-35020iKUN15,25,35..HDCR..TH201107-201601

89871ADRIVER, INJECTOR

main89871-20080iKUN35..5FC;KUN26..IART;KUN35..DCB..DLX..GEN201204-201510

main89871-25010iKUN26..4FC..LA;KUN2#,3#..(5F,5FC)..(DCR,HDCR)..(CO,LA)201107-201601

89879BBRACKET, INJECTOR DRIVER

main89879-71030iKUN1#,2#,36..RHD;KUN35..5F..(SA,TH)201107-201406

main89879-71031iKUN35..5F..TH;KUN1#,2#,36..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PKN,TH)201406-201601

main89879-71040iKUN26..4FC..CO;KUN10,15,2#,35..LHD..(GCC,GEN,PHL,SA)201107-201512

main89879-71050iKUN26..IART201204-201510

main89879-71070iKUN35..5FC;KUN35..DCB..DLX..GEN201208-201504

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

898790K010BRACKET, INJECTOR DRIVER

main89879-0K010

90105T0059

main90105-T0059

90105T0066

main90105-T0066

9011906915

main90119-06915

90119T0064

main90119-T0064

9043012221

main90430-12221

9043016010

main90430-16010

9155480612

main91554-80612

91631G0614

main91631-G0614

9167180616

main91671-80616

9331914008

main93319-14008

21 parts on this diagram · 3 diagrams in section
