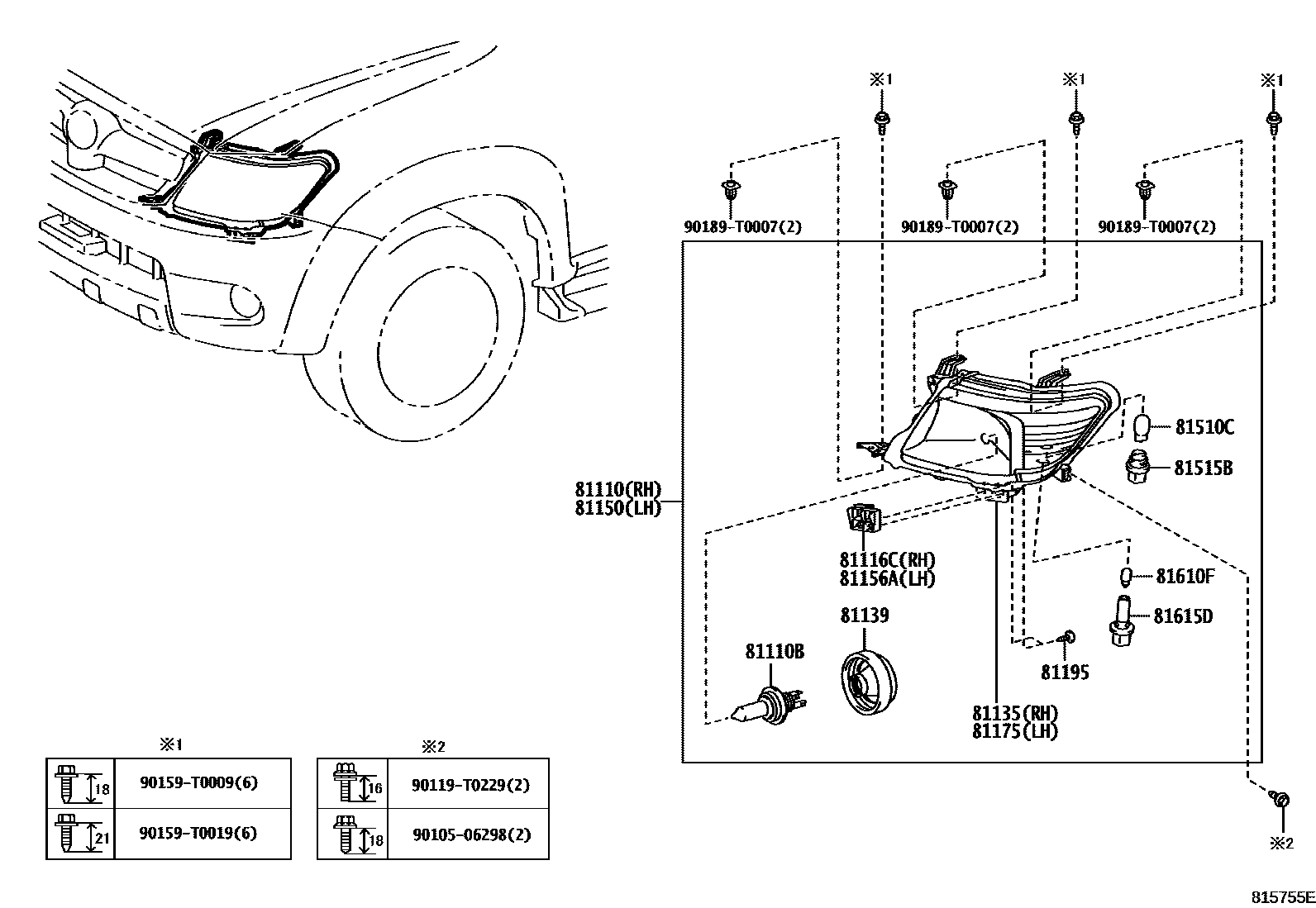

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-0K370iGGN15,25,KUN1#,2#,3#,TGN10,16,26..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,MA,PKN,TH)201107-201609

main81110-0K390iKUN15..LHD..SCB..DCR..(GCC,GEN,PHL);KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN10,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL)201107-201504

main81110-0K400iKUN15..SCB..HDCR..GEN201210-201306

sub81110-0K401

main81110-0K401iKUN15..SCB..HDCR..GEN201307-201504

EGYPT SPEC

main81110-0K410iLAN15,25,35..RHD;KUN26..RHD..SADCB;KUN35..DCB..DLX..SA201108-201512

main81110-0K420iKUN35..SR..SA;KUN35..(SCB,XTR)..SA;GGN25,35,KUN15,2#,36,TGN15,36..RHD..SA201210-201512

main81110-0K430iKUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA201108-201512

main81110-0K450iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iKUN15,25..PKN201107-201609

12V 60/55W,HALOGEN

81116CBRACKET, HEADLAMP, RH

main81116-0K370iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main81116-0K410iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

main81116-0K450iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

81135UNIT ASSY, HEADLAMP, RH

main81130-0K370iGGN15,25,KUN1#,2#,3#,TGN10,16,26..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,MA,PKN,TH)201107-201609

main81130-0K390iKUN15..LHD..SCB..DCR..(GCC,GEN,PHL);KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN10,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL)201107-201504

main81130-0K400iKUN15..SCB..HDCR..GEN201210-201307

sub81130-0K401

main81130-0K401iKUN15..SCB..HDCR..GEN201307-201504

EGYPT SPEC

main81130-0K410iKUN35..SR..SA;KUN35..SCB..SA;GGN25,35,KUN15,2#,36,TGN15,36..RHD..SA201108-201512

main81130-0K420iKUN35..SR..SA;KUN35..(SCB,XTR)..SA;GGN25,35,KUN15,2#,36,TGN15,36..RHD..SA201210-201512

main81130-0K430iKUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA201108-201512

main81130-0K450iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

81139COVER, HEADLAMP SOCKET

main90075-65002iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609

81150HEADLAMP ASSY, LH

main81150-0K370iGGN15,25,KUN1#,2#,3#,TGN10,16,26..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,MA,PKN,TH)201107-201609

main81150-0K390iKUN15..LHD..SCB..DCR..(GCC,GEN,PHL);KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN10,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL)201107-201504

main81150-0K400iKUN15..SCB..HDCR..GEN201210-201306

sub81150-0K401

main81150-0K401iKUN15..SCB..HDCR..GEN201307-201504

EGYPT SPEC

main81150-0K410iLAN15,25,35..RHD;KUN26..RHD..SADCB;KUN35..DCB..DLX..SA201108-201512

main81150-0K420iKUN35..SR..SA;KUN35..(SCB,XTR)..SA;GGN25,35,KUN15,2#,36,TGN15,36..RHD..SA201210-201512

main81150-0K430iKUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA201108-201512

main81150-0K450iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

81156ABRACKET, HEADLAMP, LH

main81156-0K370iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main81156-0K410iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

main81156-0K450iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

81175UNIT ASSY, HEADLAMP, LH

main81170-0K370iGGN15,25,KUN1#,2#,3#,TGN10,16,26..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,MA,PKN,TH)201107-201609

main81170-0K390iKUN15..LHD..SCB..DCR..(GCC,GEN,PHL);KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN10,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL)201107-201504

main81170-0K400iKUN15..SCB..HDCR..GEN201210-201307

sub81170-0K401

main81170-0K401iKUN15..SCB..HDCR..GEN201307-201504

EGYPT SPEC

main81170-0K410iKUN35..SR..SA;KUN35..SCB..SA;GGN25,35,KUN15,2#,36,TGN15,36..RHD..SA201108-201512

main81170-0K420iKUN35..SR..SA;KUN35..(SCB,XTR)..SA;GGN25,35,KUN15,2#,36,TGN15,36..RHD..SA201210-201512

main81170-0K430iKUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA201108-201512

main81170-0K450iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

81195SCREW, HEADLAMP

main81136-0K180iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main81136-0K260iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

main81136-0K410iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iKUN15,25..PKN201107-201609

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iKUN15,25..PKN201107-201609

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iKUN15,25..PKN201107-201609

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iKUN15,25..PKN201107-201609

9010506298

main90105-06298

90119T0229

main90119-T0229

90159T0009

main90159-T0009

90159T0019

main90159-T0019

90189T0007

main90189-T0007

18 parts on this diagram · 1 diagram in section
