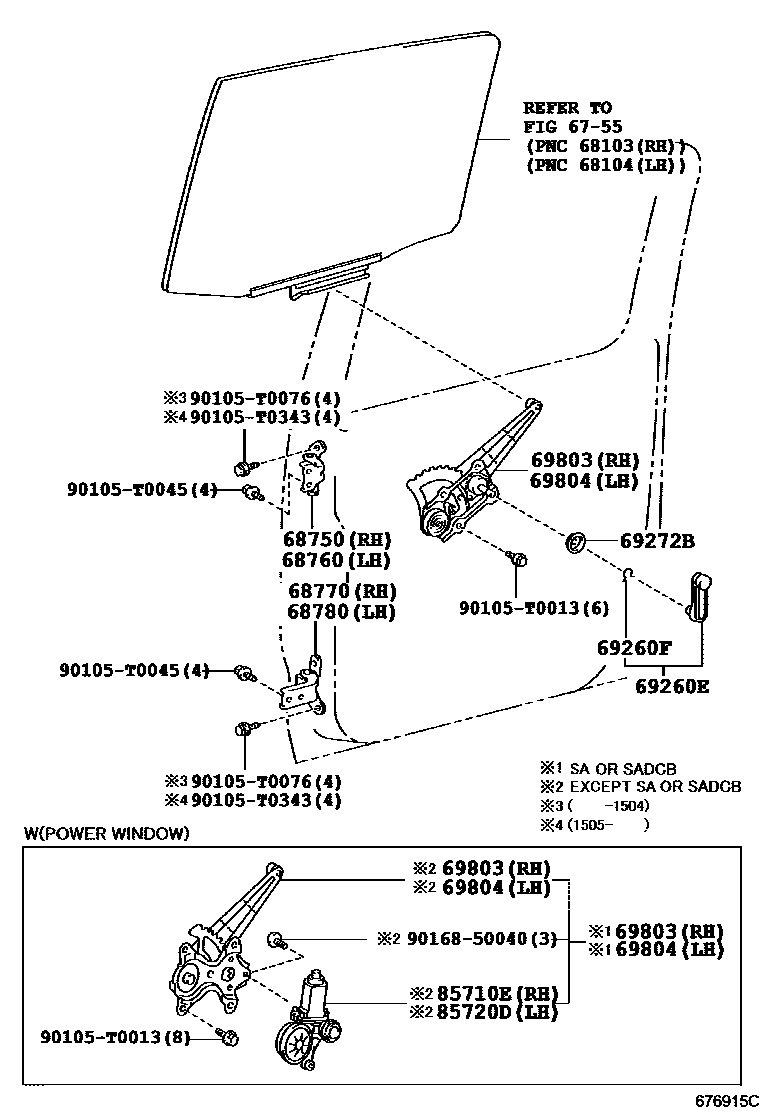

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0K010iKUN2#..DCB..MA201107-201609

main68750-0K020iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

sub68750-0K010

main68750-0K030iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0K010iKUN2#..DCB..MA201107-201609

main68760-0K020iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

sub68760-0K010

main68760-0K030iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02020iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

main68770-52031iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,TH)201107-201609

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02020iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

main68780-52031iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,TH)201107-201609

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-04030-B2iKUN25..DCB..5F..PKN201202-201609

MD.GRAY,TRIM1#

sub69260-04030

main69260-0K010-B1iTGN16..ARL..CBU201107-201504

MD.GRAY,TRIM1#,3#

main69260-0K010-B1iTGN26..DCB..GEN;KUN26..THDCB..DLX;KUN15,25,TGN16..(DCB,THDCB)..DLX..(ARL,CO,GEN,LA,MA,PHL);KUN26,35..LHD..(DCB,THDCB)..DLX..(HDCR,IART)..(CO,GEN,LA)201107-201510

MD.GRAY,TRIM1#

main69260-0K010-B1iTGN16..ARL..CBU201107-201504

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),MD.GRAY,TRIM1#

main69260-0K010-C0iKUN35..LHD..(DCB,THDCB)..DLX..(CO,GEN,LA);TGN16,26,36..DCB..DLX..HTWC..(ARL,GEN,LA);KUN15,2#,36..(DCB,THDCB)..DLX..(CO,GEN,LA,MA,PHL)201308-201510

BLACK,TRIM2#

main69260-0K020-B1iKUN26..SADCB..DLX;KUN25..LHD..DCB..DLX..SA;KUN15,LAN15,25,35,TGN26..DCB..DLX..SA201108-201512

MD.GRAY,TRIM1#

main69260-0K020-B1iKUN26..SADCB..DLX;KUN25..LHD..DCB..DLX..SA;KUN15,LAN15,25,35,TGN26..DCB..DLX..SA201108-201512

POWER DOOR LOCK-WITHOUT,MD.GRAY,TRIM1#

main69260-0K020-C0iKUN26..SADCB..DLX201310-201512

BLACK,TRIM2#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iKUN25..DCB..DLX..MA201107-201609

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-04020iKUN26,36,TGN26,36..DCB..DLX..(DCR,HTWC)..LA201107-201609

main69268-0K010iTGN16..DCB..SA201108-201512

POWER DOOR LOCK-WITHOUT

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0K010iTGN26..THDCB;KUN25..4FC..PKN;KUN26..5FC..(GEN,TH);KUN26..DCB..5FC..IV3;KUN15,25..DCB..(IDN,TH);KUN35..DCB..(GEN,PHL,TH);KUN26..THDCB..(4FC,5F)..SR;KUN26..DCB..(4FC,201107-201609

main69803-0K051iTGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN36..SR..HTWC..LA;TGN26,36..DCB..DLX..ANCOM;GGN25,KUN26,36,TGN26..SR..(ANCOM,CO,LA)201110

main69803-0K051iKUN26,36,TGN26,36..DCB..DLX..(DCR,HTWC)..LA201110-201210

POWER DOOR LOCK-WITH

main69830-0K010iKUN25..DCB..DLX..MA201107-201609

main69830-0K031iTGN16..DCB..SA201108-201512

POWER DOOR LOCK-WITHOUT

main69830-0K041iKUN26..SADCB..DLX;KUN15,25..LHD..DCB..DLX..SA201108-201512

POWER DOOR LOCK-WITH

main69830-0K091iKUN26,36,TGN26,36..DCB..DLX..(DCR,HTWC)..LA201110-201510

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0K010iKUN26..5FC..ARL..CBU201107-201609

main69804-0K051iKUN26,36,TGN26,36..DCB..DLX..(DCR,HTWC)..LA201110-201210

POWER DOOR LOCK-WITH

main69804-0K051iTGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN36..SR..HTWC..LA;TGN26,36..DCB..DLX..ANCOM;GGN25,KUN26,36,TGN26..SR..(ANCOM,CO,LA)201110

main69840-0K010iKUN25..DCB..5F..PKN;TGN26..DCB..(GCC,GEN);KUN26,35,TGN15..LHD..(DCB,THDCB)..DLX..(GCC,GEN);KUN15,25,TGN16..(DCB,THDCB)..DLX..(ARL,GCC,GEN,PHL)201107-201609

main69840-0K031iTGN16..DCB..SA201108-201512

POWER DOOR LOCK-WITHOUT

main69840-0K041iTGN16..DCB..SA;KUN26..SADCB..SR;KUN25,35..RHD..DCB..SA;GGN25,35,KUN15,2#,36,TGN36..DCB..SR..SA201108-201512

POWER DOOR LOCK-WITH

main69840-0K091iKUN26,36,TGN26,36..DCB..DLX..(DCR,HTWC)..LA201110-201510

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0K020iKUN26,36,TGN26,36..DCB..DLX..(DCR,HTWC)..LA201107-201210

POWER DOOR LOCK-WITH

main85720-0K020iKUN26..5FC..ARL..CBU201107-201609

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0K020iKUN26,36,TGN26,36..DCB..DLX..(DCR,HTWC)..LA201107-201210

POWER DOOR LOCK-WITH

main85710-0K020iKUN26..5FC..ARL..CBU201107-201609

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

90105T0343

main90105-T0343

9016850040

main90168-50040

17 parts on this diagram · 2 diagrams in section
