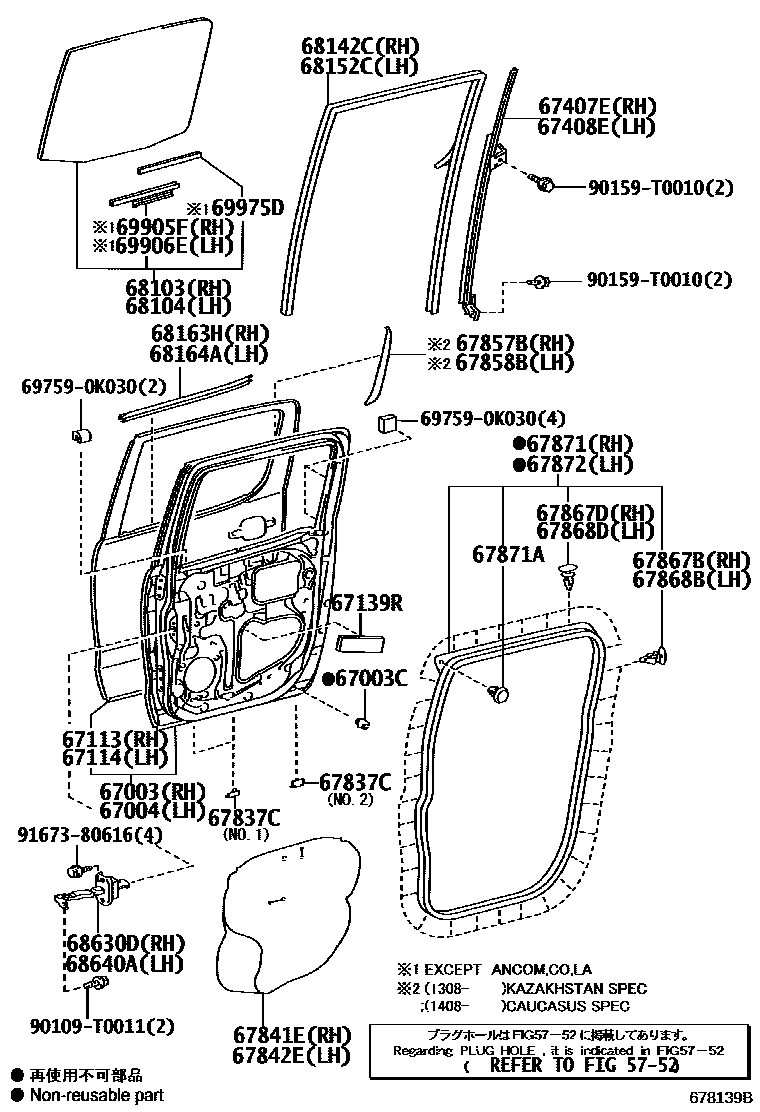

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM 0004 1DOOR TRIM

5752

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)201107-201609

main67003-0K060iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

main67003-0K070iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

sub67003-0K010

main67003-0K110iKUN15,16,2#,3#,TGN16..SMT201107-201504

67003CCUSHION, REAR DOOR PANEL

main90541-09069iKUN26..5FC..SR;KUN26..5FC..DLX..LA;KUN26..DCB..5FC..IV3;KUN26..(DCB,SADCB,SMT,THDCB)..(4FC,5F);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SMT,THDCB201107-201609

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)201107-201609

main67004-0K060iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

main67004-0K070iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

sub67004-0K010

main67004-0K110iKUN15,16,2#,3#,TGN16..SMT201107-201504

67113PANEL, REAR DOOR, OUTER RH

main67113-0K010iKUN2#..DCB..MA201107-201609

67114PANEL, REAR DOOR, OUTER LH

main67114-0K010iKUN2#..DCB..MA201107-201609

67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-0K010iKUN26..5FC..DLX..ARL..CBU201107-201609

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0K010iKUN26..5FC..ARL..CBU201107-201609

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0K010iKUN26..5FC..ARL..CBU201107-201609

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K030iKUN15,16,2#,3#,TGN16..SMT201107-201307

NO.1:REFER ILLUST.

main67837-0K120iKUN15,2#,3#,TGN16..SMT201308-201401

NO.1 & NO.2

sub67837-0K121

main67837-0K121iKUN26..5FC..DLX..ARL..CBU201402-201504

NO.1 & NO.2

main67837-71010iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..(ANCOM,CO,LA,SA)201108-201309

NO.1:REFER ILLUST.

main67837-71020iKUN15,16..DCB..(GCC,GEN,PHL);KUN26..(DCB,THDCB)..(ARL,GEN,PHL,TH);KUN16,36..DCB..(5F,5FC)..(ARL,GEN,TH);GGN15,25,KUN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(HDCR,HTWC201107-201310

NO.2:REFER ILLUST.

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0K010iTGN16..DCB..(GCC,GEN);TGN26..4FC..(GCC,GEN);KUN15,25..RHD..DCB..GEN;KUN15,25,TGN26..DCB..5F..GCC201107-201504

AUDIO-WITHOUT(AUDIO) & 4SPEAKER

main67841-0K010iTGN16..DCB..SR..GCC201107-201308

AUDIO-AM/FM CD 4SPEAKER

main67841-0K010iTGN16..DCB..SR..GCC201107-201504

AUDIO-*DA(EXTRA) & CD & 6SPEAKER

main67841-0K010iKUN25..4FC..GEN;TGN16..DCB..SR..GCC201308-201504

AUDIO-*DA(EXTRA) & DVD & 6SPEAKER

main67841-0K010iKUN25..4FC..GEN;TGN16..DCB..SR..GCC201308-201504

AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER

main67841-0K010iKUN25,TGN26..LHD..DCB..GEN201408-201504

AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER & RDS

main67841-0K010iKUN35..SR..PHL;KUN35..LHD..GEN;KUN26..THDCB..DLX;KUN25,TGN26..THDCB;KUN15,25,35..DCB..(IDN,TH);KUN16,36,TGN36..(DCB,THDCB)..(GEN,TH);GGN15,25,KUN15,26,TGN16..(DCB,T201107-201601

main67841-0K020iKUN26..DCB..5FC..IV3;TGN16..DCB..(ARL,GCC,GEN);KUN26..DCB..(4FC,5F)..DLX..ARL;GGN15,25,KUN15,16,25,35,TGN15,26..DCB..DLX..(ARL,GCC,GEN,PHL,PKN)201107-201609

main67841-0K030iTGN26..4FC..SA201210-201310

AUDIO-AM/FM CD RDS 4SPEAKER

main67841-0K030iKUN15..SR..DCR..SA;KUN35..DCB..DLX..SA;KUN25,LAN15,25,TGN26..LHD..DCB..SA201310-201512

AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER & RDS

main67841-0K030iKUN15..SR..DCR..SA;KUN35..DCB..DLX..SA;KUN25,LAN15,25,TGN26..LHD..DCB..SA201310-201512

AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER

main67841-0K030iKUN25,LAN25..LHD..DCB..SA;KUN35,LAN15,35,TGN26..DCB..DLX..SA201108-201310

AUDIO-AM/FM CD 6SPEAKER

main67841-0K030iKUN26..SADCB;KUN35..SR..SA;GGN25,35,KUN2#,36,TGN36..RHD..DCB..SA201108-201512

main67841-0K040iKUN25..LHD..DCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN16,26..DCB..SA201108-201512

main67841-0K050iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-0K010iKUN25,TGN26..LHD..DCB..GEN201408-201504

AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER & RDS

main67841-0K010iTGN16..DCB..(GCC,GEN);KUN15,25,TGN15,26..DCB..DLX..(GCC,GEN)201107-201308

AUDIO-AM/FM CD 4SPEAKER

main67841-0K010iTGN16..DCB..(GCC,GEN);KUN15,25,TGN15,26..DCB..DLX..(GCC,GEN)201107-201504

AUDIO-*DA(EXTRA) & CD & 6SPEAKER

main67841-0K010iTGN16..DCB..(GCC,GEN);TGN26..4FC..(GCC,GEN);KUN15,25..RHD..DCB..GEN;KUN15,25,TGN26..DCB..5F..GCC201107-201504

AUDIO-WITHOUT(AUDIO) & 4SPEAKER

main67841-0K010iKUN25..4FC..GEN;TGN16..DCB..SR..GCC201308-201504

AUDIO-*DA(EXTRA) & DVD & 6SPEAKER

main67841-0K010iKUN25..4FC..GEN;TGN16..DCB..SR..GCC201308-201504

AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER

main67841-0K010iKUN35..SR..PHL;KUN35..LHD..GEN;KUN26..THDCB..DLX;KUN25,TGN26..THDCB;KUN15,25,35..DCB..(IDN,TH);KUN16,36,TGN36..(DCB,THDCB)..(GEN,TH);GGN15,25,KUN15,26,TGN16..(DCB,T201107-201601

main67841-0K020iKUN26..5FC..DLX..ARL..CBU201107-201609

main67841-0K030iTGN26..4FC..SA201310-201512

AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER & RDS

main67841-0K030iTGN26..4FC..SA201310-201512

AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER

main67841-0K030iTGN26..4FC..SA201210-201310

AUDIO-AM/FM CD RDS 4SPEAKER

main67841-0K030iKUN25,LAN25..LHD..DCB..SA;KUN35,LAN15,35,TGN26..DCB..DLX..SA201108-201310

AUDIO-AM/FM CD 6SPEAKER

main67841-0K030iKUN26..SADCB;KUN35..SR..SA;GGN25,35,KUN2#,36,TGN36..RHD..DCB..SA201108-201512

main67841-0K040iKUN25..LHD..DCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN16,26..DCB..SA201108-201512

main67841-0K050iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-0K020iKUN25..LHD..DCB..GEN201408-201504

CAUCASUS SPEC

main67857-0K020iKUN25,TGN26..LHD..DCB..GEN201308-201504

KAZAKHSTAN SPEC

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0K020iKUN25,TGN26..LHD..DCB..GEN201308-201504

KAZAKHSTAN SPEC

main67858-0K020iKUN25..LHD..DCB..GEN201408-201504

CAUCASUS SPEC

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12150iKUN25..DCB..PKN201107-201609

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-0D060iKUN25..DCB..PKN201507-201609

(L)

main67867-52010iKUN25..DCB..PKN201507-201609

(J)

main67867-52010iKUN26..5FC..ARL..CBU201107-201507

main67867-52030iKUN15,16,2#,3#,TGN16..SMT201107-201504

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67867-12150iKUN26..5FC..ARL..CBU201107-201609

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-0D040iKUN25..DCB..PKN201507-201609

(L)

main67867-52010iKUN15,16,2#,3#,TGN16..SMT201107-201504

main67867-52030iKUN26..DCB..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);KUN26..(DCB,SADCB,THDCB)..(4FC,5F);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..DCB,THDCB201107-201507

main67867-52030iKUN25..DCB..PKN201507-201609

(J)

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0K012iKUN26..5FC..ARL..CBU201107-201609

main67871-0K050iKUN15,16,2#,3#,TGN16..SMT201107-201504

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main90467-04034iKUN15,16,2#,3#,TGN16..SMT201107-201504

main90467-06084iKUN26..5FC..ARL..CBU201107-201507

main90467-06084iGGN25,35,KUN15,2#,3#,LAN15,25,TGN16,26,36..DCB,SADCB201507

(J)

main90467-T0012iGGN25,35,KUN15,2#,3#,LAN15,25,TGN16,26,36..DCB,SADCB201507

(L)

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0K012iKUN26..5FC..ARL..CBU201107-201609

main67872-0K050iKUN15,16,2#,3#,TGN16..SMT201107-201504

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0K010iKUN2#..DCB..MA201109-201601

*TEM,T=3.1,GREEN

sub68103-0K180

main68103-0K020iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

*TEM,T=3.1,GREEN

main68103-0K030iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110-201205

*TEM,T=3.1,GREEN

sub68103-0K031

main68103-0K031iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201206

*TEM,T=3.1,GREEN

main68103-0K140iGGN15,25,KUN26..DCB..SR..ARL201107-201504

*TEM,T=3.1,PRIVACY

sub68103-0K141

main68103-0K180iKUN26..DCB..5FC..IV3;KUN26..(DCB,THDCB)..SR..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(4FC,5F)..DLX..(ARL,GEN);GGN15,25,TGN15,36..(DCB,THDCB)..DLX..(ARL,GCC,GEN);KUN15,16,2201107-201609

*TEM,T=3.1,GREEN

sub68103-0K182

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0K010iKUN2#..DCB..MA201109-201601

*TEM,T=3.1,GREEN

sub68104-0K180

main68104-0K020iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

*TEM,T=3.1,GREEN

main68104-0K030iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110-201205

*TEM,T=3.1,GREEN

sub68104-0K031

main68104-0K031iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201206

*TEM,T=3.1,GREEN

main68104-0K140iGGN15,25,KUN26..DCB..SR..ARL201107-201504

*TEM,T=3.1,PRIVACY

sub68104-0K141

main68104-0K180iKUN26..DCB..5FC..IV3;KUN26..(DCB,THDCB)..SR..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(4FC,5F)..DLX..(ARL,GEN);GGN15,25,TGN15,36..(DCB,THDCB)..DLX..(ARL,GCC,GEN);KUN15,16,2201107-201609

*TEM,T=3.1,GREEN

sub68104-0K182

68142CRUN, REAR DOOR GLASS, RH

main68142-0K010iKUN26..DCB..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);KUN26..(DCB,SADCB,THDCB)..(4FC,5F);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,CO201107-201504

68152CRUN, REAR DOOR GLASS, LH

main68152-0K010iKUN26..DCB..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);KUN26..(DCB,SADCB,THDCB)..(4FC,5F);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,CO201107-201504

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-0K010iKUN25..DCB..MA201107-201504

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-0K010iKUN26..5FC..ARL..CBU201107-201504

68630DCHECK ASSY, REAR DOOR, RH

main68630-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201212

sub68630-0K011

main68630-0K011iKUN2#..DCB..MA201212-201609

main68630-0K020iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201304

sub68630-0K021

main68630-0K021iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201304-201512

main68630-0K030iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

main68640-0K070iKUN15,16,2#,3#,TGN16..SMT201107-201212

sub68640-0K071

main68640-0K071iKUN15,2#,3#,TGN16..SMT201212-201504

68640ACHECK ASSY, REAR DOOR, LH

main68630-0K011iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)201212-201609

main68630-0K021iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201304-201512

main68640-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201212

sub68630-0K011

main68640-0K020iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201304

sub68630-0K021

main68640-0K030iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

main68640-0K070iKUN15,16,2#,3#,TGN16..SMT201107-201212

sub68640-0K071

main68640-0K071iKUN15,2#,3#,TGN16..SMT201212-201504

69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0K040iKUN26..5FC..(GEN,TH);KUN26..DCB..5FC..IV3;KUN26..(DCB,THDCB)..(4FC,5F)..(ARL,GEN,PHL,TH);GGN15,25,KUN15,16,25,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,PHL,P201107-201609

main69905-0K060iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201209-201512

69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0K040iKUN26..5FC..ARL..CBU201107-201609

main69906-0K060iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201209-201512

69975DFILLER, REAR DOOR GLASS CHANNAL

main69975-0K010iKUN26..5FC..(GEN,TH);KUN26..DCB..5FC..IV3;KUN26..(DCB,THDCB)..(4FC,5F)..(ARL,GEN,PHL,TH);GGN15,25,KUN15,16,25,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,PHL,P201107-201609

main69975-0K030iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201209-201512

697590K030SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-0K030

90109T0011

main90109-T0011

90159T0010

main90159-T0010

9167380616

main91673-80616
