EPC Data

FRONT DOOR LOCK & HANDLE

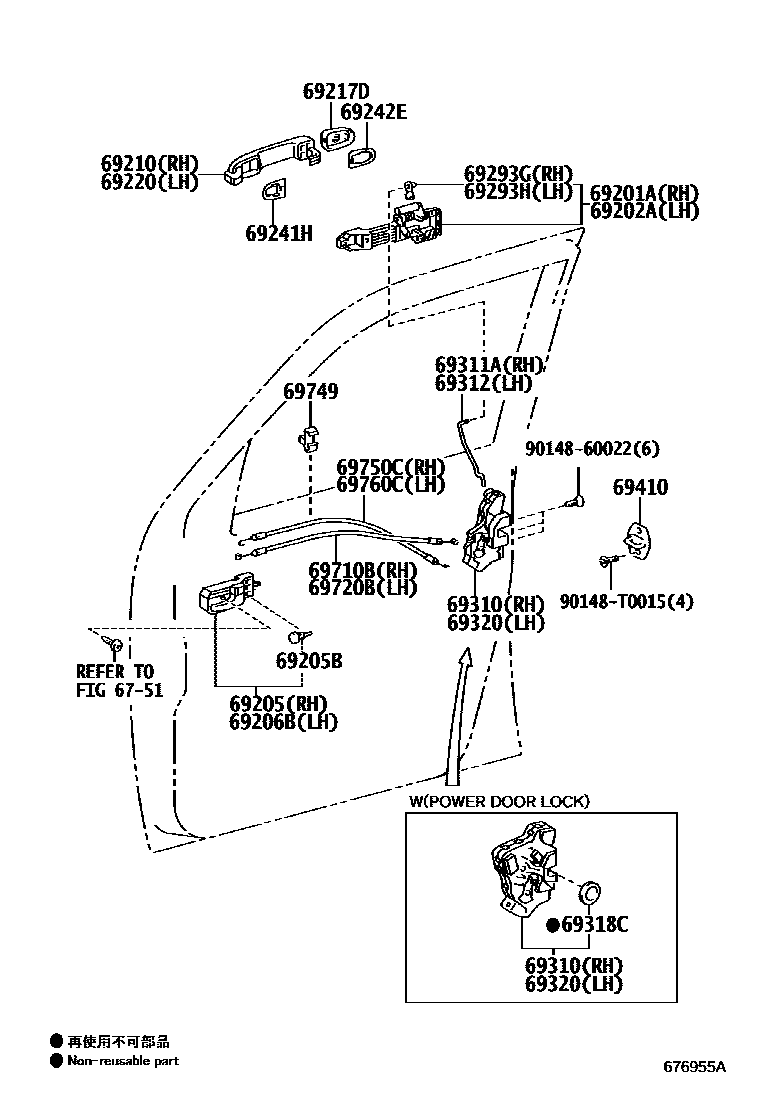

Parts diagram
6751
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-02030i201110-201510
main69201-02050i201108-201512
main69201-06010i201107-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(L)
main69201-06010i201107-201504
WIRELESS DOOR LOCK-WITH,(L)
main69201-06010i201107-201112
main69201-06010i201107-201504
REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITYSYSTEM),(L)
main69201-06010i201112-201512
*299
main69201-06010i201107-201512
(L)
main69201-33010i201305-201504
REAR BUMPER-STEP TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH,*300
main69201-33010i201305-201504
REAR BUMPER-STEP TYPE(STEEL & PLATED),*300
main69201-33010i201305-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),*300
main69201-33010i201112-201504
REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITYSYSTEM),(J)
main69201-33010i201112-201504
WIRELESS DOOR LOCK-WITH,(J)
main69201-33010i201112-201512
(J)
main69201-33010i201112-201512
*300
main69201-33010i201112-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(J)
main69201-52010i201202-201609
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-02020i201110-201510
main69202-02030i201108-201512
main69202-06010i201107-201504
WIRELESS DOOR LOCK-WITH,(L)
main69202-06010i201107-201504
REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITYSYSTEM),(L)
main69202-06010i201107-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(L)
main69202-06010i201107-201112
main69202-06010i201107-201512
(L)
main69202-06010i201112-201512
*299
main69202-33010i201305-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),*300
main69202-33010i201305-201504
REAR BUMPER-STEP TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH,*300
main69202-33010i201305-201504
REAR BUMPER-STEP TYPE(STEEL & PLATED),*300
main69202-33010i201112-201504
REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITYSYSTEM),(J)
main69202-33010i201112-201504
WIRELESS DOOR LOCK-WITH,(J)
main69202-33010i201112-201512
(J)
main69202-33010i201112-201512
*300
main69202-33010i201112-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(J)
main69202-52010i201202-201609
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-0D070-B0i201203-201308
DK.GRAY,TRIM11,*299
sub69205-0D070
main69205-0D070-B2i201107-201112
MD.GRAY,TRIM1#
sub69205-0D070
main69205-0D070-B2i201107-201112
MD.GRAY,TRIM1#,3#
sub69205-0D070
main69205-0D070-B2i201112-201504
MD.GRAY,TRIM1#,3#,*299
sub69205-0D070
main69205-0D070-B2i201203-201308
MD.GRAY,TRIM10,*299
sub69205-0D070
main69205-0D070-B2i201112-201601
MD.GRAY,TRIM1#,*299
sub69205-0D070
main69205-0D070-C0i201308-201512
BLACK,TRIM2#,*299
sub69205-0D070
main69205-0D070-E2i201107-201112
SAND BEIGE,TRIM4#
sub69205-0D070
main69205-0D070-E2i201112-201504
SAND BEIGE,TRIM4#,*299
sub69205-0D070
main69205-0D080-B2i201107
MD.GRAY,TRIM1#,(L)
sub69205-0D080
main69205-0D080-B2i201208-201504
ANTI-THEFT SYSTEM-*IM & *SEH,MD.GRAY,TRIM1#,(L)
sub69205-0D080
main69205-0D080-C0i201308-201504
ANTI-THEFT SYSTEM-*IM & *SEH,BLACK,TRIM2#,(L)
sub69205-0D080
main69205-0D080-C0i201308-201512
BLACK,TRIM2#,(L)
sub69205-0D080
main69205-0D080-E3i201208-201504
ANTI-THEFT SYSTEM-*IM & *SEH,SAND BEIGE,TRIM4#,(L)
sub69205-0D080
main69205-12190-B3i201208-201306
ANTI-THEFT SYSTEM-*IM & *SEH,MD.GRAY,TRIM1#,(J)
sub69205-12190
sub69205-0D080
main69205-12190-B3i201112-201306
MD.GRAY,TRIM1#,(J)
sub69205-12190
sub69205-0D080
main69205-12200-B1i201112-201306
DK.GRAY,TRIM11,*300
sub69205-12200
sub69205-0D070
main69205-12200-B4i201112-201306
MD.GRAY,TRIM1#,3#,*300
sub69205-12200
sub69205-0D070
main69205-12200-B4i201112-201306
MD.GRAY,TRIM10,*300
sub69205-12200
sub69205-0D070
main69205-12200-B4i201112-201306
MD.GRAY,TRIM1#,*300
sub69205-12200
sub69205-0D070
main69205-12200-B4i201110-201609
MD.GRAY,TRIM1#
sub69205-12200
sub69205-0D070
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027i201107-201512
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0D070-B0i201203-201308
DK.GRAY,TRIM11,*299
sub69206-0D070
main69206-0D070-B2i201107-201112
MD.GRAY,TRIM1#,3#
sub69206-0D070
main69206-0D070-B2i201107-201112
MD.GRAY,TRIM1#
sub69206-0D070
main69206-0D070-B2i201112-201601
MD.GRAY,TRIM1#,*299
sub69206-0D070
main69206-0D070-B2i201112-201504
MD.GRAY,TRIM1#,3#,*299
sub69206-0D070
main69206-0D070-B2i201203-201308
MD.GRAY,TRIM10,*299
sub69206-0D070
main69206-0D070-C0i201308-201512
BLACK,TRIM2#,*299
sub69206-0D070
main69206-0D070-E2i201107-201112
SAND BEIGE,TRIM4#
sub69206-0D070
main69206-0D070-E2i201112-201504
SAND BEIGE,TRIM4#,*299
sub69206-0D070
main69206-0D080-B2i201107
MD.GRAY,TRIM1#,(L)
sub69206-0D080
main69206-0D080-B2i201208-201504
ANTI-THEFT SYSTEM-*IM & *SEH,MD.GRAY,TRIM1#,(L)
sub69206-0D080
main69206-0D080-C0i201308-201512
BLACK,TRIM2#,(L)
sub69206-0D080
main69206-0D080-C0i201308-201504
ANTI-THEFT SYSTEM-*IM & *SEH,BLACK,TRIM2#,(L)
sub69206-0D080
main69206-0D080-E3i201208-201504
ANTI-THEFT SYSTEM-*IM & *SEH,SAND BEIGE,TRIM4#,(L)
sub69206-0D080
main69206-12190-B3i201208-201306
ANTI-THEFT SYSTEM-*IM & *SEH,MD.GRAY,TRIM1#,(J)
sub69206-12190
sub69206-0D080
main69206-12190-B3i201112-201306
MD.GRAY,TRIM1#,(J)
sub69206-12190
sub69206-0D080
main69206-12200-B1i201112-201306
DK.GRAY,TRIM11,*300
sub69206-12200
sub69206-0D070
main69206-12200-B4i201112-201306
MD.GRAY,TRIM1#,3#,*300
sub69206-12200
sub69206-0D070
main69206-12200-B4i201112-201306
MD.GRAY,TRIM10,*300
sub69206-12200
sub69206-0D070
main69206-12200-B4i201112-201306
MD.GRAY,TRIM1#,*300
sub69206-12200
sub69206-0D070
main69206-12200-B4i201110-201609
MD.GRAY,TRIM1#
sub69206-12200
sub69206-0D070
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-06040i201107-201504
PLATED,WIRELESS DOOR LOCK-WITH
main69210-06040i201107-201504
PLATED,REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69210-06040i201107-201504
PLATED,TIRE & DISC WHEEL-265/70R16 7J
main69210-06040i201107-201504
PLATED,REAR BUMPER-FLAT TYPE(STEEL & PLATED)
main69210-06040i201107-201504
PLATED,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69210-06040i201208-201504
PLATED,REAR BUMPER-STEP TYPE(STEEL & PLATED)
main69210-06040i201208-201504
PLATED,REAR BUMPER-STEP TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH
main69210-06040i201107-201512
PLATED
main69210-12260i201108-201512
PLATING,WIRELESS DOOR LOCK-WITH
main69210-12260i201108-201512
PLATING
main69210-12260i201108-201512
PLATING,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69210-12260i201410-201512
PLATING,ALGERIA SPEC&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69211-02130i201112-201504
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69211-02130i201107-201504
NO PAINT REQ.,JORDAN SPEC
main69211-02130i201107-201112
NO PAINT REQ.
main69211-02130i201112-201504
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH
main69211-02130i201112-201308
NO PAINT REQ.,JORDAN SPEC,*299
main69211-02130i201112-201512
NO PAINT REQ.,*299
main69211-02150i201108-201512
NO PAINT REQ.
main69211-02180i201110-201510
PAINT REQ.,TIRE & DISC WHEEL-265/70R16 7J
main69211-02180i201110-201510
PAINT REQ.
main69211-02180i201110-201510
PAINT REQ.,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69211-0K010i201110-201510
NO PAINT REQ.
main69211-12903i201202-201609
PAINT REQ.,REAR BUMPER-FLAT TYPE(STEEL & PAINTED)
main69211-12903i201202-201609
PAINT REQ.,REAR BUMPER-FLAT TYPE(STEEL & PLATED)
main69211-42010i201202-201609
NO PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-02060i201107-201504
BLACK,JORDAN SPEC,DRIVER & PASSENGER
main69217-02060i201107-201112
BLACK,DRIVER SIDE
main69217-02060i201107-201112
BLACK,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-02060i201107-201112
BLACK,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),DRIVER SIDE
main69217-02060i201107-201601
BLACK,DRIVER & PASSENGER
main69217-02060i201112-201504
BLACK,WIRELESS DOOR LOCK-WITH,*299,DRIVER SIDE
main69217-02060i201112-201509
BLACK,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),*299,DRIVER SIDE
main69217-02060i201112
BLACK,*299,DRIVER SIDE
main69217-02060i201112-201308
BLACK,JORDAN SPEC,*299,RH & LH
main69217-02060i201112-201512
BLACK,*299,RH & LH
main69217-02080i201108-201512
BLACK,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),PASSENGER SIDE
main69217-02080i201108-201512
BLACK,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-02080i201108-201512
BLACK,PASSENGER SIDE
main69217-02100i201108-201512
BLACK,DRIVER & PASSENGER
main69217-02100i201108-201512
BLACK,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-02100i201108-201512
BLACK,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),DRIVER SIDE
main69217-02100i201108-201512
BLACK,DRIVER SIDE
main69217-02120i201110-201510
LESS COLOR,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),DRIVER SIDE
main69217-02120i201110-201510
LESS COLOR,TIRE & DISC WHEEL-265/70R16 7J,DRIVER & PASSENGER
main69217-02120i201110-201510
LESS COLOR,DRIVER SIDE
main69217-02120i201204-201510
LESS COLOR,DRIVER & PASSENGER
main69217-06020i201107-201504
*CR,TIRE & DISC WHEEL-265/70R16 7J,DRIVER & PASSENGER
main69217-06020i201107-201504
*CR,REAR BUMPER-FLAT TYPE(STEEL & PLATED),DRIVER & PASSENGER
main69217-06020i201107-201504
*CR,REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),DRIVER SIDE
main69217-06020i201107-201504
*CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-06020i201107-201504
*CR,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),DRIVER SIDE
main69217-06020i201107-201504
*CR,DRIVER & PASSENGER
main69217-06020i201208-201504
*CR,REAR BUMPER-STEP TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-06020i201208-201504
*CR,REAR BUMPER-STEP TYPE(STEEL & PLATED),DRIVER & PASSENGER
main69217-06020i201107-201512
*CR,DRIVER SIDE
main69217-0K010i201111-201510
BLACK,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K010i201110-201510
BLACK,DRIVER & PASSENGER
main69217-0K010i201110-201210
BLACK,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),DRIVER SIDE
main69217-0K070i201107-201509
BLACK,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),PASSENGER SIDE
main69217-0K070i201107
BLACK,PASSENGER SIDE
main69217-0K070i201107-201504
BLACK,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-0K080i201111-201510
BLACK PAINTED,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-0K080i201110-201210
BLACK PAINTED,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),PASSENGER SIDE
main69217-0K110i201108-201512
*CR,(L),PASSENGER SIDE
main69217-0K110i201107-201504
*CR,REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),PASSENGER SIDE
main69217-0K110i201107-201504
*CR,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-0K110i201107-201504
*CR,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),PASSENGER SIDE
main69217-0K110i201208-201504
*CR,REAR BUMPER-STEP TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-0K110i201107-201512
*CR,PASSENGER SIDE
main69217-0K110i201108-201512
*CR,WIRELESS DOOR LOCK-WITH,(L),PASSENGER SIDE
main69217-0K110i201108-201512
*CR,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(L),PASSENGER SIDE
main69217-0K110i201410-201512
*CR,ALGERIA SPEC&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(L),PASSENGER SIDE
main69217-0K904i201110-201510
LESS COLOR,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),PASSENGER SIDE
main69217-0K904i201110-201510
LESS COLOR,PASSENGER SIDE
main69217-12010i201410-201512
*CR,ALGERIA SPEC&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),DRIVER SIDE
main69217-12010i201108-201512
*CR,DRIVER SIDE
main69217-12010i201108-201512
*CR,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),DRIVER SIDE
main69217-12010i201108-201512
*CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-33030i201108-201512
*CR,WIRELESS DOOR LOCK-WITH,(J),PASSENGER SIDE
main69217-33030i201108-201512
*CR,(J),PASSENGER SIDE
main69217-33030i201108-201512
*CR,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(J),PASSENGER SIDE
main69217-33030i201410-201512
*CR,ALGERIA SPEC&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(J),PASSENGER SIDE
main69217-42010i201202-201609
BLACK MATERIAL,DRIVER & PASSENGER
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-06040i201107-201504
PLATED,WIRELESS DOOR LOCK-WITH
main69210-06040i201107-201512
PLATED
main69210-06040i201107-201504
PLATED,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69210-06040i201107-201504
PLATED,TIRE & DISC WHEEL-265/70R16 7J
main69210-06040i201107-201504
PLATED,REAR BUMPER-FLAT TYPE(STEEL & PLATED)
main69210-06040i201107-201504
PLATED,REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69210-06040i201208-201504
PLATED,REAR BUMPER-STEP TYPE(STEEL & PLATED)
main69210-06040i201208-201504
PLATED,REAR BUMPER-STEP TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH
main69210-12260i201108-201512
PLATING
main69210-12260i201108-201512
PLATING,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69210-12260i201108-201512
PLATING,WIRELESS DOOR LOCK-WITH
main69210-12260i201410-201512
PLATING,ALGERIA SPEC&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69211-02130i201112-201504
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69211-02130i201107-201504
NO PAINT REQ.,JORDAN SPEC
main69211-02130i201112-201512
NO PAINT REQ.,*299
main69211-02130i201112-201504
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH
main69211-02130i201107-201112
NO PAINT REQ.
main69211-02130i201112-201308
NO PAINT REQ.,JORDAN SPEC,*299
main69211-02150i201108-201512
NO PAINT REQ.
main69211-02180i201110-201510
PAINT REQ.,TIRE & DISC WHEEL-265/70R16 7J
main69211-02180i201110-201510
PAINT REQ.
main69211-02180i201110-201510
PAINT REQ.,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69211-0K010i201110-201510
NO PAINT REQ.
main69211-12903i201202-201609
PAINT REQ.,REAR BUMPER-FLAT TYPE(STEEL & PAINTED)
main69211-12903i201202-201609
PAINT REQ.,REAR BUMPER-FLAT TYPE(STEEL & PLATED)
main69211-42010i201202-201609
NO PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-02050i201110-201510
main69241-02060i201108-201512
main69241-06020i201107-201504
REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITYSYSTEM),(L)
main69241-06020i201107-201504
WIRELESS DOOR LOCK-WITH,(L)
main69241-06020i201107-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(L)
main69241-06020i201107-201512
(L)
main69241-06020i201112-201512
*299
main69241-06020i201107-201112
main69241-42020i201112-201504
WIRELESS DOOR LOCK-WITH,(J)
main69241-42020i201112-201504
REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITYSYSTEM),(J)
main69241-42020i201112-201609
*300
main69241-42020i201112-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(J)
main69241-42020i201305-201504
REAR BUMPER-STEP TYPE(STEEL & PLATED),*300
main69241-42020i201305-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),*300
main69241-42020i201305-201504
REAR BUMPER-STEP TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH,*300
main69241-42020i201112-201512
(J)
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-02050i201110-201510
main69242-02060i201108-201512
main69242-06020i201107-201504
WIRELESS DOOR LOCK-WITH,(L)
main69242-06020i201107-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(L)
main69242-06020i201107-201504
REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITYSYSTEM),(L)
main69242-06020i201107-201112
main69242-06020i201107-201512
(L)
main69242-06020i201112-201512
*299
main69242-42010i201305-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),*300
main69242-42010i201305-201504
REAR BUMPER-STEP TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH,*300
main69242-42010i201305-201504
REAR BUMPER-STEP TYPE(STEEL & PLATED),*300
main69242-42010i201112-201504
REAR BUMPER-FLAT TYPE(STEEL & PLATED)&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITYSYSTEM),(J)
main69242-42010i201112-201504
WIRELESS DOOR LOCK-WITH,(J)
main69242-42010i201112-201609
*300
main69242-42010i201112-201512
(J)
main69242-42010i201112-201504
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),(J)
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201108-201609
main69293-33010i201107-201512
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201108-201609
main69293-33020i201107-201512
69310LOCK ASSY, FRONT DOOR, RH
main69030-02190i201210-201510
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69030-02190i201409-201412
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-02190i201409-201412
ANTI-THEFT SYSTEM-*IM & *SEH & TRACKING & BLOCKING SYSTEM&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-02190i201409-201412
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69030-02190i201409-201412
ANTI-THEFT SYSTEM-*IM & *SEH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-02190i201210-201509
ANTI-THEFT SYSTEM-*IM & *SEH
main69030-02190i201110-201409
POWER DOOR LOCK-WITH
main69030-02190i201210-201409
ANTI-THEFT SYSTEM-*IM & *SEH & TRACKING & BLOCKING SYSTEM
main69030-02190i201110-201412
main69030-0K010i201107-201609
main69030-0K010i201107-201409
POWER DOOR LOCK-WITH
main69030-0K010i201501-201504
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69030-0K010i201409-201504
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K010i201208-201504
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69030-0K010i201202-201609
SEAT COVER MATERIAL-FULL FABRIC
main69030-0K020i201208-201504
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69030-0K020i201107-201409
POWER DOOR LOCK-WITH
main69030-0K020i201409-201412
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K020i201409-201412
ANTI-THEFT SYSTEM-*IM & *SEH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K020i201107-201412
main69030-0K020i201208-201409
ANTI-THEFT SYSTEM-*IM & *SEH
main69030-0K060i201108-201210
POWER DOOR LOCK-WITH
main69030-0K060i201108-201310
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69030-0K060i201210-201512
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K060i201108-201512
main69030-0K070i201108-201408
POWER DOOR LOCK-WITH
main69030-0K070i201210-201512
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69030-0K070i201210-201408
ANTI-THEFT SYSTEM-*IM & *SEH(FOR SOUTH AFRICA)&WIRELESS DOOR LOCK-WITH(WITH/SET INSECURITY SYSTEM)
main69030-0K070i201210-201408
ANTI-THEFT SYSTEM-*IM & *SEH
main69030-0K230i201409-201512
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K230i201409-201512
WIRELESS DOOR LOCK-WITH
main69030-0K230i201409-201512
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69030-0K230i201409-201512
ANTI-THEFT SYSTEM-*IM & *SEH(FOR SOUTH AFRICA)&WIRELESS DOOR LOCK-WITH(WITH/SET INSECURITY SYSTEM)
main69030-0K230i201409-201512
ANTI-THEFT SYSTEM-*IM & *SEH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K240i201501-201504
WIRELESS DOOR LOCK-WITH
main69030-0K240i201501-201504
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69030-0K240i201501-201504
ANTI-THEFT SYSTEM-*IM & *SEH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K240i201501-201504
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K250i201501-201510
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69030-0K250i201501-201510
ANTI-THEFT SYSTEM-*IM & *SEH & TRACKING & BLOCKING SYSTEM&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K250i201501-201510
ANTI-THEFT SYSTEM-*IM & *SEH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K250i201501-201510
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69030-0K250i201501
main69310-0K010i201107-201504
POWER DOOR LOCK-WITHOUT
main69310-0K010i201107-201609
main69310-0K020i201107-201504
main69310-0K050i201110-201510
main69310-0K060i201108-201512
main69310-0K080i201108-201512
POWER DOOR LOCK-WITHOUT
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-0K010i201107-201609
main69311-0K030i201110
main69311-0K060i201108-201512
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-0K010i201107-201609
main69312-0K030i201110
main69312-0K060i201108-201512
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201210-201409
ANTI-THEFT SYSTEM-*IM & *SEH & TRACKING & BLOCKING SYSTEM
main69318-51010i201107-201409
POWER DOOR LOCK-WITH
main69318-51010i201108-201512
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69318-51010i201210-201512
ANTI-THEFT SYSTEM-*IM & *SEH(FOR SOUTH AFRICA)&WIRELESS DOOR LOCK-WITH(WITH/SET INSECURITY SYSTEM)
main69318-51010i201208-201509
ANTI-THEFT SYSTEM-*IM & *SEH
main69318-51010i201409-201510
ANTI-THEFT SYSTEM-*IM & *SEH & TRACKING & BLOCKING SYSTEM&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69318-51010i201107-201512
main69318-51010i201210-201512
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69318-51010i201409-201512
ANTI-THEFT SYSTEM-*IM & *SEH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69318-51010i201409-201512
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69318-51010i201409-201512
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69318-51010i201202-201609
SEAT COVER MATERIAL-FULL FABRIC
69320LOCK ASSY, FRONT DOOR, LH
main69040-02180i201409-201510
ANTI-THEFT SYSTEM-*IM & *SEH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-02180i201409-201510
ANTI-THEFT SYSTEM-*IM & *SEH & TRACKING & BLOCKING SYSTEM&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-02180i201409-201510
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69040-02180i201409-201510
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-02180i201110
main69040-02180i201210-201509
ANTI-THEFT SYSTEM-*IM & *SEH
main69040-02180i201210-201510
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69040-02180i201110-201409
POWER DOOR LOCK-WITH
main69040-02180i201210-201409
ANTI-THEFT SYSTEM-*IM & *SEH & TRACKING & BLOCKING SYSTEM
main69040-0K010i201107-201409
POWER DOOR LOCK-WITH
main69040-0K010i201202-201609
SEAT COVER MATERIAL-FULL FABRIC
main69040-0K010i201107-201609
main69040-0K010i201208-201504
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69040-0K010i201409-201412
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-0K020i201409-201504
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-0K020i201107-201409
POWER DOOR LOCK-WITH
main69040-0K020i201208-201504
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69040-0K020i201208-201409
ANTI-THEFT SYSTEM-*IM & *SEH
main69040-0K020i201107-201504
main69040-0K020i201409-201504
ANTI-THEFT SYSTEM-*IM & *SEH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-0K020i201501-201504
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69040-0K060i201108-201210
POWER DOOR LOCK-WITH
main69040-0K060i201210-201408
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-0K060i201108-201408
main69040-0K060i201108-201310
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69040-0K070i201409-201512
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-0K070i201409-201512
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69040-0K070i201409-201512
ANTI-THEFT SYSTEM-*IM & *SEH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-0K070i201210-201512
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69040-0K070i201210-201409
ANTI-THEFT SYSTEM-*IM & *SEH
main69040-0K070i201210-201512
ANTI-THEFT SYSTEM-*IM & *SEH(FOR SOUTH AFRICA)&WIRELESS DOOR LOCK-WITH(WITH/SET INSECURITY SYSTEM)
main69040-0K070i201108-201409
POWER DOOR LOCK-WITH
main69040-0K070i201108-201512
main69040-0K190i201409-201512
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-0K200i201501-201504
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main69040-0K200i201501-201504
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69040-0K200i201501-201504
WIRELESS DOOR LOCK-WITH
main69040-0K200i201501-201512
main69320-0K010i201107-201504
POWER DOOR LOCK-WITHOUT
main69320-0K010i201107-201609
main69320-0K020i201107-201504
main69320-0K050i201110-201510
main69320-0K060i201108-201512
main69320-0K080i201108-201512
POWER DOOR LOCK-WITHOUT
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-0K010i201107-201609
main69410-0K030i201110
main69410-0K040i201108-201512
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-0K010i201107-201609
main69710-0K020i201108-201512
main69710-0K030i201110
main69710-0K040i201107-201609
main69710-0K050i201108-201512
main69710-0K060i201110-201510
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0K010i201107-201609
main69710-0K020i201108-201512
main69710-0K030i201110
main69710-0K040i201107-201609
main69710-0K050i201108-201512
main69710-0K060i201110-201510
69749CLAMP, FRONT DOOR LOCK LINK
main69749-32040i201107-201512
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-0K010i201107-201609
main69750-0K020i201108-201512
main69750-0K030i201110
main69750-0K040i201107-201609
main69750-0K050i201108-201512
main69750-0K060i201110-201510
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69760-0K010i201107-201609
main69760-0K020i201108-201512
main69760-0K030i201110
main69760-0K040i201107-201609
main69760-0K050i201108-201512
main69760-0K060i201110-201510
9014860022
main90148-60022
90148T0015
main90148-T0015

26 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
