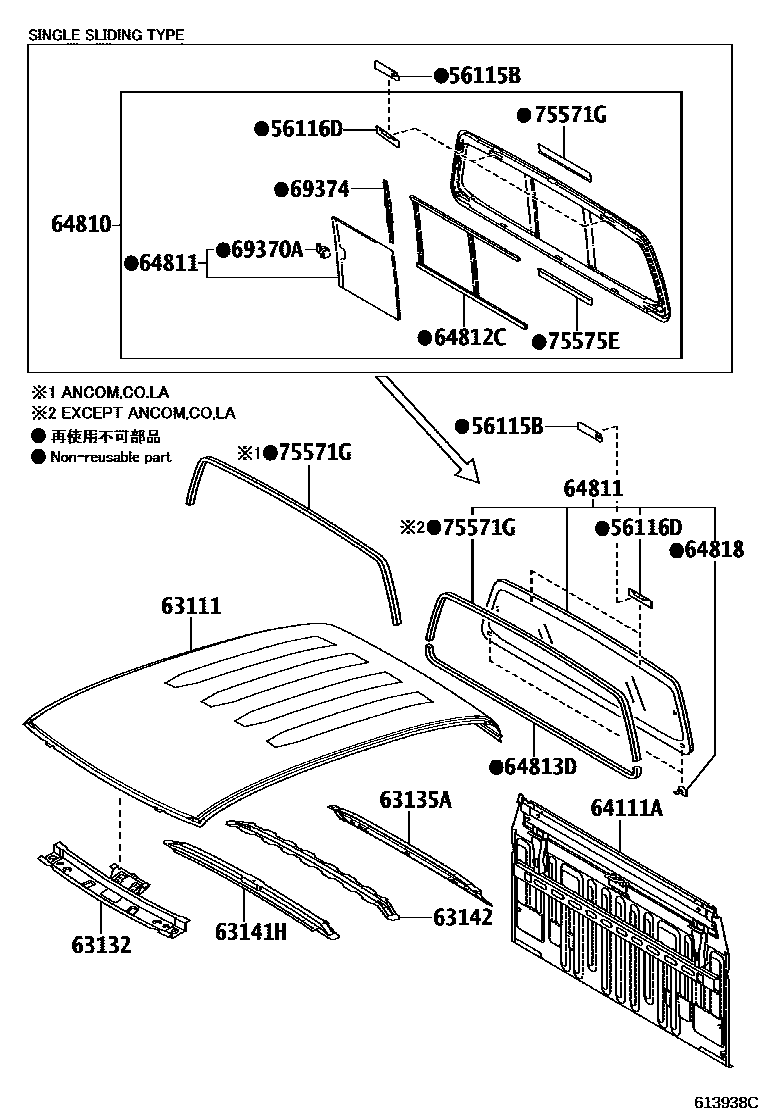

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-02020iKUN15,25..PKN201107-201609

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-02020iKUN26..5FC..DLX..ARL..CBU201107-201609

63111PANEL, ROOF

main63111-0K020iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107-201609

main63111-0K030iKUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA201108-201512

main63111-0K040iGGN15,KUN1#,2#,35,TGN1#,26,36..(SCB,THSCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,PKN,TH)201107-201609

main63111-0K140iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

63132PANEL, WINDSHIELD HEADER, INNER

main63102-0K040iKUN2#..DCB..MA201107-201510

main63102-0K090iKUN2#,3#,TGN26,36..DCB..(CO,LA)201310-201510

main63132-0K010iKUN15..DCB..DLX..TH201107-201609

main63132-0K060iKUN2#,35,TGN36..SCB..LA201310-201510

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-0K011iKUN2#..DCB..MA201107-201609

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0K011iKUN2#..DCB..MA201107-201609

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0K011iKUN2#..DCB..MA201107-201609

64111APANEL, BACK

main64101-0K010iKUN26..SADCB;KUN16,36..4FC..(SA,TH);KUN36..DCB..5F..(LA,SA);KUN2#,35,TGN16..DCB..(CO,LA,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC,HTWCF)..(ANCOM,201107-201211

sub64101-0K050

main64101-0K020iTGN16..SCB..SA;KUN15..SCB..DCR..(SA,TH);KUN16,2#,3#,LAN15,25,TGN15,26,36..SCB..(ANCOM,LA,SA,TH)201107-201512

sub64101-0K060

main64101-0K030iKUN15,26,3#..XTR..(SA,TH)201107-201512

main64101-0K040iKUN15,16,2#,3#,TGN16..SMT201107-201504

main64101-0K050iKUN25..DCB..MA201208-201609

main64101-0K060iKUN25..SCB..MA201208-201609

main64101-0K070iGGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)201208-201504

main64101-0K080iGGN15,25,KUN16,26,TGN16..DCB..ARL201311-201504

64810WINDOW ASSY, BACK

main64810-0K020iKUN15..DCB..DCR..TH;KUN15,25..DCB..SR..SA201107-201512

BACK GLASS-SLIDING TYPE(GREEN)

sub64810-0K080

64811GLASS, BACK WINDOW

main64801-0K010iKUN25..SCB..MA201109-201601

*TEM,T=3.5,GREEN

sub64801-0K090

main64801-0K020iKUN2#..DCB..MA201109-201601

*EHT,T=3.5,GREEN

sub64801-0K100

main64801-0K030iKUN25..RHD..DCB..SA201108-201512

*TEM,T=3.5,GREEN

main64801-0K030iKUN35..DCB..DLX..SA201108-201310

*TEM,T=3.5,GREEN,EXPORT FROM SOUTH AFRICA

main64801-0K030iKUN35..DCB..DLX..SA201108-201310

*TEM,T=3.5,GREEN,KENYA SPEC

main64801-0K030iTGN16..SCB..SA;KUN25,LAN25..LHD..SA;KUN15,LAN15,35,TGN15,26..(DCB,SCB)..SA201108-201512

*TEM,T=3.5,GREEN,POWER DOOR LOCK-WITHOUT

main64801-0K040iKUN26..SADCB;TGN16..DCB..SA201108-201512

*EHT,T=3.5,GREEN

main64801-0K040iLAN15,25,TGN26..LHD..DCB..SA201108-201512

*EHT,T=3.5,GREEN,REAR WINDOW DEFOGGER-WITH

main64801-0K050iKUN2#,35,TGN26,36..SCB..(ANCOM,LA)201110-201205

*TEM,T=3.5,GREEN

sub64801-0K051

main64801-0K051iKUN2#,35,TGN26,36..SCB..(ANCOM,LA)201206-201510

*TEM,T=3.5,GREEN

main64801-0K060iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110-201205

*EHT,T=3.5,GREEN

sub64801-0K061

main64801-0K061iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201206

*EHT,T=3.5,GREEN

main64801-0K070iGGN15,25,KUN26..DCB..SR..ARL201107-201504

*EHT,T=3.5,PRIVACY

sub64801-0K071

main64801-0K090iKUN26..5FC..TH;KUN26..XTR..SR..ARL201107-201609

*TEM,T=3.5,GREEN

sub64801-0K092

main64801-0K090iKUN25..XTR;KUN25..4FC..GEN201107-201308

*TEM,T=3.5,GREEN,REAR WINDOW DEFOGGER-WITHOUT

sub64801-0K092

main64801-0K100iKUN26..5FC..DLX..ARL..CBU201107-201504

*EHT,T=3.5,GREEN

sub64801-0K102

main64801-0K100iTGN26..4FC..GEN201208-201504

*EHT,T=3.5,GREEN,BACK GLASS-FIX TYPE(GREEN)&REAR WINDOW DEFOGGER-WITH

sub64801-0K102

main64810-0K010iKUN35..SR..SA;KUN15,35..(SCB,XTR)..HDCR..SA;GGN25,35,KUN2#,36,LAN25,TGN36..RHD..SA201108-201512

*TEM,T=4.0,GREEN

main64810-0K010iKUN15,LAN15,TGN15..RHD..DLX..SA201108-201512

*TEM,T=4.0,GREEN,AIR CONDITIONER-SINGLE AIR CONDITIONER

main64811-0K130iTGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC201107-201512

BACK GLASS-SLIDING TYPE(GREEN)

sub64811-0K280

64812CWEATHERSTRIP, BACK WINDOW GLASS

main64812-0K010iTGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC201107-201512

BACK GLASS-SLIDING TYPE(GREEN)

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-0K020iKUN35..DCB..DLX..SA201107-201609

64818SPACER, BACK WINDOW GLASS

main64818-0K010iKUN35..DCB..DLX..SA201107-201609

69370ALOCK ASSY, BACK WINDOW

main69370-0K010iTGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC201107-201512

BACK GLASS-SLIDING TYPE(GREEN)

69374CATCH, BACK WINDOW LOCK

main69374-0K010iTGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC201107-201512

BACK GLASS-SLIDING TYPE(GREEN)

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-0K010iKUN26..5FC..DLX..ARL..CBU201107-201609

main75571-0K040iKUN15..DCB..DCR..TH;KUN15,25..DCB..SR..(IDN,SA)201107-201512

BACK GLASS-SLIDING TYPE(GREEN)

75575EMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-0K010iKUN35..DCB..DLX..SA201107-201512

BACK GLASS-SLIDING TYPE(GREEN)

17 parts on this diagram · 3 diagrams in section
