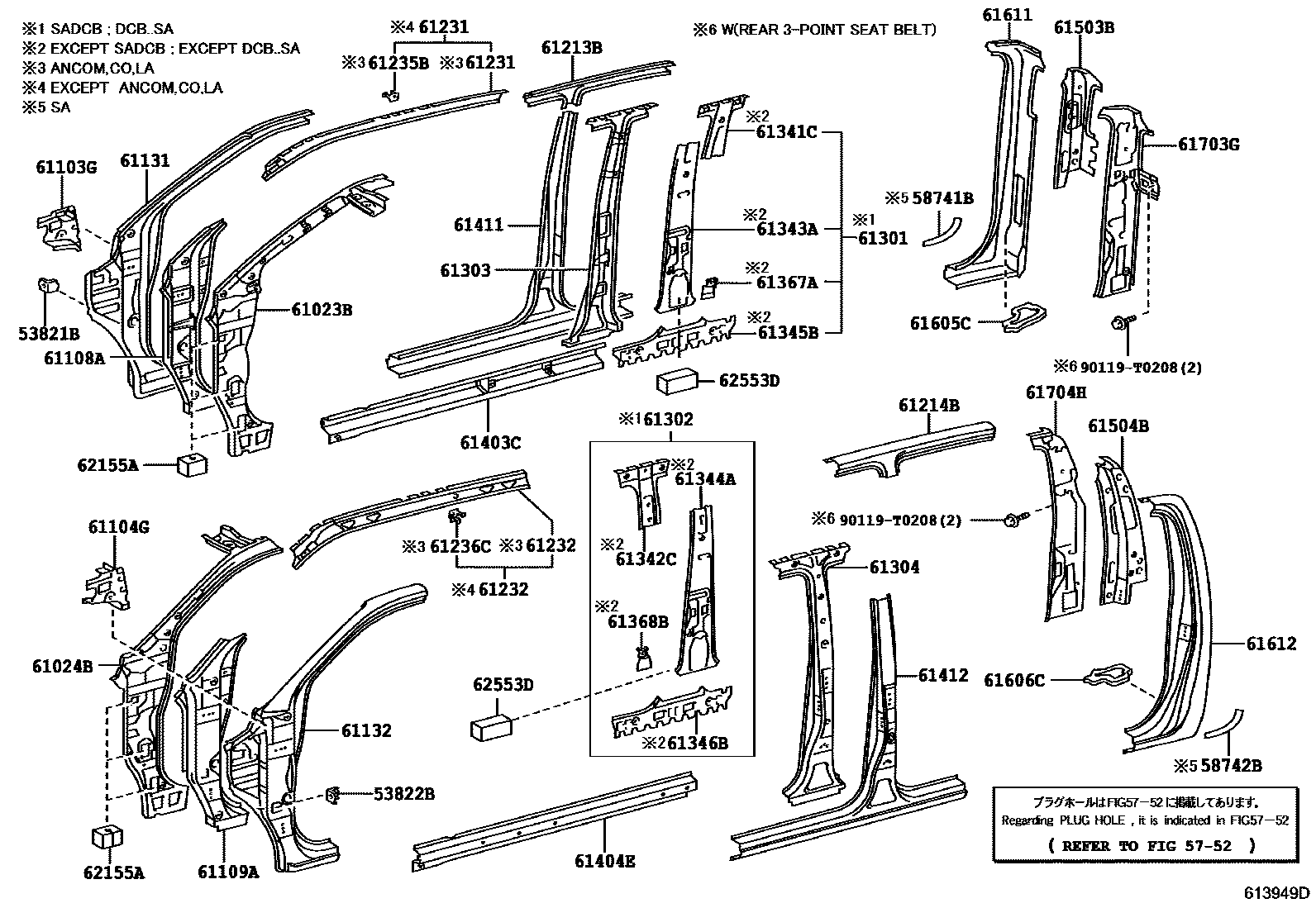

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iKUN15,25..PKN201107-201609

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iKUN2#..DCB..MA201107-201609

5752

58741BPROTECTOR, QUARTER PANEL, RH

main58741-0K050iKUN25,35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN16,26..DCB..SA201108-201512

main58741-0K060iKUN15,25,35,LAN15,25,TGN15,16..(SCB,XTR)..SA201108-201512

58742BPROTECTOR, QUARTER PANEL, LH

main58742-0K040iKUN25,35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN16,26..DCB..SA201108-201512

main58742-0K050iKUN15,25,35,LAN15,25,TGN15,16..(SCB,XTR)..SA201108-201512

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0K022iKUN2#,3#,TGN26,36..CO,LA201110-201510

sub61023-0K091

main61023-0K081iKUN15..RHD;KUN15..LHD..SCB..SA;LAN15,TGN16..SCB..SA;KUN35..DCB..DLX..GEN;TGN16..ARL,GCC,GEN,TH;KUN15..LHD..(GCC,GEN,PHL);GGN15,KUN10,16,TGN10,11,15201107-201609

main61023-0K091iKUN2#..DCB..MA201107-201609

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-0K022iKUN2#,3#,TGN26,36..CO,LA201110-201510

sub61024-0K102

main61024-0K092iKUN15..RHD;KUN15..LHD..SCB..SA;LAN15,TGN16..SCB..SA;KUN35..DCB..DLX..GEN;TGN16..ARL,GCC,GEN,TH;KUN15..LHD..(GCC,GEN,PHL);GGN15,KUN10,16,TGN10,11,15201107-201609

main61024-0K102iKUN2#..DCB..MA201107-201609

61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61103-0K010iKUN2#..DCB..MA201107-201609

61104GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61104-0K010iKUN2#..DCB..MA201107-201609

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0K010iKUN2#..DCB..MA201107-201609

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-0K010iKUN2#..DCB..MA201107-201609

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0K020iGGN15..DCB;GGN25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,PKN,SA,TH)201107-201510

main61131-0K030iGGN15,KUN1#,2#,TGN10,16..RHD..SCB..(ARL,GEN,IDN,MA,PKN,TH)201107-201609

main61131-0K040iKUN26..LA..IV3;KUN26..XTR..IV3;KUN15..LHD..SCB..GEN;KUN26..(SCB,XTR)..CBU;KUN15,25..(SCB,XTR)..(GCC,LA,PHL,SA);GGN15,KUN15,16,25..(THSCB,XTR)..(ARL,GEN,TH);KUN10,3#201107-201512

main61131-0K130iKUN15,16,2#,3#,TGN16..SMT201107-201504

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0K010iKUN2#..DCB..MA201107-201510

main61132-0K030iKUN15..LHD..SCB..SA;KUN15,TGN16..XTR..GEN;KUN15..RHD..(SCB,XTR);TGN16..SCB..(ARL,SA,TH);GGN15,KUN10,16,2#,3#,LAN15,25,TGN10,15,36..(SCB,XTR)..(ARL,GEN,IDN,MA,PKN,SA201107-201609

main61132-0K040iKUN10,15,2#,35,TGN1#,26,36..LHD..(SCB,THSCB)..(ANCOM,GCC,GEN,LA,PHL)201107-201510

main61132-0K100iKUN15,16,2#,3#,TGN16..SMT201107-201504

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0K010iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107-201609

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-0K010iKUN25..DCB..PKN201107-201609

61231RAIL, ROOF SIDE, INNER RH

main61210-0K021iKUN15,2#,3#,LAN15,25,TGN15,16,36..(SCB,XTR)..SA201108-201512

main61210-0K050iGGN15,KUN1#,2#,3#,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,PKN,TH)201107-201609

main61231-0K011iKUN26..DCB..LA;KUN26..(4FC,5F)..CO;GGN25,KUN25,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

main61231-0K903iKUN2#..DCB..MA201107-201609

61232RAIL, ROOF SIDE, INNER LH

main61220-0K021iKUN15,2#,3#,LAN15,25,TGN15,16,36..(SCB,XTR)..SA201108-201512

main61220-0K060iGGN15,KUN1#,2#,3#,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,PKN,TH)201107-201609

main61232-0K012iKUN26..DCB..LA;KUN26..(4FC,5F)..CO;GGN25,KUN25,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

main61232-0K904iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)201107-201609

61235BBRACKET, ASSIST GRIP

main61235-0K010iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,SMT,THSCB,XTR201107-201609

61236CBRACKET, ASSIST GRIP

main61235-0K010iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,SMT,THSCB,XTR201107-201609

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-0K071iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main61301-0K904iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-0K071iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main61302-0K904iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-0K010iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201510

main61303-0K020iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB201107-201609

main61303-0K031iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main61303-0K060iKUN2#..DCB..MA201107-201609

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-0K010iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201510

main61304-0K020iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB201107-201609

main61304-0K031iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main61304-0K060iKUN2#..DCB..MA201107-201609

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-0K040iKUN2#..DCB..MA201107-201510

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-0K040iKUN2#..DCB..MA201107-201510

61343APILLAR, CENTER BODY, INNER RH

main61343-0K012iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201210

main61343-0K041iKUN2#..DCB..MA201107-201510

61344APILLAR, CENTER BODY, INNER LH

main61344-0K012iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201210

main61344-0K041iKUN2#..DCB..MA201107-201510

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-0K010iKUN2#..DCB..MA201107-201510

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-0K010iKUN2#..DCB..MA201107-201510

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-0K010iKUN2#..DCB..MA201107-201510

61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

main61368-0K010iKUN2#..DCB..MA201107-201510

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0K010iKUN2#..DCB..MA201107-201609

main61403-0K050iKUN15,16,2#,3#,TGN16..SMT201107-201504

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-0K010iKUN2#..DCB..MA201107-201609

main61404-0K020iKUN15,16,2#,3#,TGN16..SMT201107-201504

61411PANEL, ROCKER, OUTER RH

main61411-0K010iKUN25..DCB..PKN201107-201609

61412PANEL, ROCKER, OUTER LH

main61412-0K010iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107-201609

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-0K010iKUN2#..DCB..MA201107-201609

main61503-0K022iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main61503-0K070iGGN15,25,KUN16,26,TGN16..DCB..ARL201311-201504

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-0K010iKUN2#..DCB..MA201107-201609

main61504-0K022iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main61504-0K070iGGN15,25,KUN16,26,TGN16..DCB..ARL201311-201504

61605CPANEL SUB-ASSY, QUATER, REAR INNER RH

main61567-0K010iKUN2#..DCB..MA201107-201609

61606CPANEL SUB-ASSY, QUATER, REAR INNER LH

main61568-0K010iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107-201609

61611PANEL, QUARTER, RH

main61611-0K010iKUN2#..DCB..MA201107-201510

main61611-0K020iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB201107-201609

main61611-0K030iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main61611-0K070iKUN15,16,2#,3#,TGN16..SMT201107-201504

61612PANEL, QUARTER, LH

main61612-0K010iGGN15..DCB;GGN25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,PKN,SA,TH)201107-201510

main61612-0K020iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB201107-201609

main61612-0K030iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main61612-0K070iKUN15,16,2#,3#,TGN16..SMT201107-201504

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61531-0K060iGGN15,25,KUN16,26,TGN16..DCB..ARL201311-201504

main61703-0K012iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201510

main61703-0K111iKUN2#..DCB..MA201107-201609

61704HPANEL SUB-ASSY, QUARTER, INNER LH

main61532-0K060iGGN15,25,KUN16,26,TGN16..DCB..ARL201311-201504

main61704-0K012iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201510

main61704-0K151iKUN2#..DCB..MA201107-201609

62155APAD, COWL SIDE LOWER SILENCER

main62155-0K010iKUN25..DCB..PKN201107-201609

62553DPAD, PILLAR, NO.3

main62557-0K010iKUN15,25..PKN201107-201609

main62557-0K050iKUN2#,3#,TGN26,36..CO,LA201110-201510

main62557-0K060iGGN25,35..RHD;KUN35..SR..SA;KUN26,36..4FC..SA;KUN26..DCB..5FC..IV3;KUN26..DCB..(4FC,5F)..ARL201107-201512

90119T0208

main90119-T0208
