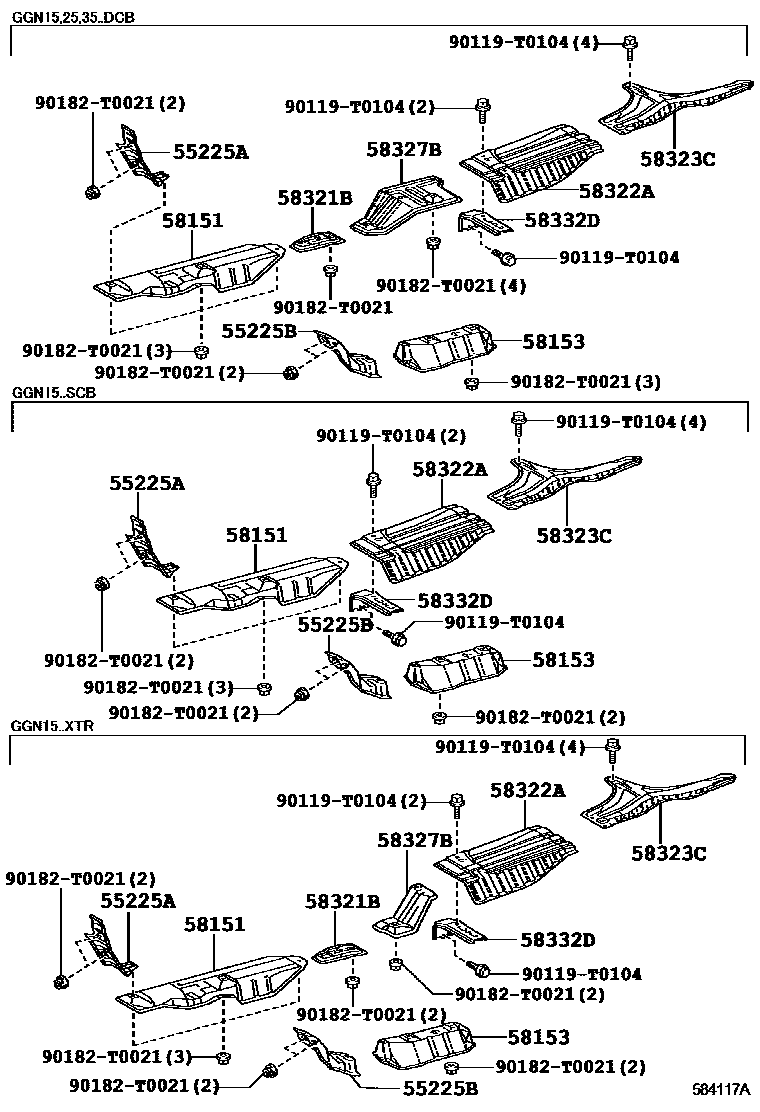

FLOOR INSULATOR

0001 1 0002 1 0003 1 0004 1

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K010iGGN25,TGN26,36..ANCOM201204

sub55225-0K030

main55225-0K030iKUN16..ARL,GEN;KUN26..5FC..IV3;KUN36..(5F,5FC)..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;TGN1#,26,36..ARL,GCC,GEN,IDN,TH;GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN26..(D201107-201601

main55225-0K040iGGN15,25,KUN16,26,36,TGN1#,26,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)201412-201504

55225BINSULATOR, DASH PANEL HEAT

main55225-0K020iGGN15,25,35201107-201411

sub55225-0K021

main55225-0K021iGGN15,25,35201412

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0K010iKUN15,25,35..(DCB,SCB)..SA201107-201609

sub58151-0K030

main58151-0K020iKUN35..DCB..DLX..GEN201308-201504

main58151-0K030iKUN35..PHL,TH;KUN26..5FC..IV3;KUN35..LHD..GEN;KUN15..HDCR..(GEN,TH);KUN36..(5F,5FC)..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL);GGN15,25,K201203-201412

main58151-0K060iKUN35..PHL,TH;KUN35..LHD..GEN;GGN15,25,KUN1#,2#,36,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)201412-201504

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0K010iGGN15,25,35201107-201411

sub58153-0K011

main58153-0K011iGGN15,25,35201412

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-0K010iGGN15,25,35,TGN15,16,26,36..DCB,SMT,THDCB,XTR201107-201411

sub58321-0K011

main58321-0K011iGGN15,25,35,TGN15,16,26,36..DCB,SMT,THDCB,XTR201412

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-0K011iTGN10,11201107-201411

main58322-0K130iGGN15,25,TGN1#,26,36..ARL,GCC,GEN,IDN,TH201411-201504

58323CINSULATOR, REAR FLOOR HEAT, NO.3

main58323-0K010iGGN15..SCB;GGN15..XTR..SR;GGN25..5FC..DLX;GGN15,25..DCB..5F;GGN25,35,TGN15,16,26,36..ANCOM,CO,LA,SA201107-201411

main58323-0K060iGGN15,25,TGN1#,26,36..ARL,GCC,GEN,IDN,TH201411-201504

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K010iKUN26..DCB..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);KUN26..(DCB,SADCB,THDCB)..(4FC,5F);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..DCB,THDCB201107-201411

sub58327-0K011¥2,270

main58327-0K011iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)¥2,270201412-201609

main58327-0K020iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201411

sub58327-0K021

main58327-0K021iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201412-201512

58332DINSULATOR, REAR FLOOR HEAT, NO.3

main58332-0K010iGGN15,25,35,TGN1#,26,36201107

90119T0104

main90119-T0104

90182T0021

main90182-T0021¥80
