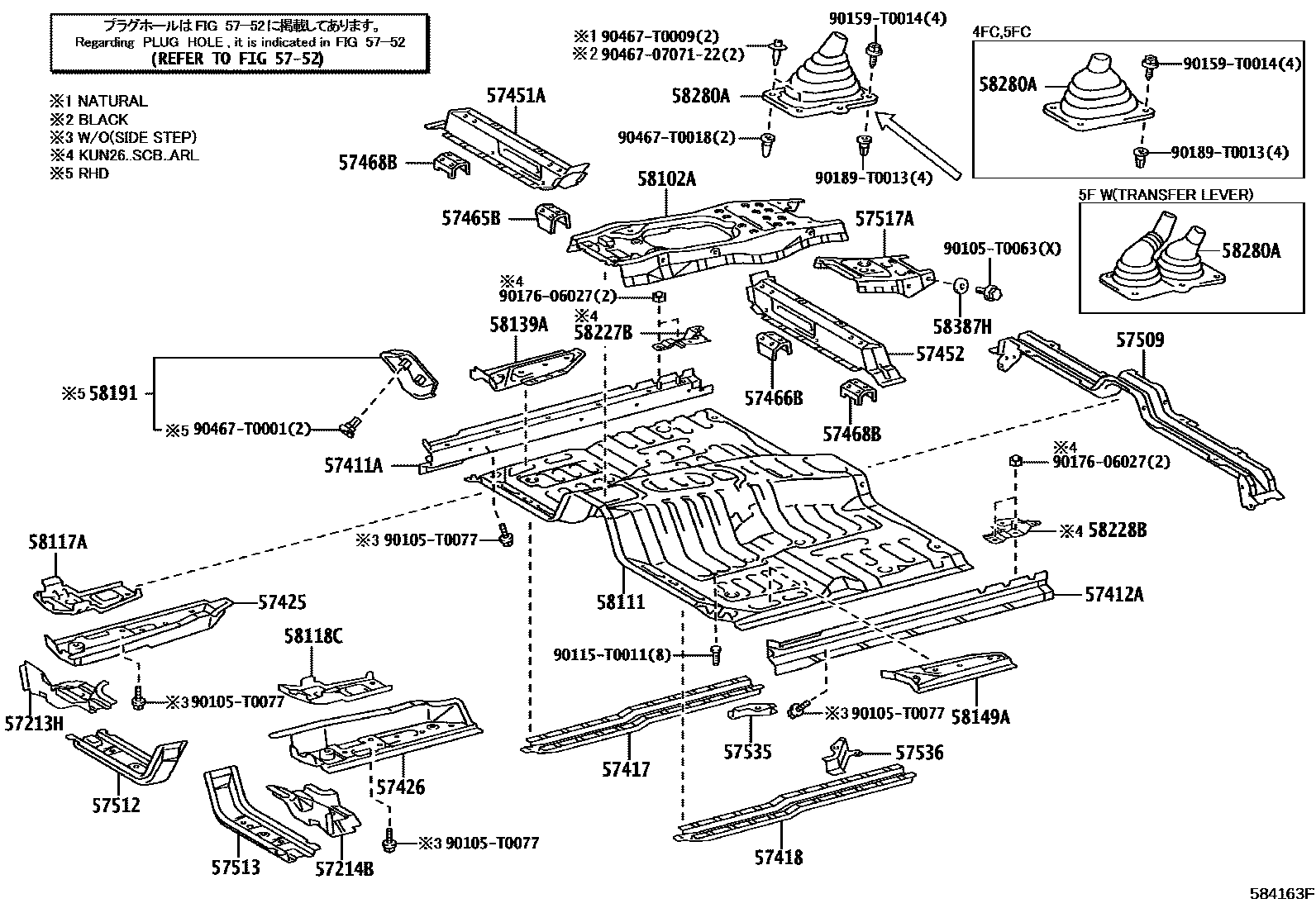

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FRONT FLOOR PANEL 0002 1REAR FLOOR PANEL 0003 1SIDE STEP 0004 1SIDE STEP

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-0K010iKUN2#..DCB..MA201107-201510

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-0K010iKUN15..HDCR..SA201206

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-0K010supersedes 57411-0K050iKUN15..HDCR..SA201206

main57411-0K040iKUN15,16,2#,3#,TGN16..SMT201107-201504

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-0K010supersedes 57412-0K050iKUN15..HDCR..SA201206

main57412-0K040iKUN15,16,2#,3#,TGN16..SMT201107-201504

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010iKUN15..HDCR..SA201206

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K010iKUN15..HDCR..SA201108-201206

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-0K010iKUN15..HDCR..SA201108-201206

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-0K010iKUN15..HDCR..SA201108-201206

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-0K010iKUN15..HDCR..SA201108-201206

main57451-0K020iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-0K020iKUN15,25..PKN201107-201609

57465BBRACKET, FRONT SEAT, INNER

main57465-0K010iKUN2#..DCB..MA201107-201510

57466BBRACKET, FRONT SEAT, INSIDE LH

main57466-0K010iKUN15..HDCR..SA201108-201206

57468BBRACKET, FRONT SEAT, REAR

main57468-0K010×2iKUN15..HDCR..SA201206

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-0K010iKUN25..PKN201107-201604

main57509-0K020iKUN15..XTR..DLX;KUN15..DCB,SCB,SMT;GGN15,KUN10,16,LAN15,TGN1#201107-201604

main57509-0K050iKUN25201604-201609

main57509-0K060iKUN15201604-201609

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K010iKUN15..XTR..TH;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201206

sub58151-0K030

main57512-0K030iKUN2#..DCB..MA201206-201510

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010iKUN15,25..PKN201107-201609

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57516-0K010iGGN25,KUN2#,35,TGN16,26,36..LHD..(4FC,5FC)201107

main57516-0K020iKUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD..5F201107

main57517-0K010iKUN2#..4FC..MA201107-201510

main57517-0K020iKUN15..HDCR..SA201108-201206

5752

57535BRACE, FRONT FLOOR, RH

main57535-0K010iKUN15..HDCR..SA201108-201206

main57535-KK010iKUN15..DCR..SA;KUN25..SCB..MA;GGN25,35,KUN2#,3#,LAN15,25,TGN1#,26,36..ANCOM,CO,GEN,LA,SA201505

57536BRACE, FRONT FLOOR, LH

main57536-0K010iKUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)201107-201603

main57536-KK010iKUN2#..DCB..MA201505-201510

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-0K010iGGN15,25,35,KUN16,2#,3#,TGN16,26,36..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107

main58102-0K020iKUN15..HDCR..SA201206

58111PAN, FRONT FLOOR

main58111-0K010iGGN15,35,KUN16,3#,TGN16,36..4FC,5FC201107

main58111-0K020iKUN2#..4FC..MA201107-201510

main58111-0K030iKUN15..HDCR..SA201108-201206

main58111-0K040iKUN25..SCB..MA;GGN25,KUN2#,LAN25,TGN26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-0K010iKUN15..HDCR..SA201108-201206

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-0K010iKUN15..HDCR..SA201108-201206

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-0K010iKUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-0K010iKUN15..HDCR..SA201108-201206

58191FOOTREST, FRONT FLOOR

main58191-0K010iKUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA201107-201303

main58191-0K020iKUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA201303-201512

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-0K040iKUN26..SCB..ARL201107-201504

58228BPLATE, FRONT FLOOR PANEL SIDE, LH

main58228-0K010iKUN26..SCB..ARL201107-201504

58280ABOOT ASSY, SHIFT LEVER

main58280-0K010iTGN10,15201107-201512

main58280-0K020iTGN11,16,36..5F201107-201512

main58280-0K030iKUN16,36..5F;KUN15,35..5F..HDCR201107-201512

main58280-0K040iKUN10,15..DCR201107-201609

main58280-0K050iLAN15,35201108-201512

main58280-0K060iGGN15..5F201107-201311

main58280-0K070iTGN26..4FC..GEN201208-201504

main58280-0K080iKUN26..4FC..ARL..CBU;KUN26..(4FC,5FC)..IV3;KUN2#..RHD..(4FC,5FC)..(GEN,IDN,MA,PKN,SA,TH)201107-201609

main58280-0K090iGGN25..RHD..5FC201107-201512

main58280-0K100iTGN26..LHD..4FC201107-201512

main58280-0K110iKUN2#..LHD..(4FC,5FC)201107-201512

main58280-0K120iGGN25..ANCOM201204

main58280-0K130iLAN25..RHD201108-201310

main58280-0K150iGGN25..5F201107-201311

main58280-0K160iLAN25,TGN26..LHD..5F201107

main58280-0K170iKUN2#..5F..(DCR,HDCR)..(CO,LA)201110-201510

sub90467-07071

main58280-0K200iKUN2#..RHD..5F201107-201609

main58280-0K210iKUN26..5F..IART;KUN2#..LHD..5F..(GCC,GEN,PHL,SA)201107-201512

58387HPLATE, REAR FLOOR

main58387-0K010supersedes 58387-0K010iKUN15..PKN;KUN25..4FC..PKN201107-201609

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

90105T0063

main90105-T0063

90105T0077

main90105-T0077

90115T0011

main90115-T0011

90159T0014

main90159-T0014

9017606027

main90176-06027

90189T0013

main90189-T0013

904670707122

main90467-0707122

90467T0001

main90467-T0001

90467T0009

main90467-T0009

90467T0018

main90467-T0018

41 parts on this diagram · 4 diagrams in section
