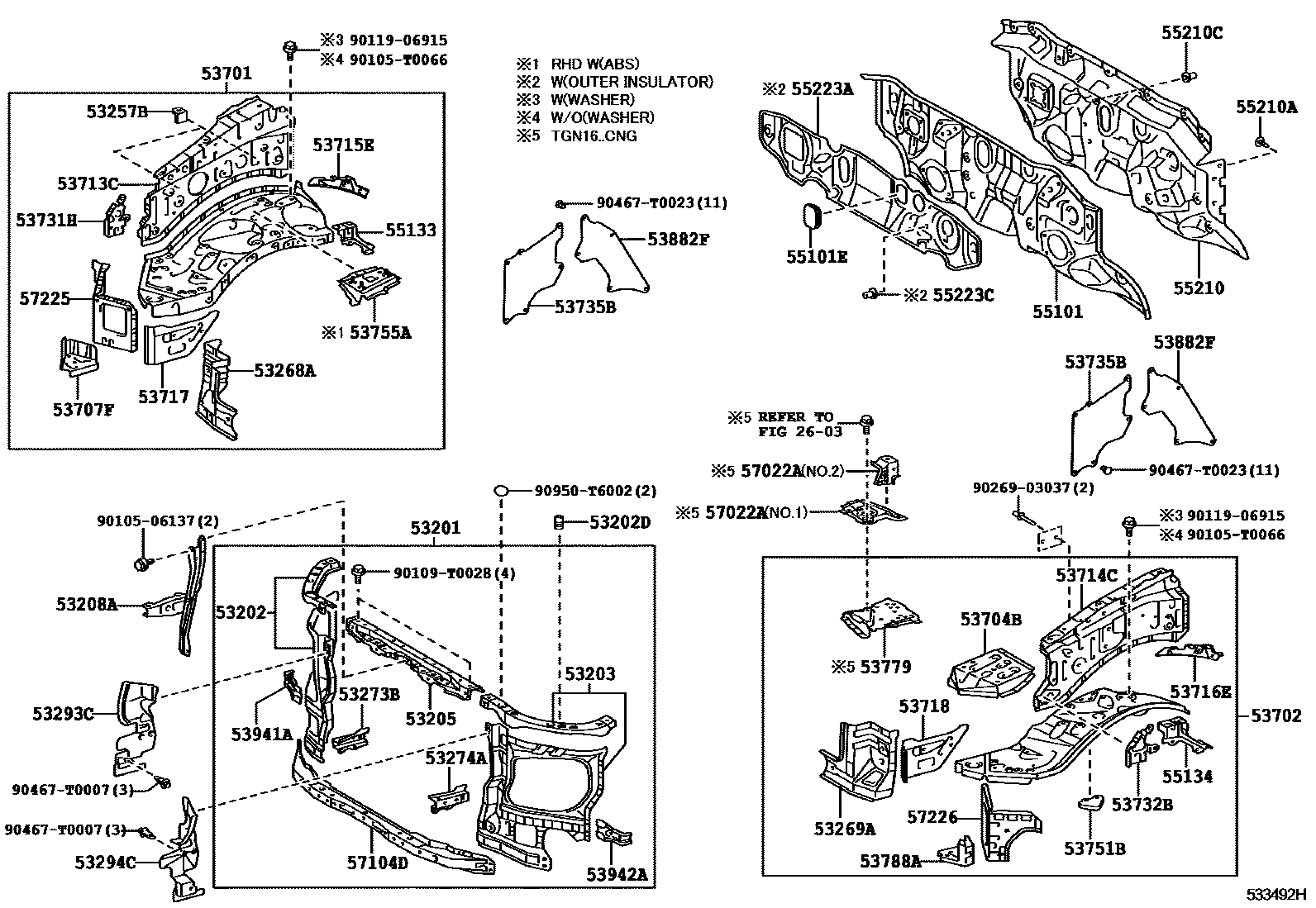

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

2603

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0K170iKUN15,25..PKN201107-201609

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0K010iKUN2#..DCB..MA201107-201609

53202DCUSHION, RADIATOR SUPPORT

main90541-15019iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

(J)

main90541-T0006iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

(L)

main90541-T0006iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0K010iKUN2#..DCB..MA201107-201609

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0K010iKUN2#..DCB..MA201107-201609

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0K010iKUN2#..DCB..MA201107-201609

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iKUN2#..DCB..MA201107-201609

main53257-35030iKUN25..RHD..DCB..SA201108-201512

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main53257-35030iKUN25..RHD..DCB..SA201108-201512

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-0K010iKUN2#..DCB..MA201107-201609

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-0K010iKUN2#..DCB..MA201107-201609

53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH

main53273-0K010iKUN2#..DCB..MA201107-201609

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0K010iKUN2#..DCB..MA201107-201609

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0K050iKUN15,25..PKN201107-201609

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0K050iKUN15,25..PKN201107-201609

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0K012iKUN35..SR..TH201107-201609

main53701-0K012iKUN16..SR..TH;KUN35..SMT..5FC;KUN16,35..RHD..(ARL,GEN);GGN15,25,KUN26,36..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,TH)201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K022iTGN10,16,26..RHD..(GEN,IDN,TH)201308-201512

main53701-0K022iTGN16,36..RHD..(ARL,SA)201107-201512

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K052iLAN15,25,35201108-201512

main53701-0K182iKUN26..RHD..SADCB;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;GGN25,35,KUN15,26,3#..RHD..SR..SA201108-201512

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K190iKUN35..5F..SR..TH201107-201609

main53701-0K200iTGN1#..GCC,GEN,SA;TGN26,36..LHD..(GCC,GEN,SA)201107-201512

main53701-0K331iTGN26,36..ANCOM201110

sub53701-0K190

main53701-0K341iGGN25..ANCOM201110

sub53701-0K200

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0K010iTGN16..SA;TGN16..DCB..5F..SR..GCC;TGN36..(DCB,THDCB)..DLX..HTWC201107-201203

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

sub53702-0K011

main53702-0K011iTGN36..DCB..DLX..HTWC..LA201204-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main53702-0K011iKUN15,25..PKN201204-201609

main53702-0K020iTGN16..GEN,SA;KUN15,35..PHL..CBU;TGN16..DCB..5F..SR..GCC;KUN26,36,TGN26..LHD..SR;TGN36..LHD..(DCB,THDCB)201107-201203

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub53702-0K021

sub44507-0K011

sub44590-0K011

sub44590-0K021

sub90179-08249

main53702-0K021iKUN26..SADCB..DLX;KUN15,25,LAN15,25,TGN26..LHD..SA201204-201210

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53702-0K021iKUN35..LA..CBU;KUN2#,36..DLX..(DCR,HDCR)..LA;KUN26,TGN36..SCB..(HTWCF,IART)201204

main53702-0K131iKUN35..5FC;KUN35..DCB..DLX..GEN201208-201504

main53702-0K150iTGN16..CNG201205-201504

main53702-0K160iTGN16..SA201210-201512

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main53702-0K160iKUN26..SADCB..DLX201210-201310

main53702-0K170iTGN16..SA;KUN15,25..DCB..SR..SA;KUN26..LHD..SADCB..SR201210-201512

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53702-0K170iKUN26..SADCB..DLX201310-201512

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-0K010iKUN2#..DCB..MA201107-201609

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-0K010iKUN2#..DCB..MA201107-201609

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0K010iKUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH201107-201609

main53713-0K040iGGN25,TGN26,36..ANCOM201110

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0K010iKUN2#..DCB..MA201107-201609

main53714-0K050iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201210-201512

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iKUN15,25..PKN201107-201609

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iKUN2#..DCB..MA201107-201609

53717PLATE, FENDER APRON, RH

main53717-0K010iKUN2#..DCB..MA201107-201609

53718PLATE, FENDER APRON, LH

main53718-0K010iKUN2#..DCB..MA201107-201609

53731HPATCH, FRONT FENDER APRON, RH

main53731-0K010iKUN2#..DCB..MA201107-201609

53732BPATCH, FRONT FENDER APRON, LH

main53732-0K010iKUN2#..DCB..MA201107-201609

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main53735-0K020iKUN26..IART;KUN2#,3#..CO,SA;KUN26..5FC..DCR..LA201108-201512

LH

main53735-0K020iKUN2#,3#..LA201107-201609

main53735-0K050iKUN2#,3#..(4FC,5F)..(DCR,HDCR)..LA201108-201512

RH

53751BBRACKET, CHARCOAL CANISTER MOUNTING

main53751-0K010iKUN15,25..PKN201107-201609

53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

main53755-0K010iKUN25..4FC..PKN201107-201609

main53755-0K010iKUN16..SR..TH;KUN35..SR..SA;KUN35..SMT..5FC;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;KUN16,35..RHD..(ARL,GEN);KUN15,TGN16..RHD..(HDCR,HTWC)..(ARL,SA);GGN15,25,35,KU201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

53779SEAT, BATTERY CARRIER SUPPORT

main53779-0K011iKUN35..5FC;KUN35..DCB..DLX..GEN201208-201504

main53779-0K020iTGN16..CNG201205-201504

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-0K010iKUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107-201609

53882FSEAL, FRONT FENDER

main53885-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main53885-0K020iKUN26..5FC..ARL..CBU201107-201609

53941ABRACKET, FRONT END PANEL, NO.1 RH

main53941-0K070iKUN2#..DCB..MA201107-201609

53942ABRACKET, FRONT END PANEL, NO.1 LH

main53942-0K060iKUN15,25..PKN201107-201609

55101PANEL SUB-ASSY, DASH

main55101-0K010iKUN25..SCB..MA;KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,36..RHD..5F..(ARL,GEN,IDN,PKN,SA,TH)201107-201609

main55101-0K020iKUN2#..4FC..MA201107-201609

main55101-0K030iKUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..5F..(ANCOM,GCC,GEN,PHL,SA)201107

main55101-0K040iGGN25,KUN2#,35,TGN16,26,36..LHD..(4FC,5FC)..(ANCOM,GCC,GEN,PHL,SA)201107

main55101-0K110iGGN15,25..5F201107-201311

main55101-0K160iKUN2#,3#,TGN26,36..5F..(CO,LA)201110-201510

main55101-0K170iKUN26,TGN26,36..(4FC,5FC)..(CO,LA)201110-201510

55101EGROMMET, DASH PANEL, NO.2

main87128-0K010iTGN26..DCB..5F..GEN201107-201504

FRONT HEATER-WITH

main87128-0K010iKUN15,26,35..SR..PHL201107-201504

FRONT HEATER-WITH(EVAPORATOR)&AIR CONDITIONER-SINGLE AIR CONDITIONER

main87128-0K010iKUN15,26,35..SR..PHL201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main87128-0K010iKUN25..4FC..DLX;TGN26..4FC..GEN;KUN25..LHD..DCB..5F..SA;KUN15..LHD..(DCB,XTR)..GEN;KUN25..5F..(CO,GCC,LA,PKN);KUN15,TGN26..ANCOM,CO,GCC,LA,PKN,SA;KUN15,TGN26..(SCB,201107

main87128-0K060iKUN25..MA201107-201601

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-0K010iKUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107-201609

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-0K010iKUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107-201609

55210INSULATOR ASSY, DASH PANEL

main55210-0K011iKUN26,36..5F..TH;KUN15,25,35..HDCR..TH201107-201609

main55210-0K021iKUN15..LHD..SCB..DCR..(GCC,GEN,PHL);KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN10,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(4FC,5F)..(GCC,GEN,PHL)201107-201504

main55210-0K030iKUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA201108-201512

main55210-0K040iKUN2#,35..5F..CO201108-201410

main55210-0K080iKUN15..DCB..TH;KUN15..SMT..SR;KUN2#,3#..5F..TH201107-201309

sub55210-0K081

main55210-0K081iKUN26..5FC..ARL..CBU201310-201312

sub55210-0K220

main55210-0K090iKUN15..SCB..HDCR..GEN;KUN2#,3#..(5F,5FC)..LA201110-201309

sub55210-0K091

main55210-0K091iKUN26..4FC..LA;KUN2#,35..THDCB201310-201312

CHILE SPEC(EURO 5 REGULATION)

sub55210-0K230

main55210-0K091iKUN15..SCB..HDCR..GEN;KUN2#,3#..(5F,5FC)..LA201310-201312

CHILE SPEC(EURO 4 REGULATION)

sub55210-0K230

main55210-0K220iKUN16..TH;KUN26..5FC..ARL..CBU201312-201504

main55210-0K230iKUN2#,3#..(5F,5FC)..LA201312-201402

main55210-0K230iKUN2#,35..THDCB..5F201312-201504

CHILE SPEC(EURO 5 REGULATION)

main55210-0K240iKUN2#,35..5F..CO201402-201510

55210ACLIP

main90467-T0004-B0iKUN25,35..CO201107-201609

LT.GRAY,TRIM1#

main90467-T0004-B0iKUN25,35..CO201107-201601

LT.GRAY,TRIM1#,2#

main90467-T0004-B0iKUN10,15,25,TGN1#,26..GCC201107-201504

LT.GRAY,TRIM1#,3#

main90467-T0004-B0iKUN10,15,25,TGN1#,26..GCC201107-201504

LT.GRAY,TRIM2#

main90467-T0004-E1iKUN16..TH201107-201609

SAND BEIGE,TRIM4#

55210CCLIP

main90467-06197iKUN15..DCB..TH;KUN15..SMT..SR;KUN2#,3#..5F..TH201107-201510

(J)

main90467-T0032iKUN35..DCB..LA;KUN2#,36..5F..(DCR,HDCR)..LA..CBU201107-201510

(L)

main90467-T0032iKUN26,36..5F..TH;KUN15,25,35..HDCR..TH201107-201609

main90467-T0032iKUN26..4FC..LA201110-201510

HIGH ALTITUDE COUNTRY SPEC

main90467-T0032iKUN26..4FC..LA201110-201510

PERU SPEC(HIGH ALTITUDE SPEC)

main90467-T0032iKUN26..4FC..LA201110-201510

PERU SPEC

main90467-T0032iKUN26..4FC..LA201110-201210

BRAZIL SPEC

main90467-T0032iKUN26..4FC..LA201110-201510

EXPORT FROM ARGENTINA

55223AINSULATOR, DASH PANEL, OUTER

main55223-0K010iKUN26..5FC..ARL..CBU201107-201609

main55223-0K020iKUN10,15,2#,3#,LAN15,25..LHD201107-201512

55223CCLIP

main90467-T0032iKUN10,15,2#,3#,LAN15,25..LHD201107-201609

57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main65153-0K020iTGN16..CNG201205-201504

NO.1

main65163-0K030iTGN16..CNG201205-201504

NO.2

57104DMEMBER SUB-ASSY, FRONT CROSS

main57161-0K010iKUN15,25..PKN201107-201609

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-0K010iKUN2#..DCB..MA201107-201609

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-0K010iKUN2#..DCB..MA201107-201609

9010506137

main90105-06137

90105T0066

main90105-T0066

90109T0028

main90109-T0028

9011906915

main90119-06915

9026903037

main90269-03037

90467T0007

main90467-T0007

90467T0023

main90467-T0023

90950T6002

main90950-T6002

55 parts on this diagram · 2 diagrams in section
