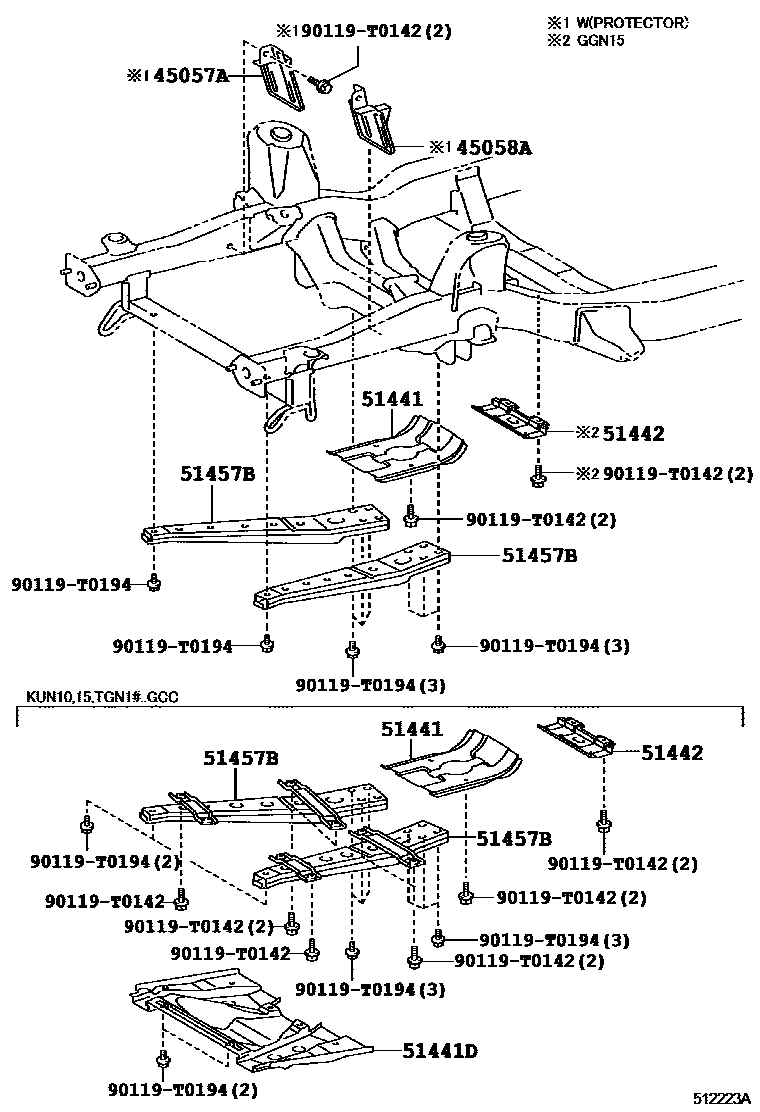

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

45057APROTECTOR SUB-ASSY, RACK BOOT, NO.1 RH

main45057-0K010iGGN15,KUN15,16,LAN15,TGN15,16..ARL,GEN,PHL,PKN,SA,TH201107-201609

45058APROTECTOR SUB-ASSY, RACK BOOT, NO.1 LH

main45058-0K010iGGN15,KUN15,16,LAN15,TGN15,16..ARL,GEN,PHL,PKN,SA,TH201107-201609

51441COVER, ENGINE UNDER, NO.1

main51410-0K021iKUN25..PKN201107-201609

main51441-0K020iTGN16..GCC;GGN15,KUN10,15,TGN10,11,15..ARL,GCC201107-201504

51441DCOVER, ENGINE UNDER

main51441-0K040iKUN10,15,TGN1#..GCC201107-201504

main51441-0K050iKUN25..SR..IDN;TGN26..4FC..GEN;KUN25..RHD..(SA,TH);KUN25,TGN26..CO,GCC,LA;KUN26,35..ARL,CO,LA,MA,SA,TH;GGN25,35,KUN36,TGN36..ARL,GEN,LA,SA,TH;KUN2#,35,TGN26..LHD..(201107-201601

51442COVER, ENGINE UNDER, NO.2

main51420-0K010iKUN25..PKN201107-201609

main51420-0K040iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,SA201107-201512

main51442-0K030iTGN16..GCC;GGN15,KUN10,15,TGN10,11,15..ARL,GCC201107-201504

51457BBRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBER

main51405-0K010iGGN15,KUN1#,LAN15,TGN10,15,16..ARL,GEN,IDN,PHL,PKN,SA,TH201107-201609

main51405-0K020iKUN25..PKN201107-201609

main51405-0K030iKUN10,15,TGN1#..GCC201107-201504

RH

main51405-0K040iKUN10,15,TGN1#..GCC201107-201504

LH

90119T0142

main90119-T0142

90119T0194

main90119-T0194

8 parts on this diagram · 2 diagrams in section
