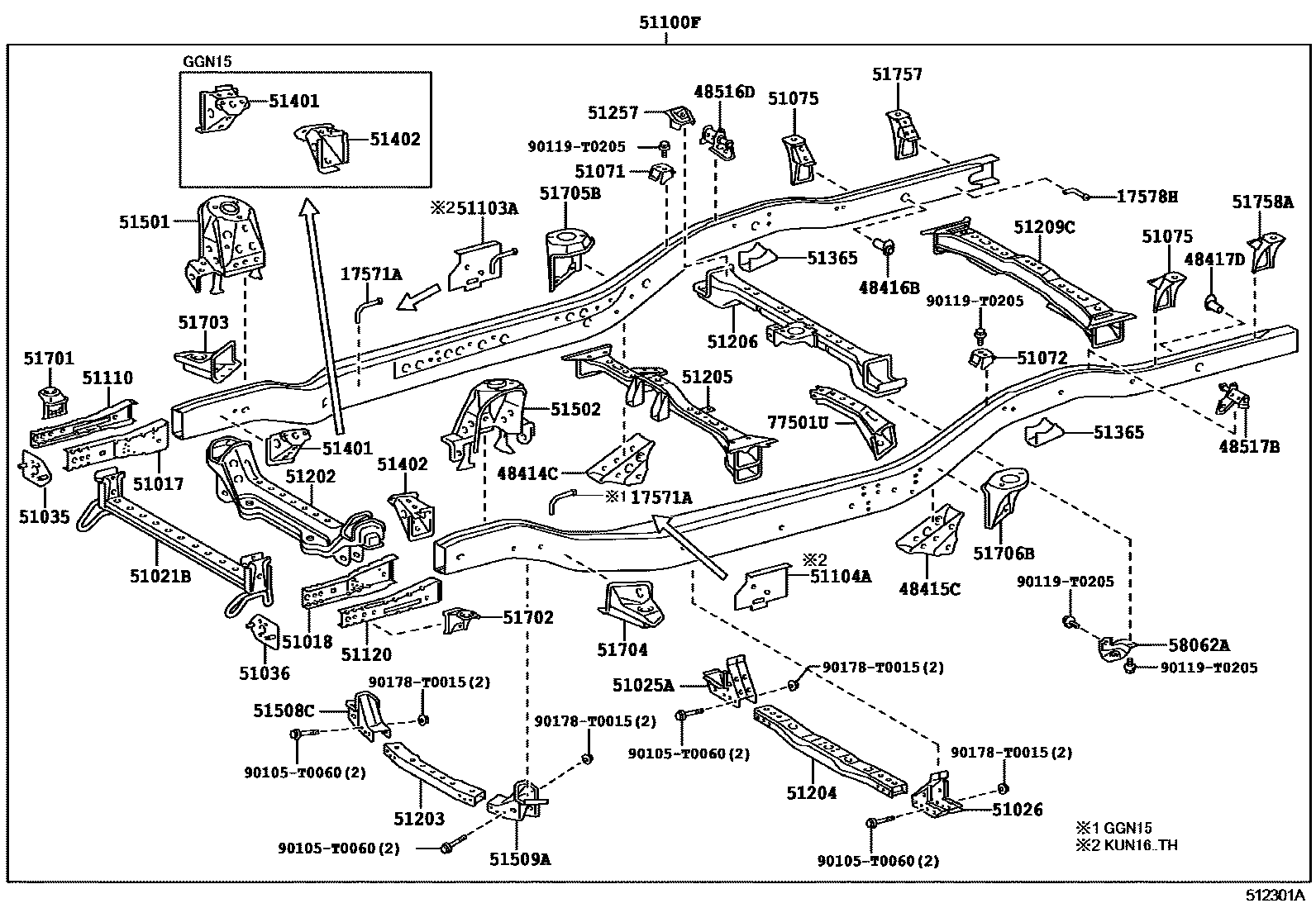

FRAME
17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9
17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10
48414CBRACKET, SPRING, NO.3 RH
48415CBRACKET, SPRING, NO.3 LH
main48407-0K020iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609
48416BBRACKET, SPRING, NO.4 RH
48417DBRACKET, SPRING, NO.4 LH
main48405-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609
48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
main48505-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609
48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
51017REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51018REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
main51018-0K020iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
main51025-0K010iTGN36..4FC..LA;TGN26..SCB..ANCOM;TGN36..5F..(ANCOM,LA);KUN2#,3#,TGN26..CO,LA201110-201510
sub51025-0K030
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
main51026-0K010iTGN36..4FC..LA;TGN26..SCB..ANCOM;TGN36..5F..(ANCOM,LA);KUN2#,3#,TGN26..CO,LA201110-201510
sub51026-0K030
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
main51035-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
main51071-0K030iGGN15..DCB;GGN25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609
51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51075BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3 RH
51100FFRAME SUB-ASSY
sub51001-0K314
sub51001-0K335
sub51001-0K374
sub51001-0K375
sub51001-0K405
sub51001-0K442
sub51001-0K443
sub51001-0K453
sub51001-0K463
sub51001-0K472
sub51001-0K473
sub51001-0KF50
sub51001-0K483
sub51001-0K604
sub51001-0K654
AFRICA SPEC
sub51001-0K844
sub51001-0K874
sub51001-0KF60
sub51001-0KA44
sub51001-0KC43
sub51001-0KC44
sub51001-0KE92
sub51001-0KF41
main51001-0KF51iKUN35..LHD..GEN;KUN35..DCB..(4FC,5F)..(PHL,TH);KUN36..DCB..(4FC,5F)..(GEN,TH)201107-201504
51103AREINFORCEMENT SUB-ASSY, INNER CHANNEL, REAR RH
51104AREINFORCEMENT SUB-ASSY, INNER CHANNEL, REAR LH
51110EXTENSION ASSY, SIDE RAIL, RH
51120EXTENSION ASSY, SIDE RAIL, LH
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
main51209-0K030iKUN35..RHD..(GEN,SA);KUN26,TGN26..(SADCB,SCB)..GEN;GGN15,25,35,KUN1#,2#,36,LAN15,25,35,TGN1#,26,36..ARL,GCC,SA201107-201512
51257REINFORCEMENT, FRAME NO.5 CROSSMEMBER, RH
51365STOPPER, REAR BUMPER
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
main51501-0K040iTGN36..4FC..LA;TGN26..SCB..ANCOM;TGN36..5F..(ANCOM,LA);KUN2#,3#,TGN26..CO,LA201310-201510
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51508CBRACKET SUB-ASSY, LOWER CONTROL LINK, RH
51509ABRACKET SUB-ASSY, LOWER ARM, LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
main51704-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51757BRACKET, BODY SUPPORT, NO.4 RH
51758ABRACKET, BODY SUPPORT, NO.4 LH
58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR
77501UBRACKET SUB-ASSY, FUEL TANK
90105T0060
main90105-T0060
90119T0205
main90119-T0205
90178T0015
main90178-T0015
50 parts on this diagram · 9 diagrams in section
