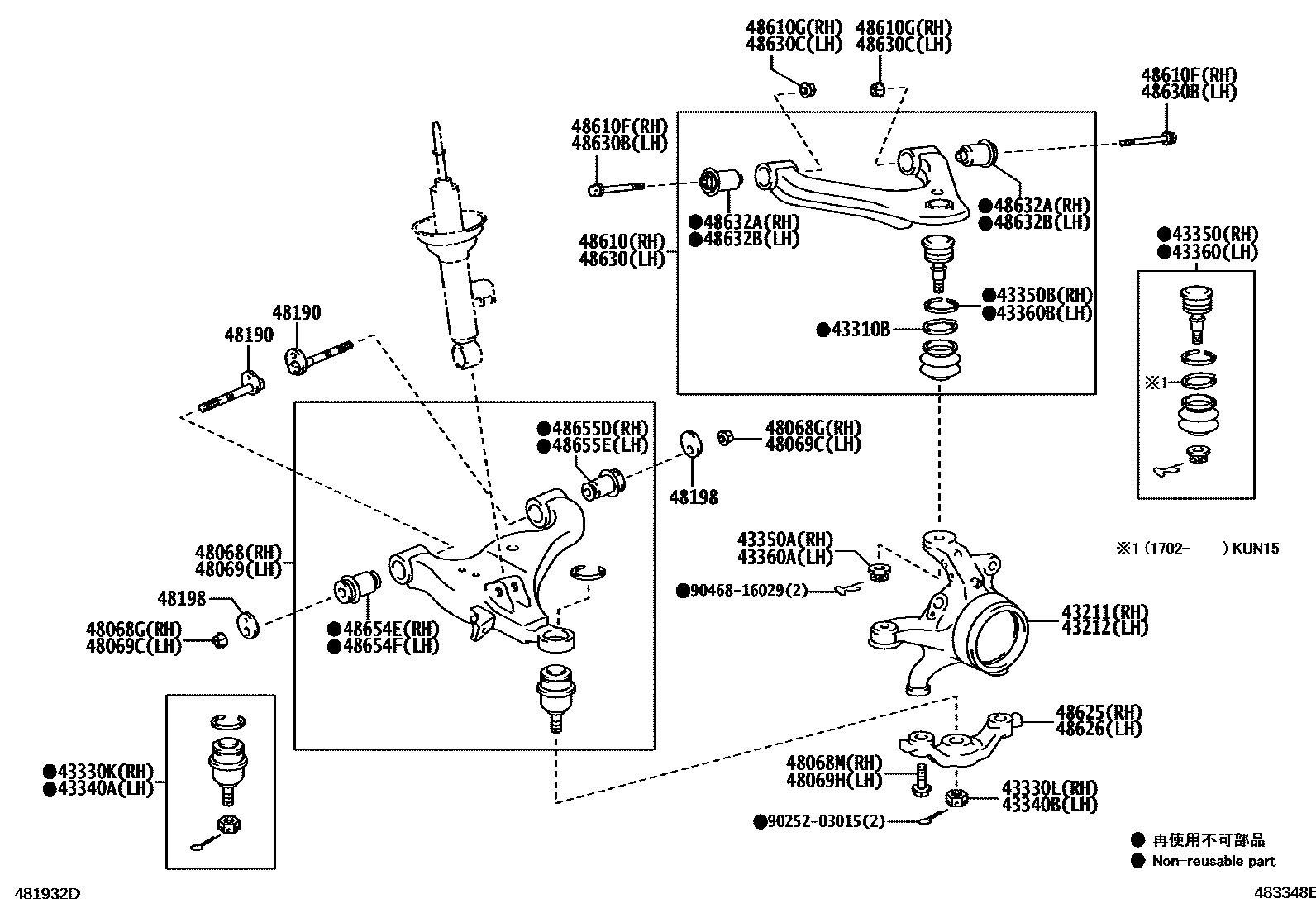

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-0K030supersedes 43211-0K040iKUN25..IDN,TH;KUN35..DCB..TH;KUN35..SMT..5F;TGN26..4FC..GEN201308

main43211-0K040supersedes 43211-0K040iTGN36..DCB..DLX..HTWC..LA201107-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main43211-0K070iTGN16..4FC..SR;KUN15..XTR..GEN;KUN15..SCB..DCR..TH;TGN16..SCB..(GCC,GEN);TGN16..DCB..DLX..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(DCR,DEFI,HTWC)..(GCC,GEN,SA)201107-201512

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43211-0K080supersedes 43211-0K080iTGN16..4FC..SR;KUN15..XTR..GEN;TGN16..SCB..(GCC,GEN);TGN16..DCB..DLX..(GCC,GEN);KUN1#,LAN15,TGN10,11,15..(DLX,STD)..(DCR,DEFI,HTWC)..(GCC,GEN,PKN,SA,TH)201107-201609

43212KNUCKLE, STEERING, LH

main43212-0K030supersedes 43212-0K040iKUN25,36..DLX..LA;KUN26,TGN36..SCB..(HTWCF,IART);KUN26,35..LHD..(DCB,SADCB,SCB)..DLX..(DCR,HDCR)..(GEN,LA)..CBU201310

main43212-0K040supersedes 43212-0K040iTGN36..DCB..DLX..HTWC..LA201107-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main43212-0K070iTGN16..4FC..SR;KUN15..XTR..GEN;KUN15..SCB..DCR..TH;TGN16..SCB..(GCC,GEN);TGN16..DCB..DLX..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(DCR,DEFI,HTWC)..(GCC,GEN,SA)201107-201512

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43212-0K080supersedes 43212-0K080iTGN16..4FC..SR;KUN15..XTR..GEN;TGN16..SCB..(GCC,GEN);TGN16..DCB..DLX..(GCC,GEN);KUN1#,LAN15,TGN10,11,15..(DLX,STD)..(DCR,DEFI,HTWC)..(GCC,GEN,PKN,SA,TH)201107-201609

43310BRING, SET (FOR DUST COVER)

main90580-10001×2iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09510iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iKUN15,25..PKN201107-201609

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09510iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iKUN15,25..PKN201107-201609

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09015iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

sub43310-09017

main43310-09030iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iKUN15,25..PKN201107-201609

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iKUN15,25..PKN201107-201609

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09015iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

sub43310-09017

main43310-09030iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main48068-0K040iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main48068-0K050iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0073×2iGGN15,KUN1#,LAN15,TGN1#201107-201609

main90178-T0081×2iKUN25..PKN201107-201609

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16053×2iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36201107-201405

main90105-T0305×2iKUN15..PKN201405-201609

(L)

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main48069-0K040iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main48069-0K050iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0073×2iGGN15,KUN1#,LAN15,TGN1#201107-201609

main90178-T0081×2iKUN25..PKN201107-201609

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16053×2iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36201107-201405

main90105-T0305×2iGGN15,25,35,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201405

(L)

48190CAM ASSY, CAMBER ADJUST

main48190-0K010×2iKUN25..PKN201107-201609

main48190-0K020×4iGGN15,KUN1#,LAN15,TGN1#201107-201609

48198CAM, CAMBER ADJUST, NO.2

main48198-0K010×4iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

main48198-0K020×4iGGN15,KUN1#,LAN15,TGN1#201107-201609

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main48610-0K040iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main48610-0K050iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-T0114iKUN25..PKN201107-201609

main90119-T0348×2iGGN15,KUN1#,LAN15,TGN1#201107-201609

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0027iKUN25..PKN201107-201609

main90178-T0047×2iGGN15,KUN1#,LAN15,TGN1#201107-201609

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-0K011iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

sub48625-0K050

main48625-0K020iKUN25..PKN201107-201609

main48625-0K030iKUN15,LAN15,TGN15,16..SA201108-201512

main48625-0K040iKUN26..SADCB;GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-0K011iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

sub48626-0K050

main48626-0K020iGGN25,KUN2#,3#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH)201107

main48626-0K030iKUN15,LAN15,TGN15,16..SA201108-201512

main48626-0K040iKUN26..SADCB;GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main48630-0K040iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main48630-0K050iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-T0114iKUN25..PKN201107-201609

main90119-T0348×2iGGN15,KUN1#,LAN15,TGN1#201107-201609

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0027iKUN25..PKN201107-201609

main90178-T0047×2iGGN15,KUN1#,LAN15,TGN1#201107-201609

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K010×2iGGN15,KUN1#,LAN15,TGN1#201107-201609

main48632-0K040×2iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main48632-0K050×2iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-202110

sub48632-0K110

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K010×2iGGN15,KUN1#,LAN15,TGN1#201107-201609

main48632-0K040×2iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main48632-0K050×2iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-202110

sub48632-0K110

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main48654-0K040iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main48654-0K050iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-202110

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main48654-0K040iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main48654-0K050iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-202110

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main48655-0K040iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main48655-0K050iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-202110

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main48655-0K040iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main48655-0K050iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-202110

9025203015

main90252-03015

9046816029

main90468-16029

37 parts on this diagram · 2 diagrams in section
