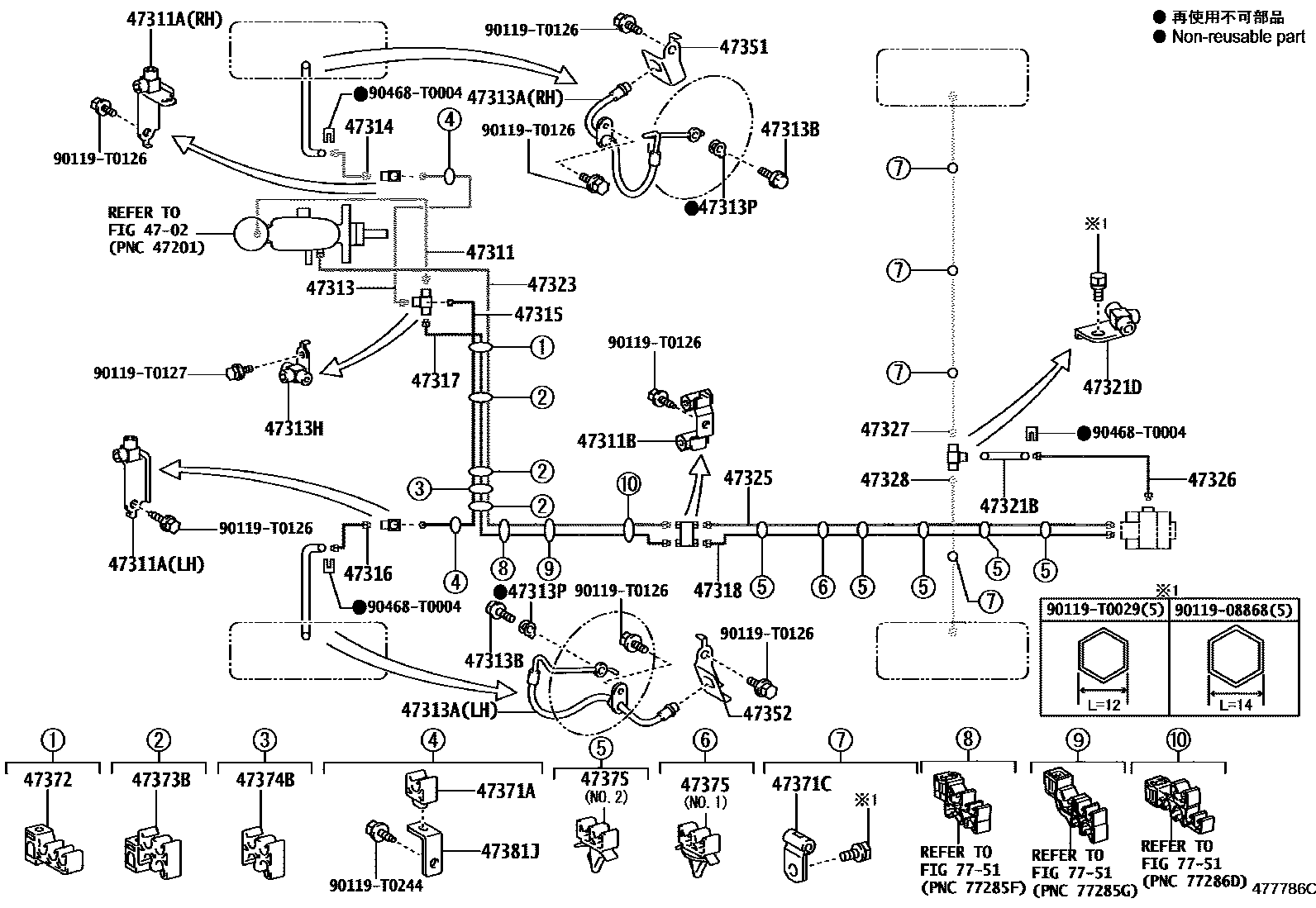

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0011 1 0012 1W(ABS) 0016 1W(ABS) 0019 1W(ABS) 0020 1W(ABS) 0021 1W(ABS) 0023 1W(ABS) 0025 1W(ABS) 0026 1W(ABS) 0030 1W(VSC) 0033 1W(VSC) 0035 1W(ABS) 0043 1W(VSC) 0044 1W(VSC) 0046 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0K010supersedes 47311-0K150iKUN15..HDCR..SA201310

main47311-0K020iKUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA201108-201310

main47311-0K030iGGN25,TGN26,36201609

main47311-0K041iKUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA201108-201310

main47311-0K070iGGN25,TGN26,36..ANCOM201204-201609

main47311-0K150supersedes 47311-0K150iKUN26..SCB..5FC;KUN26..5FC..ARL..CBU201107-201512

VSC-WITH

main47311-0K160iKUN26,36..(5F,5FC)..SR..DCR..LA201110-201510

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10251iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

RH

main90412-10252iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

LH

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10253iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

47313TUBE, FRONT BRAKE, NO.3

main47313-0K010supersedes 47313-0K020iGGN25..5FC..DLX;KUN35..SMT..5FC;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;GGN15,KUN36,TGN36..RHD;KUN16,35..RHD..(ARL,GEN);GGN25,KUN16..SR..(SA,TH);KUN25,35..RHD..SR.201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47313-0K020supersedes 47313-0K020iKUN25..5F..PKN;KUN25..RHD..GEN;KUN15,16..RHD..(DLX,STD)..DCR..(GEN,PKN,TH)201107-201609

main47313-0K030iKUN25..RHD..DCB..SA201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47313-0K040iTGN36;GGN25,TGN26..SR201609

main47313-0K050supersedes 47313-0K050iTGN26..DLX201609

main47313-0K060iTGN26..SA;KUN26,TGN36..SCB..(HTWCF,IART);KUN15,25,36,LAN15,25..LHD..DLX..(LA,SA);KUN26,35..LHD..(DCB,SADCB,SCB)..DLX..(DCR,HDCR)..(GEN,LA)..CBU201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47313-0K100iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM201204-201609

main47313-0K110iTGN26,36..5F..DLX..ANCOM201204-201609

main47313-0K130supersedes 47313-0K130iKUN26..SCB..5FC;KUN26..5FC..ARL..CBU201107-201512

VSC-WITH

main47313-0K140iKUN26,36..(5F,5FC)..SR..DCR..LA201110-201510

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94029×2iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

main90947-T2004iGGN15,KUN1#,LAN15,TGN1#201107-201609

RH

main90947-T2005iGGN15,KUN1#,LAN15,TGN1#201107-201609

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iKUN15..PKN..IV3;KUN15,16..DCR..TH201107-201212

main90401-10058×2iGGN15,KUN1#,LAN15,TGN1#201212-201609

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90413-10309supersedes 90413-10309iGGN25..5FC..DLX;KUN35..SMT..5FC;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;GGN15,KUN36,TGN36..RHD;KUN16,35..RHD..(ARL,GEN);GGN25,KUN16..SR..(SA,TH);KUN25,35..RHD..SR.201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main90413-10312iTGN16..SA;TGN26..SR;TGN16..XTR;TGN16..DCB..5F..SR..GCC;KUN15,TGN26..DLX..(DCR,HTWCF)..(LA,PHL);KUN15,35..LHD..(DCB,SCB)..HDCR..(GEN,PHL);GGN25,KUN15,2#..LHD..SR..(A201107

main90414-10055supersedes 90414-10055iKUN25,36..DLX..LA;KUN26,TGN36..SCB..(HTWCF,IART);KUN26,35..LHD..(DCB,SADCB,SCB)..DLX..(DCR,HDCR)..(GEN,LA)..CBU201107-201310

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iGGN15,KUN1#,LAN15,TGN1#201107-201609

47314TUBE, FRONT BRAKE, NO.4

main47314-0K020iGGN15,KUN1#,LAN15,TGN1#201107-201609

main47314-0K030iKUN26..DCB..5FC..IV3201410

main47314-0K050iGGN25,TGN26,36..ANCOM201204-201609

47315TUBE, FRONT BRAKE, NO.5

main47315-0K010supersedes 47315-0K020iKUN35..5FC;KUN25..IDN,TH;TGN16..SR..TH;KUN15..SMT..SR;KUN35..DLX..TH;KUN15,TGN26..RHD..(DCB,SCB)..(HDCR,HTWC)201107-201308

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47315-0K020supersedes 47315-0K020iKUN35..5FC;KUN35..DLX..TH;KUN10,25,TGN10,16..IDN,TH;KUN15,TGN26..RHD..(HDCR,HTWC)..(GEN,TH)201107-201308

main47315-0K030iKUN25..RHD..DCB..SA201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47315-0K040iTGN36;GGN25,TGN26..SR201609

main47315-0K050supersedes 47315-0K050iKUN15,25,LAN15,25,TGN26..LHD..DLX..SA201310

main47315-0K060iTGN26..SA;KUN26,TGN36..SCB..(HTWCF,IART);KUN15,25,36,LAN15,25..LHD..DLX..(LA,SA);KUN26,35..LHD..(DCB,SADCB,SCB)..DLX..(DCR,HDCR)..(GEN,LA)..CBU201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47315-0K100iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM201204-201609

main47315-0K110iTGN26,36..5F..DLX..ANCOM201204-201609

main47315-0K140iKUN26..4FC..LA201110-201210

main47315-0K150supersedes 47315-0K150iKUN26..DCB..5FC..IV3201410-201512

47316TUBE, FRONT BRAKE, NO.6

main47316-0K020iGGN15,KUN1#,LAN15,TGN1#201107-201609

main47316-0K030iKUN26..CBU;KUN26..SCB..5FC;KUN26..(4FC,5F)..IV3;GGN25,35,KUN25,3#,LAN25,35,TGN26,36..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

main47316-0K050iGGN25,TGN26,36..ANCOM201204-201609

47317TUBE, FRONT BRAKE, NO.7

main47317-0K010supersedes 47317-0K010iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201308

main47317-0K020iGGN25,TGN26,36201609

main47317-0K030iKUN26..5F..SR..DCR..LA201210-201510

EXPORT FROM ARGENTINA&VSC-WITHOUT

main47317-0K050iKUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA201108-201310

main47317-0K060iGGN25,TGN26,36..ANCOM201204-201609

47318TUBE, FRONT BRAKE, NO.8

main47318-0K010iKUN10,TGN10,11201107-201504

main47318-0K020supersedes 47318-0K020iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201308

main47318-0K040iGGN25,TGN26,36..ANCOM201204-201609

main47318-0K070iKUN15,25..PKN201109-201609

47321TUBE, REAR BRAKE, NO.1

main47321-0K010supersedes 47321-0K110iKUN35..XTR;KUN25..SR..MA;KUN16..SR..TH;GGN25..5FC..DLX;KUN35..SMT..5FC;GGN15,KUN36..ARL,GEN,TH;KUN26..RHD..(DCB,SCB)..4FC..(ARL,GEN,MA);KUN26..RHD..(DCB,SMT)..(5F,5201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47321-0K020iKUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47321-0K030iKUN15..PHL..IV3201308

main47321-0K040iTGN26..SA;TGN36..SCB..HTWCF;KUN25..LHD..SCB..SA;KUN25,35..LHD..DCB..(LA,SA);KUN26..LHD..(DCB,SADCB)..DLX..DCR;KUN15,36,LAN15,25..LHD..DLX..(LA,SA)201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47321-0K060iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM201204-201609

main47321-0K110supersedes 47321-0K110iKUN26..SCB..5FC;KUN26..5FC..ARL..CBU201107-201512

VSC-WITH

main47321-0K120iKUN26..4FC..LA201110-201210

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2011iGGN15,KUN1#,LAN15,TGN1#201107-201609

main90947-T2015supersedes 90947-T2058iKUN26..4FC..LA201210

main90947-T2057iKUN26..4FC..LA201107-201210

NO.1

main90947-T2058supersedes 90947-T2058iKUN26..4FC..LA201107-201210

NO.2

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10308supersedes 90413-10308iKUN25..PKN201107-201609

main90413-10311iGGN15,KUN1#,LAN15,TGN1#201107-201609

47323TUBE, REAR BRAKE, NO.3

main47323-0K010supersedes 47323-0K130iKUN35..5FC;KUN25..IDN,TH;TGN16..SR..TH;KUN15..SMT..SR;KUN35..DLX..TH;KUN15,TGN26..RHD..(DCB,SCB)..(HDCR,HTWC)201107-201308

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47323-0K020supersedes 47323-0K020iKUN25..5F..PKN;KUN25..RHD..GEN;KUN15,16..RHD..(DLX,STD)..DCR..(GEN,PKN,TH)201107-201609

main47323-0K030iKUN25..RHD..DCB..SA201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47323-0K040iTGN16..SA;TGN16..XTR;TGN26..SR..(CO,GEN,LA);TGN16..DCB..5F..SR..GCC;KUN15,2#..LHD..SR..(CO,GEN,PHL,SA);KUN15,TGN26..DLX..(DCR,HTWCF)..(LA,PHL);KUN15,35..LHD..(DCB,S201107

main47323-0K050supersedes 47323-0K050iTGN16..4FC..SR;TGN16..DCB..DLX..(GCC,GEN);KUN15..LHD..(DCB,XTR)..DLX..(GCC,GEN);KUN15,TGN16..LHD..SCB..(DCR,HTWC)..(GCC,GEN);KUN10,2#,35,TGN10,11,15,26..LHD..(DCB,S201107

main47323-0K060iTGN16..SA201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47323-0K100iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM201204-201609

main47323-0K110iTGN26,36..5F..DLX..ANCOM201204-201609

main47323-0K130supersedes 47323-0K130iKUN26..SCB..5FC;KUN26..5FC..ARL..CBU201107-201512

VSC-WITH

main47323-0K140iKUN26,36..(5F,5FC)..SR..DCR..LA201110-201510

47325TUBE, REAR BRAKE, NO.5

main47325-0K010iKUN10,TGN10,11201107-201504

main47325-0K020supersedes 47325-0K120iGGN25..5F;GGN25..5FC..DLX;KUN26..4FC..(ARL,GEN,PHL,SA);GGN25,KUN26..(5F,5FC)..(GEN,PHL,SA,TH);GGN15,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,PHL,S201107-201512

main47325-0K050iGGN25,TGN26,36..ANCOM201204-201609

main47325-0K090iKUN15,25..PKN201109-201609

main47325-0K120supersedes 47325-0K120iKUN26..5FC..DCR..(ARL,LA);KUN26,36..5F..SR..DCR..LA201107-201512

VSC-WITH

47326TUBE, REAR BRAKE, NO.6

main47326-0K010supersedes 47329-0K021iGGN25..5FC..DLX;KUN26..SR..IART;KUN26..4FC..(ARL,SA)..CBU;GGN25,KUN26..DCB..(5F,5FC)..(SA,TH);GGN25,KUN36..DCB..(4FC,5F)..(ARL,SA)201107-201512

VSC-WITH

main47329-0K011iGGN15,KUN1#,LAN15,TGN1#201107-201609

main47329-0K021supersedes 47329-0K021iKUN26..5F..ARL201107-201308

47327TUBE, REAR BRAKE, NO.7

main47327-0K011iGGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH201107-201512

main47327-0K021iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201308

main47327-0K031iGGN25,TGN26,36..ANCOM201204-201609

main47327-0K091supersedes 47327-0K140iKUN26..LHD..DCB..4FC..GEN201308-201512

VSC-WITH

main47327-0K101iKUN15..PKN201202-201609

main47327-0K121iKUN2#..MA201109-201601

main47327-0K140iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

47328TUBE, REAR BRAKE, NO.8

main47328-0K011iGGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH201107-201512

main47328-0K021iGGN25,TGN26,36201609

main47328-0K031iGGN25,TGN26,36..ANCOM201204-201609

main47328-0K091supersedes 47328-0K120iKUN26..LHD..DCB..4FC..GEN201308-201512

VSC-WITH

main47328-0K101iKUN15..PKN201202-201609

main47328-0K120iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

main47328-0K141iKUN2#..MA201109-201601

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-0K010iKUN25..PKN201107-201609

main47353-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201410

main47353-0K011iGGN15,KUN1#,LAN15,TGN1#201411-201609

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-0K030iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

main47354-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

47371ACLAMP, BRAKE TUBE, NO.1

main90949-T1011iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD201107

47371CCLAMP, BRAKE TUBE, NO.7

main90461-T0001×4iKUN25..PKN201107-201609

main90461-T0002×4iKUN25..MA;GGN25,KUN15,26,TGN26,36..ANCOM,MA,PKN201109-201609

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1014iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD201107-201609

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1008×3iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD201107-201609

main90949-T1012×4iGGN25,KUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD201107

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1009iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD201107-201609

47375CLAMP, BRAKE TUBE, NO.5

main90469-T0006iKUN26..CO,MA;KUN26,36..DLX..DCR..LA;GGN25,KUN2#,35,TGN26,36..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,LA,MA)201109

NO.1

main90469-T0007iKUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN1#,2#,35,LAN15,25,35,TGN1#,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH)201107-201512

NO.1

main90949-T1004×5iKUN15,25..PKN201109-201609

NO.2

main90949-T1006×2iTGN16..SCB..CNG201205-201504

NO.2

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main90949-T2001iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD201107

7751

9011908868

main90119-08868

90119T0029

main90119-T0029

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0244

main90119-T0244

90468T0004

main90468-T0004

38 parts on this diagram · 23 diagrams in section
