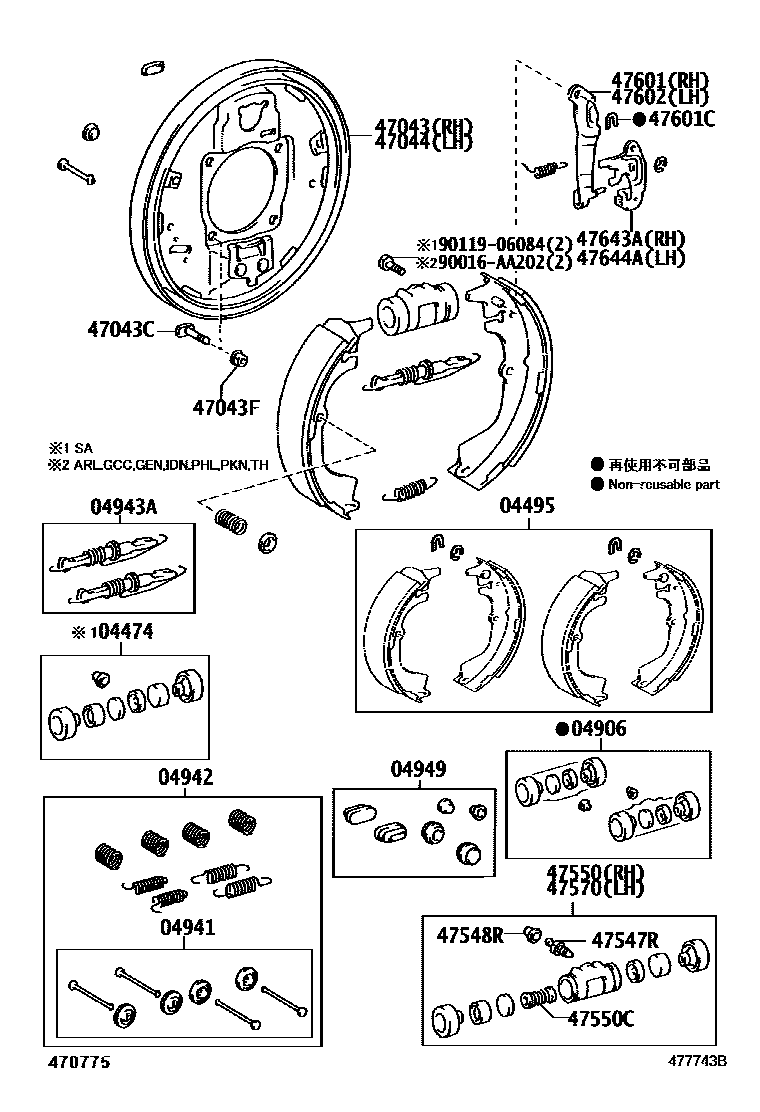

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1

04474CYLINDER KIT, REAR WHEEL

main04474-0K010iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

main04474-0K030iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main04474-0K030iKUN26..SADCB201204

main04474-35080iGGN35201108-201512

*317 TYPE B:REF ILL.

main04474-43020iKUN15,LAN15,TGN15,16..SA201108-201512

04495SHOE KIT, REAR BRAKE

main04495-0K010iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

MARK NSA LN512

main04495-0K050iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

MARK NSA LN508

main04495-0K060iKUN15,LAN15,TGN15,16..SA201108-201512

MARK NSA LN512

main04495-0K070iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

MARK NSA LN508,*317 TYPE A:REF ILL.

main04495-0K070iKUN26..SADCB201204-201512

MARK NSA LN508

main04495-0K120iGGN25..5FC..SR..ARL201107-201609

MARK NSA LN508

main04495-35230iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

MARK NBK LN508,*317 TYPE B:REF ILL.

04906CUP KIT, REAR WHEEL CYLINDER

main04906-0K060iKUN26..4FC..LA;KUN26..(5F,5FC)..(CO,LA);KUN25,3#,TGN26,36..CO,LA201110-201510

main04906-0K080iKUN26..SADCB201204

main04906-0K080iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main04906-0K090iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

main04906-35100iGGN35201108-201512

*317 TYPE B:REF ILL.

main04906-43040iKUN15,LAN15,TGN15,16..SA201108-201512

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main04941-0K030iGGN25..5FC..SR..ARL201107-201609

main04941-0K040iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

main04941-0K040iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main04941-25040iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

04942SPRING KIT, REAR BRAKE

main04942-0K070iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main04942-0K070iKUN26..SADCB201110

main04942-0K080iGGN15,KUN1#,LAN15,TGN1#201107-201609

main04942-0K130iGGN25..5FC..SR..ARL201107-201609

main04942-25070iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

04943ASTRUT KIT, REAR BRAKE

main04943-0K010iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

main04943-0K030iGGN25..5FC..SR..ARL201107-201609

main04943-0K040iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

main04943-0K050iKUN15,LAN15,TGN15,16..SA201108-201512

main04943-0K070iKUN26..SADCB201204

main04943-0K070iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main04943-25020iGGN35201108-201512

*317 TYPE B:REF ILL.

04949PLUG KIT, REAR BRAKE

main04949-0D010iGGN15,KUN1#,LAN15,TGN1#201107-201609

main04949-0K030iGGN25..5FC..SR..ARL201107-201609

main04949-0K070iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

main04949-0K100iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main04949-0K100iKUN26..SADCB201204

main04949-13010iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0K011iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

main47043-0K020iKUN15,LAN15,TGN15,16..SA201108-201512

main47043-0K050iGGN25..5F;GGN25..5FC..DLX;KUN2#,3#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)201107-201609

main47043-0K060iKUN26..SADCB201204

main47043-0K060iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main47043-0K070iKUN26..4FC..CO;GGN25,TGN26,36..ANCOM201110-201510

main47043-71010iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002iKUN15..PKN201202-201609

*10-1.25PX37-18.5

main90114-T0006iKUN25..PKN201107-201609

*10-1.25PX41-18

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90178-T0077iKUN15,25..PKN201107-201609

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0K011iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

main47044-0K020iKUN15,LAN15,TGN15,16..SA201108-201512

main47044-0K050iGGN25..5FC..SR..ARL201107-201609

main47044-0K060iKUN26..SADCB201204

main47044-0K060iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main47044-0K070iKUN26..4FC..LA;KUN26..(5F,5FC)..(CO,LA);KUN25,3#,TGN26,36..CO,LA201110-201510

main47044-71010iGGN35201108-201512

*317 TYPE B:REF ILL.

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iGGN15,KUN1#,LAN15,TGN1#201107

main47547-60020iGGN35201108-201512

*317 TYPE B:REF ILL.

main90069-0K072iKUN26..SADCB201110

main90069-0K072iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0K010iGGN25,KUN2#,3#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201304

sub31478-0K030

main31478-0K020iKUN26..SADCB201204

main31478-0K020iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main31478-0K030iGGN25..ARL201110-201311

main31478-30010iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

main31478-30010iGGN15,KUN1#,LAN15,TGN1#201107

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09070iGGN25..5F;GGN25..5FC..DLX;KUN2#,3#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)201107-201609

main47550-09080iKUN26..4FC..LA;KUN26..(5F,5FC)..(CO,LA);KUN25,3#,TGN26,36..CO,LA201110-201510

main47550-09090iKUN26..SADCB201204

main47550-09090iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main47550-0K010iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

main47550-35190iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

main47550-71010iKUN15,LAN15,TGN15,16..SA201108-201512

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90016-AY002iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107

main90029-60009iKUN15,LAN15,TGN15,16..SA201108-201512

main90029-60011iGGN35201108-201512

*317 TYPE B:REF ILL.

main90069-51002iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main90069-51002iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09070iGGN25..ARL201107-201609

main47550-09080iKUN26..4FC..LA;KUN26..(5F,5FC)..(CO,LA);KUN25,3#,TGN26,36..CO,LA201110-201510

main47550-09090iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main47550-09090iKUN26..SADCB201204

main47550-0K010iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

main47550-35190iGGN35201108-201512

*317 TYPE B:REF ILL.

main47550-71010iKUN15,LAN15,TGN15,16..SA201108-201512

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-0K010iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

main47611-0K020iKUN15,LAN15,TGN15,16..SA201108-201512

main47611-0K060iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main47611-0K060iKUN26..SADCB201204

main47611-0K070iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

main47612-35040iGGN35201108-201512

*317 TYPE B:REF ILL.

47601CWASHER, C(FOR REAR BRAKE)

main90069-52023iKUN26..4FC..CO;GGN25,TGN26,36..ANCOM201110-201510

main90069-52023iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main90213-07010iLAN15..RHD;GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201512

T=1.6

main90213-07010iGGN35201108-201512

T=1.6,*317 TYPE B:REF ILL.

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47611-35040iGGN35201108-201512

*317 TYPE B:REF ILL.

main47612-0K010iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

main47612-0K020iKUN15,LAN15,TGN15,16..SA201108-201512

main47612-0K060iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108

*317 TYPE A:REF ILL.

main47612-0K060iKUN26..SADCB201204

main47612-0K070iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0K010iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

main47643-0K020iKUN15,LAN15,TGN15,16..SA201108-201512

main47643-0K050iGGN25..5FC..SR..ARL201107-201609

main47644-60010iGGN35201108-201512

*317 TYPE B:REF ILL.

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-60010iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

main47644-0K010iGGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH201107-201609

main47644-0K020iKUN15,LAN15,TGN15,16..SA201108-201512

main47644-0K050iGGN25..5F;GGN25..5FC..DLX;KUN2#,3#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)201107-201609

90016AA202

main90016-AA202

9011906084

main90119-06084

23 parts on this diagram · 4 diagrams in section
