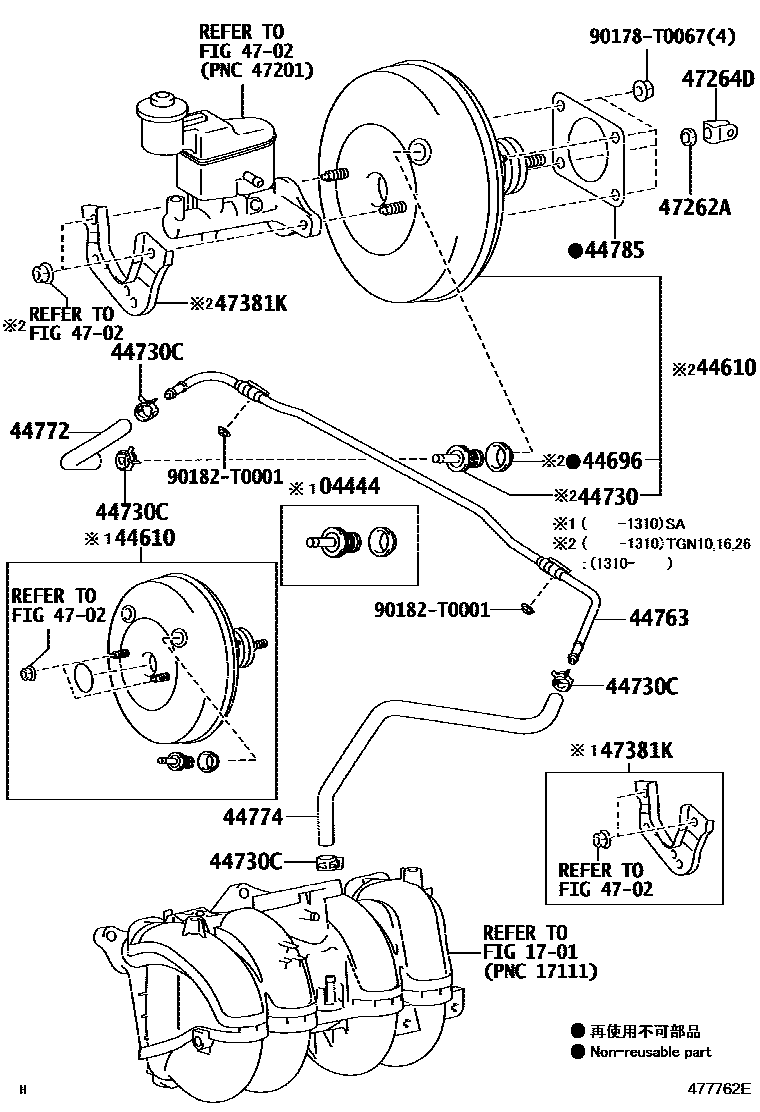

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1W(VSC) 0004 1 0005 1W(VSC) 0006 1 0007 1 0008 1 0009 1 0010 1

04444VALVE KIT, BOOSTER CONTROL

main04444-02010iKUN26..SADCB;LAN15,25..LHD;GGN25,35,KUN15,2#,3#,TGN15,16,26,36..SA201108-201403

main04444-02020iKUN26,36..5F..SR..DCR..LA201403-201510

VSC-WITHOUT

1701

44610BOOSTER ASSY, BRAKE

main44610-09280iGGN25,35,TGN15,36..SA201108-201310

main44610-09310iTGN16,26..SA201108-201310

main44610-09810iTGN26,36..CO,LA201110-201403

main44610-09820iKUN26..LHD..SADCB;KUN15,25,LAN15,25..LHD..SA201108-201403

main44610-09A90iKUN26..RHD..SADCB;KUN15,2#,3#,LAN15,25,35..RHD..SA201108-201310

main44610-09C50iTGN26,36..CO,LA201403-201510

main44610-09C60iKUN26,36..5F..SR..DCR..LA201403-201510

VSC-WITHOUT

main44610-0K110iGGN25..5F;GGN25..5FC..DLX;GGN15,TGN10,16,26..RHD201107-201512

main44610-0K130iGGN35201310-201512

main44610-0K140iKUN26..5FC..ARL201107-201504

main44610-0K150iKUN26,36..(5F,5FC)..SR..DCR..LA201110-201510

main44610-0K180iKUN26..DCB..5F..ARL201107-201609

main44610-0K190iKUN26..LHD..SADCB;KUN15,25,LAN15,25..LHD..DLX..SA201107-201512

main44610-0K220iGGN25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN)201107

44696GROMMET, CHECK VALVE

main90080-48050iKUN26..DCB..5F..ARL..CBU201107-201311

VSC-WITH

main90080-48050iKUN26..4FC..TH201107-201208

VSC-WITHOUT

main90080-48050iKUN26..4FC..LA201107-201609

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iKUN26..SADCB;KUN25..DLX..SA;KUN15..DCB..DLX..SA;KUN15..(SCB,XTR)..SA;KUN35..(DCB,SCB)..SA;GGN25,35,KUN26,36,LAN15,25,TGN15,16,26,36..SA201107-201609

44730CCLIP(FOR VACUUM HOSE)

main90466-T0019iKUN15,2#,3#..LHD;LAN15,25,TGN10,15,16,26..RHD;GGN15,25,35,KUN10,LAN35,TGN36..ARL,GCC,SA201107-201609

44763TUBE, BOOSTER VACUUM

main44763-0K010iGGN15,25,35,KUN1#,2#,3#,TGN10,15,16,26,36..RHD201107-201609

main44763-0K030iLAN15,25..LHD201108-201512

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0K010iKUN26..4FC..TH201107-201609

main44772-0K020iKUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,TGN15,36..RHD..SA201108-201310

main44772-0K030iKUN26..4FC..TH201107-201502

sub44772-0K031

main44772-0K030iKUN26..5FC..ARL201107-201502

VSC-WITH

sub44772-0K031

main44772-0K031iKUN26..4FC..SA;KUN36..DCB..SA;GGN25,KUN26..DCB..(5F,5FC)..(SA,TH)201503-201512

VSC-WITH

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0K010iTGN10,15,16,26,36..RHD..HTWC201107-201512

main44774-0K020iKUN1#,2#,3#201107-201502

sub44774-0K021

main44774-0K021iKUN1#,2#,3#201503-201609

main44774-0K030iGGN15,25,35..RHD201107-201512

main44774-0K040iTGN16..CNG201205-201504

44785GASKET, BRAKE BOOSTER

main44785-17010iKUN2#..MA201107-201609

4702

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main47262-0K010iKUN26..CO;LAN15,25,35..RHD;KUN2#,3#..DLX..(DCR,HDCR)..(CO,LA);KUN26,TGN26,36..(HTWC,HTWCF,IART)..(CO,LA)201108-201510

main90016-AC101iKUN26..4FC..TH201107-201609

(L)

main90179-10065iGGN25..5FC..DLX;KUN26..SR..IART;KUN26..4FC..(ARL,SA)..CBU;GGN25,KUN26..DCB..(5F,5FC)..(SA,TH);GGN25,KUN36..DCB..(4FC,5F)..(ARL,SA)201107-201512

VSC-WITH

main90179-10065iKUN26..4FC..LA201107-201512

main94120-41000iKUN26..4FC..TH201107-201609

(J)

main94120-41000iGGN25..5FC..DLX;GGN15,TGN16,26..RHD..(4FC,5FC)201107-201512

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0K010iKUN26..4FC..TH201107-201609

main47264-0K020iKUN26..4FC..LA201108-201510

main47264-0K050iKUN26..(SCB,XTR)..5F..ARL201107-201512

VSC-WITH

main47264-0K050iGGN35201107-201512

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-09020iKUN26..SADCB;LAN15,25..LHD;GGN25,35,KUN15,2#,3#,TGN15,16,26,36..SA201108-201510

main47381-0K010iKUN26..SADCB;KUN25..DLX..SA;KUN15..DCB..DLX..SA;KUN15..(SCB,XTR)..SA;KUN35..(DCB,SCB)..SA;GGN25,KUN26,36,LAN15,25,TGN15,16,26,36..SA201107-201609

90178T0067

main90178-T0067

90182T0001

main90182-T0001

16 parts on this diagram · 10 diagrams in section
