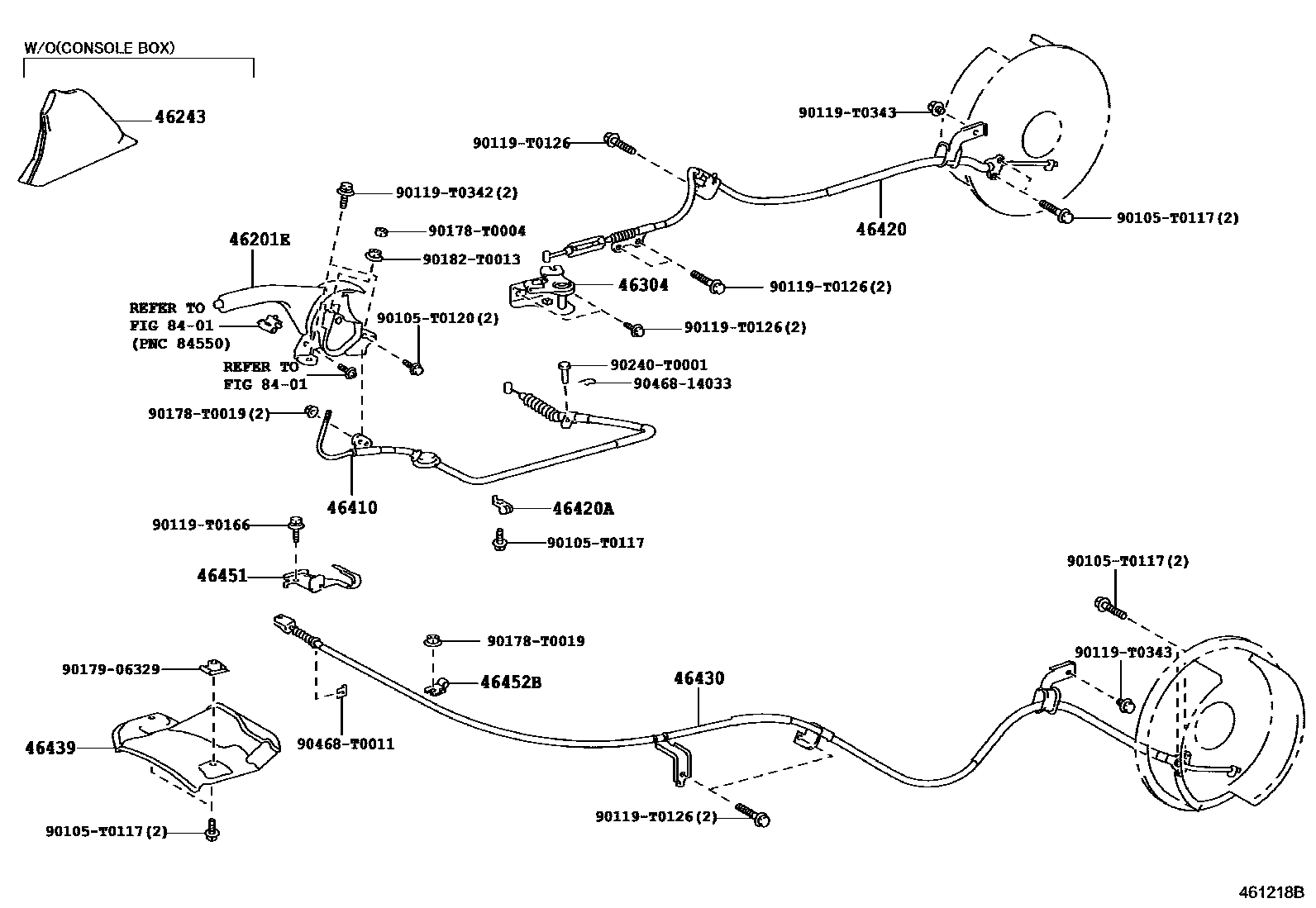

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#,3#
main46201-0K011-B1iKUN15,26..5F..SR..TH;KUN25,3#..(5F,5FC)..TH;KUN16,TGN16..DCB..(5F,5FC)..TH201203-201308
MD.GRAY,TRIM10
main46201-0K011-B2iKUN15,26..5F..SR..TH;KUN25,3#..(5F,5FC)..TH;KUN16,TGN16..DCB..(5F,5FC)..TH201203-201308
DK.GRAY,TRIM11
main46201-0K011-C0iKUN35..LHD..SR;KUN25..4FC..GEN;KUN25,35..IDN,TH;KUN16,36,TGN26..RHD..(GEN,TH);KUN15,26,TGN16..(DCB,SMT)..SR..(GEN,PHL,TH)201308-201504
BLACK,TRIM2#,4#
main46201-0K011-C0iGGN15..5FC;KUN2#..DCB..MA;TGN26..5F..GEN;GGN25..5FC..SR..ARL;KUN15..(DCB,SMT)..DLX..TH;KUN26,TGN16..(SCB,THDCB)..GEN;KUN26..(DCB,XTR)..(5F,5FC)..ARL;TGN16..(DCB,SMT201308-201601
BLACK,TRIM2#
BLACK,TRIM4#
main46201-0K011-E1iKUN15..SMT..SR;KUN35..SR..PHL;KUN15..DCB..HDCR;KUN25..IDN,PKN,TH;KUN35..(DCB,SMT)..(GEN,TH);KUN15,16,26,36,TGN16..(DCB,SMT)..SR..(DCR,HTWC)..(GEN,PHL,TH)201107-201308
ASH BROWN,TRIM4#
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM2#
MD.GRAY,TRIM1#
BLACK,TRIM2#
46243COVER, PARKING BRAKE LEVER
FRONT SEAT-PASSENGER SEAT(FOR TWO PERSONS),MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#,3#
FRONT SEAT-PASSENGER SEAT(FOR TWO PERSONS)&SRS AIR BAG-WITHOUT,MD.GRAY,TRIM1#
BLACK,TRIM2#
FRONT SEAT-PASSENGER SEAT(FOR TWO PERSONS),BLACK,TRIM2#
FRONT SEAT-PASSENGER SEAT(FOR TWO PERSONS)&SRS AIR BAG-WITHOUT,BLACK,TRIM2#
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
sub46410-0K011
main46410-0K040iKUN15..HDCR;KUN2#,35,TGN16;KUN36..(5F,5FC)..TH;GGN15,25,35,KUN15,16,36,LAN15,25,35,TGN15,26,36..(DCR,DEFI,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,LA,PHL,PKN,SA)201107-201303
sub46410-0K041
46420CABLE ASSY, PARKING BRAKE, NO.2
AFRICA SPEC
ASEAN GENERAL SPEC
CS AMERICA SPEC
*317 TYPE A:REF ILL.
*317 TYPE A:REF ILL.
main46420-0K101iTGN26..SCB..GEN;KUN26..LHD..DCB..5F..GEN;KUN26,TGN26..DCB..4FC..GEN;KUN25,3#..(DCB,SCB,XTR)..GEN201107-201504
*317 TYPE B:REF ILL.
*317 TYPE B:REF ILL.
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
AFRICA SPEC
ASEAN GENERAL SPEC
CS AMERICA SPEC
*317 TYPE A:REF ILL.
*317 TYPE B:REF ILL.
46439INSULATOR, PARKING BRAKE CABLE HEAT
main46439-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609
46451BRACKET, CABLE SUPPORT
46452BBRACKET, CABLE SUPPORT, NO.2
8401
90105T0117
main90105-T0117
90105T0120
main90105-T0120
90119T0126
main90119-T0126
90119T0166
main90119-T0166
90119T0342
main90119-T0342
90119T0343
main90119-T0343
90178T0004
main90178-T0004
90178T0019
main90178-T0019
9017906329
main90179-06329
90182T0013
main90182-T0013
90240T0001
main90240-T0001
9046814033
main90468-14033
90468T0011
main90468-T0011
24 parts on this diagram · 4 diagrams in section
