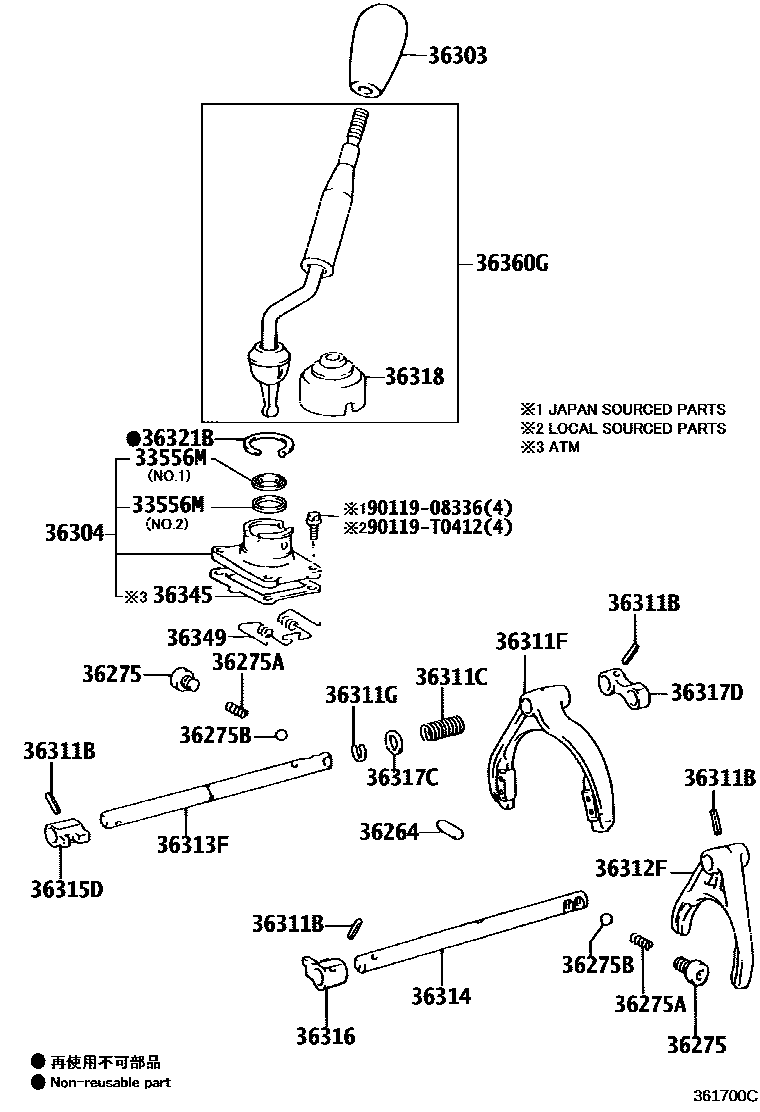

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33556MSEAT, TRANSFER SHIFT LEVER BALL

main33556-14010iKUN25..PKN201107-201609

NO.1

main33556-14020iKUN25..PKN201107-201609

NO.2

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020supersedes 90250-10020iGGN25..5F201107-201311

L=25.7,OD=9.53,TYPE B:REFER 36-08

main90250-T0025iGGN25..5FC;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201303

L=25.7,OD=9.53,TYPE B:REFER 36-08

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014×2supersedes 90341-12014iLAN25..LHD;KUN25,TGN26;KUN26..5F,5FC;GGN25..5FC..SR;KUN26..4FC..(GEN,LA,MA,PHL,SA,TH)201107-201410

TYPE B:REFER 36-08

main90341-T0014×2iKUN25..PKN201411-201609

TYPE B:REFER 36-08

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116×2supersedes 90501-16116iGGN25..5FC;KUN2#,LAN25,TGN26201107-201303

L=23,TYPE B:REFER 36-08

main90501-T0035×2iGGN25..5FC;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201303

L=23,TYPE B:REFER 36-08

36275BBALL, SHIFT DETENT

main90360-10003×2supersedes 90360-10003iGGN25,KUN2#,LAN25,TGN26201107-201403

OD=9.52,STEEL,TYPE B:REFER 36-08

main90360-T0008×2iGGN25,KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201403

OD=9.53,STEEL,TYPE B:REFER 36-08

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-0K020iGGN25..5F;GGN25..5FC..DLX;KUN26..4FC..ARL201308-201311

main36303-0K020-B0iKUN25,TGN26..GCC201107-201308

DK.GRAY,TRIM1#

main36303-0K020-C0iKUN25..SCB..PKN201308-201609

BLACK,TRIM1#,4#

main36303-0K020-E1iKUN25..IDN,PKN,TH;KUN26..(DCB,SMT)..(GEN,PHL,TH)201107-201308

ASH BROWN,TRIM4#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-0K020iKUN2#..5F..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201601

TYPE C:REFER 33-01

main36304-0K030iKUN2#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504

TYPE B:REFER 33-01

main36304-0K040iLAN25,TGN26..5F201303

TYPE B:REFER 36-08

main36304-35051iKUN25..5F..PKN;GGN25,KUN2#,TGN26..4FC,5FC201107

main36304-35061supersedes 36304-35061iLAN25,TGN26..5F201107-201303

TYPE B:REFER 36-08

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×2supersedes 90254-05001iKUN2#;GGN25,TGN26..4FC,5FC201107-201304

L=22,TYPE B:REFER 36-08

main90254-T0003×4iGGN25,TGN26..4FC,5FC;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201304

L=22,TYPE B:REFER 36-08

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-20088supersedes 90501-20088iGGN25..SR;GGN25..5F..DLX;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

TYPE A:REFER 36-08

main90501-T0036iGGN25..5FC;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201303

TYPE B:REFER 36-08

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35020iKUN26..5F..DLX..ARL201107-201308

TYPE B:REFER 36-08,TYPE A:REFER 36-08

main36311-35030supersedes 36311-35030iLAN25..RHD;TGN26..4FC;KUN25..SCB..SA;TGN26..DLX..ANCOM;KUN26..5FC..DLX..ARL;KUN25..(DCB,SMT)..(IDN,MA,SA,TH);GGN25,KUN26,TGN26..SR..(DCR,HTWC,IART);KUN26,LAN25,TGN2201107

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002supersedes 90520-13002iKUN25;KUN26..5F,5FC;GGN25..5FC..SR;KUN26,TGN26..4FC..(GCC,GEN,LA,MA,PHL,SA,TH)201107-201410

TYPE B:REFER 36-08

main90520-T0237iTGN26..4FC;GGN25,KUN2#201411

TYPE B:REFER 36-08

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35040supersedes 36312-35040iGGN25..SR;GGN25..5F..DLX;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

TYPE B:REFER 36-08

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-0K010iTGN26..4FC;KUN2#..4FC,5F201303-201609

TYPE B:REFER 36-08

main36313-0K020iGGN25,KUN26..5FC201303

TYPE B:REFER 36-08

main36313-35070iGGN25,LAN25,TGN26..5F201107

TYPE B:REFER 36-08,TYPE A:REFER 36-08

main36313-35080iTGN26..4FC;KUN2#..4FC,5F201107-201303

TYPE B:REFER 36-08

main36313-71010supersedes 36313-71010iKUN26..5FC;GGN25..5FC..SR201107

TYPE A:REFER 36-08

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-0K010iTGN26..4FC;KUN2#..4FC,5F201303-201609

TYPE B:REFER 36-08

main36314-0K020iGGN25,KUN26..5FC201303

TYPE B:REFER 36-08

main36314-35110iTGN26..4FC;KUN2#..4FC,5F201107-201303

TYPE B:REFER 36-08

main36314-35140iGGN25,LAN25,TGN26..5F201107

TYPE B:REFER 36-08,TYPE A:REFER 36-08

main36314-71010supersedes 36314-71010iGGN25,KUN26..5FC201107-201303

TYPE B:REFER 36-08

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36315-0K010iKUN25..PKN201303-201609

TYPE B:REFER 36-08

main36315-35010supersedes 36315-35010iKUN2#;GGN25,TGN26..4FC,5FC201107-201303

TYPE B:REFER 36-08

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-0K010iKUN25..PKN201303-201609

TYPE B:REFER 36-08

main36316-35020supersedes 36316-35020iKUN2#;GGN25,TGN26..4FC,5FC201107-201303

TYPE B:REFER 36-08

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-35020supersedes 36317-35020iKUN25..PKN201107-201609

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-0K010iKUN25..PKN201303-201609

TYPE B:REFER 36-08

main36317-35030supersedes 36317-35030iGGN25..5F201107-201311

TYPE B:REFER 36-08

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iKUN25..PKN201107-201609

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iGGN25,KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-0K010iLAN25,TGN26..5F201303

TYPE B:REFER 36-08

main36345-35040iGGN25,TGN26..4FC,5FC;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

main36345-35050iGGN25..5F201107-201311

TYPE B:REFER 36-08

36349SPRING, TRANSFER SELECT RETURN

main36349-35010iGGN25,LAN25,TGN26..5F201107

TYPE B:REFER 36-08,TYPE A:REFER 36-08

main36349-35020iKUN2#;GGN25,TGN26..4FC,5FC201107

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-71040iTGN26..4FC..GEN201208-201504

main36360-71060iTGN26..5F201107

main36360-71110iKUN2#..RHD..(4FC,5FC)201107-201609

main36360-71120iKUN2#..RHD..5F201107-201609

main36360-71130iKUN2#..LHD..(4FC,5FC)201107-201512

main36360-71140iKUN2#..LHD..5F201107-201512

main36360-71180iLAN25..LHD201108-201512

main36360-71230iGGN25..RHD..5FC201107-201512

main36360-71240iGGN25,LAN25..RHD..5F201107-201311

main36360-71250iGGN25..ANCOM201204

main36360-71260iTGN26..LHD..4FC201107-201512

9011908336

main90119-08336

90119T0412

main90119-T0412

25 parts on this diagram · 2 diagrams in section
