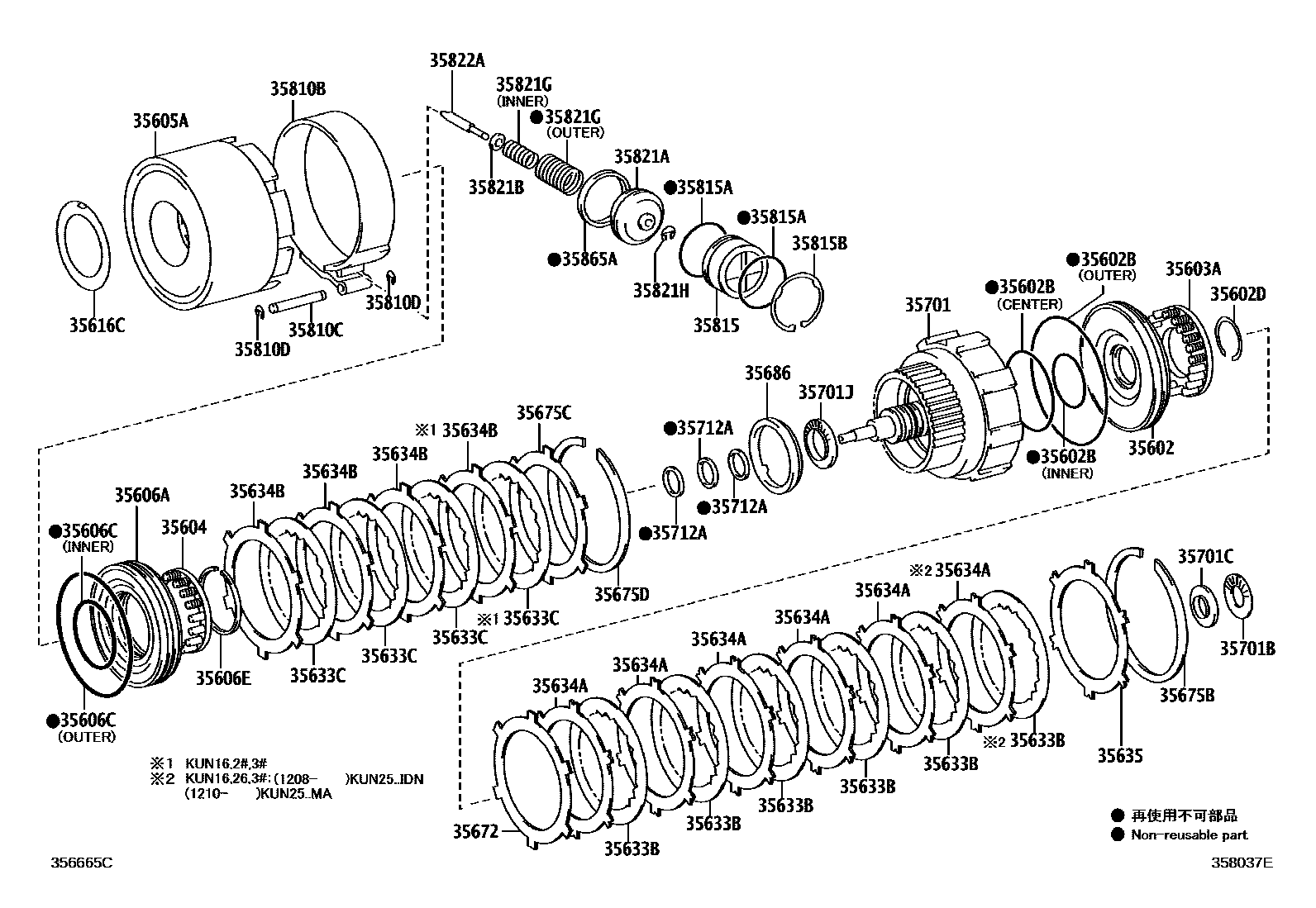

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-14012iKUN26..SADCB..4FC201107-201601

main35602-30062iKUN25..4FC..MA201107-201609

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-39005iKUN26..SADCB..4FC201107-201609

INNER

main90301-39012iGGN15,25,35,KUN16,26,3#..5FC201107

INNER

main90301-72003iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

CENTER

main90301-99058iKUN26..SADCB..4FC201107-201609

OUTER

main90301-99096iGGN15,25,35,KUN16,26,3#..5FC201107

CENTER

main90301-99145iGGN15,25,35,KUN16,26,3#..5FC201107

OUTER

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-35001iKUN26..SADCB..4FC201107-201609

main90520-35003iGGN15,25,35,KUN16,26,3#..5FC201107

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-30011iKUN25..4FC..PKN201107-201609

main35603-60020iGGN15,25,35,KUN16,26,3#..5FC201107

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-35010iKUN25..4FC..PKN201107-201609

main35604-60020iGGN15,25,35,KUN16,26,3#..5FC201107

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-22040iTGN16,26,36..4FC201107

main35605-30060iKUN26..SADCB..4FC201107-201609

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35606-35010iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

main35652-60021iGGN15,25,35..5FC201107

main35652-60031iKUN16,26,3#..5FC201204-201510

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-65006iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

INNER

main90301-74002iGGN15,25,35,KUN16,26,3#..5FC201107-201403

INNER

main90301-74004iGGN15,25,35,KUN16,26,3#..5FC201404

INNER

main90301-99058iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

OUTER

main90301-99149iGGN15,25,35,KUN16,26,3#..5FC201107

OUTER

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-58001iKUN26..SADCB..4FC201107-201609

main90520-64003iGGN15,25,35,KUN16,26,3#..5FC201107

35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

main35616-30050iKUN25..4FC..PKN201107-201609

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-60070iKUN16,26,3#..5FC201107-201510

main35677-26010iKUN26..SADCB..4FC201107-201601

main35677-30170iKUN25..4FC..PKN201107-201609

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35667-40020iTGN16,26,36..4FC201107-201609

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-30110iKUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)201107-201609

T=2.3

main35634-32010iKUN26..SADCB..4FC201107-201601

T=1.8

main35634-60020iGGN15,25,35..5FC201107-201510

T=1.8

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35647-22030iKUN26..SADCB..4FC201107-201609

T=2.3

35635FLANGE, FORWARD CLUTCH

main35635-30040iKUN25..4FC..PKN201107-201609

T=4.0,MARK 95

main35635-30050iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

T=3.8,MARK 94

main35635-30060iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

T=3.6,MARK 93

main35635-30070iKUN25..4FC..PKN201107-201609

T=3.4,MARK 92

main35635-30080iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

T=3.2,MARK 91

main35635-30090iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

T=3.0,MARK 90

main35635-30100iKUN25..4FC..PKN201107-201609

T=4.2,MARK 96

main35635-30110iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

T=4.4,MARK 97

main35635-60010iGGN15,25,35,KUN16,26,3#..5FC201107

T=3.0,MARK 0

main35635-60020iGGN15,25,35,KUN16,26,3#..5FC201107

T=3.1,MARK 1

main35635-60030iGGN15,25,35,KUN16,26,3#..5FC201107

T=3.2,MARK 2

main35635-60040iGGN15,25,35,KUN16,26,3#..5FC201107

T=3.3,MARK 3

main35635-60050iGGN15,25,35,KUN16,26,3#..5FC201107

T=3.4,MARK 4

main35635-60060iGGN15,25,35,KUN16,26,3#..5FC201107

T=3.5,MARK 5

main35635-60070iGGN15,25,35,KUN16,26,3#..5FC201107

T=3.6,MARK 6

main35635-60080iGGN15,25,35,KUN16,26,3#..5FC201107

T=3.7,MARK 7

main35635-60090iGGN15,25,35,KUN16,26,3#..5FC201107

T=3.8,MARK 8

main35635-60100iGGN15,25,35,KUN16,26,3#..5FC201107

T=3.9,MARK 9

main35635-60110iGGN15,25,35,KUN16,26,3#..5FC201107

T=4.0,MARK A

35672PLATE, CLUTCH CUSHION

main35672-30010iKUN26..SADCB..4FC201107-201609

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99082iGGN15,25,35,KUN16,26,3#..5FC201107

main90521-99001iKUN26..SADCB..4FC201107-201609

35675CFLANGE, DIRECT CLUTCH

main35675-30210iKUN25..4FC..PKN201107-201609

T=3.5,MARK 55

main35675-30220iKUN25..4FC..PKN201107-201609

T=3.6,MARK 56

main35675-30230iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

T=3.7,MARK 57

main35675-30240iKUN25..4FC..PKN201107-201609

T=3.3,MARK 53

main35675-30250iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

T=3.4,MARK 54

main35675-30260iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

T=3.8,MARK 58

main35675-30270iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

T=4.0,MARK 60

main35675-30280iKUN16,2#,3#..4FC201107-201609

T=4.2,MARK 62

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90520-99018iKUN26..SADCB..4FC201107-201609

35686WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)

main35686-30010iKUN26..SADCB..4FC201107-201609

35701SHAFT SUB-ASSY, INPUT

main35701-22050iTGN16,26,36..4FC201107

main35701-60030iKUN26..SADCB..4FC201107-201609

main35701-60080iGGN15,25,35,KUN16,26,3#..5FC201107

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-25005iKUN26..SADCB..4FC201107-201609

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-30110iKUN26..SADCB..4FC201107-201609

35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

main90374-33001iKUN26..SADCB..4FC201107-201609

main90374-34011iGGN15,25,35,KUN16,26,3#..5FC201107

35712ARING, INPUT SHAFT OIL SEAL

main35712-30020iKUN25..4FC..PKN201107-201609

main35712-60010iGGN15,25,35,KUN16,26,3#..5FC201107

35810BBAND ASSY, 2ND COAST BRAKE

main35810-50020iKUN26..SADCB..4FC201107-201609

35810CPIN (FOR 2ND COAST BRAKE BAND)

main90249-07011iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

35810DRING, E (FOR 2ND COAST BRAKE BAND PIN)

main96160-00500iKUN25..4FC..PKN201107-201609

35815COVER, 2ND COAST BRAKE

main35815-22010iKUN26..SADCB..4FC201107-201609

35815ARING, O (FOR 2ND COAST BRAKE COVER)

main90301-48001iKUN26..SADCB..4FC201107-201609

35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

main90521-60003iKUN26..SADCB..4FC201107-201609

35821APISTON, 2ND COAST BRAKE

main35821-22020iKUN25..4FC..PKN201107-201609

35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

main90201-06557iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

main90501-26024iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

OUTER

main90501-32037iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

INNER

35821HRING, E (FOR 2ND COAST BRAKE PISTON)

main96160-00500iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

35822AROD, 2ND COAST BRAKE PISTON

main35822-22010iKUN25..4FC..PKN201107-201609

L=78.4

main35822-22020iKUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

L=79.9

35865ARING, 2ND COAST BRAKE PISTON OIL SEAL

main35865-30010iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609
