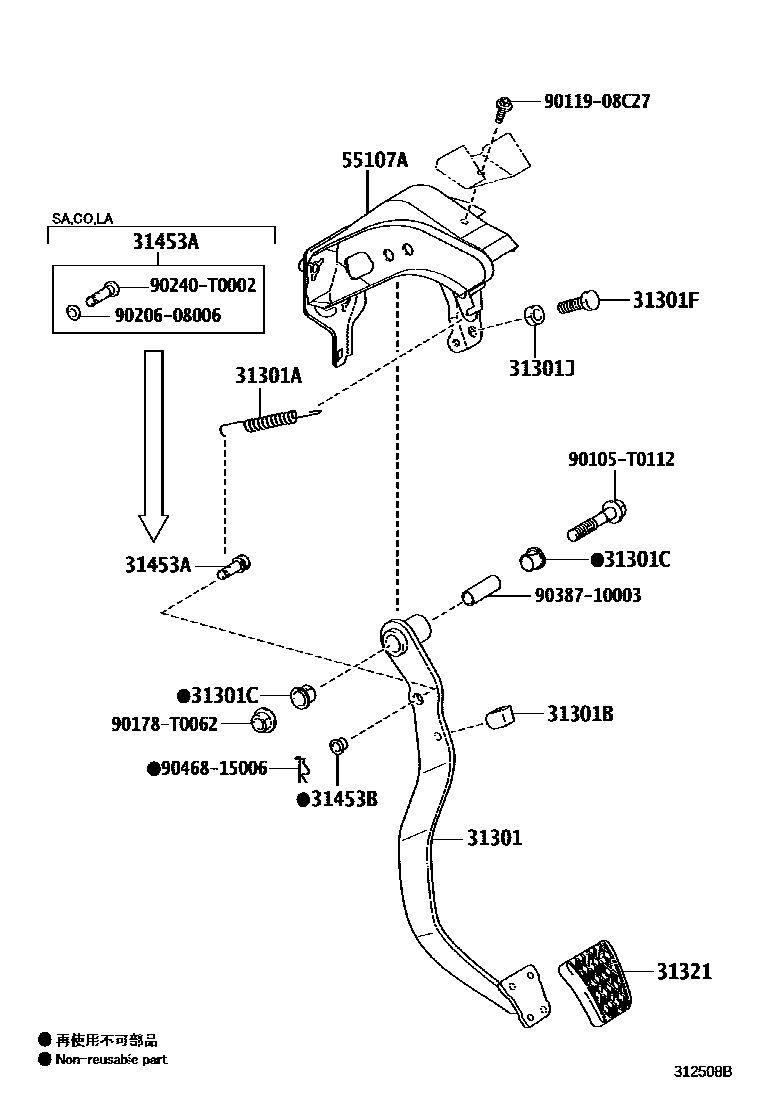

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0K010iTGN10,16..RHD..5F201107-201504

main31301-0K030iTGN1#,26,36..5F..(GCC,GEN)201107-201504

main31301-0K050iLAN15,25,35,TGN15,36..RHD201108-201512

main31301-0K070iLAN15,25,TGN16,26..LHD..5F..SA201108-201512

main31301-0K090iTGN26,36..5F..(ANCOM,CO,LA)201110

main31301-0K150iKUN10,15..RHD..DCR..(GEN,IDN,PKN,TH)201107-201609

main31301-0K160iKUN15..HDCR..TH;GGN15,25,KUN16,2#,3#..RHD..(DCB,SCB,SMT,XTR)..5F..(ARL,GEN,IDN,MA,PKN,TH)201107-201609

main31301-0K170iKUN10,15..LHD..DCR..(GCC,GEN,PHL)201107-201504

main31301-0K180iKUN26..LHD..(DCB,THDCB)..5F..(GEN,PHL);KUN15,25,35..LHD..5F..HDCR..(GCC,GEN,PHL)201107-201504

main31301-0K190iKUN15..RHD..DCR..SA201108-201512

main31301-0K200iKUN26,36..5F..SA;KUN26..RHD..SADCB..5F;KUN15,25,35..RHD..HDCR..SA201108-201512

main31301-0K210iKUN15..LHD..SA201108-201512

main31301-0K220iKUN25..LHD..5F..SA;KUN26..LHD..SADCB..5F201108-201512

main31301-0K230iKUN2#,3#..5F..(CO,LA)201110-201510

31301ASPRING(FOR CLUTCH PEDAL)

main90507-T0001iKUN10,15,LAN15,25,35,TGN1#,26,36..5F..(CNG,DCR,DEFI,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107-201609

main90905-06079iKUN26..SADCB..5F;KUN26,36..5F..(CO,LA,SA);KUN15,25,35..5F..HDCR..(CO,LA,SA)201108-201512

NO.2

main90949-T3001iKUN26..SADCB..5F;KUN26,36..5F..(CO,LA,SA);KUN15,25,35..5F..HDCR..(CO,LA,SA)201108-201512

NO.1

main90949-T3001iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iGGN15,25,KUN1#,2#,3#..5F201107-201609

NO.1

main90541-T0004iLAN15,25,35,TGN10,15,16,36..RHD..5F201107-201512

main90541-T0004iGGN15,25,KUN1#,2#,3#..RHD..5F201107-201609

NO.2

main90541-T0005iKUN10,15,2#,3#..LHD..5F201107-201512

NO.2

main90541-T0005iLAN15,25,TGN1#,26,36..LHD..5F201107

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iKUN15..LHD..DCR..GEN;KUN15..DCR..(GCC,PHL,SA);KUN15,25,TGN10..5F..(HDCR,HTWC)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,KUN10,16,26,3#,LAN15,25,35,TGN11,15,16,26,36..5201107-201609

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iLAN15,25..LHD;KUN26..SADCB..5F;KUN15,2#,3#,TGN16,26..5F..SA201107-201609

main90101-10369iKUN15,2#,3#,LAN15,25,TGN16,26..5F..(GEN,SA)201505-201512

(J)

main90101-T0005iKUN15,2#,3#,LAN15,25,TGN16,26..5F..(GEN,SA)201505-201512

(L)

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0011iKUN15,25..5F..PKN201107-201609

31321PAD, CLUTCH PEDAL

main31321-02010iKUN2#,3#,TGN26,36..5F..(ANCOM,CO,LA)201110

main31321-52010iGGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-0K011iKUN15,25..5F..PKN201107-201609

L=29.4

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0K021iLAN15,25,35,TGN1#,26,36..5F201107

main55107-0K050iKUN10,15..DCR201107-201609

main55107-0K060iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main55107-0K070iKUN26..SADCB..5F;KUN26,36..5F..(CO,LA,SA);KUN15,25,35..5F..HDCR..(CO,LA,SA)201108-201512

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

9020608006

main90206-08006

90240T0002

main90240-T0002

9038710003

main90387-10003

9046815006

main90468-15006

17 parts on this diagram · 12 diagrams in section
