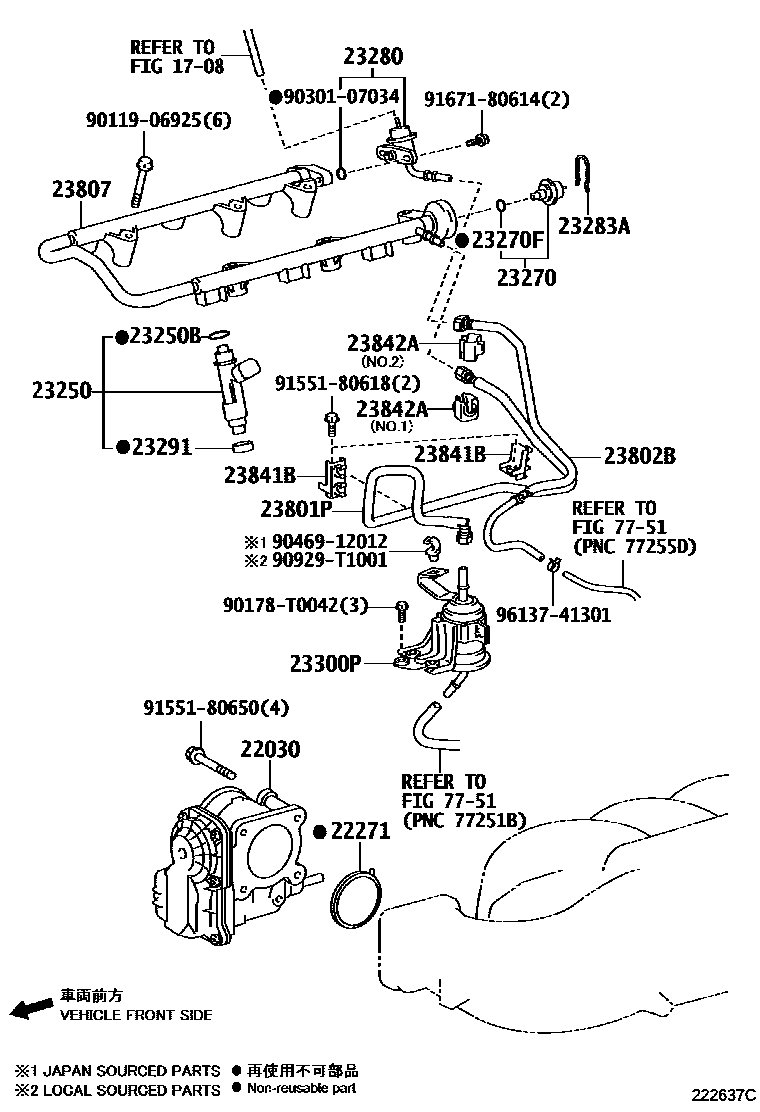

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C010i1TRFE..TGN10,15201107-201512

main22030-0C020i2TRFE..TGN11,16,26,36201107

main22030-31010i1GRFE..GGN15,25,35201107

22271GASKET, THROTTLE BODY

main22271-0C010i1TRFE..TGN10,15201107-201108

sub22271-37010

main22271-0C020i2TRFE..TGN11,16,26,36201107-201110

sub22271-0C021

main22271-0C021i2TRFE..TGN11,16,26,36..CNG,HTWC201110

main22271-31012i1GRFE..GGN15,25,35201107

main22271-37010i1TRFE..TGN10,15201108-201512

main22271-75060i2TRFE..TGN26,36..HTWCF201110-201510

23250INJECTOR ASSY, FUEL

main23070-0C010i2TRFE..TGN16..CNG201205-201504

NO.2

main23209-09045i2TRFE..TGN26..DCB..5F..GEN201308-201504

KAZAKHSTAN SPEC

sub23209-79155

main23209-09045i2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;1TRFE,2TRFE..TGN15,36..HTWC..(ANCOM,GEN,LA,SA);2TRFE..TGN16,26..(CNG,HTWC)..(ANCOM,ARL,CO,LA,SA,TH)201107

sub23209-79155

main23209-09045i2TRFE..TGN16,26..DCB..5F..DLX..GCC201107-201504

EGYPT SPEC

sub23209-79155

main23209-09055i2TRFE..TGN26..DCB..5F..GCC;2TRFE..TGN16..5F..DLX..GCC..CBU201107-201504

IRAQ SPEC

main23209-09055i2TRFE..TGN16,26..5F..SA201108-201310

ENGINE-2TR-FE LEADED

main23209-09180i2TRFE..TGN26,36..HTWCF201110-201510

main23209-09190i2TRFE..TGN26..THDCB..DLX201107-201504

COLOMBIA SPEC

main23209-09190i2TRFE..TGN26..THDCB..DLX201107-201503

ECUADOR SPEC

main23209-39075i1GRFE..GGN15,25,35201107

sub23209-39015

main23250-0C060i2TRFE..TGN16..CNG201205-201504

NO.1

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i1GRFE..GGN15,25,35201107

main90301-07037i1TRFE,2TRFE..TGN1#,26,36201506

(J)

main90301-07037i1TRFE,2TRFE..TGN1#,26,36201107-201506

main90301-T0051i1TRFE,2TRFE..TGN1#,26,36201506

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31080i1GRFE..GGN15,25,35201107-201201

sub23270-31140

main23270-31140i1GRFE..GGN15,25,35201201

main23270-75010i1TRFE,2TRFE..TGN15,16,26,36..HTWC..(ANCOM,CO,LA,SA)201107-201502

sub23270-75050

main23270-75010i2TRFE..TGN26..DCB..5F..GEN201501-201502

KAZAKHSTAN SPEC

sub23270-75050

main23270-75040i2TRFE..TGN26,36..HTWCF201110-201510

main23270-75050i1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC201502

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i1GRFE..GGN15,25,35201107

main90301-07037i1TRFE,2TRFE..TGN1#,26,36201107

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31010i1GRFE..GGN15,25..5FC..ARL201107-201409

main23280-31040i1GRFE..GGN25,35..SA201108-201201

sub23280-31041

main23280-31041i1GRFE..GGN15,25..5F201201-201208

main23280-75040i1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC201107-201806

sub23280-75130

main23280-75090i2TRFE..TGN26,36..HTWCF201110-201510

main23280-75130i2TRFE..TGN26,36201807

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GGN15,25,35201107

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010i1TRFE,2TRFE..TGN1#,26,36201107-201808

main23291-0C010i2TRFE..TGN26,36201808

MADE IN THAILAND

main23291-0C020i2TRFE..TGN26,36201808

MADE IN INDONESIA

main23291-23010i1GRFE..GGN15,25,35201107

23300PFILTER, FUEL(FOR EFI)

main23300-0D100i2TRFE..TGN26,36..HTWCF201110-201510

main23300-31120i1GRFE..GGN15,25,35201107

main23300-75140i1TRFE,2TRFE..TGN1#,26,36..(CNG,HTWC)..(ANCOM,ARL,CO,GCC,GEN,LA,SA,TH)201107

main23300-75160i1TRFE..TGN10..IDN201107-201504

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31110i1GRFE..GGN15,25,35201107

main23801-75120i2TRFE..TGN26,36..HTWCF201110-201510

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31050i1GRFE..GGN15,25,35201107

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-0C010i2TRFE..TGN26..DCB..5F..GEN201501-201502

KAZAKHSTAN SPEC,(L)

sub23807-0C012

main23807-0C010i1TRFE,2TRFE..TGN1#,26,36..HTWC..(ARL,CO,GCC,GEN,IDN,LA,TH)201107-201112

sub23807-0C012

main23807-0C010i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201112-201502

(L)

sub23807-0C012

main23807-0C012i1TRFE,2TRFE..TGN1#,26,36..(CNG,HTWC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,TH)201502-201807

main23807-0C020i2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(LA,SA);1TRFE,2TRFE..TGN15,16,26,36..5F..SA201108-201502

main23807-31010i1GRFE..GGN15,25,35201107

main23807-75050i1TRFE,2TRFE..TGN1#,26,36..(CNG,HTWC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,TH)201112-201206

(J)

sub23807-75052

main23807-75082i2TRFE..TGN26,36201502

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31030i1GRFE..GGN15,25,35201107

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i1GRFE..GGN15,25,35201107

NO.1

main23842-31030i1GRFE..GGN15,25,35201107

NO.2

7751

9011906925

main90119-06925

90178T0042

main90178-T0042

9030107034

main90301-07034

9046912012

main90469-12012

90929T1001

main90929-T1001

9155180618

main91551-80618

9155180650

main91551-80650

9167180614

main91671-80614

9613741301

main96137-41301

26 parts on this diagram · 4 diagrams in section
