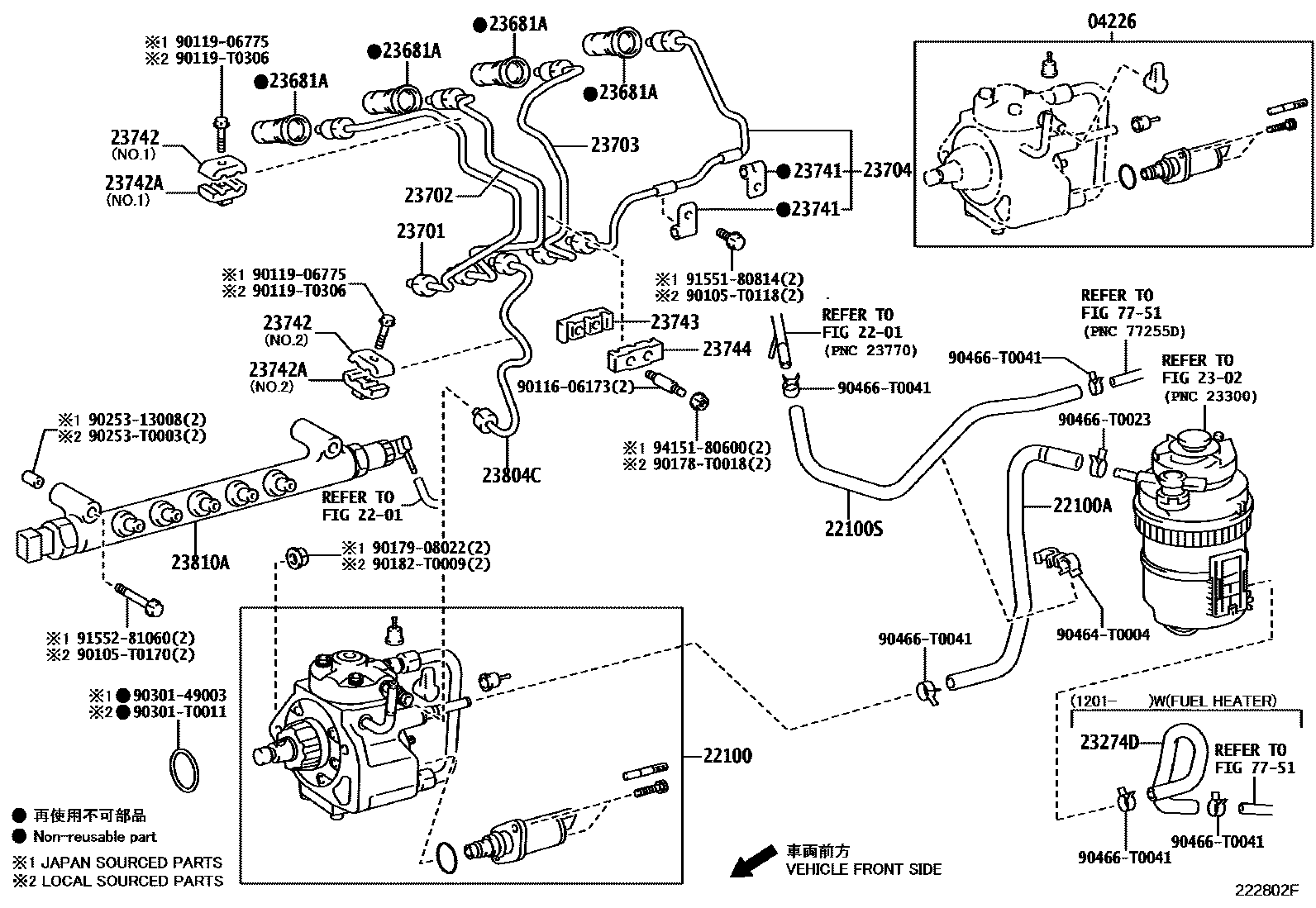

INJECTION PUMP ASSEMBLY

0001 1EXCEPT EURO 4 REGULATION 0006 1 0014 1EURO 4 REGULATION 0015 1EURO 5 REGULATION 0017 1 0018 1 0019 1KAZAKHSTAN SPEC 0020 1COLOMBIA SPEC 0021 1

04226VALVE KIT, SUCTION CONTROL

main04226-0L020i1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN201107-201610

*360

main04226-0L020i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130

main04226-0L020i1KDFTV..KUN26..IART201204-201510

main04226-30020i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main04226-30020i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)201107-201601

*360

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0L060i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130

main22100-0L060i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201610

*360

main22100-0L100i1KDFTV..KUN26..IART201204-201303

sub22100-0L101

main22100-0L101i1KDFTV..KUN26..IART201303-201510

main22100-30090i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)201107-201601

*360

main22100-30160i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201410

sub22100-30161

main22100-30161i1KDFTV,2KDFTV..KUN2#,35..THDCB..5F201411-201504

CHILE SPEC(EURO 5 REGULATION)

main22100-5D180i5LE..LAN15,25,35201108-201512

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-0L050i1KDFTV..KUN26..IART201204-201510

main23271-0L060i1KDFTV,2KDFTV..KUN1#,2#,3#..DCR,HDCR201107-201609

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-0L150i1KDFTV..KUN26..4FC..LA201303-201609

(L)

main23273-0L160i1KDFTV,2KDFTV..KUN2#,3#..(5F,5FC)..(DCR,HDCR)..LA201303-201510

(L)

main23273-0L180i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201303-201510

(L)

main23273-30170i1KDFTV..KUN26..4FC..LA201303-201510

(J)

main23273-30170i1KDFTV,2KDFTV..KUN2#,3#..(DCR,HDCR)..LA201201-201303

main23273-30250i1KDFTV,2KDFTV..KUN2#,3#..LA201107-201303

main23273-30250i2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,2#,36..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201303-201609

(J)

main23273-30350i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART201204-201303

main23273-30350i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201303-201510

(J)

2302

23274DHOSE, FUEL, NO.3

main23274-0L090i1KDFTV..KUN26..4FC..LA201303-201510

(L)

main23274-30040i1KDFTV,2KDFTV..KUN2#,3#..(5F,5FC)..(DCR,HDCR)..LA201303-201510

(J)

main23274-30040i1KDFTV,2KDFTV..KUN2#,3#..(DCR,HDCR)..LA201201-201303

23681ASEAL, NOZZLE HOLDER

main23681-0L010i2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201609

*130

main23681-0L010i1KDFTV..KUN26..IART201204-201510

main23681-30010i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201609

*360

main23681-30010i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-0L010i2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201609

*130

main23701-0L020i2KDFTV..KUN25..MA;2KDFTV..KUN35..SR..SA201107-201601

*130

main23701-30050i2KDFTV..KUN35..SR..SA;2KDFTV..KUN25..DCB..MA201107-201610

*360

main23701-30060i1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL)201107-201601

*360

main23701-30100i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

sub23701-30101

main23701-54140i5LE..LAN15,25,35201108-201512

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-0L010i2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201609

*130

main23702-0L020i2KDFTV..KUN25..MA;2KDFTV..KUN35..SR..SA201107-201601

*130

main23702-30050i1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN201107-201610

*360

main23702-30060i2KDFTV..KUN35..SR..SA;2KDFTV..KUN25..DCB..MA201107-201601

*360

main23702-30100i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

sub23702-30101

main23702-54140i5LE..LAN15,25,35201108-201512

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-0L010i2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201609

*130

main23703-0L020i1KDFTV,2KDFTV..KUN2#,35..5F..CO201107-201601

*130

main23703-30050i1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN201107-201610

*360

main23703-30060i1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL)201107-201601

*360

main23703-30100i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

sub23703-30101

main23703-54100i5LE..LAN15,25,35201108-201512

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-09015i2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201609

*130

main23704-09040i1KDFTV,2KDFTV..KUN2#,35..5F..CO201107-201601

*130

main23704-30090i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

sub23704-30091

main23704-39055i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)201107-201601

*360

main23704-39075i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201610

*360

main23704-54100i5LE..LAN15,25,35201108-201512

23741CLAMP, INJECTION PIPE, NO.1

main23741-0L020i2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201609

*130

sub23741-30020

main23741-30010i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201601

*360

main23741-30020i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201610

*360

main23741-54030i5LE..LAN15,25,35201108-201512

23742CLAMP, INJECTION PIPE, NO.2

main23742-0L011i2KDFTV..KUN25..IDN,LA,TH;1KDFTV..KUN26,36..5FC..TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN26,3#..(DCR,HDCR)..LA201107-201210

*130,NO.1

sub23742-0L090

main23742-0L011i2KDFTV..KUN35..PHL201208-201210

THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*130,NO.1

sub23742-0L090

main23742-0L011i2KDFTV..KUN15..SCB..TH;2KDFTV..KUN15..SMT..SR201208-201210

THAI SPEC(EURO 3 REGULATION),*130,NO.1

sub23742-0L090

main23742-0L011i1KDFTV..KUN26..IART201204-201210

sub23742-0L090

main23742-0L050i2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201210

*130,NO.2

main23742-0L090i1KDFTV..KUN26..IART201210-201510

EXPORT FROM ARGENTINA,*130,NO.1

main23742-0L090i1KDFTV..KUN26..IART201210-201510

PERU SPEC,*130,NO.1

main23742-0L090i2KDFTV..KUN35..DLX..SA;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN25..GCC,GEN,PKN,SA;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..4FC..(CO,LA,TH);2KDFTV..KUN15..RHD..(201210-201609

*130,NO.1

main23742-0L090i1KDFTV,2KDFTV..KUN2#,35..5F..CO201210-201410

CHILE SPEC(EURO 4 REGULATION),*130,NO.1

main23742-0L090i2KDFTV..KUN35..DCB..LA;1KDFTV,2KDFTV..KUN2#,36..5F..(DCR,HDCR)..LA..CBU201210-201510

HIGH ALTITUDE COUNTRY SPEC,*130,NO.1

main23742-0L090i2KDFTV..KUN35..DCB..LA;1KDFTV,2KDFTV..KUN2#,36..5F..(DCR,HDCR)..LA..CBU201210-201510

PERU SPEC(HIGH ALTITUDE SPEC),*130,NO.1

main23742-0L110i2KDFTV..KUN15..SMT..SR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..TH201210-201609

*130,NO.2

main23742-27010i2KDFTV..KUN25..LHD..DCB..GEN201308-201504

KAZAKHSTAN SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER,*360,NO.1

main23742-27010i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201610

*360,NO.1

main23742-27010i2KDFTV..KUN35..5FC201208-201504

main23742-30010i1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1K201107-201610

*360,NO.2

23742ACLAMP, INJECTION PIPE, NO.3

main23742-0L021i2KDFTV..KUN35..PHL201208-201210

THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*130,NO.1

main23742-0L021i2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201210

*130,NO.1

main23742-0L021i2KDFTV..KUN15..SCB..TH;2KDFTV..KUN15..SMT..SR201208-201210

THAI SPEC(EURO 3 REGULATION),*130,NO.1

main23742-0L021i1KDFTV..KUN26..IART201204-201210

main23742-0L060i2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201210

*130,NO.2

main23742-0L100i1KDFTV..KUN26..IART201210-201510

PERU SPEC(HIGH ALTITUDE SPEC),*130,NO.1

main23742-0L100i1KDFTV,2KDFTV..KUN2#,35..5F..CO201210-201609

*130,NO.1

main23742-0L100i1KDFTV,2KDFTV..KUN2#,35..5F..CO201210-201410

CHILE SPEC(EURO 4 REGULATION),*130,NO.1

main23742-0L100i2KDFTV..KUN35..DCB..LA;1KDFTV,2KDFTV..KUN2#,36..5F..(DCR,HDCR)..LA..CBU201210-201510

HIGH ALTITUDE COUNTRY SPEC,*130,NO.1

main23742-0L100i2KDFTV..KUN35..DCB..LA;1KDFTV,2KDFTV..KUN2#,36..5F..(DCR,HDCR)..LA..CBU201210-201510

PERU SPEC,*130,NO.1

main23742-0L100i2KDFTV..KUN35..DCB..LA;1KDFTV,2KDFTV..KUN2#,36..5F..(DCR,HDCR)..LA..CBU201210-201510

EXPORT FROM ARGENTINA,*130,NO.1

main23742-0L120i2KDFTV..KUN25;1KDFTV..KUN36..5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV.201210-201609

*130,NO.2

main23742-30020i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201610

*360,NO.2

main23742-30030i2KDFTV..KUN35..5FC201208-201504

NO.1

main23742-58020i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201610

*360,NO.1

main23742-58020i2KDFTV..KUN35..5FC201208-201504

NO.2

main23742-58020i2KDFTV..KUN35..DCB..DLX..GEN201308-201504

KAZAKHSTAN SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER,*360,NO.1

23743CLAMP, INJECTION PIPE, NO.3

main23743-0L012i1KDFTV..KUN26..IART201204-201210

sub23743-0L040

main23743-0L012i2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201210

*130

sub23743-0L040

main23743-0L040i1KDFTV..KUN26..IART201210-201510

main23743-0L040i2KDFTV..KUN25;1KDFTV..KUN36..5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV.201210-201609

*130

main23743-30011i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201610

*360

main23743-30011i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

23744CLAMP, INJECTION PIPE, NO.4

main23743-0L012i1KDFTV..KUN26..IART201204-201210

sub23743-0L040

main23743-0L012i2KDFTV..KUN25;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN35..CO,GEN,LA,PHL,SA;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..K201107-201210

*130

sub23743-0L040

main23743-0L040i1KDFTV..KUN26..IART201210-201510

main23743-0L040i2KDFTV..KUN15..SMT..SR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..TH201210-201609

*130

main23743-30011i2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201610

*360

main23743-30011i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

23804CPIPE SUB-ASSY, FUEL INLET

main23804-0L010i2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201609

*130

main23804-30050i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201610

*360

main23804-30100i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

sub23804-30101

23810ARAIL ASSY, COMMON

main23810-0L030i1KDFTV..KUN26..4FC..LA201110-201510

PERU SPEC(HIGH ALTITUDE SPEC),*130

main23810-0L030i1KDFTV..KUN26..4FC..LA201110-201510

PERU SPEC,*130

main23810-0L030i1KDFTV..KUN26..4FC..LA201110-201210

BRAZIL SPEC,*130

main23810-0L030i1KDFTV..KUN26..4FC..LA201110-201510

EXPORT FROM ARGENTINA,*130

main23810-0L030i1KDFTV..KUN26..4FC..LA201110-201510

HIGH ALTITUDE COUNTRY SPEC,*130

main23810-0L030i1KDFTV..KUN26..5F..CO201107-201609

*130

main23810-0L030i1KDFTV..KUN26,36..5F..TH201311-201510

main23810-0L040i1KDFTV..KUN26..IART201204-201510

main23810-30100i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610

*360

main23810-30100i1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN201107-201504

main23810-30120i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

7751

90105T0118

main90105-T0118

90105T0170

main90105-T0170

9011606173

main90116-06173

9011906775

main90119-06775

90119T0306

main90119-T0306

90178T0018

main90178-T0018

9017908022

main90179-08022

90182T0009

main90182-T0009

9025313008

main90253-13008

90253T0003

main90253-T0003

9030149003

main90301-49003

90301T0011

main90301-T0011

90464T0004

main90464-T0004

90466T0023

main90466-T0023

90466T0041

main90466-T0041

9155180814

main91551-80814

9155281060

main91552-81060

9415180600

main94151-80600

38 parts on this diagram · 9 diagrams in section
