VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-0L010i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130

main29300-54180i5LE..LAN15,25,35201108-201512

main29300-67020supersedes 29300-67020i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

*360

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201610

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201610

29322BBEARING, VACUUM PUMP

main90099-10185i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201610

main90099-10227i5LE..LAN15,25,35201108-201512

29331BLADE, VACUUM PUMP, A

main29331-54130×5i5LE..LAN15,25,35201108-201512

main29331-67020×5i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201610

29336SHAFT, VACUUM PUMP

main29336-58050i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201610

main29336-64031i5LE..LAN15,25,35201108-201512

29342PACKING, VACUUM PUMP

main29342-67020i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201610

29342BRING, O

main29342-58010i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201610

main29342-64030i5LE..LAN15,25,35201108-201512

29351GEAR, VACUUM PUMP

main29351-67020i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201610

29364WASHER, VACUUM PUMP

main29364-66010i1KDFTV,2KDFTV,5LE..KUN1#,2#,3#,LAN15,25,35201107-201610

29369VALVE SUB-ASSY, CHECK

main29369-64030i1KDFTV,2KDFTV,5LE..KUN1#,2#,3#,LAN15,25,35201107-201610

2934268010PACKING, VACUUM PUMP

main29342-68010

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

90178T0074

main90178-T0074

9017908184

main90179-08184

9040109001

main90401-09001

90560T0019

main90560-T0019

9516110413

main95161-10413

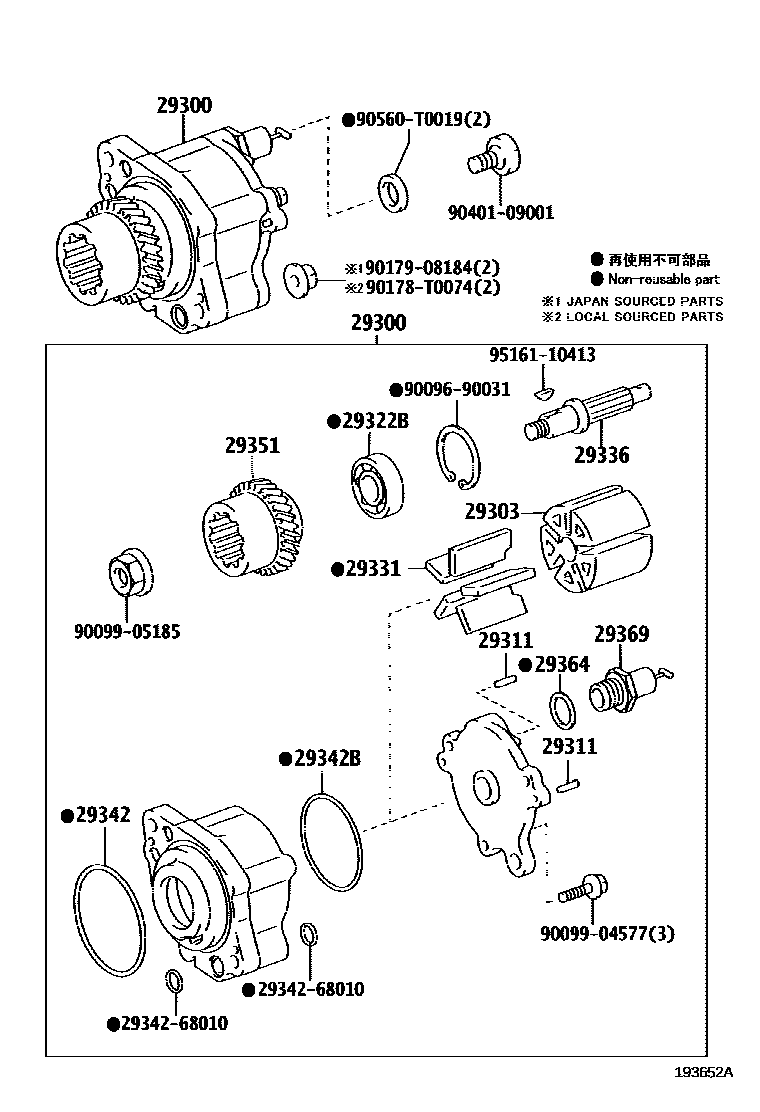

20 parts on this diagram · 2 diagrams in section
