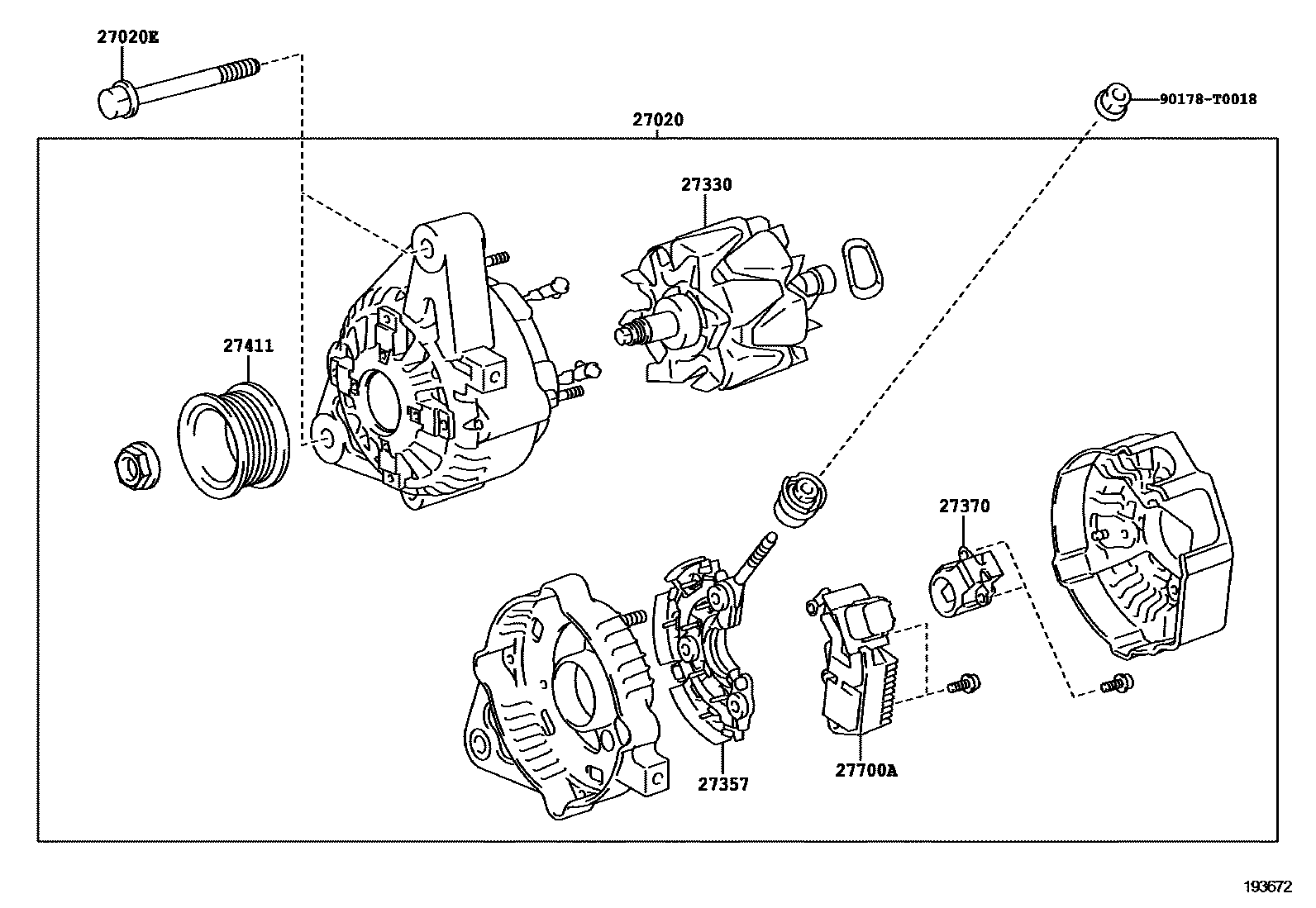

ALTERNATOR

0001 112V 80A 0002 112V 80A(DENSO) 0003 112V 80A 0004 112V 90A 0005 112V 80A(BOSCH) 0006 112V 70A 0007 112V 80A(BOSCH) 0009 112V 90A

27020ALTERNATOR ASSY

main27060-0C021i2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1T201107-201304

12V 80A

main27060-0C070i1TRFE,2TRFE..TGN10,16..IDN,TH201304-201504

12V 80A

main27060-0L022i1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

12V 80A

main27060-0L040i1KDFTV,2KDFTV..KUN2#,3#..CO,LA201110-201510

12V 80A

main27060-0L060i1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA201108-201512

12V 80A

main27060-0P100i1GRFE..GGN25201108

12V 90A

main27060-0P120i1GRFE..GGN25..ANCOM201204-202007

12V 90A

sub27060-0P100

main27060-31011i1GRFE..GGN15,25..ARL201107-201504

12V 80A

main27060-54360i5LE..LAN15,25,35201108-201512

12V 70A

27020EBOLT(FOR ALTERNATOR)

main90105-10287i5LE..LAN15,25,35201108-201512

main90105-T0074i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201609

main90105-T0127i1TRFE,2TRFE..TGN1#,26,36201107

main91672-81065i1GRFE..GGN15,25,35201107

27330ROTOR ASSY, ALTERNATOR

main27330-0L030i1KDFTV,2KDFTV..KUN2#,3#..CO,LA201110-201510

main27330-0L050i1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA201108-201512

main27330-0M040i2TRFE..TGN16..ARL,GEN;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;1TRFE,2TRFE..TGN10,11,15,26,36..GCC,GEN201107-201304

main27330-0P100i1GRFE..GGN25201108

main27330-0P110i1GRFE..GGN25..ANCOM201204-202008

main27330-30130i1GRFE..GGN15,25..ARL201107-201504

main27330-64190i5LE..LAN15,25,35201108-201512

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-0L030i1GRFE,1KDFTV,2KDFTV..GGN25,KUN2#,3#..ANCOM,CO,LA201110-202008

main27357-0L050i1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA201108-201512

main27357-0P090i1GRFE..GGN25,35..SA201108

main27357-22200i1GRFE..GGN15,25..ARL201107-201504

main27357-55080i5LE..LAN15,25,35201108-201512

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0C020i2TRFE..TGN16..ARL,GEN;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;1TRFE,2TRFE..TGN10,11,15,26,36..GCC,GEN201107-201609

main27370-75060i5LE..LAN15,25,35;1GRFE..GGN15,25..ARL201107-201512

27411PULLEY, ALTERNATOR

main27411-0C020i2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..SCB..GEN;2TRFE..TGN26..ANCOM,CO,LA,SA;2TRFE..TGN16..SCB..DLX..GCC..CBU;1TRFE,2TRFE..TGN10,15,16,36..(DCB,SCB,SMT)..(ANCOM,GEN,I201107-201304

main27411-0P090i1GRFE..GGN25201108

main27411-0P110i1GRFE..GGN25..ANCOM201204-202008

main27411-31200i1GRFE..GGN15,25..ARL201107-201504

sub27411-31551

27700AREGULATOR ASSY, GENERATOR

main27700-0D020i1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA201108-201512

main27700-31040i1GRFE..GGN15,25..ARL201107-201504

main27700-35040i5LE..LAN15,25,35201108-201512

main27702-0D020i1GRFE,1KDFTV,2KDFTV..GGN25,KUN2#,3#..ANCOM,CO,LA201110-202008

90178T0018

main90178-T0018
