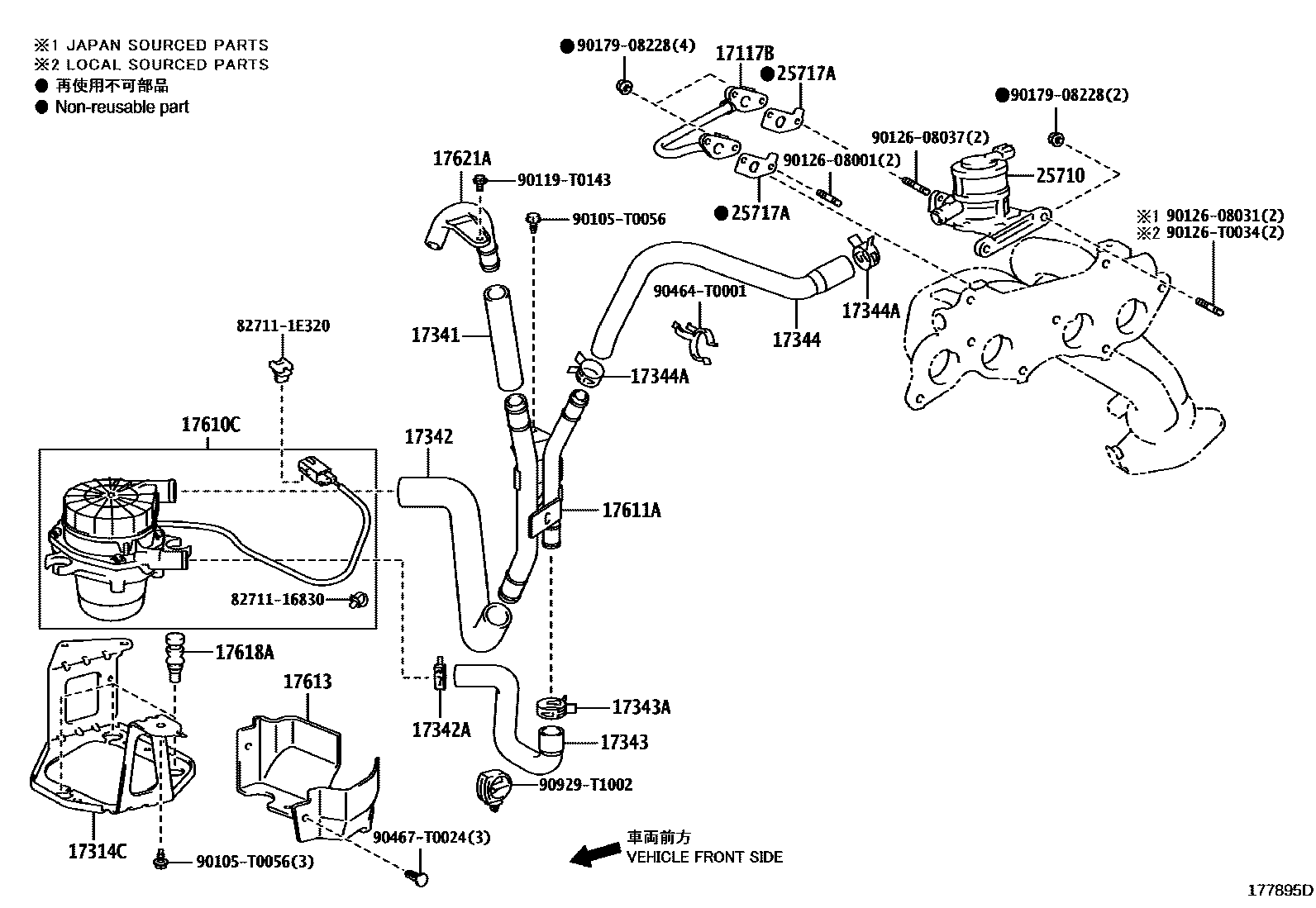

MANIFOLD AIR INJECTION SYSTEM
17117BPIPE, INTAKE, NO.4
main17117-0C011i2TRFE..TGN26..LA;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..(DCB,SCB,SMT,THDCB)..(ARL,GEN,LA,TH)201107-201112
EGYPT SPEC
main17117-0C011i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201112-201412
(L)
main17117-0C011i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201112-201412
EGYPT SPEC,(L)
main17117-0C020i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201412-201510
main17117-75011i2TRFE..TGN26..LA;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..(DCB,SCB,SMT,THDCB)..(ARL,GEN,LA,TH)201112-201206
(J)
EGYPT SPEC,(J)
17314CBRACKET, AIR PUMP
main17314-0C010i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
main17341-0C010i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
main17342-0C010i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
main90466-T0034i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
main17343-0C010i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201203-201510
*299
EGYPT SPEC
17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
main90466-T0034i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)
main17344-0C010i2TRFE..TGN26..LA;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..(DCB,SCB,SMT,THDCB)..(ARL,GEN,LA,TH)201107-201203
EGYPT SPEC
main17344-0C010i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201203-201510
*299
17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
main90466-T0034i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
17610CPUMP ASSY, AIR
main17610-0C020i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
17611APIPE, AIR PUMP INLET
main17611-0C010i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
17613COVER, AIR PUMP
main17613-0C010i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201404
EGYPT SPEC
17618AINSULATOR, AIR PUMP
main17618-0C010i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
17621AINLET, AIR PUMP
main17621-0C020i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
25710VALVE ASSY, AIR SWITCHING
main25710-75022i2TRFE..TGN26..LA;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..(DCB,SCB,SMT,THDCB)..(ARL,GEN,LA,TH)201107-201203
EGYPT SPEC
sub25710-75023
main25710-75023i2TRFE..TGN26..LA;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..(DCB,SCB,SMT,THDCB)..(ARL,GEN,LA,TH)201203-201208
EGYPT SPEC
sub25710-75024
main25710-75024i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201208-201305
EGYPT SPEC
sub25710-75025
main25710-75025i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201305-201510
25717AGASKET, AIR SWITCHING VALVE
main25717-75010i2TRFE..TGN36..GEN,LA;2TRFE..TGN16..SCB..GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH201107-201510
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
90105T0056
main90105-T0056
90119T0143
main90119-T0143
9012608001
main90126-08001
9012608031
main90126-08031
9012608037
main90126-08037
90126T0034
main90126-T0034
9017908228
main90179-08228
90464T0001
main90464-T0001
90467T0024
main90467-T0024
90929T1002
main90929-T1002
28 parts on this diagram · 2 diagrams in section
