EPC Data

CRANKSHAFT & PISTON

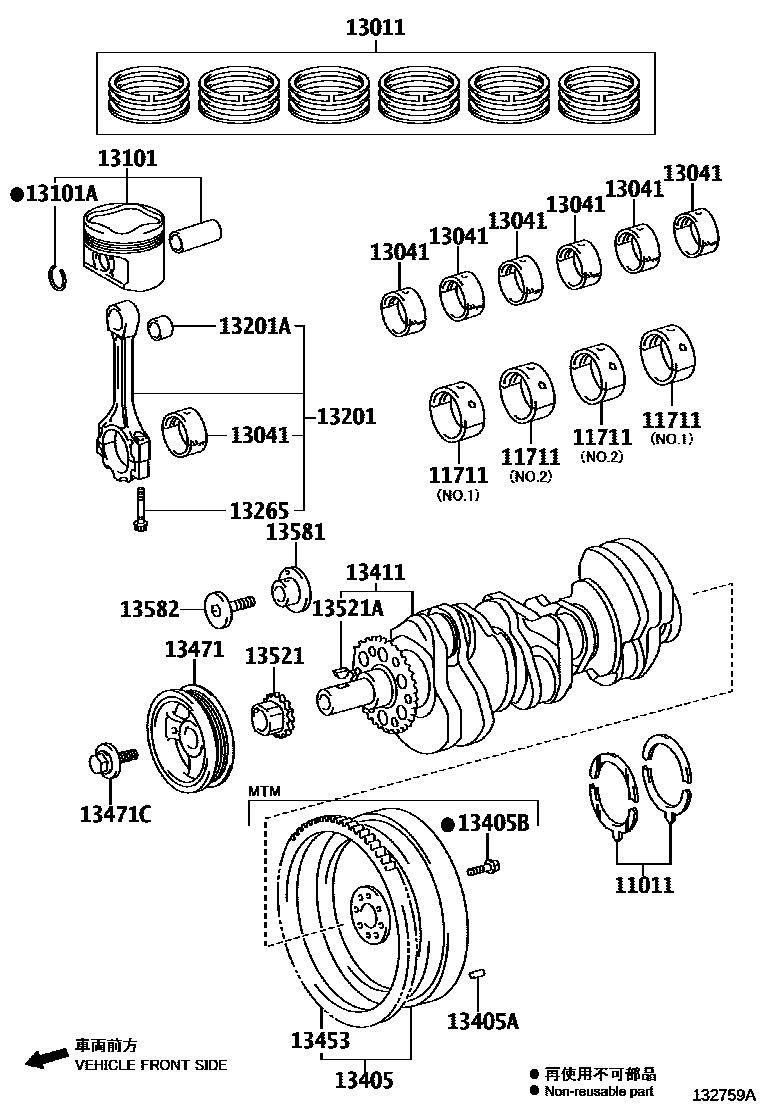

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-0C010i201107
STD
main11011-0L020i201107-201609
STD,*130
main11011-30010i201107-201610
STD,*360
main11011-31071i201107
STD
main11011-54020i201108-201512
STD
main11012-30010i201107-201610
O/S 0.125,*360
main11012-30010i201107-201609
O/S 0.125,*130
main11012-54020i201108-201512
O/S 0.125
main11013-30010i201107-201610
O/S 0.250,*360
main11013-30010i201107-201609
O/S 0.250,*130
main11013-54020i201108-201512
O/S 0.250
11711BEARING, CRANKSHAFT
main11071-31011-01i201107-201906
MARK1,NO.2,REFER R/M
sub11071-31050
main11071-31011-02i201107-201906
MARK2,NO.2,REFER R/M
sub11071-31050
main11071-31011-03i201107-201906
MARK3,NO.2,REFER R/M
sub11071-31050
main11071-31011-04i201107-201906
MARK4,NO.2,REFER R/M
sub11071-31050
main11071-31011-05i201107-201906
MARK5,NO.2,REFER R/M
sub11071-31050
main11701-0C010-01i201107-201407
MARK1,REFER R/M
sub11701-0C011
main11701-0C010-02i201107-201407
MARK2,REFER R/M
sub11701-0C011
main11701-0C010-03i201107-201407
MARK3,REFER R/M
sub11701-0C011
main11701-0C011-01i201408
MARK 1,REFER R/M
main11701-0C011-02i201408
MARK 2,REFER R/M
main11701-0C011-03i201408
MARK 3,REFER R/M
main11701-0C011-04i201408
MARK 4,REFER R/M
main11701-0C011-05i201408
MARK 5,REFER R/M
main11701-0L020-02i201107-201609
MARK2,*130:REFER R/M
main11701-0L020-03i201107-201609
MARK3,*130:REFER R/M
main11701-0L020-04i201107-201609
MARK4,*130:REFER R/M
main11701-0L020-05i201107-201609
MARK5,*130:REFER R/M
main11701-0L020-06i201107-201609
MARK6,*130:REFER R/M
main11701-30020-02i201107-201610
MARK2,*360
sub11701-30020
main11701-30020-03i201107-201610
MARK3,*360
sub11701-30020
main11701-30020-04i201107-201610
MARK4,*360
sub11701-30020
main11701-30020-05i201107-201610
MARK5,*360
sub11701-30020
main11701-30020-06i201107-201610
MARK6,*360
sub11701-30020
main11701-31041-01i201107-201906
MARK1,NO.1,REFER R/M
sub11701-31080
main11701-31041-02i201107-201906
MARK2,NO.1,REFER R/M
sub11701-31080
main11701-31041-03i201107-201906
MARK3,NO.1,REFER R/M
sub11701-31080
main11701-31041-04i201107-201906
MARK4,NO.1,REFER R/M
sub11701-31080
main11701-31041-05i201107-201906
MARK5,NO.1,REFER R/M
sub11701-31080
main11701-54081-01i201108-201512
MARK1,REFER REPAIR MANUAL
main11701-54081-02i201108-201512
MARK2,REFER REPAIR MANUAL
main11701-54081-03i201108-201512
MARK3,REFER REPAIR MANUAL
13011RING SET, PISTON
main13011-0C010i201107-201512
STD
main13011-0C030i201107
STD
main13011-0L020i201107-201512
STD,*130
sub13011-0L021
main13011-0L030i201107-201601
STD,*130
main13011-0L040i201107-201609
STD,*130
main13011-0L060i201208-201504
STD
main13011-0L070i201107-201601
STD,*130
main13011-30051i201107-201601
STD,*360
main13011-30060i201107-201610
STD,*360
sub13011-30061
main13011-30080i201107-201512
STD,*360
sub13011-30081
main13011-30110i201107-201512
STD
main13011-30120i201208-201601
STD,*360
main13011-30150i201107-201504
STD
main13011-30160i201110-201510
STD
main13011-30180i201210-201510
STD
main13011-31100i201107-201504
STD
sub13011-31200
main13011-31200i201108-201208
STD
main13011-54130i201108-201512
STD
main13011-75130i201107-201504
STD
main13011-75130i201107-201504
STD,IRAQ SPEC
main13011-75160i201110-201510
STD
main13013-30022i201107-201601
O/S 0.50,*130
sub13013-30051
main13013-30030i201107-201609
O/S 0.50,*130
sub13013-30031
main13013-30051i201107-201601
O/S 0.50,*360
main13013-30060i201107-201610
O/S 0.50,*360
main13013-30080i201107-201512
O/S 0.50,*360
main13013-30090i201208-201504
O/S 0.50
sub13013-30150
main13013-30110i201107-201512
O/S 0.50
main13013-30120i201208-201601
O/S 0.50,*360
main13013-30120i201107-201601
O/S 0.50,*130
main13013-30150i201107-201504
O/S 0.50
main13013-30160i201110-201510
O/S 0.50
main13013-30180i201210-201510
O/S 0.50
main13013-54130i201108-201512
O/S 0.50
main13013-75100i201107-201512
O/S 0.50
main13013-75110i201107
O/S 0.50
main13013-75130i201107-201504
O/S 0.50,IRAQ SPEC
main13013-75130i201107-201504
O/S 0.50
main13013-75160i201110-201510
O/S 0.50
main13014-30022i201107-201601
O/S 0.75,*130
sub13014-30051
main13014-30051i201107-201601
O/S 0.75,*360
main13014-30090i201208-201504
O/S 0.75
sub13014-30150
main13014-30110i201107-201512
O/S 0.75
main13014-30150i201107-201504
O/S 0.75
main13014-30160i201110-201510
O/S 0.75
main13015-30022i201107-201601
O/S 1.00,*130
sub13015-30051
main13015-30051i201107-201601
O/S 1.00,*360
main13015-30090i201208-201504
O/S 1.00
sub13015-30150
main13015-30110i201107-201512
O/S 1.00
main13015-30150i201107-201504
O/S 1.00
main13015-30160i201110-201510
O/S 1.00
13041BEARING, CONNECTING ROD
main13041-0C050-04i201107-201501
MARK4,REFER R/M
sub13041-0C051
main13041-0C050-05i201107-201501
MARK5,REFER R/M
sub13041-0C051
main13041-0C050-06i201107-201501
MARK6,REFER R/M
sub13041-0C051
main13041-0C052-04i201501-201602
MARK 4,REFER R/M
sub13041-0C060
main13041-0C052-05i201501-201602
MARK 5,REFER R/M
sub13041-0C060
main13041-0C052-06i201501-201602
MARK 6,REFER R/M
sub13041-0C060
main13041-0C060-04i201603
MARK 4,(L),REFER R/M
main13041-0C060-05i201603
MARK 5,(L),REFER R/M
main13041-0C060-06i201603
MARK 6,(L),REFER R/M
main13041-0L020-02i201107-201609
MARK2,*130:REFER R/M
main13041-0L020-02i201110-201510
MARK2,REFER REPAIR MANUAL
main13041-0L020-03i201110-201510
MARK3,REFER REPAIR MANUAL
main13041-0L020-03i201107-201609
MARK3,*130:REFER R/M
main13041-0L020-04i201107-201609
MARK4,*130:REFER R/M
main13041-0L020-04i201110-201510
MARK4,REFER REPAIR MANUAL
main13041-0L020-05i201107-201609
MARK5,*130:REFER R/M
main13041-0L020-05i201110-201510
MARK5,REFER REPAIR MANUAL
main13041-0L020-06i201107-201609
MARK6,*130:REFER R/M
main13041-0L020-06i201110-201510
MARK6,REFER REPAIR MANUAL
main13041-30020-02i201107-201610
MARK2,*360:REFER R/M
sub13041-30020
main13041-30020-02i201208-201504
MARK2,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-03i201107-201610
MARK3,*360:REFER R/M
sub13041-30020
main13041-30020-03i201208-201504
MARK3,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-04i201107-201610
MARK4,*360:REFER R/M
sub13041-30020
main13041-30020-04i201208-201504
MARK4,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-05i201107-201610
MARK5,*360:REFER R/M
sub13041-30020
main13041-30020-05i201208-201504
MARK5,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-06i201107-201610
MARK6,*360:REFER R/M
sub13041-30020
main13041-30020-06i201208-201504
MARK6,REFER REPAIR MANUAL
sub13041-30020
main13041-31090-01i201107
MARK 1
main13041-31090-02i201107
MARK 2
main13041-31090-03i201107
MARK 3
main13041-31090-04i201107
MARK 4
main13041-54042-01i201108-201512
MARK1,REFER REPAIR MANUAL
main13041-54042-02i201108-201512
MARK2,REFER REPAIR MANUAL
main13041-54042-03i201108-201512
MARK3,REFER REPAIR MANUAL
main13041-75060-04i201110-201510
MARK 4,REFER R/M
main13041-75060-05i201110-201510
MARK 5,REFER R/M
main13041-75060-06i201110-201510
MARK 6,REFER R/M
main13041-75070-04i201603
MARK 4,(J),REFER R/M
main13041-75070-05i201603
MARK 5,(J),REFER R/M
main13041-75070-06i201603
MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
main13101-0C010i201201-201512
STD,(L)
main13101-0C010i201107-201201
STD
main13101-0C020i201107-201201
STD
main13101-0C020i201201
STD,(L)
main13101-0C050i201201-201510
STD,(L)
main13101-0C050i201110-201201
STD
main13101-0L051-01i201107-201609
STD,MARK 1,*130:REFER R/M
main13101-0L051-02i201107-201609
STD,MARK 2,*130:REFER R/M
main13101-0L051-03i201107-201609
STD,MARK 3,*130:REFER R/M
main13101-0L060-01i201311-201504
STD,MARK1,*130:REFER R/M
main13101-0L060-02i201311-201504
STD,MARK2,*130:REFER R/M
main13101-0L060-03i201311-201504
STD,MARK3,*130:REFER R/M
main13101-0L070-01i201107-201601
STD,MARK1,*130:REFER R/M
main13101-0L070-02i201107-201601
STD,MARK2,*130:REFER R/M
main13101-0L070-03i201107-201601
STD,MARK3,*130:REFER R/M
main13101-0L080-01i201107-201503
STD,MARK 1,*130:REFER R/M
sub13101-0L110
main13101-0L080-02i201107-201503
STD,MARK 2,*130:REFER R/M
sub13101-0L110
main13101-0L080-03i201107-201503
STD,MARK 3,*130:REFER R/M
sub13101-0L110
main13101-0L110-01i201503-201601
STD,MARK 1,*130:REFER R/M
main13101-0L110-02i201503-201601
STD,MARK 2,*130:REFER R/M
main13101-0L110-03i201503-201601
STD,MARK 3,*130:REFER R/M
main13101-30081-01i201107-201610
STD,MARK1,*360:REFER R/M
main13101-30081-01i201111-201410
STD,MARK1,REFER REPAIR MANUAL
main13101-30081-02i201107-201610
STD,MARK2,*360:REFER R/M
main13101-30081-02i201111-201410
STD,MARK2,REFER REPAIR MANUAL
main13101-30081-03i201111-201410
STD,MARK3,REFER REPAIR MANUAL
main13101-30081-03i201107-201610
STD,MARK3,*360:REFER R/M
main13101-30102-01i201210-201504
STD,MARK 1,*360:REFER R/M
main13101-30102-01i201110-201510
STD,MARK 1,REFER REPAIR MANUAL
main13101-30102-02i201210-201504
STD,MARK 2,*360:REFER R/M
main13101-30102-02i201110-201510
STD,MARK 2,REFER REPAIR MANUAL
main13101-30102-03i201210-201504
STD,MARK 3,*360:REFER R/M
main13101-30102-03i201110-201510
STD,MARK 3,REFER REPAIR MANUAL
main13101-30140-01i201208-201601
STD,MARK1,*360:REFER R/M
main13101-30140-02i201208-201601
STD,MARK2,*360:REFER R/M
main13101-30140-03i201208-201601
STD,MARK3,*360:REFER R/M
main13101-30150-01i201110-201402
STD,MARK1,REFER REPAIR MANUAL
sub13101-30200
main13101-30150-01i201107-201402
STD,MARK1,*360:REFER R/M
sub13101-30200
main13101-30150-02i201110-201402
STD,MARK2,REFER REPAIR MANUAL
sub13101-30200
main13101-30150-02i201107-201402
STD,MARK2,*360:REFER R/M
sub13101-30200
main13101-30150-03i201110-201402
STD,MARK3,REFER REPAIR MANUAL
sub13101-30200
main13101-30150-03i201107-201402
STD,MARK3,*360:REFER R/M
sub13101-30200
main13101-30170-01i201204-201510
STD,MARK 1,EXCEPT BRAZIL,*RRM
sub13101-30172
main13101-30170-02i201204-201510
STD,MARK 2,EXCEPT BRAZIL,*RRM
sub13101-30172
main13101-30170-03i201204-201510
STD,MARK 3,EXCEPT BRAZIL,*RRM
sub13101-30172
main13101-30180-01i201208-201504
STD,MARK 1,REFER REPAIR MANUAL
main13101-30180-02i201208-201504
STD,MARK 2,REFER REPAIR MANUAL
main13101-30180-03i201208-201504
STD,MARK3,REFER REPAIR MANUAL
main13101-30200-01i201402-201512
STD,MARK 1,*360:REFER R/M
main13101-30200-01i201402
STD,MARK 1,EXCEPT BRAZIL,*RRM
main13101-30200-02i201402-201512
STD,MARK 2,*360:REFER R/M
main13101-30200-02i201402
STD,MARK 2,EXCEPT BRAZIL,*RRM
main13101-30200-03i201402
STD,MARK 3,EXCEPT BRAZIL,*RRM
main13101-30200-03i201402-201512
STD,MARK 3,*360:REFER R/M
main13101-30220-01i201402
STD,MARK 1,FOR BRAZIL,*RRM
main13101-30220-02i201402
STD,MARK 2,FOR BRAZIL,*RRM
main13101-30220-03i201402
STD,MARK 3,FOR BRAZIL,*RRM
main13101-30230-01i201204-201509
STD,MARK 1,REFER REPAIR MANUAL
main13101-30230-02i201204-201509
STD,MARK 2,REFER REPAIR MANUAL
main13101-30230-03i201204-201509
STD,MARK 3,REFER REPAIR MANUAL
main13101-31030-A0i201107
STD,MARK A,REFER REPAIR MANUAL
sub13101-31030
main13101-31030-B0i201107
STD,MARK B,REFER REPAIR MANUAL
sub13101-31030
main13101-31030-C0i201107
STD,MARK C,REFER REPAIR MANUAL
sub13101-31030
main13101-54120-01i201108-201512
STD,MARK 1,REFER REPAIR MANUAL
main13101-54120-02i201108-201512
STD,MARK 2,REFER REPAIR MANUAL
main13101-54120-03i201108-201512
STD,MARK 3,REFER REPAIR MANUAL
main13101-75130i201201
STD,(J)
main13103-0C050i201110-201201
O/S 0.50
main13103-0C050i201201-201510
O/S 0.50,(L)
main13103-0L051i201107-201210
O/S 0.50,*130
main13103-0L060i201311-201504
O/S 0.50,*130
main13103-0L070i201107-201601
O/S 0.50,*130
main13103-0L070i201208-201601
O/S 0.50,*360
main13103-30081i201107-201610
O/S 0.50,*360
main13103-30081i201111-201410
O/S 0.50
main13103-30102i201110-201510
O/S 0.50
main13103-30102i201210-201504
O/S 0.50,*360
main13103-30150i201107-201402
O/S 0.50,*360
sub13103-30200
main13103-30150i201107-201404
O/S 0.50,*130
sub13103-30200
main13103-30150i201110-201402
O/S 0.50
sub13103-30200
main13103-30170i201204-201510
O/S 0.50
main13103-30180i201208-201504
O/S 0.50
main13103-30200i201404-201601
O/S 0.50,*130
main13103-30200i201402-201601
O/S 0.50,*360
main13103-30200i201402
O/S 0.50,EXCEPT BRAZIL
main13103-30220i201402
O/S 0.50,FOR BRAZIL SPEC
main13103-54120i201108-201512
O/S 0.50
main13103-75120i201201-201512
O/S 0.50,(L)
main13103-75120i201107-201201
O/S 0.50
main13103-75130i201201-201504
O/S 0.50,(J)
main13103-75130i201107-201201
O/S 0.50
main13103-75130i201201
O/S 0.50,(L)
main13104-30150i201107-201404
O/S 0.75,*130
sub13104-30200
main13104-30150i201110-201402
O/S 0.75
sub13104-30200
main13104-30150i201107-201402
O/S 0.75,*360
sub13104-30200
main13104-30170i201204-201510
O/S 0.75
main13104-30200i201402-201601
O/S 0.75,*360
main13104-30200i201402
O/S 0.75,EXCEPT BRAZIL
main13104-30200i201404-201601
O/S 0.75,*130
main13104-30220i201402
O/S 0.75,FOR BRAZIL SPEC
main13104-30230i201204-201509
O/S 0.75,FOR BRAZIL SPEC
main13105-30150i201107-201402
O/S 1.00,*360
sub13105-30200
main13105-30150i201110-201402
O/S 1.00
sub13105-30200
main13105-30150i201107-201404
O/S 1.00,*130
sub13105-30200
main13105-30170i201204-201510
O/S 1.00
main13105-30200i201404-201601
O/S 1.00,*130
main13105-30200i201402-201601
O/S 1.00,*360
main13105-30200i201402
O/S 1.00,EXCEPT BRAZIL
main13105-30220i201402
O/S 1.00,FOR BRAZIL SPEC
main13105-30230i201204-201509
O/S 1.00,FOR BRAZIL SPEC
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i201107
main90520-37014i201107-201609
*130
main90520-37014i201107-201609
*360
main90520-37014i201110-201510
main90520-37014i201311-201609
*360,*130
main90521-31001i201108-201512
13201ROD SUB-ASSY, CONNECTING
main13201-09301i201107-201505
sub13201-09302
main13201-09671i201408-201501
(L)
sub13201-09672
main13201-09671i201107-201408
sub13201-09672
main13201-09671i201108-201501
TYPE A
sub13201-09672
main13201-09671i201108-201505
TYPE B
sub13201-09672
main13201-09672i201501-201504
KAZAKHSTAN SPEC,TYPE A
sub13201-09673
main13201-09672i201501-201603
TYPE A
sub13201-09673
main13201-09673i201603
TYPE A
main13201-09B70i201505-201512
sub13201-09B71
main13201-09B80i201505-201603
TYPE B
sub13201-09B81
main13201-09B81i201603
TYPE B
main13201-0L011i201107-201609
*130,(L)
sub13201-30041
main13201-0L041i201107-201503
*130
sub13201-30051
main13201-0L041i201503-201601
*130,(L)
sub13201-30051
main13201-30041i201110-201510
main13201-30041i201107-201208
*130,(J),*360
main13201-30041i201107-201610
*360
main13201-30041i201107-201609
*130,(J)
main13201-30051i201110-201510
main13201-30051i201107-201512
*360
main13201-30051i201503-201601
*130,(J)
main13201-39235-A0i201107
MARK A
sub13201-39235
main13201-39235-B0i201107
MARK B
sub13201-39235
main13201-39235-C0i201107
MARK C
sub13201-39235
main13201-59216i201108-201512
main13201-79577i201408-201504
MARK 90384-T0006
sub13201-79578
main13201-79625i201110-201510
TYPE C
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73115i201108-201512
main90999-73144i201107
13265BOLT, CONNECTING ROD
main13265-0C010i201904
(L),MADE IN IDN
main13265-0C020i201904
(L),MADE IN THAILAND
main13265-28010i201107-201812
sub13265-28020
main13265-28020i201901-201906
(J)
main13265-28020i201901-201904
main13265-54021i201108-201512
main13265-67021i201107-201609
*130
main13265-67021i201107-201610
*360
main13265-67021i201110-201510
13405FLYWHEEL SUB-ASSY
main13405-0C010i201108-201512
main13405-0C020i201107-201504
main13405-0C030i201108
main13405-0C040i201107-201504
main13405-0L010i201107-201609
*130
main13405-0L021i201303-201609
*130,MARK=0L021
main13405-0L021i201107-201303
*130
main13405-0L030i201107-201609
*130
main13405-0L090i201110-201510
main13405-0L100i201110-201510
main13405-0L110i201303-201609
*130,MARK=30031
sub13405-0L021
main13405-30020i201107-201610
*360
main13405-30031i201107-201610
*360
main13405-31091i201107-201301
sub13405-31092
main13405-31092i201301-201311
main13405-54080i201108-201512
main13405-67030i201107-201610
*360
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-05121i201107-201610
L=15,OD=5,*360
main90250-08054i201107-201610
L=23,OD=8,*360
main90250-08054i201108-201512
L=23,OD=8
main90250-08054i201408
L=23,OD=8,(J)
main90250-10017i201107-201311
L=20,OD=10
main90250-10192i201107-201610
L=22,OD=10,*360
main90250-T0008i201110-201510
L=22,OD=10
main90250-T0008i201107-201609
L=22,OD=10,*130
main90250-T0010i201408
L=23,OD=8,(L)
main90250-T0010i201107-201504
L=23,OD=8
main90250-T0010i201107-201609
L=23,OD=8,*130
main90250-T0013i201107-201609
L=15,OD=5,*130
main90250-T0013i201110-201510
L=15,OD=5
13405BBOLT, FLYWHEEL SETTING
main90105-10294i201107-201311
main90105-12109i201108-201512
main90105-13010i201107-201610
*360
main90105-T0113i201107-201609
*130
main90105-T0113i201110-201510
main90910-02116i201408
(J)
main90910-T2004i201107-201504
main90910-T2004i201408
(L)
13411CRANKSHAFT
main13401-0C010i201107-201512
main13401-0C021i201108-201408
sub13401-0C022
main13401-0C021i201107-201408
(L)
sub13401-0C022
main13401-0C022i201408-201504
(L)
main13401-0C022i201408
main13401-0C022i201408-201504
KAZAKHSTAN SPEC
main13401-0L090i201503-201601
*130,(L)
sub13401-30050
main13401-0L090i201107-201503
*130
sub13401-30050
main13401-0L100i201107-201609
*130,(L)
sub13401-30060
main13401-0L100i201107-201610
*360,(L)
sub13401-30060
main13401-30050i201107-201601
*360
main13401-30050i201110-201510
main13401-30050i201503-201601
*130,(J)
main13401-30060i201107-201610
*360,(J)
main13401-30060i201107-201609
*130,(J)
main13401-31011i201107
main13401-54100i201108-201512
main13401-75020i201107-201408
(J)
sub13401-75021
main13401-75021i201408-201504
(J)
sub13401-0C022
13453GEAR, FLYWHEEL RING
main13453-05010i201108-201512
(L)
main13453-0C020i201108
main13453-0C030i201107-201504
main13453-0L010i201107-201609
*130
main13453-0L010i201107-201610
*360,(L)
main13453-0L010i201110-201510
main13453-31020i201107-201311
main13453-54010i201108-201512
(J)
main13453-67030i201107-201610
*360
main13453-67030i201107-201610
*360,(J)
13471PULLEY, CRANKSHAFT
main13408-0C030i201108
main13408-0C040i201107-201504
sub13408-0C030
main13408-0L020i201107-201609
*130
main13408-30011i201107-201610
*360
main13408-54090i201108-201512
main13470-31014i201107
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-16041i201406
(J)
main90109-T0038i201406
(L)
main90109-T0038i201107-201406
main90119-16004i201107
main90119-18003i201107-201610
*360
main90119-T0218i201107-201609
*130
main90901-19028i201108-201512
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0C010i201107-201406
sub13521-0C011
main13521-0C011i201406-201707
(L)
main13521-0C030i201707
(L)
main13521-0L010i201201-201609
*130,*299T/P A:SEE
main13521-0L010i201107-201201
*130
main13521-0L020i201203-201206
*130,*299T/P B:SEE
sub13521-0L010
main13521-31030i201107-201204
sub13521-31060
main13521-31060i201204
main13521-67020i201107-201610
*360
main13521-67020i201201-201206
*130,*300T/P A:SEE
main13521-75021i201406
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main95161-30516i201107
main95161-30622i201108-201512
13581SHAFT, IDLE GEAR, NO.1
main13581-0L010i201107-201609
*130
main13581-31030i201107
main13581-67041i201107-201610
*360
13582SHAFT, IDLE GEAR, NO.2
main13582-31010i201107

20 parts on this diagram · 8 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
