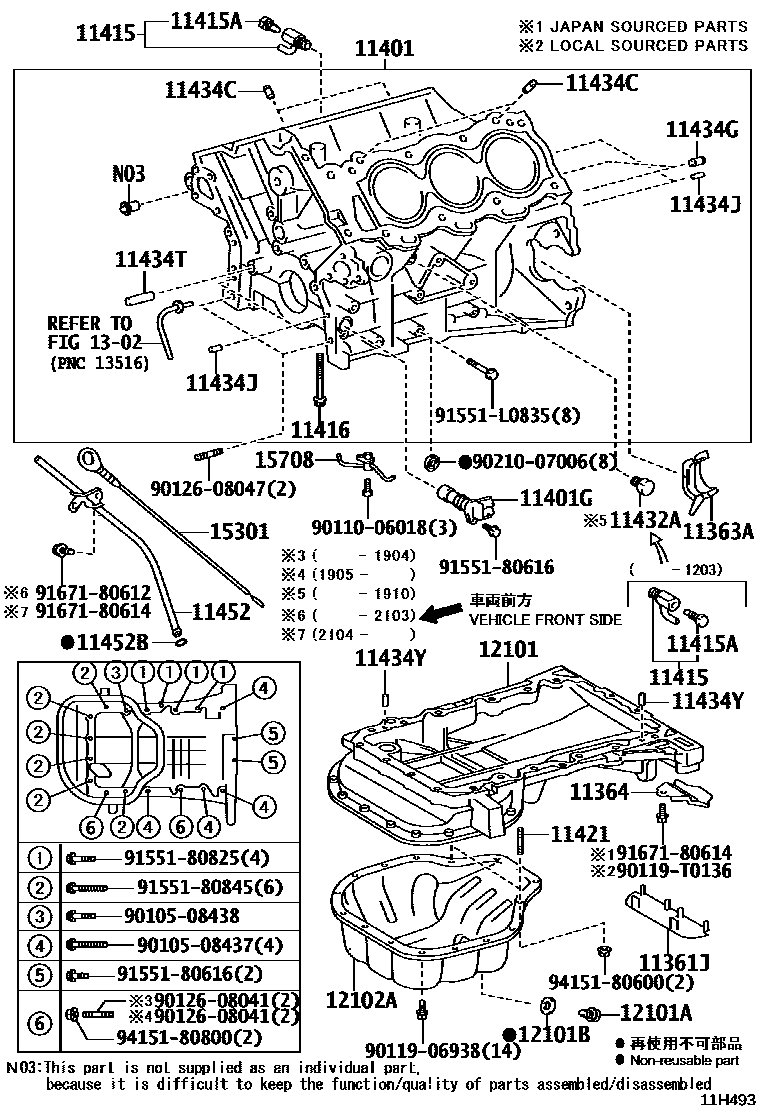

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11364PLATE, UNDER COVER SUB, NO.1
(L)
(J)
11401BLOCK SUB-ASSY, CYLINDER
sub11401-09401
sub11401-09402
sub11401-09890
sub11401-09411
sub11401-09412
main11401-09492i2KDFTV..KUN35..SR..PHL;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,PHL,TH)201107-201512
sub11401-39796
THAI SPEC(EURO 3 REGULATION)
sub11401-39796
sub11401-39898
AIR CONDITIONER-SINGLE AIR CONDITIONER,(L)
sub11401-09703
(L)
sub11401-09703
sub11401-09703
(L)
sub11401-80838
sub11401-80838
AIR CONDITIONER-SINGLE AIR CONDITIONER,(L)
sub11401-80838
sub11401-80780
THAI SPEC(EURO 3 REGULATION),*130
sub11401-80780
THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*130
sub11401-80780
ENGINE-2KD-FTV,*130
sub11401-80780
KENYA SPEC
EXPORT FROM SOUTH AFRICA
main11401-39796i2KDFTV..KUN15..HDCR..SA;2KDFTV..KUN25..LHD..5F..SA;2KDFTV..KUN35..DCB..DLX..SA201107-201609
(J)
FRONT HEATER-WITH
FRONT HEATER-WITH(EVAPORATOR)
(J)
sub11401-39898
AIR CONDITIONER-SINGLE AIR CONDITIONER
sub11401-39898
AIR CONDITIONER-SINGLE AIR CONDITIONER,(J)
sub11401-39898
main11401-39898i1KDFTV..KUN36..GEN,LA;1KDFTV..KUN26..LHD..SADCB..5F;1KDFTV..KUN26..5F..DCR..(CO,LA);1KDFTV..KUN16,26..RHD..(ARL,GEN);1KDFTV..KUN26..LHD..(4FC,5FC)..GEN;1KDFTV..KUN2201311-201510
*360
sub11401-80838
AIR CONDITIONER-SINGLE AIR CONDITIONER
sub11401-80838
AIR CONDITIONER-SINGLE AIR CONDITIONER,*360
sub11401-80838
KAZAKHSTAN SPEC&ENGINE-2KD-FTV&AIR CONDITIONER-SINGLE AIR CONDITIONER
ENGINE-2KD-FTV,*360
*360
KAZAKHSTAN SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*360
THAI SPEC(EURO 3 REGULATION),*360
CHILE SPEC(EURO 4 REGULATION)
MOROCCO SPEC
*360
sub11401-80845
sub11401-80837
CHILE SPEC(EURO 5 REGULATION)
*360
sub11401-80858
sub11401-80A06
11401GSENSOR, CRANK POSITION
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
(J)
(L)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
*360
*130,(J)
main90339-T0002i2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN25..GCC,GEN,LA,PKN,SA;2KDFTV..KUN15..LHD..SCB..DLX..DCR;2KDFTV..KUN10201107-201609
*130,(L)
(J)
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*360
THAI SPEC(EURO 3 REGULATION),*360
(J)
KAZAKHSTAN SPEC,(J)
(L)
main90910-T2003i2KDFTV..KUN15..DCR..TH;1KDFTV..KUN16,26,36..MA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GE201107-201508
*130
sub90910-T2009
main90910-T2009i2KDFTV..KUN15..RHD;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(CO,PHL,SA,TH);2KDFTV..KUN10,25..CO,G201502-201609
*130
11421BOLT, STUD(FOR OIL PAN)
TYPE A
KAZAKHSTAN SPEC,TYPE A
TYPE B
11432APLUG, W/HEAD TAPER SCREW, NO.1
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
L=7,OD=14.5
11434GPIN, STRAIGHT(FOR END PLATE)
THAI SPEC(EURO 3 REGULATION),*360
main90250-10192i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610
*360
main90250-T0008i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609
*130
11434JPIN, RING (FOR CYLINDER HEAD SET)
THAI SPEC(EURO 3 REGULATION),*360
main90253-15016i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610
*360
main90253-T0002i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609
*130
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
KAZAKHSTAN SPEC
KAZAKHSTAN SPEC
*130,(L)
main11452-0L010i1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH201107-201202
*130
THAI SPEC(EURO 3 REGULATION),*360
*360
main11452-30070i1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH201202-201206
*130,(J)
CHILE SPEC(EURO 5 REGULATION)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
MADE IN THAILAND
MADE IN INDONESIA
12101PAN SUB-ASSY, OIL
KAZAKHSTAN SPEC,*303
*303
*299
*303
KAZAKHSTAN SPEC,*303
THAI SPEC(EURO 3 REGULATION),*360,(L)
sub12101-0L031
main12101-0L030i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201504
*130
sub12101-0L031
*130
CHILE SPEC(EURO 5 REGULATION)
main12101-30100i1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,201107-201505
*360,(J)
THAI SPEC(EURO 3 REGULATION),*360,(J)
*360
*300
12101APLUG(FOR OIL PAN DRAIN)
*360
THAI SPEC(EURO 3 REGULATION),*360
KAZAKHSTAN SPEC
main90341-T0004i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609
*130
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90080-43030i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201112-201609
*130,(L)
main90080-43030i1KDFTV..KUN26..THDCB;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201112
*130
main90430-12031i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610
*360
(J)
main90430-12031i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201112-201206
*130,(J)
THAI SPEC(EURO 3 REGULATION),*360
(L)
12102APAN SUB-ASSY, OIL, NO.2
KAZAKHSTAN SPEC
KAZAKHSTAN SPEC,(J)
(J)
KAZAKHSTAN SPEC,(L)
(L)
1302
15301GAGE SUB-ASSY, OIL LEVEL
KAZAKHSTAN SPEC,MADE IN THAILAND
MADE IN THAILAND
MADE IN INDONESIA
KAZAKHSTAN SPEC,MADE IN INDONESIA
*130
THAI SPEC(EURO 3 REGULATION),*360
*360
CHILE SPEC(EURO 5 REGULATION)
15708NOZZLE SUB-ASSY, OIL, NO.1
MADE IN INDONESIA
KAZAKHSTAN SPEC,MADE IN INDONESIA
main15708-0L011i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201202-201609
*130,(L)
main15708-0L011i1KDFTV..KUN26..THDCB;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201202
*130
main15708-30011i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610
*360
main15708-30011i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201202-201206
*130,(J)
THAI SPEC(EURO 3 REGULATION),*360
sub15708-75020
MADE IN JAPAN
KAZAKHSTAN SPEC,MADE IN JAPAN
9010508437
main90105-08437
9010508438
main90105-08438
9011006018
main90110-06018
9011906938
main90119-06938
90119T0136
main90119-T0136
9012608041
main90126-08041
9012608047
main90126-08047
9021007006
main90210-07006
9155180616
main91551-80616
9155180825
main91551-80825
9155180845
main91551-80845
91551L0835
main91551-L0835
9167180612
main91671-80612
9167180614
main91671-80614
9415180600
main94151-80600
9415180800
main94151-80800
40 parts on this diagram · 9 diagrams in section
