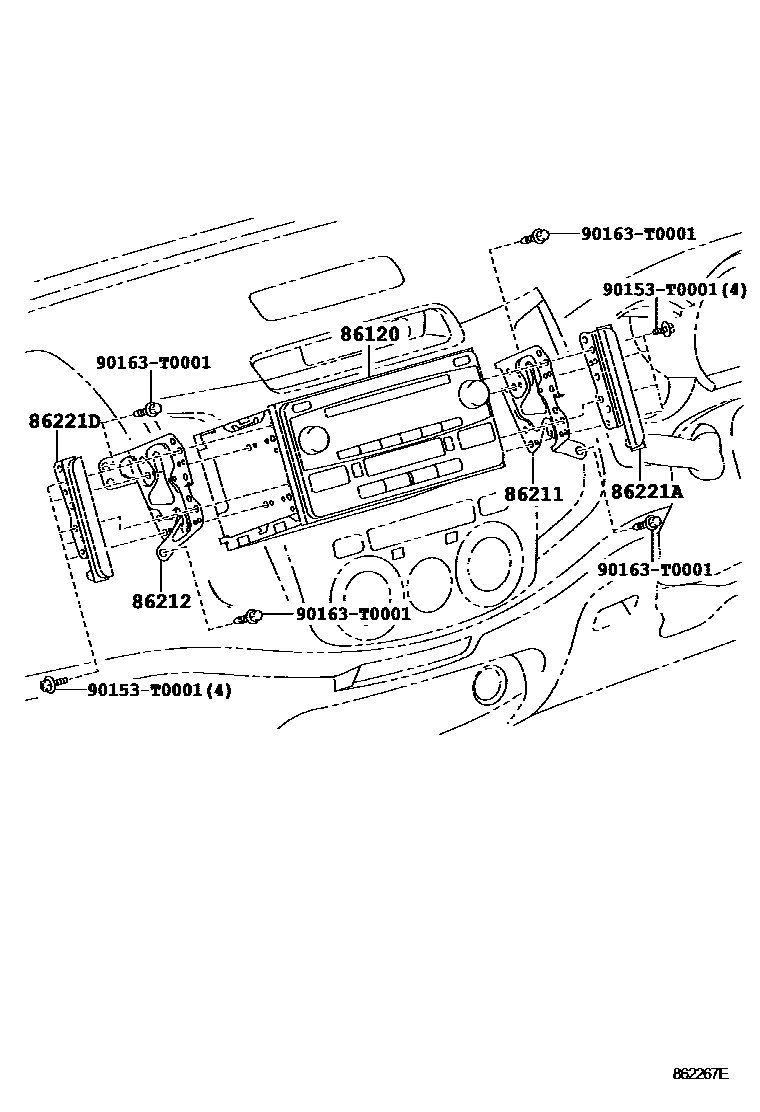

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER & NOISE FILTER

86120RECEIVER ASSY, RADIO

main86120-0K010iKUN15,16..DLX..TH..CBU200408-200808

FUJITSU TEN,ID=17420,TYPE A:REFER ILLUST.

main86120-0K010iKUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN10..RHD..DLX..(GEN,IDN,SA)200502-201108

FUJITSU TEN,ID=17420,AUDIO-AM/FM CASSETTE 2SPEAKER,TYPE A:REFER ILLUST.

main86120-0K010iKUN15,25..RHD..DCB..GEN200610-201107

FUJITSU TEN,ID=17420,AUDIO-AM/FM CASSETTE 4SPEAKER,TYPE A:REFER ILLUST.

main86120-0K020iTGN16..4FC..GCC;KUN15,25,TGN26..DCB..GCC200507-201107

FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 4SPEAKER,TYPE A:REFER ILLUST.

main86120-0K020iTGN16..LHD..(SCB,XTR);TGN16..LHD..DCB..5F..DLX;KUN10,15,25,LAN15,25,TGN10,11,15,26..LHD..(DCB,SCB)..(GCC,GEN,SA)200502-201108

FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 2SPEAKER,TYPE A:REFER ILLUST.

main86120-0K030iKUN15..SCB..TH..CBU200502-200808

FUJITSU TEN,ID=12803,AUDIO-AM/FM CD 2SPEAKER,TYPE B:REFER ILLUST.

sub86120-0K410

main86120-0K030iKUN15,16,26,36,TGN26..DCB..SR..TH200502-200808

FUJITSU TEN,ID=12803,AUDIO-AM/FM CD 4SPEAKER,TYPE B:REFER ILLUST.

sub86120-0K410

main86120-0K030iKUN16,26,TGN26..XTR..TH;KUN15,25,36,TGN16..SR..TH200708-200808

FUJITSU TEN,ID=12803,AUDIO-AM/FM CD 6SPEAKER,TYPE B:REFER ILLUST.

sub86120-0K410

main86120-0K050iKUN26,36..DCB..5F..TH200408-200808

PANASONIC,ID=57807,TYPE C:REFER ILLUST.

main86120-0K050iKUN15..DCB..HDCR200408-201107

PANASONIC,ID=57807,AUDIO-AM/FM CASSETTE CD 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K050iKUN15,25,35,LAN25,35..RHD..DCB..DLX..(GEN,SA)200408-201108

PANASONIC,ID=57807,AUDIO-AM/FM CASSETTE CD 4SPEAKER,TYPE C:REFER ILLUST.

main86120-0K050iKUN15,25,35,LAN25,35..RHD..DCB..DLX..(GEN,SA)200502-201108

PANASONIC,ID=57807,AUDIO-AM/FM CASSETTE CD 2SPEAKER,TYPE C:REFER ILLUST.

main86120-0K070iGGN15,25,KUN26..SR..ARL200502-201107

PANASONIC,ID=57806,AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K080iKUN25..THSCB200708-200808

PIONEER,ID=T2807,AUDIO-AM/FM CD 4SPEAKER,TYPE B:REFER ILLUST.

main86120-0K080iKUN25..THSCB200708-200808

PIONEER,ID=T2807,AUDIO-AM/FM CD 2SPEAKER,TYPE B:REFER ILLUST.

main86120-0K090iKUN2#,3#,TGN26,36..DCB..DLX..LA200501-200810

PIONEER,ID=P2802,AUDIO-AM/FM CD 4SPEAKER,TYPE B:REFER ILLUST.

main86120-0K090iKUN25,35,TGN36..SCB..LA200502-200810

PIONEER,ID=P2802,AUDIO-AM/FM CD 2SPEAKER,TYPE B:REFER ILLUST.

main86120-0K100iKUN15,25,LAN15,25,TGN15,16,26..LHD..(DCB,XTR)..(GEN,SA)200502-201108

PIONEER,ID=P7837,AUDIO-AM/FM CASSETTE CD 2SPEAKER,TYPE C:REFER ILLUST.

main86120-0K100iKUN15,25,LAN15,25,TGN15,16..LHD..SCB..(GEN,SA)200502-201108

PIONEER,ID=P7837,AUDIO-AM/FM CASSETTE CD 4SPEAKER,TYPE C:REFER ILLUST.

main86120-0K100iKUN26..5F..PHL200708-200808

PIONEER,ID=P7837,AUDIO-AM/FM CASSETTE CD 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K110iKUN26,36..SR..LA200501-200810

PANASONIC,ID=57808,AUDIO-AM/FM CASSETTE CD-CHANGER 4SPEAKER,TYPE C:REFER ILLUST.

main86120-0K130iKUN26..SR..GEN200708-200808

PANASONIC,ID=57832,AUDIO-AM/FM CASSETTE CD-CHANGER 4SPEAKER,TYPE C:REFER ILLUST.

main86120-0K150iKUN35..SCB..SA;GGN25,KUN2#,36,TGN26,36..RHD..SA200504-200810

PIONEER,ID=P2803,AUDIO-AM/FM/LW CD RDS 2SPEAKER,TYPE D:REFER ILLUST.

main86120-0K150iKUN35..SCB..SA;GGN25,KUN2#,36,TGN26,36..RHD..SA200504-200810

PIONEER,ID=P2803,TYPE D:REFER ILLUST.

main86120-0K150iKUN15..DCB..SA200710-200810

PIONEER,ID=P2803,AUDIO-AM/FM/LW CD RDS 4SPEAKER,TYPE D:REFER ILLUST.

main86120-0K160iLAN25,35..RHD..DCB200507-200710

PANASONIC,ID=57807,AUDIO-AM/FM CASSETTE CD 4SPEAKER,TYPE C:REFER ILLUST.

main86120-0K160iLAN15,25,TGN15..RHD..SCB200504-200710

PANASONIC,ID=57807,AUDIO-AM/FM CASSETTE CD 2SPEAKER,TYPE C:REFER ILLUST.

main86120-0K240iGGN25,KUN26,36,TGN26,36..SR..LA200810

PIONEER,ID=P2843,AUDIO-AM/FM CASSETTE CD-CHANGER 4SPEAKER,TYPE E:REFER ILLUST.

sub86120-0K280

main86120-0K270iKUN26..THDCB..SR200808-201107

MATSUSHITA,ID=52849,AUDIO-AM/FM CASSETTE CD-CHANGER 4SPEAKER,TYPE E:REFER ILLUST.

main86120-0K280iGGN25,KUN26,36,TGN26,36..SR..LA200810

PANASONIC,ID=52845,AUDIO-AM/FM CASSETTE CD-CHANGER 4SPEAKER,TYPE E:REFER ILLUST.

main86120-0K330iKUN26,35..5F..SR..PHL200808-201107

FUJITSU TEN,ID=12882,AUDIO-AM/FM CD 6SPEAKER,TYPE E:REFER ILLUST.

main86120-0K330iKUN15,35..DLX..PHL;KUN15..LHD..SCB..GEN200908-201107

FUJITSU TEN,ID=12882,AUDIO-AM/FM CD 2SPEAKER,TYPE E:REFER ILLUST.

main86120-0K350iKUN15,35..DLX..PHL;KUN15..LHD..SCB..GEN200908-201107

FUJITSU TEN,ID=52841,AUDIO-AM/FM CD 2SPEAKER,TYPE E:REFER ILLUST.

main86120-0K350iKUN26,35..5F..SR..PHL200808-201107

FUJITSU TEN,ID=52841,AUDIO-AM/FM CD 6SPEAKER,TYPE E:REFER ILLUST.

main86120-0K360iKUN15,TGN15..RHD..DLX..SA200810-201108

FUJITSU TEN,ID=13817,TYPE E:REFER ILLUST.

main86120-0K360iKUN25,35..RHD..SCB..SA;GGN25,35,KUN15,26,3#,TGN36..SR..SA200810-201108

FUJITSU TEN,ID=13817,AUDIO-AM/FM CD RDS 2SPEAKER,TYPE E:REFER ILLUST.

main86120-0K390iKUN2#,3#,TGN26,36..DCB..DLX..LA200810

PANASONIC,ID=52844,AUDIO-AM/FM CD 2SPEAKER,TYPE E:REFER ILLUST.

main86120-0K390iTGN26..LA..IV3;KUN25,35,TGN36..SCB..LA200810

PANASONIC,ID=52844,AUDIO-AM/FM CD 4SPEAKER,TYPE E:REFER ILLUST.

main86120-0K390iTGN26..SCB..LA..CBU200810-201009

PANASONIC,ID=52844,TYPE E:REFER ILLUST.

main86120-0K410iGGN15,25,KUN16,26,TGN16..SCB..ARL200808-201107

FUJITSU TEN,ID=12881,AUDIO-AM/FM CD 2SPEAKER,TYPE E:REFER ILLUST.

main86120-0K410iGGN15,25,KUN16,26,TGN16..SCB..ARL200808-201107

FUJITSU TEN,ID=12881,AUDIO-AM/FM CD 4SPEAKER,TYPE E:REFER ILLUST.

main86120-0K410iGGN15,25,KUN16,26,TGN16..(DCB,XTR)..DLX..ARL200808-201107

FUJITSU TEN,ID=12881,TYPE E:REFER ILLUST.

main86120-0K420iGGN15,25,KUN16,26,TGN16..(DCB,XTR)..DLX..ARL200808-201107

MATSUSHITA,ID=52840,AUDIO-AM/FM CD 2SPEAKER,TYPE E:REFER ILLUST.

main86120-0K420iKUN15,16,25,3#,TGN16..TH;KUN26..RHD..(GEN,IDN,TH)200808-201107

MATSUSHITA,ID=52840,TYPE E:REFER ILLUST.

main86120-0K420iKUN15,16,25,3#,TGN16..TH;KUN26..RHD..(GEN,IDN,TH)200808-201107

MATSUSHITA,ID=52840,AUDIO-AM/FM CD 4SPEAKER,TYPE E:REFER ILLUST.

main86120-0K470iTGN26..SR..GEN200808-201107

MATSUSHITA,ID=52848,AUDIO-AM/FM CD 4SPEAKER,TYPE E:REFER ILLUST.

main86120-0K470iKUN2#,35,TGN26..THDCB..DLX200808-201107

MATSUSHITA,ID=52848,AUDIO-AM/FM CD 2SPEAKER,TYPE E:REFER ILLUST.

main86120-0K480iKUN26..THDCB..SR200808-201107

PIONEER,ID=P2844,AUDIO-AM/FM CASSETTE CD-CHANGER 4SPEAKER,TYPE E:REFER ILLUST.

sub86120-0K270

86211BRACKET, RADIO, NO.1

main86211-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

86212BRACKET, RADIO, NO.2

main86212-0K010iTGN15..IV3;KUN15..SR..SA200408-201202

86221APANEL, RADIO RECEIVER

main86221-02020iKUN15,16..DLX..TH..CBU200408-200808

86221DPANEL, RADIO RECEIVER

main86221-02010iKUN15,16..DLX..TH..CBU200408-200808

90153T0001

main90153-T0001

90163T0001

main90163-T0001

7 parts on this diagram · 3 diagrams in section
