ABS & VSC
89516WIRE, SKID CONTROL SENSOR
main89516-0K010supersedes 89516-0K010iKUN16..SMT;KUN15..HDCR;KUN15..SCB..TH;TGN16..DCB,XTR;KUN15..DLX..(GCC,GEN,SA);TGN16..SCB..(ARL,GCC,GEN,SA);GGN15,KUN10,16,LAN15,TGN10,11,15..ARL,GCC,GEN,SA200808-201010
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,TYPE A:REFER ILLUST.
main89516-0K020supersedes 89516-0K020iTGN36..4FC..ANCOM;KUN36..5F..SR..(LA,SA);KUN26..4FC..(GEN,LA,TH);TGN26..SR..(ANCOM,GEN,TH);GGN25,KUN25,TGN36..SR..(ANCOM,MA,SA);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,200408-200812
89542SENSOR, SPEED, FRONT RH
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
main89542-0K020supersedes 89542-71010iTGN36..4FC..ANCOM;KUN36..5F..SR..(LA,SA);KUN26..4FC..(GEN,LA,TH);TGN26..SR..(ANCOM,GEN,TH);GGN25,KUN25,TGN36..SR..(ANCOM,MA,SA);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,200408-200812
89543SENSOR, SPEED, FRONT LH
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
89545SENSOR, SPEED, REAR RH
main89545-0K010iKUN25..SR..MA;TGN36..4FC..ANCOM;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,200408-200812
main89545-0K040iKUN16..SMT;KUN15..HDCR;KUN15..SCB..TH;TGN16..DCB,XTR;KUN15..DLX..(GCC,GEN,SA);TGN16..SCB..(ARL,GCC,GEN,SA);GGN15,KUN10,16,LAN15,TGN10,11,15..ARL,GCC,SA200808-201010
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,TYPE A:REFER ILLUST.
main89545-0K060iKUN16..SMT;KUN15..HDCR;KUN15..SCB..TH;TGN16..DCB,XTR;KUN15..DLX..(GCC,GEN,SA);TGN16..SCB..(ARL,GCC,GEN,SA);GGN15,KUN10,16,LAN15,TGN10,11,15..ARL,GCC,GEN,SA201005-201108
TYPE B:REFER ILLUST.
main89545-0K070supersedes 89545-71030iGGN25..5F..SR;KUN26..THDCB..SR;TGN36..4FC..ANCOM;KUN26..SR..(LA,PHL,SA);GGN25,35,KUN25,3#,TGN26,36..SR..(ANCOM,GEN,LA,MA,PHL,SA)201005-201204
TYPE B:REFER ILLUST.
89546SENSOR, SPEED, REAR LH
main89546-0K010iKUN25..SR..MA;TGN36..4FC..ANCOM;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,200408-200812
main89546-0K040iKUN2#..SMT;KUN3#..SR..TH;GGN25..5FC..SR..ARL;KUN25,3#,TGN26..DCB..DLX..LA;KUN26,TGN36..5F..DLX..(GEN,LA)..CBU;TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);KUN26,TGN15..(DCB,200808-201012
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,TYPE A:REFER ILLUST.
main89546-0K060iKUN16..SMT;TGN16..XTR;KUN15..HDCR;KUN15..SCB..TH;GGN15..DCB..DLX;GGN15..DCB..5FC..SR;TGN16..DCB..(ARL,GCC,SA,TH);GGN15,TGN16..(SCB,XTR)..(ARL,GCC,SA);KUN1#,LAN15,TG201008-201108
TYPE B:REFER ILLUST.
main89546-0K070supersedes 89546-71030iKUN26..THDCB..SR;TGN36..4FC..ANCOM;GGN25..DCB..5F..SR;KUN26..SR..(LA,PHL,SA);GGN25,35,KUN25,3#,TGN26,36..SR..(ANCOM,GEN,LA,MA,PHL,SA)201005-201204
TYPE B:REFER ILLUST.
90105T0053
main90105-T0053
90105T0054
main90105-T0054
90105T0122
main90105-T0122
90119T0029
main90119-T0029

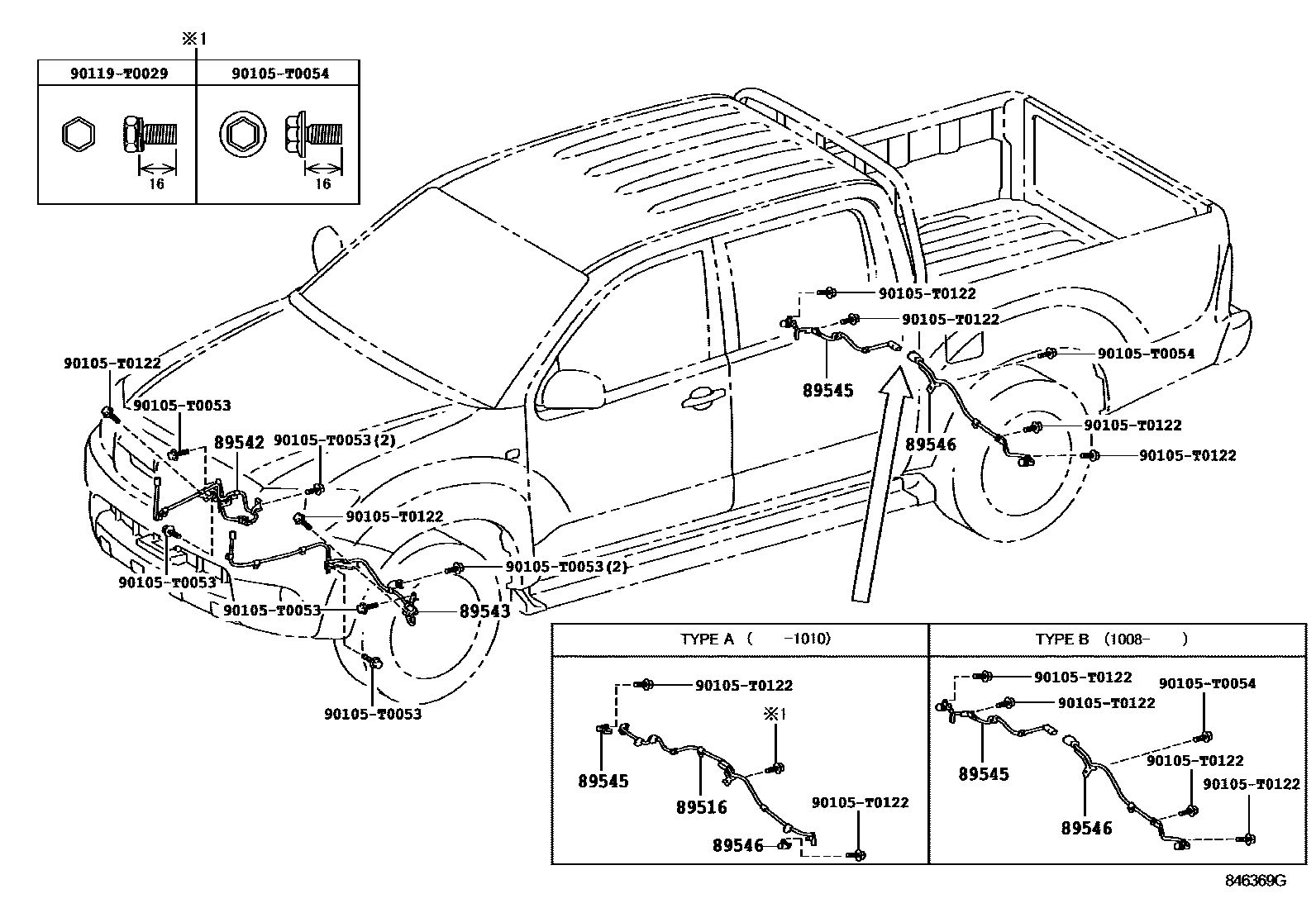

9 parts on this diagram · 2 diagrams in section
