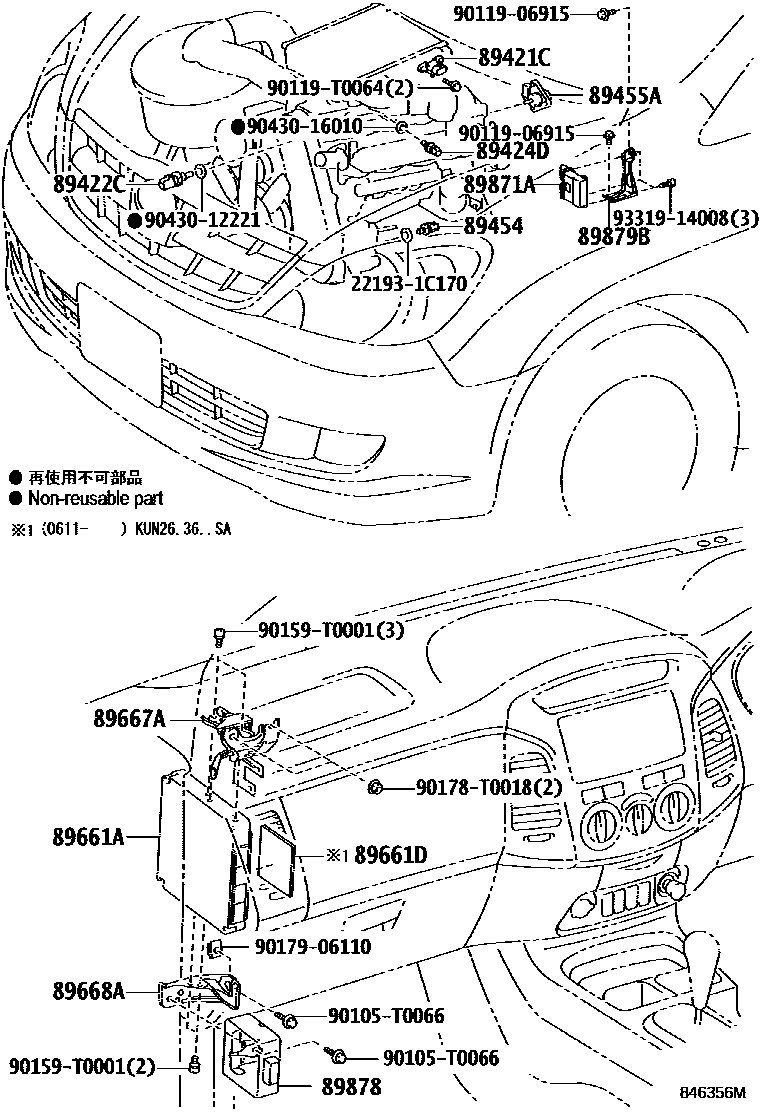

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-12150iLAN15,25,35..SA200507-201108

main89421-71020iKUN25..TH200408-201010

main89421-71030iKUN35..TH;KUN16,25..ARL,PKN;KUN26,36..XTR..SA;KUN26..RHD..(ARL,GEN);KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA)200608-201204

main89421-71030iKUN2#..THDCB,THSCB200910-201008

CHILE SPEC

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iKUN26..IDN;KUN16..DCB..5F..TH200408-201202

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iKUN26,36..LA,SA200408-201110

main89424-60010iKUN25..THDCB,THSCB200910-201107

CHILE SPEC

89454SENSOR, FUEL TEMPERATURE

main89454-20010iKUN25;KUN1#,26,3#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH200509-201204

main89454-60010iKUN35..SCB..ANCOM200408-201108

89455ASENSOR, EGR VALVE POSITION

main89455-35020iKUN25,35..ANCOM200408-201204

main89455-35020iKUN15..IV3200808-201008

PHILIPPINES SPEC

main89455-35020iKUN26..THDCB200910-201107

CHILE SPEC

89661ACOMPUTER, ENGINE CONTROL

main89661-0K200iKUN26,36..(DCB,THDCB,XTR)..5F..(GEN,TH)200408-200810

P/N LABEL=896610K200

main89661-0K200iKUN26..5F..PHL200611-200712

P/N LABEL=8966171020

main89661-0K220iKUN16..ARL200408-201008

P/N LABEL=896610K220

main89661-0K260iKUN26,36..5F..LA200611-201010

BRAZIL SPEC,P/N LABEL=896610K260

sub89661-71060

main89661-0K260iKUN26,36..5F..LA200611-200712

BRAZIL SPEC,P/N LABEL=8966171060

sub89661-71060

main89661-0K300iKUN26,36..SA200710-200810

EXPORT FROM SOUTH AFRICA,P/N LABEL=896610K300

main89661-0K300iKUN26,36..5F..LA200501-200810

EXPORT FROM ARGENTINA,P/N LABEL=896610K300

main89661-0K300iKUN26,36..5F..(GEN,LA)200712-200810

HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610K300

main89661-0K300iKUN26..5F..PHL200411-200710

P/N LABEL=896610K300

main89661-0K300iKUN26..5F..PHL200503-200708

LABEL=-0K300,-71040

main89661-0K300iKUN26,36..5F..LA200503-200712

EXPORT FROM ARGENTINA,LABEL=-0K300,-71040

main89661-0K300iKUN26,36..5F..(GEN,LA)200510-200712

HIGH ALTITUDE COUNTRY SPEC,LABEL=-0K300,-71040

main89661-0K300iKUN26..5F..GEN200708-200712

LATIN AMERICA SPEC,LABEL=-0K300,-71040

main89661-0K300iKUN26..5F..GEN200712-200808

LATIN AMERICA SPEC,P/N LABEL=896610K300

main89661-0K310iKUN26..4FC..(GEN,LA)200611-200712

P/N LABEL=8966171080

main89661-0K310iKUN26..4FC..(GEN,TH)200408-200810

P/N LABEL=896610K310

main89661-0K330iKUN16..4FC200408-201008

P/N LABEL=896610K330

main89661-0K340iKUN26..4FC..LA200611-201010

BRAZIL SPEC,P/N LABEL=896610K340

sub89661-71120

main89661-0K340iKUN26..4FC..LA200611-200712

BRAZIL SPEC,P/N LABEL=8966171120

sub89661-71120

main89661-0K360iKUN26..4FC..(GEN,LA)200712-201010

HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610K360

main89661-0K360iKUN26..4FC..LA200501-201010

EXPORT FROM ARGENTINA,P/N LABEL=896610K360

main89661-0K360iKUN26..4FC..GEN200712-201008

LATIN AMERICA SPEC,P/N LABEL=896610K360

main89661-0K360iKUN26..4FC..PHL200503-200708

LABEL=-0K360,-71100

main89661-0K360iKUN26..4FC..(GEN,LA)200510-200712

HIGH ALTITUDE COUNTRY SPEC,LABEL=-0K360,-71100

main89661-0K360iKUN26..4FC..GEN200708-200712

LATIN AMERICA SPEC,LABEL=-0K360,-71100

main89661-0K360iKUN26..4FC..LA200503-200712

EXPORT FROM ARGENTINA,LABEL=-0K360,-71100

main89661-0K360iKUN26..4FC..PHL200411-200503

P/N LABEL=896610K360

main89661-0K400iKUN25..LA;KUN35..GEN,LA;KUN25..THDCB,THSCB200611-200712

P/N LABEL=896610K400,P/N LABEL=8966171140

main89661-0K410iKUN25,35..SA200503-200809

P/N LABEL=896610K410

main89661-0K410iKUN25,35..SA200504-200809

P/N LABEL=896610KB10

main89661-0K410iKUN25..5F..MA200809-201009

LABEL=-0K410,-0KB10

main89661-0K440iKUN25..(DCB,SCB)..(GCC,GEN)200502-201008

P/N LABEL=896610K440

main89661-0K440iKUN25..LHD..(DCB,SCB)..(GCC,GEN,SA)200503-200712

P/N LABEL=8966171160

main89661-0K440iKUN25..LHD..(DCB,SCB)..(GCC,GEN,SA)200503-200712

EXPORT FROM ARGENTINA,P/N LABEL=8966171160

main89661-0K440iKUN25,35..THDCB,THSCB200708-200712

LATIN AMERICA SPEC,P/N LABEL=8966171160

main89661-0K440iKUN25,35..THDCB,THSCB200708-201008

LATIN AMERICA SPEC,P/N LABEL=896610KB50,P/N LABEL=896610K440

main89661-0K440iKUN25,35..LA200501-200810

EXPORT FROM ARGENTINA,P/N LABEL=896610K440

main89661-0K440iKUN35..DCB..SA;KUN25..LHD..(DCB,SCB)..(GCC,GEN,SA)200504-201008

P/N LABEL=896610KB50

main89661-0K440iKUN35..DCB..SA;KUN25..LHD..(DCB,SCB)..(GCC,GEN,SA)200504-200810

EXPORT FROM ARGENTINA,P/N LABEL=896610KB50

main89661-0K440iKUN25..RHD..SA200710-200810

EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KB50

main89661-0K440iKUN25..RHD..DCB..SA200808-201010

P/N LABEL=896610KB50,P/N LABEL=896610K440

main89661-0K440iKUN25..RHD..SCB..SA200810-201010

EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KB50,P/N LABEL=896610K440

main89661-0K440iKUN25..RHD..SCB..SA200810-201010

EXPORT FROM ARGENTINA,P/N LABEL=896610KB50,P/N LABEL=896610K440

main89661-0K440iKUN25..RHD..DCB..SA200910-201010

KENYA SPEC,P/N LABEL=896610KB50,P/N LABEL=896610K440

main89661-0K460iKUN15..PHL200408-200808

P/N LABEL=896610K460

main89661-0K470iKUN15..SA200504-200710

P/N LABEL=896610KB40

main89661-0K470iKUN15..PHL200411-200710

P/N LABEL=896610K470

main89661-0K480iKUN10,15..LHD..(GCC,GEN)200502-201008

P/N LABEL=896610K480

main89661-0K480iKUN10,15..LHD..(GCC,GEN)200504-201008

P/N LABEL=896610KB60

main89661-0K480iKUN15..LHD..SA200808-201010

P/N LABEL=896610K480,P/N LABEL=896610KB60

main89661-0K480iKUN15..RHD..DLX..SA200810-201010

EXPORT FROM SOUTH AFRICA,P/N LABEL=896610K480,P/N LABEL=896610KB60

main89661-0K480iKUN15..RHD..DLX..SA200910-201010

KENYA SPEC,P/N LABEL=896610K480,P/N LABEL=896610KB60

main89661-0K500iKUN25..4FC200503-201009

P/N LABEL=896610K500

main89661-0K660iKUN25,35..LA200704-201010

HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610K660

main89661-0K660iKUN25..LA;KUN35..GEN,LA;KUN25..THDCB,THSCB200704-200712

HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=8966171240

main89661-0K670iKUN25,35..THDCB200808-201008

ECUADOR & COLOMBIA SPEC,P/N LABEL=896610K670

main89661-0K670iKUN25,35..THDCB200708-200808

ECUADOR OR COLOMBIA SPEC,P/N LABEL=896610K670

main89661-0K670iKUN25,35..ANCOM200704-201012

P/N LABEL=896610K670

main89661-0K670iKUN25,35..THDCB200708-200712

ECUADOR OR COLOMBIA SPEC,P/N LABEL=8966171250

main89661-0K670iKUN25,35..ANCOM200704-200712

P/N LABEL=8966171250

main89661-0K680iKUN26,36..SA200710-200810

P/N LABEL=896610K680

sub89661-0K200

main89661-0K700iKUN25..RHD..SA;KUN35..SCB..SA200710-200810

P/N LABEL=896610K700

sub89661-0K400

main89661-0K710iKUN15..RHD..SA200710-200810

P/N LABEL=896610K710

sub89661-0K460

main89661-0K850iKUN25..TH200408-200808

P/N LABEL=896610K850

main89661-0K860iKUN15..HDCR200408-200808

P/N LABEL=896610K860

main89661-0KA80iKUN26,36..SA200508-200710

P/N LABEL=896610KA80

sub89661-0K300

main89661-0KA80iKUN26,36..SA200710-200810

EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KA80

sub89661-0K300

main89661-0KC40iKUN26..5F..ARL200608-200712

P/N LABEL=896610KC40

sub89661-0KC41

main89661-0KC41iKUN26..5F..ARL200801-200808

P/N LABEL=896610KC41

main89661-0KC70iKUN16..ARL200608-200712

P/N LABEL=896610KC70

sub89661-0KC71

main89661-0KC71iKUN16..ARL200801-200908

P/N LABEL=896610KC71

main89661-0KC80iKUN26..4FC..ARL200608-200712

P/N LABEL=896610KC80

sub89661-0KC81

main89661-0KC81iKUN26..4FC..ARL200801-200908

P/N LABEL=896610KC81

main89661-0KE80iKUN26..5F..ARL200808-200908

P/N LABEL=896610KE80

main89661-0KF90iKUN15..HDCR200808-201008

P/N LABEL=896610KF90

main89661-0KG00iKUN25..TH200808-200908

P/N LABEL=896610KG00

main89661-0KG10iKUN35..PHL200808-201008

P/N LABEL=896610KG10

main89661-0KG20iKUN25..RHD..DCB..SA200810-201010

LABEL=-0KG10,-0KG20

sub89661-0KG10

main89661-0KG40iKUN15..DCR..(PHL,TH)200808-201008

PHILIPPINES SPEC,P/N LABEL=896610KG40

main89661-0KG40iKUN15..IV3200808-201008

P/N LABEL=896610KG40

main89661-0KG50iKUN15..RHD..DLX..SA200810-201010

LABEL=-0KG40,-0KG50

sub89661-0KG40

main89661-0KJ00iKUN26,36..5F..LA200808-201010

P/N LABEL=896610KJ00

main89661-0KJ10iKUN26,36..(DCB,SCB)..5F..SA200810-201010

LABEL=-0KJ00,-0KJ10

sub89661-0KJ00

main89661-0KJ40iKUN26..5F..GEN200808-201008

LATIN AMERICA SPEC,P/N LABEL=896610KJ40

main89661-0KJ40iKUN26..5F..GEN200808-201010

HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KJ40

main89661-0KJ40iKUN26,36..5F..LA200810-201010

EXPORT FROM ARGENTINA,P/N LABEL=896610KJ40

main89661-0KJ50iKUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F..SA200810-201010

EXPORT FROM SOUTH AFRICA,LABEL=-0KJ40,-0KJ50

sub89661-0KJ40

main89661-0KJ80iKUN26..4FC..LA200808-201010

P/N LABEL=896610KJ80

main89661-0KJ90iKUN26,36..4FC..SA200810-201010

LABEL=-0KJ80,-0KJ90

sub89661-0KJ80

main89661-0KK50iKUN25,35..THDCB,THSCB200712-201010

P/N LABEL=896610KK50

main89661-0KN20iKUN16..ARL200908-201008

P/N LABEL=896610KN20

main89661-0KN30iKUN26..5F..GEN200910-201008

CHILE SPEC,P/N LABEL=896610KN30

main89661-0KN30iKUN26..5F..ARL200908-201008

P/N LABEL=896610KN30

main89661-0KN60iKUN26..4FC..ARL200908-201008

P/N LABEL=896610KN60

main89661-0KN60iKUN26..4FC..GEN200910-201008

CHILE SPEC,P/N LABEL=896610KN60

main89661-0KP00iKUN25..THDCB,THSCB200910-201010

CHILE SPEC,P/N LABEL=896610KP00

main89661-0KP10iKUN35..GEN200910-201010

CHILE SPEC,P/N LABEL=896610KP10

main89661-0KP40iKUN35..TH200908-200911

P/N LABEL=896610KP40

sub89661-0KP41

main89661-0KP41iKUN35..TH200911-201008

P/N LABEL=896610KP41

main89661-0KP50iKUN25..TH200908-200911

P/N LABEL=896610KP50

sub89661-0KP51

main89661-0KP51iKUN25..TH200911-201008

P/N LABEL=896610KP51

main89661-0KQ60iKUN26..THDCB..5F201008-201107

CHILE SPEC,P/N LABEL=896610KQ60

main89661-0KQ60iKUN26..5F..ARL201008-201107

P/N LABEL=896610KQ60

main89661-0KQ70iKUN16..ARL201008-201107

P/N LABEL=896610KQ70

main89661-0KQ80iKUN26..4FC..ARL201008-201107

CHILE SPEC,P/N LABEL=896610KQ80

main89661-0KQ80iKUN26..4FC..ARL201008-201107

P/N LABEL=896610KQ80

main89661-0KR10iKUN35..SR..TH201008-201107

P/N LABEL=896610KR10

main89661-0KR20iKUN25..TH201008-201107

P/N LABEL=896610KR20

main89661-0KR60iKUN25,35..THDCB,THSCB201008-201107

CHILE SPEC,P/N LABEL=896610KR60

main89661-0KR70iKUN25,35..THDCB,THSCB201008-201107

CHILE SPEC,P/N LABEL=896610KR70

sub89661-0KR60

main89661-0KS00iKUN16..5F..TH201008-201107

P/N LABEL=896610KS00

main89661-0KS10iKUN26,36..5F..TH;KUN26,36..XTR..SA201008-201108

P/N LABEL=896610KS10

sub89661-0KS11

main89661-0KS10iKUN26..LHD..5F..(GEN,PHL)201008-201110

LABEL=-0KS10,-0KS20

sub89661-0KS11

main89661-0KS20iKUN26,36..5F..TH;KUN26,36..XTR..SA201008-201108

P/N LABEL=896610KS20

sub89661-0KS21

main89661-0KS50iKUN26..THDCB..5F201008-201107

ECUADOR SPEC,LABEL=-0KS50,-0KS60

main89661-0KS50iKUN26..THDCB..5F201008-201107

LATIN AMERICA SPEC,LABEL=-0KS50,-0KS60

main89661-0KS50iKUN26..THDCB..5F201008-201204

HIGH ALTITUDE COUNTRY SPEC,LABEL=-0KS50,-0KS60

main89661-0KS50iKUN26,36..5F..LA201010-201204

EXPORT FROM ARGENTINA,LABEL=-0KS50,-0KS60

main89661-0KS60iKUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F..SA201010-201108

EXPORT FROM SOUTH AFRICA,LABEL=-0KS50,-0KS60

sub89661-0KS50

main89661-0KS90iKUN26..DCB..5F..GEN201008-201107

P/N LABEL=896610KS90

main89661-0KT00iKUN16..4FC201008-201107

P/N LABEL=896610KT00

main89661-0KT10iKUN26,36..4FC..SA201008-201108

P/N LABEL=896610KT10

sub89661-0KT11

main89661-0KT10iKUN26..4FC..LA201008-201110

LABEL=-0KT10,-0KT20

sub89661-0KT11

main89661-0KT20iKUN26..4FC..TH201008-201108

P/N LABEL=896610KT20

sub89661-0KT21

main89661-0KT50iKUN26..THDCB..4FC201008-201107

ECUADOR SPEC,P/N LABEL=896610KT50

main89661-0KT50iKUN26..THDCB..4FC201008-201107

LATIN AMERICA SPEC,P/N LABEL=896610KT50

main89661-0KT50iKUN26..4FC..LA201010-201204

EXPORT FROM ARGENTINA,P/N LABEL=896610KT50

main89661-0KT50iKUN26..4FC..LA201008-201204

HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KT50

main89661-0KT70iKUN26..DCB..4FC..GEN201008-201107

P/N LABEL=896610KT70

main89661-0KT90iKUN26,36..5F..LA201010-201109

BRAZIL SPEC,P/N LABEL=896610KT90

sub89661-0KT91

main89661-0KU10iKUN26..4FC..LA201010-201109

BRAZIL SPEC,P/N LABEL=896610KU10

sub89661-0KU11

main89661-0KU30iKUN15..HDCR201008-201107

P/N LABEL=896610KU30

main89661-0KU40iKUN35..DLX..TH201008-201107

P/N LABEL=896610KU40

main89661-0KU50iKUN25..LA;KUN35..SR..SA;KUN25..RHD..SA;KUN35..DCB..LA;KUN35..SCB..(LA,SA)201008-201204

P/N LABEL=896610KU50

main89661-0KU60iKUN25..5F..MA201009-201109

P/N LABEL=896610KU60

sub89661-0KU50

main89661-0KU70iKUN25,35..LA201010-201204

BRAZIL SPEC,P/N LABEL=896610KU70

main89661-0KU80iKUN25,35..THDCB201008-201107

ECUADOR SPEC,P/N LABEL=896610KU80

main89661-0KU80iKUN25,35..ANCOM201012-201204

P/N LABEL=896610KU80

main89661-0KU90iKUN25,35..THDCB,THSCB201008-201107

LATIN AMERICA SPEC,P/N LABEL=896610KU90

main89661-0KU90iKUN25..RHD..SA201010-201108

EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KU90

main89661-0KU90iKUN25..RHD..SA201010-201108

KENYA SPEC,P/N LABEL=896610KU90

main89661-0KU90iKUN25..LHD..SA;KUN35..DCB..DLX..SA201008

P/N LABEL=896610KU90

main89661-0KU90iKUN25,35..LA201010-201204

EXPORT FROM ARGENTINA,P/N LABEL=896610KU90

main89661-0KV00iKUN25..RHD..SA201010-201108

KENYA SPEC,P/N LABEL=896610KV00

sub89661-0KU90

main89661-0KV00iKUN25,35..LA201010-201204

EXPORT FROM ARGENTINA,P/N LABEL=896610KV00

sub89661-0KU90

main89661-0KV00iKUN25..RHD..SA201010-201108

EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KV00

sub89661-0KU90

main89661-0KV00iKUN25..LHD..SA;KUN35..DCB..DLX..SA201008

P/N LABEL=896610KV00

sub89661-0KU90

main89661-0KV00iKUN25,35..THDCB,THSCB201008-201107

LATIN AMERICA SPEC,P/N LABEL=896610KV00

sub89661-0KU90

main89661-0KV10iKUN25,35..THDCB,THSCB201008-201204

HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KV10

main89661-0KV20iKUN25..4FC201009-201109

P/N LABEL=896610KV20

main89661-0KV30iKUN15..SCB..TH;KUN15..RHD..(DCB,SMT,XTR)..DCR..(SA,TH)201008-201108

P/N LABEL=896610KV30

main89661-0KV30iKUN15..PHL201008-201107

LABEL=-0KV30,-0KV40

main89661-0KV40iKUN15..SCB..TH;KUN15..RHD..(DCB,SMT,XTR)..DCR..(SA,TH)201008-201108

P/N LABEL=896610KV40

sub89661-0KV30

main89661-0KV50iKUN15..RHD..DLX..SA201010-201108

KENYA SPEC,P/N LABEL=896610KV50

main89661-0KV50iKUN15..PKN201010-201202

main89661-0KV50iKUN10,15..GCC,GEN201008-201108

P/N LABEL=896610KV50

main89661-0KV50iKUN15..LHD..SA201010-201108

EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KV50

main89661-0KV60iKUN15..RHD..DLX..SA201010-201108

KENYA SPEC,P/N LABEL=896610KV60

sub89661-0KV50

main89661-0KV60iKUN15..RHD..DLX..SA201010-201108

EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KV60

sub89661-0KV50

main89661-0KV60iKUN15..RHD..DLX..SA201008-201108

P/N LABEL=896610KV60

sub89661-0KV50

main89661-71010iLAN15,25,35..SA200507-201108

P/N LABEL=8966171010

sub89661-71011

main89661-71020iKUN26,36..5F..LA200501-200611

P/N LABEL=8966171020

sub89661-0K200

main89661-71060iKUN26,36..5F..LA200501-200611

BRAZIL SPEC,P/N LABEL=896610K260,P/N LABEL=8966171060

sub89661-0K260

main89661-71080iKUN26..4FC..LA200501-200611

P/N LABEL=8966171080

sub89661-0K310

main89661-71120iKUN26..4FC..LA200501-200611

BRAZIL SPEC,P/N LABEL=896610K340,P/N LABEL=8966171120

sub89661-0K340

main89661-71140iKUN25,35..LA200501-200611

P/N LABEL=8966171140

sub89661-0K400

main89661-71240iKUN25,35..LA200510-200704

HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=8966171240

sub89661-0K660

main89661-71250iKUN25,35..ANCOM200510-200704

P/N LABEL=8966171250

sub89661-0K670

89661DCUSHION, ENGINE CONTROL COMPUTER

main8966B-0K010iKUN15,2#,3#..RHD..SA200611-200902

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0K010iKUN25..SCB..MA;KUN16,36..XTR..TH;KUN25..RHD..(GEN,SA);KUN15,35..RHD..DLX..SA;KUN25..(DCB,XTR)..5F..SR;KUN26..DCB..5F..(ARL,SA,TH);KUN26..(SCB,XTR)..5F..(ARL,TH);KUN200408-201202

main89667-0K020iKUN25,35..THDCB,THSCB201008-201010

CHILE SPEC

main89667-0K020iKUN36..DCB..LA;KUN35..LHD..DLX;KUN10,15,2#,LAN15,25..LHD..5F200411-201204

main89667-0K030iKUN16,2#,36..RHD..4FC200408-201109

main89667-0K040iKUN26..LHD..4FC200411-201204

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0K030iKUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN26,36..RHD..5F..(ARL,GEN,SA,TH);KUN15,25,35,LAN15,25,35..RHD..(DCB,SCB,SMT)..5F..(DLX,SR)200408-201202

main89668-0K040iKUN25,35..THDCB,THSCB201008-201010

CHILE SPEC

main89668-0K040iKUN36..DCB..LA;KUN35..LHD..DLX;KUN10,15,2#,LAN15,25..LHD..5F200411-201204

main89668-0K050iKUN16,2#,36..RHD..4FC200408-201109

main89668-0K060iKUN26..LHD..4FC200411-201204

89871ADRIVER, INJECTOR

main89871-25010iKUN16..4FC;KUN26..THDCB;KUN26..PHL,TH;KUN16..(SCB,SMT)..CBU;KUN10,25,35..GCC,GEN,PHL;KUN15,36..(DLX,SR)..(GCC,GEN,PHL,TH)200908-201202

main89871-25010iKUN2#..THDCB,THSCB200910-201008

CHILE SPEC

main89871-71010iKUN16,26..ARL200408-201012

main89871-71020iKUN16,26..ARL200608-200908

89878DRIVER, TURBO MOTOR

main89878-71010iKUN26..GEN,PHL200411-200908

sub89878-71070

main89878-71020iKUN16,26,36..SA,TH200408-200901

sub89878-71080

main89878-71030iKUN16,26..ARL200608-200908

sub89878-71060

main89878-71050iKUN26,36..LA201008

main89878-71050iKUN26..GEN200910-201008

CHILE SPEC

main89878-71060iKUN25,35..SR..TH;KUN26,36..XTR..SA;KUN16,26..RHD..(ARL,GEN)200908-201108

main89878-71070iKUN26..GEN,PHL200908-201010

main89878-71080iKUN16,26,36..IDN,TH200901-201010

89879BBRACKET, INJECTOR DRIVER

main89879-71010iKUN25..MA200408-201010

main89879-71020iKUN10,15,2#,35..LHD..(GCC,GEN,PHL)200411-201012

main89879-71030iKUN26..IDN;KUN16..DCB..5F..TH200908-201202

main89879-71040iKUN2#..THDCB,THSCB200910-201008

CHILE SPEC

main89879-71040iKUN10,15,2#,35..LHD..(GCC,GEN,PHL)201008

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

90105T0066

main90105-T0066

9011906915

main90119-06915

90119T0064

main90119-T0064

90159T0001

main90159-T0001

90178T0018

main90178-T0018

9017906110

main90179-06110

9043012221

main90430-12221

9043016010

main90430-16010

9331914008

main93319-14008

22 parts on this diagram · 7 diagrams in section
