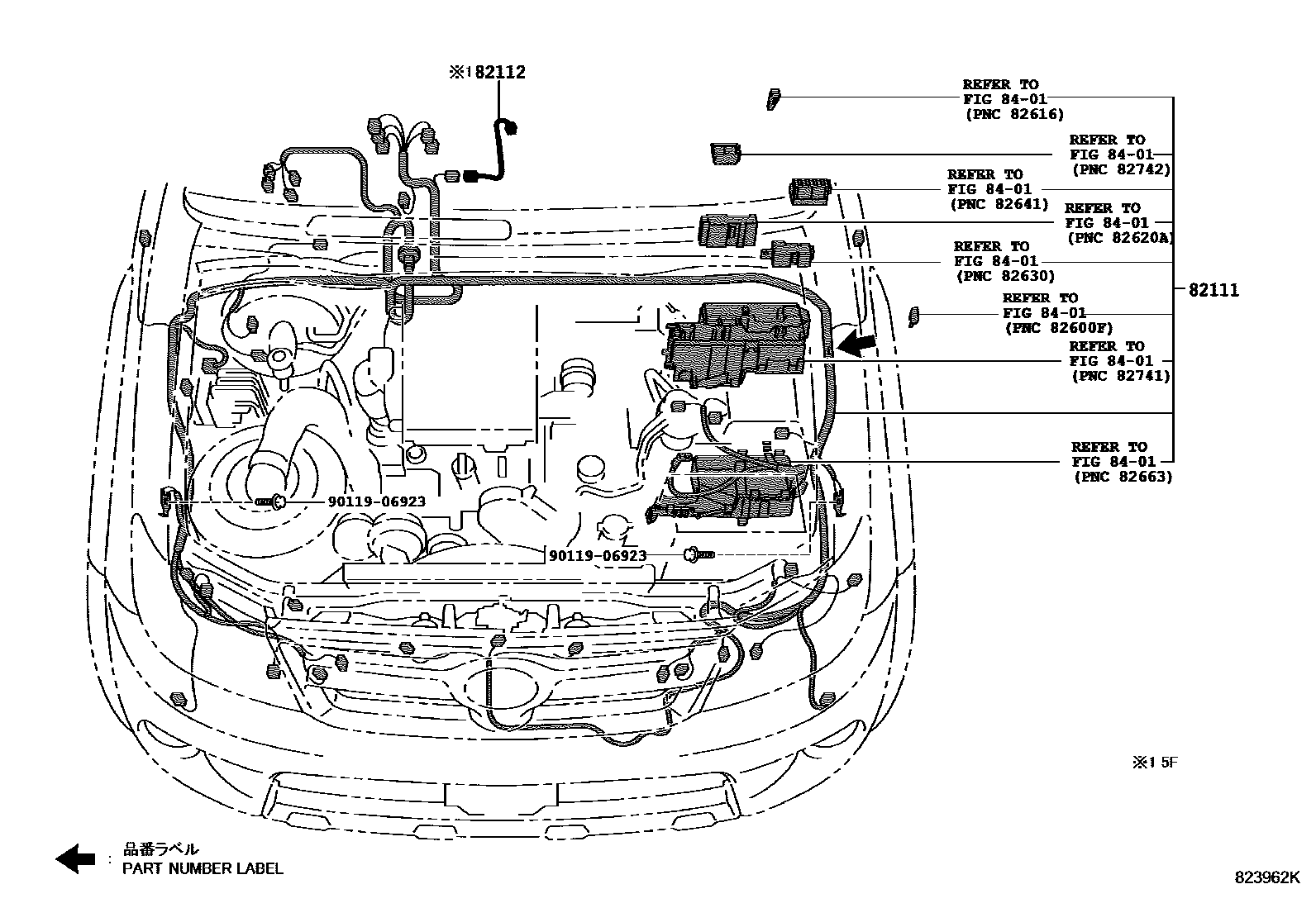

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-0K020i200501-200810

main82111-0K021i200809-200910

main82111-0K040i200507-200608

main82111-0K041i200608-200708

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0K042i200708-200812

main82111-0K043i200808-200910

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0K043i200808-200912

main82111-0K050i200502-200708

AIR CONDITIONER(DEALER OPTION)

main82111-0K051i200708-200808

AIR CONDITIONER(DEALER OPTION)

main82111-0K060i200408-200810

main82111-0K061i200808-200811

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

sub82111-0K062

main82111-0K062i200811-200910

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0K062i200811-200909

main82111-0K090i200501-200608

main82111-0K091i200708-200810

main82111-0K091i200608-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0K092i200808-200910

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0K320i200408-200808

main82111-0K350i200504-200810

main82111-0K351i200808-200908

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main82111-0K351i200808-200910

main82111-0K420i200502-200608

main82111-0K421i200608-200708

main82111-0K422i200708-200812

main82111-0K423i200808-200912

main82111-0K450i200408-200810

main82111-0K451i200808-200909

main82111-0K470i200411-200708

main82111-0K471i200708-200812

main82111-0K472i200808-200912

main82111-0K610i200504-200810

main82111-0K620i200710-201009

main82111-0K830i200507-200712

main82111-0K831i200712-200812

main82111-0K832i200812-200912

main82111-0KP40i200808-200811

sub82111-0KP41

main82111-0KP41i200811-200908

main82111-0KS60i200909-201009

main82111-0KS61i201008-201109

main82111-0KT50i200910-201010

main82111-0KT50i200908-201010

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main82111-0KT51i201010-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main82111-0KT51i201010-201108

main82111-0KT60i200910-201012

main82111-0KT61i201012

main82111-0KT80i200908-201010

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0KT81i201007-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0KU00i200908-201010

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0KU10i200908-201010

main82111-0KU11i201010

main82111-0KU30i200908-201010

main82111-0KU31i201008-201108

main82111-0KV10i200908-201008

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0KV30i200908-201012

main82111-0KV31i201008-201107

main82111-0KV50i200908-201012

main82111-0KV51i201008

main82111-0KW30i200908-201012

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0KW30i200912-201012

main82111-0KW31i201008

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0KW40i200908-201010

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0KW41i201010

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82111-0KZ80i200908-201107

main82115-0K270i201008-201107

SRS AIR BAG-WITH(DRIVER ONLY)

main82115-0K280i201008-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82115-0K290i201010-201202

82112WIRE, ENGINE ROOM, NO.2

main82112-0K010i201008-201202

8401

9011906923

main90119-06923

4 parts on this diagram · 15 diagrams in section
