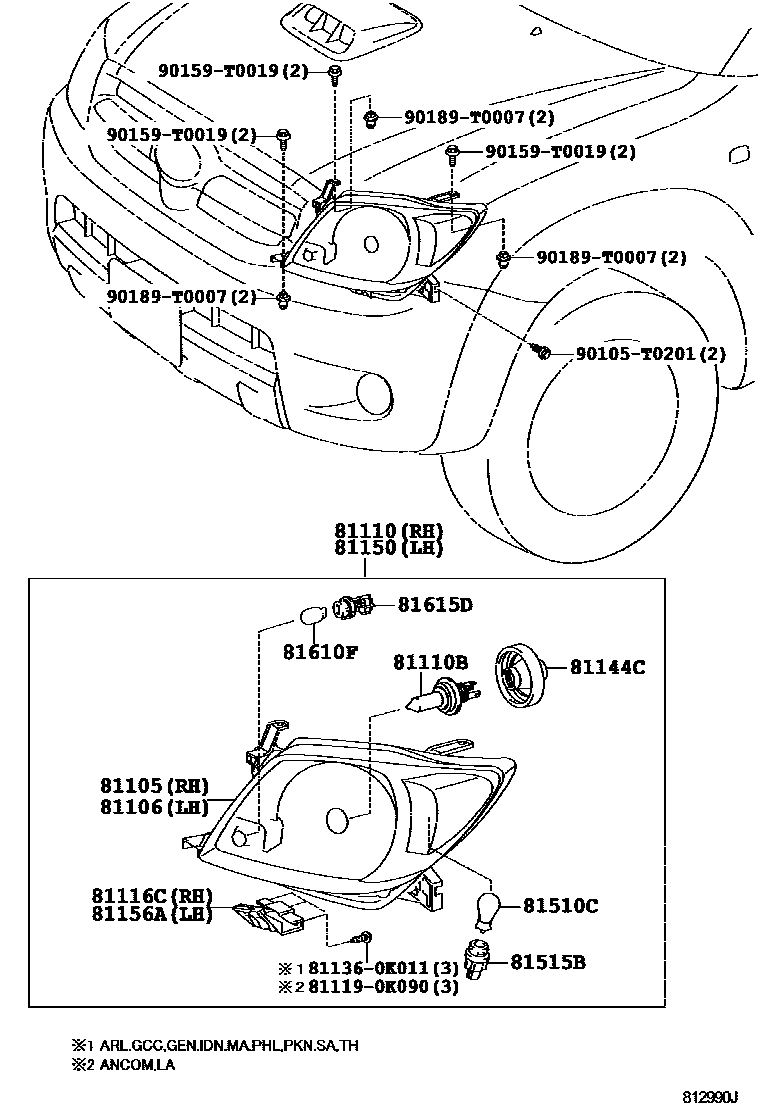

HEADLAMP

0001 1 0006 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-0K010iKUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN25,TGN16..RHD..5F..(ARL,GEN);KUN16,TGN10..RHD..(DCB,SCB)..(DLX,SR);GGN15,200411-201202

main81105-0K020iKUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL)200411-200808

sub81105-0K021

main81130-0K050iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200810

main81130-0K060iKUN15,25,LAN15,25,TGN16,26..LHD..SA200507-200810

main81130-0K090iGGN25,KUN2#,3#,TGN26,36..ANCOM,LA200501-200802

sub81130-0K091

main81130-0K091iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200802-200812

main81105-0K040iKUN10,15,25,TGN1#,26..GCC200507-200808

SAUDI ARABIA SPEC

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-0K010iKUN25..PKN200411-201202

main81106-0K020iKUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL)200411-200808

sub81106-0K021

main81170-0K050iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200810

main81170-0K060iKUN15,25,LAN15,25,TGN16,26..LHD..SA200507-200810

main81170-0K090iGGN25,KUN2#,3#,TGN26,36..ANCOM,LA200501-200802

sub81170-0K091

main81170-0K091iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200802-200812

main81106-0K040iKUN10,15,25,TGN1#,26..GCC200507-200808

SAUDI ARABIA SPEC

81110HEADLAMP ASSY, RH

main81110-0K010iKUN1#,2#200408-200410

sub81110-0K011

main81110-0K011iKUN25..PKN200411-201202

main81110-0K021iKUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL)200411-200808

main81110-0K050iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200810

main81110-0K060iKUN15,25,LAN15,25,TGN16,26..LHD..SA200507-200810

main81110-0K090iGGN25,KUN2#,3#,TGN26,36..ANCOM,LA200501-200801

sub81110-0K091

main81110-0K091iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200802-200812

main81110-0K180iGGN25..DCB..ARL;KUN15,26,36..XTR..SA;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..RHD..(ARL,GEN,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,25,3#,TGN10,16..R200808-201108

main81110-0K190iKUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL)200808-201107

main81110-0K220iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..(DCB,SCB)..SA200810-201108

main81110-0K230iKUN15,25,LAN15,25,TGN16,26..LHD..SA200810-201108

main81110-0K261iTGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200810

main81110-0K041iKUN10,15,25,TGN1#,26..GCC200507-200808

SAUDI ARABIA SPEC

main81110-0K210iKUN10,15,25,TGN1#,26..GCC200808-201107

SAUDI ARABIA SPEC

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015iLAN15..PKN200408-200812

12V 60/55W,*HAL *WH

sub90981-13058

main90981-13058iKUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,S200711-201202

12V 60/55W,HALOGEN

81116CBRACKET, HEADLAMP, RH

main81116-0K010iKUN25..PKN200411-201202

main81116-0K180iKUN2#..IDN,MA;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201108

main81116-0K220iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA200810-201108

main81116-0K260iTGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200810

main81118-0K090iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

81144CCOVER, HEADLAMP SOCKET

main90069-81040iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA200504-200810

main90075-65002iKUN25..PKN200411-201202

81150HEADLAMP ASSY, LH

main81150-0K010iKUN1#,2#200408-200410

main81150-0K011iKUN25..PKN200411-201202

main81150-0K021iKUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL)200411-200808

main81150-0K050iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200810

main81150-0K060iKUN15,25,LAN15,25,TGN16,26..LHD..SA200507-200810

main81150-0K090iGGN25,KUN2#,3#,TGN26,36..ANCOM,LA200501-200801

sub81150-0K091

main81150-0K091iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200802-200812

main81150-0K180iGGN25..DCB..ARL;KUN15,26,36..XTR..SA;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..RHD..(ARL,GEN,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,25,3#,TGN10,16..R200808-201108

main81150-0K190iKUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL)200808-201107

main81150-0K220iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..(DCB,SCB)..SA200810-201108

main81150-0K230iKUN15,25,LAN15,25,TGN16,26..LHD..SA200810-201108

main81150-0K261iTGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200810

main81150-0K041iKUN10,15,25,TGN1#,26..GCC200507-200808

SAUDI ARABIA SPEC

main81150-0K210iKUN10,15,25,TGN1#,26..GCC200808-201107

SAUDI ARABIA SPEC

81156ABRACKET, HEADLAMP, LH

main81156-0K010iKUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GC200411-201202

main81156-0K090iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

main81156-0K180iKUN2#..IDN,MA;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201108

main81156-0K220iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA200810-201108

main81156-0K260iTGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200810

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-WF006iKUN2#..IDN,MA;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201108

12V 21W,AMBER

main99132-11210iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-0K090iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

main90075-60069iTGN15..IV3;KUN15..SR..SA200808-201108

main90075-99078iKUN25..PKN200411-201202

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81138-0K090iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

main90075-60066iTGN26..LA,SA;TGN15..SA..CBU;TGN26..ANCOM..CBU;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,36..(DCB,SCB)..(ANCOM,LA,SA)200504-201108

main90075-65020iKUN15..SR..SA200411-201202

811190K090SCREW, HEADLAMP

main81119-0K090

811360K011PROTECTOR, HEADLAMP, NO.1 RH

main81136-0K011

90105T0201

main90105-T0201

90159T0019

main90159-T0019

90189T0007

main90189-T0007

17 parts on this diagram · 2 diagrams in section
