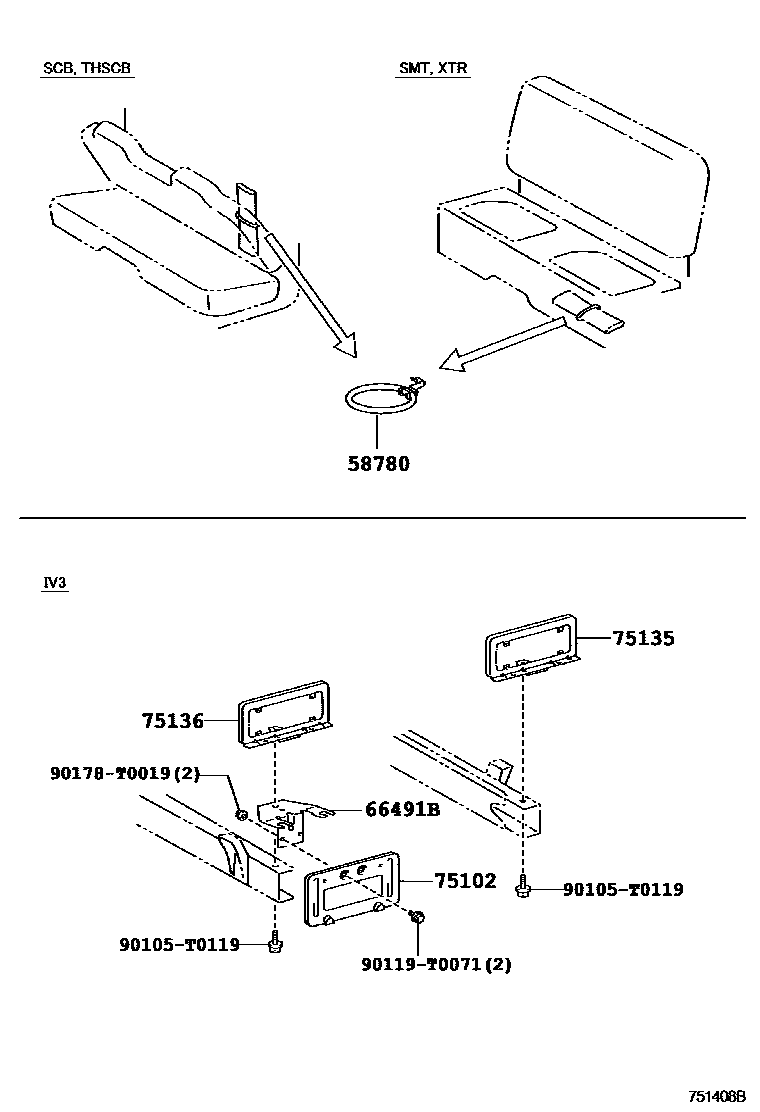

TOOL BOX & LICENSE PLATE BRACKET

58780BAND ASSY, TOOL BOX

main58780-0K060iKUN15..SCB..SA;KUN16,TGN16..(SCB,XTR)..SR;KUN16,36,TGN10..SCB..(DLX,SR);TGN26..(SCB,XTR)..(ANCOM,GCC,SA,TH);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36.200408-201202

66491BHANGER, LICENSE PLATE BRACKET

main66491-95412iGGN15,25,KUN15,16,26,TGN16..IV3200409-201108

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-25020iGGN15,25,KUN15,16,26,TGN16..IV3200409-201108

75135BRACKET, COMBINATION REAR LAMP, RH

main75103-95411iGGN15,25,KUN15,16,26,TGN16..IV3200409-201108

75136BRACKET, COMBINATION REAR LAMP, LH

main75103-95411iGGN15,25,KUN15,16,26,TGN16..IV3200409-201108

90105T0119

main90105-T0119

90119T0071

main90119-T0071

90178T0019

main90178-T0019

8 parts on this diagram · 1 diagram in section
