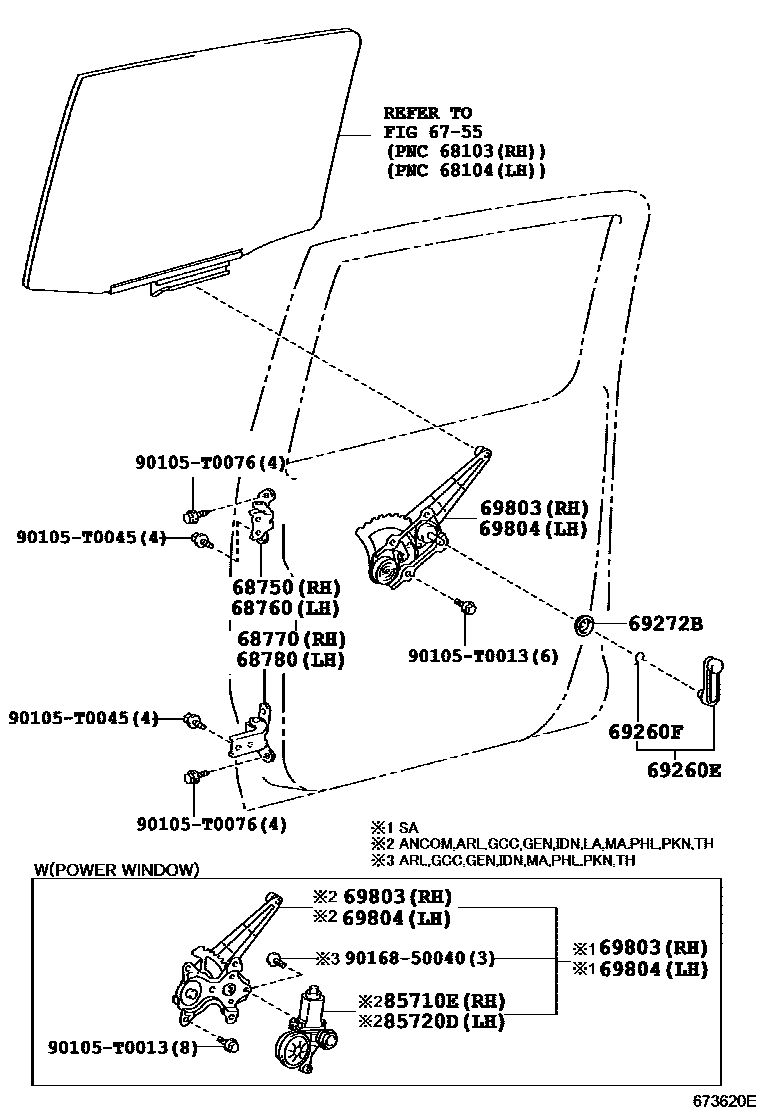

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1ACCSESS DOOR

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0K010iTGN16..DCB..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH);GGN15,25,KUN16,25,3#,TGN15,26..(DCB,THDCB)..(ARL,GCC,GEN,MA,TH)200408-201107

main68750-0K020iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200504-201108

sub68750-0K010

main68750-0K030iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200501-200812

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0K010iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200408-201107

main68760-0K020iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200504-201108

sub68760-0K010

main68760-0K030iTGN26..SR..ANCOM;TGN26,36..DCB..DLX..(ANCOM,LA);GGN25,KUN2#,3#..DCB..(ANCOM,LA)200501-200812

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02020iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200704-201108

main68770-52030iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB200408-200609

sub68770-52031

main68770-52031iKUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,LA);GGN15,25,KUN15,16,26,36,200610-201107

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02020iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200704-201108

main68780-52030iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB200408-200609

sub68780-52031

main68780-52031iKUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,LA);GGN15,25,KUN15,16,26,36,200610-201107

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-04030-B3iKUN25..PKN201010-201202

GRAY,TRIM1#

sub69260-04030

main69260-0K010-B0iKUN35,TGN16..(DCB,THDCB)..(ARL,GEN,LA);KUN15,2#,36,TGN26,36..(DCB,THDCB)..5F..DLX..(GEN,LA,MA,PHL)200408-201110

GRAY,TRIM1#

main69260-0K010-B0iKUN15,25,TGN15,16,26..DCB..DLX..GCC201002-201107

GRAY,TRIM1#,3#

main69260-0K020-B0iKUN15,25,35,LAN15,25,35,TGN16,26..DCB..DLX..SA200504-201108

GRAY,TRIM1#

main69260-0K050-B0iKUN15,25,TGN15,16,26..DCB..DLX..GCC200507-201002

GRAY,TRIM1#,3#

main69260-0K050-B0iTGN16..DCB..5F..(ARL,GEN);KUN15,2#,3#,TGN15,26,36..(DCB,THDCB)..DLX..(ANCOM,GEN,LA,PHL)200411-201204

GRAY,TRIM1#

main69260-0K050-E1iKUN25..DCB..DLX..MA200809-200909

SAND BEIGE,TRIM4#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iTGN16..DCB..DLX..(ARL,GCC,GEN);KUN15,2#,35,TGN15,26..(DCB,THDCB)..DLX..(GCC,GEN,PHL,TH)200408-201107

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-04020iTGN16..DCB..5F..DLX..(ARL,GCC,GEN);KUN15,2#,3#,TGN15,26,36..(DCB,THDCB)..DLX..(ANCOM,GCC,GEN,LA,PHL,TH)200408-201107

main69268-0K010iKUN15,25,35,LAN15,25,35,TGN16,26..DCB..SA200504-201108

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0K010iKUN26..SR..GEN;GGN15,25,KUN16,2#,36,TGN36..DCB..(ARL,MA,PHL,TH);KUN15,TGN16,26..(DCB,THDCB)..SR..(GCC,GEN,PHL,TH)200408-201109

main69803-0K010iTGN16..DCB..GEN200808-201107

POWER DOOR LOCK-WITH

main69803-0K050iGGN25,KUN26,36,TGN26..SR..(ANCOM,LA)200501-200808

POWER DOOR LOCK-WITH

sub69803-0K051

main69803-0K051iKUN2#,3#..DCB..DLX..LA;TGN26,36..DCB..DLX..(ANCOM,LA)200809-200812

POWER DOOR LOCK-WITH

main69830-0K010iTGN16..DCB..DLX..(ARL,GCC);KUN15..DCB..DLX..(GCC,GEN,PHL,TH);KUN2#,35,TGN15,26..(DCB,THDCB)..DLX..(GCC,GEN,MA,PKN)200408-200808

main69830-0K040iGGN25,KUN26,36,TGN36..DCB..SA200504-200810

sub69830-0K041

main69830-0K040iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200810-200902

POWER DOOR LOCK-WITH

sub69830-0K041

main69830-0K041iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200903-201108

POWER DOOR LOCK-WITH

main69830-0K090iKUN2#,3#,TGN26,36..DCB..DLX..(ANCOM,LA)200501-200808

sub69830-0K091

main69830-0K091iKUN2#,3#,TGN26,36..DCB..DLX..(ANCOM,LA)200809-200812

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0K010iKUN26..SR..GEN;GGN15,25,KUN16,2#,36,TGN36..DCB..(ARL,MA,PHL,TH);KUN15,TGN16,26..(DCB,THDCB)..SR..(GCC,GEN,PHL,TH)200408-201109

main69804-0K010iTGN16..DCB..GEN200808-201107

POWER DOOR LOCK-WITH

main69804-0K050iGGN25,KUN26,36,TGN26..SR..(ANCOM,LA)200501-200808

POWER DOOR LOCK-WITH

sub69804-0K051

main69804-0K051iKUN2#,3#..DCB..DLX..LA;TGN26,36..DCB..DLX..(ANCOM,LA)200809-200812

POWER DOOR LOCK-WITH

main69840-0K010iTGN16..DCB..DLX..(ARL,GCC);KUN15..DCB..DLX..(GCC,GEN,PHL,TH);KUN2#,35,TGN15,26..(DCB,THDCB)..DLX..(GCC,GEN,MA,PKN)200408-200808

main69840-0K040iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200810-200902

POWER DOOR LOCK-WITH

sub69840-0K041

main69840-0K040iGGN25,KUN26,36,TGN36..DCB..SA200504-200810

sub69840-0K041

main69840-0K041iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200903-201108

POWER DOOR LOCK-WITH

main69840-0K090iKUN2#,3#,TGN26,36..DCB..DLX..(ANCOM,LA)200501-200808

sub69840-0K091

main69840-0K091iKUN2#,3#,TGN26,36..DCB..DLX..(ANCOM,LA)200809-200812

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0K020iTGN16..DCB..GEN200808-201107

POWER DOOR LOCK-WITH

main85720-0K020iKUN26..SR..(GEN,LA);GGN25..DCB..(ANCOM,ARL);TGN26..(DCB,THDCB)..SR..(ANCOM,GEN,TH);GGN15,KUN16,26,TGN36..DCB..(ARL,PHL,TH);KUN15,25,36,TGN16..DCB..SR..(GCC,LA,MA,PH200408-200812

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0K020iKUN26..SR..(GEN,LA);GGN25..DCB..(ANCOM,ARL);TGN26..(DCB,THDCB)..SR..(ANCOM,GEN,TH);GGN15,KUN16,26,TGN36..DCB..(ARL,PHL,TH);KUN15,25,36,TGN16..DCB..SR..(GCC,LA,MA,PH200408-200812

main85710-0K020iTGN16..DCB..GEN200808-201107

POWER DOOR LOCK-WITH

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9016850040

main90168-50040

16 parts on this diagram · 2 diagrams in section
