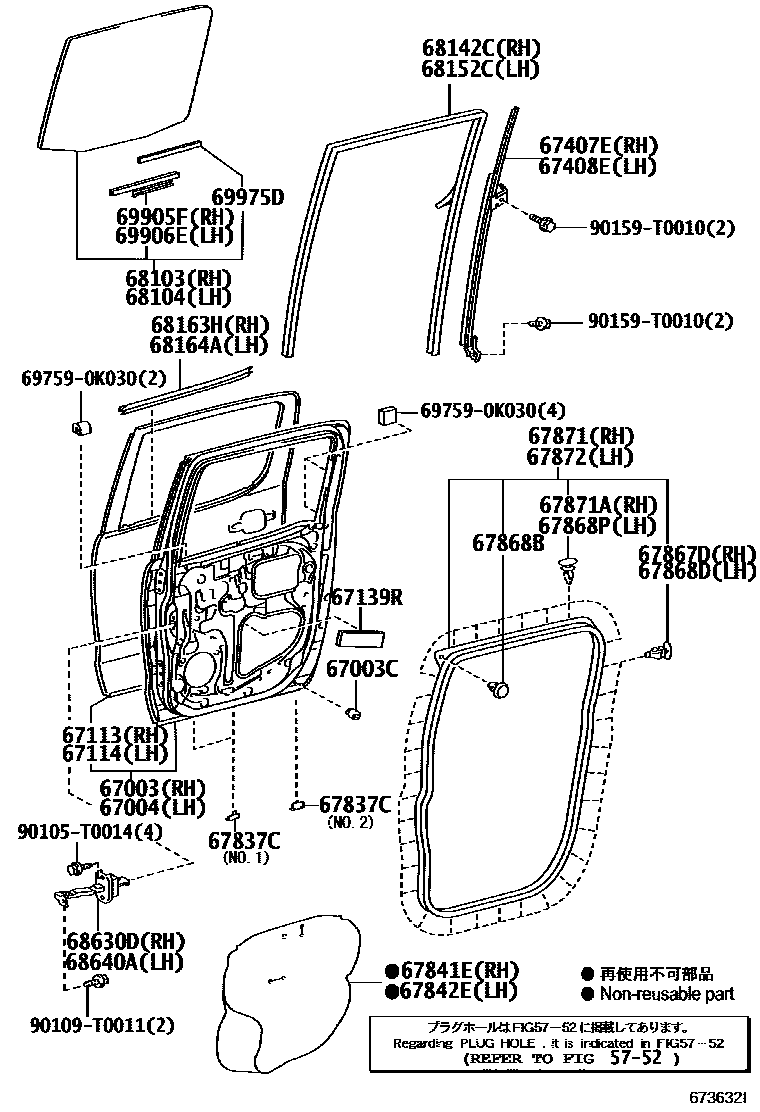

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1ACCESS DOOR PANEL 0003 1DOOR TRIM 0004 1ACCESS DOOR TRIM

5752

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0K010iTGN16..DCB..(ARL,GCC,TH);GGN15,KUN16,TGN15..DCB..DLX;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN15,2#,3#,TGN26..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,PKN,TH)200808

main67003-0K060iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200810-201108

main67003-0K070iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200810

main67003-0K110iKUN15,16,2#,3#,TGN16..SMT200809-201107

67003CCUSHION, REAR DOOR PANEL

main90541-09069×2iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0K010iTGN16..DCB..(ARL,GCC,TH);GGN15,KUN16,TGN15..DCB..DLX;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN15,2#,3#,TGN26..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,PKN,TH)200808

main67004-0K060iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200810-201108

main67004-0K070iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200810

main67004-0K110iKUN15,16,2#,3#,TGN16..SMT200809-201107

67113PANEL, REAR DOOR, OUTER RH

main67113-0K010iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,200408-200812

67114PANEL, REAR DOOR, OUTER LH

main67114-0K010iKUN26..4FC..LA;TGN26..SR..ANCOM;TGN36..DCB..(ANCOM,SA);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA,SA);GGN25,KUN15,2#,36,LAN15,25,35,TGN16..DCB..(5F,5FC)..(ANCOM,LA,SA)200501-200812

67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-0K010×2iKUN25..SR..MA200408-200809

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0K010iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,200408-200812

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0K010iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,200408-200812

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K030×4iTGN16..DCB..(ARL,GCC,TH);GGN15,KUN16,TGN15..DCB..DLX;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN15,2#,3#,TGN26..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,PKN,TH)201003

NO.1

main67837-71010×4iGGN25..5FC..(ANCOM,LA,SA);GGN35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..(ANCOM,LA,SA)200808

NO.1

main67837-71020×2iKUN25..DCB..SR;KUN25,TGN16..DCB..5F..(ARL,GEN);GGN15,25,KUN15,16,26,TGN15,26,36..DCB..(ARL,GEN,PHL,TH)200505-200812

NO.2

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0K010iKUN2#,TGN26..THDCB..DLX;KUN16,3#..(DCB,THDCB)..(GEN,TH);GGN15,25,KUN15,2#,TGN26,36..(DCB,THDCB)..SR..(ARL,GEN,MA,PHL,TH)200408-200809

main67841-0K020iTGN16..DCB..GEN200808-201107

main67841-0K030supersedes 67841-0K040iGGN25,KUN2#,36,TGN36..RHD..DCB..SA200504-200810

main67841-0K050iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200810

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-0K010iKUN2#,TGN26..THDCB..DLX;KUN16,3#..(DCB,THDCB)..(GEN,TH);GGN15,25,KUN15,2#,TGN26,36..(DCB,THDCB)..SR..(ARL,GEN,MA,PHL,TH)200408-200809

main67841-0K020iKUN35..DLX..PHL;TGN16..DCB..(ARL,GCC);GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX..(ARL,GCC,GEN,PHL,PKN,TH)200808

main67841-0K030supersedes 67841-0K040iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200810-201108

AUDIO-AM/FM CASSETTE CD 4SPEAKER

main67841-0K050iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200810

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×24iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,3200808

main67867-52030×4iKUN15,16,2#,3#,TGN16..SMT200809-201107

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main90467-04034×2iKUN15,16,2#,3#,TGN16..SMT200809-201107

main90467-06084×2iKUN25..SR..MA200408-200809

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×24iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

main67867-52010×4iKUN15,16,2#,3#,TGN16..SMT200809-201107

67868PRETAINER, DOOR WEATHERSTRIP, NO.1 LH

main67867-52030×8iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,3200808

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0K010iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..DCB200408-200506

main67871-0K011iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,200507-200812

main67871-0K012iGGN15,KUN16..DCB..DLX;TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,M200912

main67871-0K050iKUN15,16,2#,3#,TGN16..SMT200809-201107

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150×26iKUN15,16,2#,3#,TGN16..SMT200809-201107

main67867-52010×8iGGN25,KUN25,35,TGN26,36..DCB..ANCOM200408-200812

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0K010iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..DCB200408-200506

main67872-0K011iGGN25..5FC..SA;GGN25..DCB..(ANCOM,ARL,LA);GGN15,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB,THDCB200808-200911

main67872-0K012iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200912-201107

main67872-0K050iKUN15,16,2#,3#,TGN16..SMT200809-201107

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0K010iKUN25..DCB..MA200812-201109

*TEM,T=3.1,GREEN

main68103-0K020iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200810-201108

*TEM,T=3.1,GREEN

main68103-0K030iTGN26..SR..ANCOM;TGN26,36..DCB..DLX..(ANCOM,LA);GGN25,KUN2#,3#..DCB..(ANCOM,LA)200501-200812

*TEM,T=3.1,GREEN

sub68103-0K031

main68103-0K140iGGN15,25,KUN26..DCB..SR..ARL200908-201107

*TEM,T=3.1,PRIVACY

sub68103-0K141

main68103-0K180iKUN26..IDN;TGN16..DCB..GEN;KUN16..DCB..5F..TH200812-201107

*TEM,T=3.1,GREEN

sub68103-0K182

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0K010iTGN16..DCB..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH);GGN15,25,KUN16,25,3#,TGN15,26..(DCB,THDCB)..(ARL,GCC,GEN,MA,TH)200408-200809

*TEM,T=3.1,GREEN

main68104-0K020iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200810-201108

*TEM,T=3.1,GREEN

main68104-0K030iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200810-201204

*TEM,T=3.1,GREEN

sub68104-0K031

main68104-0K140iGGN15,25,KUN26..DCB..SR..ARL200908-201107

*TEM,T=3.1,PRIVACY

sub68104-0K141

main68104-0K180iKUN26..IDN;TGN16..DCB..GEN;KUN16..DCB..5F..TH200812-201107

*TEM,T=3.1,GREEN

sub68104-0K182

68142CRUN, REAR DOOR GLASS, RH

main68142-0K010iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,200408-200812

68152CRUN, REAR DOOR GLASS, LH

main68152-0K010iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,3200808

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-0K010iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..(LA,SA)200408-200810

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-0K010iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..(LA,SA)200408-200810

68630DCHECK ASSY, REAR DOOR, RH

main68630-0K010iTGN16..DCB..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH);GGN15,25,KUN16,25,3#,TGN15,26..(DCB,THDCB)..(ARL,GCC,GEN,MA,TH)200408-200809

sub68630-0K011

main68630-0K020iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200504-200810

sub68630-0K021

main68630-0K030iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200810-201204

main68640-0K070iKUN15,16,2#,3#,TGN16..SMT200809-201107

sub68640-0K071

68640ACHECK ASSY, REAR DOOR, LH

main68640-0K010iTGN16..DCB..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH);GGN15,25,KUN16,25,3#,TGN15,26..(DCB,THDCB)..(ARL,GCC,GEN,MA,TH)200408-200809

sub68630-0K011

main68640-0K020iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200810-201108

sub68630-0K021

main68640-0K030iTGN26..SR..ANCOM;TGN26,36..DCB..DLX..(ANCOM,LA);GGN25,KUN2#,3#..DCB..(ANCOM,LA)200501-200812

main68640-0K070iKUN15,16,2#,3#,TGN16..SMT200809-201107

sub68640-0K071

69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0K040iGGN25..5FC..SA;GGN25..DCB..ARL;GGN15,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)200808-201202

69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0K040iGGN25..5FC..SA;GGN25..DCB..ARL;GGN15,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)200808-201202

69975DFILLER, REAR DOOR GLASS CHANNAL

main69975-0K010×2iKUN25..DCB..SR;KUN25,35,TGN16..(DCB,THDCB)..5F..(ARL,GCC,GEN,SA);GGN15,25,KUN15,16,26,36,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,SA,TH)200408-200810

697590K030SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-0K030

90105T0014

main90105-T0014

90109T0011

main90109-T0011

90159T0010

main90159-T0010

34 parts on this diagram · 4 diagrams in section
