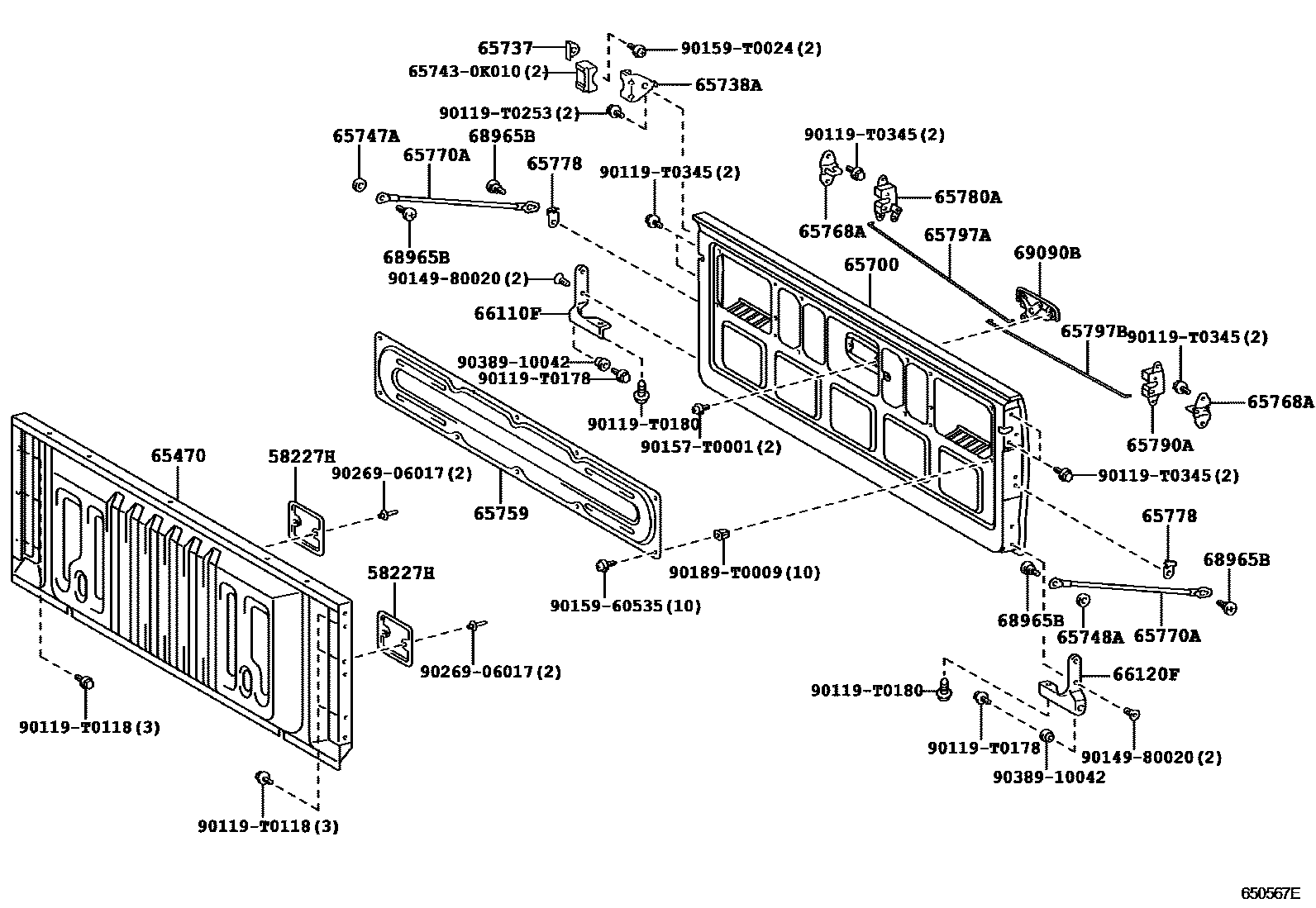

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0007 1 0010 1W(FLAME) 0020 1W/O(FLAME) 0021 1W(FLAME) 0022 1 0026 1W(FLAME)

58227HCOVER, HEADER PANEL, NO.1

main58227-0K030iGGN25..XTR;KUN26..IDN;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

sub58227-0K031

65470BOARD ASSY, HEADER

main65470-0K010iKUN25..RHD..DCB..SA200408-201108

main65470-0K010iGGN25..XTR;KUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

SINGAPORE SPEC

main65470-0K020iTGN16..SCB..TH;TGN15..SCB..GEN;KUN15..LHD..SCB..SA;TGN16..(ARL,GCC,SA)..CBU;KUN15,TGN26..DCB..(GCC,SA);KUN10,25,LAN15,25,TGN11,15..LHD..(GCC,SA);GGN15,25,KUN16,26,T200808-201107

DECK GUARD FRAME-WITH(STOPPER)

main65470-0K020iKUN25..SR..MA200409-201202

65700GATE ASSY, REAR BODY TAIL

main65700-0K010iKUN26,3#,TGN36..SCB..SA200810-201108

REAR BUMPER-STEEL FLAT PLATING

main65700-0K010iKUN26,3#,TGN36..SCB..SA200810-201108

REAR BUMPER-STEEL FLAT PAINT

main65700-0K010iKUN3#,TGN36..SCB..SA200504-200810

REAR BUMPER-STEEL, FLAT TYPE, PAINTED

main65700-0K020iKUN25,35,TGN26,36..LHD..(SCB,THSCB)..(ANCOM,GEN,LA)..CBU200502-200812

main65700-0K030iKUN10,15,25,TGN1#,26..GCC..CBU200507-200808

main65700-0K030iKUN10,15,25,TGN1#,26..GCC..CBU200808-201107

REAR BUMPER-STEEL FLAT PAINT

main65700-0K040iKUN15,16..XTR..SR;LAN25,35,TGN16,26..DCB..SA200408-200709

REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

sub65700-0K041

main65700-0K041iKUN16..SMT;KUN15,TGN16..5F..SR..TH200808-201107

REAR BUMPER-STEEL STEP PAINT

main65700-0K041iKUN16..SMT;KUN15,TGN16..5F..SR..TH200808-201107

REAR BUMPER-STEEL STEP PLATING

main65700-0K041iKUN35..SR..PHL;KUN26,36..XTR..SA;KUN25,35,TGN26..(DCB,SMT)..(ANCOM,MA,TH);GGN25,KUN16,TGN16,36..(4FC,5FC)..(ANCOM,TH);KUN15,26,36..(DCB,SMT)..SR..DCR..(GEN,PHL,TH)200710-201108

main65700-0K041iKUN16..SMT;KUN15,TGN16..5F..SR..TH200808-201107

REAR BUMPER-STEEL FLAT PLATING

main65700-0K041iGGN15,25,KUN26..SR..ARL200808-201107

SINGAPORE SPEC&REAR BUMPER-STEEL STEP PAINT

main65700-0K070iGGN15,25,KUN16,26,TGN16..(DCB,SCB)..DLX..ARL..CBU200502-201109

main65700-0K080iKUN15,25,LAN15,TGN10,15,16..SCB..(GEN,IDN,MA,PKN)..CBU200502-201202

main65700-0K080iTGN15..DCB..GCC200808-201107

REAR BUMPER-WITHOUT

main65700-0K090iKUN15,16,25,LAN15,25,TGN15,16..SCB..(SA,TH)..CBU200409-201108

main65700-0K100iKUN16..XTR;KUN26..SR..ARL;GGN15..XTR..DLX;GGN15,25,KUN15..SR..(ARL,TH);KUN25,LAN15,25,35,TGN16,26..DCB..SA200408-200709

sub65700-0K101

main65700-0K101iKUN16..SMT,XTR;KUN26..SR..ARL;GGN15..XTR..DLX;GGN15,25,KUN15,TGN16..(5F,5FC)..SR..(ARL,TH)200808-201107

SINGAPORE SPEC

main65700-0K101iKUN16..XTR..TH;GGN15..XTR..DLX;KUN15,25..DCB..SA;GGN15,25,KUN26..SR..ARL;KUN15,LAN15,25,35,TGN16,26..(DCB,XTR)..5F..(DEFI,HDCR,HTWC)..(SA,TH)200710-200810

TAIL GATE-WITHOUT

main65700-0K101iKUN16..XTR..TH;GGN15..XTR..DLX;KUN15,25..DCB..SA;GGN15,25,KUN26..SR..ARL;KUN15,LAN15,25,35,TGN16,26..(DCB,XTR)..5F..(DEFI,HDCR,HTWC)..(SA,TH)200710-200810

TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, PAINTED

main65700-0K101iKUN16..XTR..TH;GGN15..XTR..DLX;KUN15,25..DCB..SA;GGN15,25,KUN26..SR..ARL;KUN15,LAN15,25,35,TGN16,26..(DCB,XTR)..5F..(DEFI,HDCR,HTWC)..(SA,TH)200710-200810

REAR BUMPER-WITHOUT

main65700-0K110iKUN15,25,TGN15,16,26..(DCB,XTR)..DLX..(GEN,PHL,TH)200408-200709

sub65700-0K111

main65700-0K111iTGN16..DCB..GEN200710-201107

main65700-0K120iKUN2#,TGN26..THDCB;KUN25,TGN26..DCB..LA;GGN25,35..5FC..(LA,SA);KUN26,36,TGN36..DCB..(LA,SA);KUN35..(DCB,THDCB)..(GEN,LA,SA)200808

main65700-0K130iKUN15,25,LAN15,25,35,TGN16,26..DCB..SA200810-201108

REAR BUMPER-WITHOUT

65737STOP, TAIL GATE

main65737-0K010iKUN16..DCB..ARL200808-201107

SINGAPORE SPEC

main65737-0K010iKUN15..SR..SA200408-201108

65738ASTOPPER, TAIL GATE LOCK HINGE, NO.1

main65738-0K010iGGN15,25,KUN16,26,TGN16..DCB..DLX..ARL..CBU200408-201108

main65738-0K010iGGN25..XTR;KUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

SINGAPORE SPEC

65747APLATE, TAIL GATE SEAL, RH

main65747-0K010iKUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB.200408-201202

65748APLATE, TAIL GATE SEAL, LH

main65747-0K010iKUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB.200408-201202

65759COVER, TAIL GATE SERVICE HOLE

main65759-0K010iTGN16..SCB..GEN200409-201202

main65759-0K060iKUN15..SR..SA200408-201108

main65759-0K060iKUN16..DCB..ARL200808-201107

SINGAPORE SPEC

65768ASTRIKER, TAIL GATE LOCK

main65768-0K010iKUN15..SR..SA200408-201108

main65768-0K010iKUN16..DCB..ARL200808-201107

SINGAPORE SPEC

65770ASTAY ASSY, TAIL GATE

main65770-0K010iGGN25..5FC..SA;GGN25..DCB..ARL;GGN15,KUN16..DCB..DLX;KUN15,TGN16..XTR..DLX;TGN26..LHD..(GCC,GEN,SA);TGN16..(ARL,GCC,SA,TH)..CBU;KUN26..(ARL,GEN,PHL,SA,TH)..CBU;GGN1200408-201202

main65770-0K020iTGN36..DLX..CBU;TGN26..ANCOM..CBU;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..(ANCOM,LA)..CBU200501-200812

sub65770-0K010

65778STOPPER, TAIL GATE STAY

main65778-0K010iKUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB.200408-201202

65780ALOCK ASSY, TAIL GATE, RH

main65780-0K010iKUN25..SR..MA200408-201108

main65780-0K010iGGN25..XTR;KUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

SINGAPORE SPEC

main65780-0K020iKUN2#,TGN26..THDCB;GGN25..5FC..(LA,SA);KUN35..(DCB,THDCB)..(GEN,LA,SA);GGN35,KUN15,2#,36,LAN15,25,35,TGN16,26,36..DCB..(LA,SA)200808

65790ALOCK ASSY, TAIL GATE, LH

main65790-0K010iKUN15..SR..DCR..TH200408-201108

main65790-0K010iGGN25..XTR;KUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

SINGAPORE SPEC

main65790-0K020iKUN2#,TGN26..THDCB;GGN25..5FC..(LA,SA);KUN35..(DCB,THDCB)..(GEN,LA,SA);GGN35,KUN15,2#,36,LAN15,25,35,TGN16,26,36..DCB..(LA,SA)200808

65797ALINK, TAIL GATE LOCK CONTROL

main65797-0K010iKUN15..SR..DCR..TH200408-201108

main65797-0K010iGGN25..XTR;KUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

SINGAPORE SPEC

main65797-0K030iKUN2#,TGN26..THDCB;GGN25..5FC..(LA,SA);KUN35..(DCB,THDCB)..(GEN,LA,SA);GGN35,KUN15,2#,36,LAN15,25,35,TGN16,26,36..DCB..(LA,SA)200808

65797BLINK, TAIL GATE LOCK CONTROL

main65797-0K020iGGN15,KUN16..SMT,XTR;TGN16..(DCB,SMT)..TH;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN36..(DCB,SMT)..SR..(ANCOM,ARL,TH);KUN26..(DCB,SMT,X200408-201108

main65797-0K020iGGN25..XTR;KUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

SINGAPORE SPEC

main65797-0K040iKUN2#,TGN26..THDCB;GGN25..5FC..(LA,SA);KUN35..(DCB,THDCB)..(GEN,LA,SA);GGN35,KUN15,2#,36,LAN15,25,35,TGN16,26,36..DCB..(LA,SA)200808

66110FHINGE ASSY, TAIL GATE, RH

main66110-0K010iTGN10..IDN;KUN15..XTR..SR200408-200609

sub66110-0K011

main66110-0K011iKUN15..SR..SA200609-201202

66120FHINGE ASSY, TAIL GATE, LH

main66120-0K010iKUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU200408-200609

sub66120-0K011

main66120-0K011iKUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN15,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KU200609-201202

68965BSHAFT, TAIL GATE STAY

main68965-0K010iKUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB.200408-201202

69090BHANDLE ASSY, TAIL GATE

main69090-0K030iKUN25,35,TGN26,36..DCB..DLX..ANCOM200501-200812

main69090-0K040iKUN16..DCB..ARL201105-201107

SINGAPORE SPEC

main69090-0K040iTGN16..(DCB,SMT)..DLX..(SA,TH);KUN35..(DCB,THDCB)..DLX..(GEN,PHL,SA);GGN15,KUN16,26,TGN16..(THDCB,XTR)..DLX..CBU;KUN15,25,LAN15,25,35,TGN26..(DCB,SMT,THDCB,XTR)..DL201105

main69090-0K060iKUN25,35..THDCB201105-201107

TIRE & DISC WHEEL-265/70R16 7J

main69090-0K060iGGN25..XTR;KUN26..IDN;GGN15,KUN16..DCB..5F..SR201105-201107

POWER DOOR LOCK-WITH

main69090-0K060iGGN25..XTR;KUN26..IDN;GGN15,KUN16..DCB..5F..SR201105-201107

WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)

main69090-0K060iKUN15..SR..SA201105-201108

main69090-71010iKUN15,25,35,LAN15,25,35,TGN16,26..DCB..SA200408-200810

sub69090-0K040

main69090-71010iKUN16..DCB..ARL200808-201104

SINGAPORE SPEC

sub69090-0K040

main69090-89101iKUN15..SR..DCR..TH200408-201104

sub69090-0K060

657430K010

main65743-0K010

90119T0118

main90119-T0118

90119T0178

main90119-T0178

90119T0180

main90119-T0180

90119T0253

main90119-T0253

90119T0345

main90119-T0345

9014980020

main90149-80020

90157T0001

main90157-T0001

9015960535

main90159-60535

90159T0024

main90159-T0024

90189T0009

main90189-T0009

9026906017

main90269-06017

9038910042

main90389-10042

32 parts on this diagram · 7 diagrams in section
