E
EPC Data

FLOOR MAT & SILENCER PAD

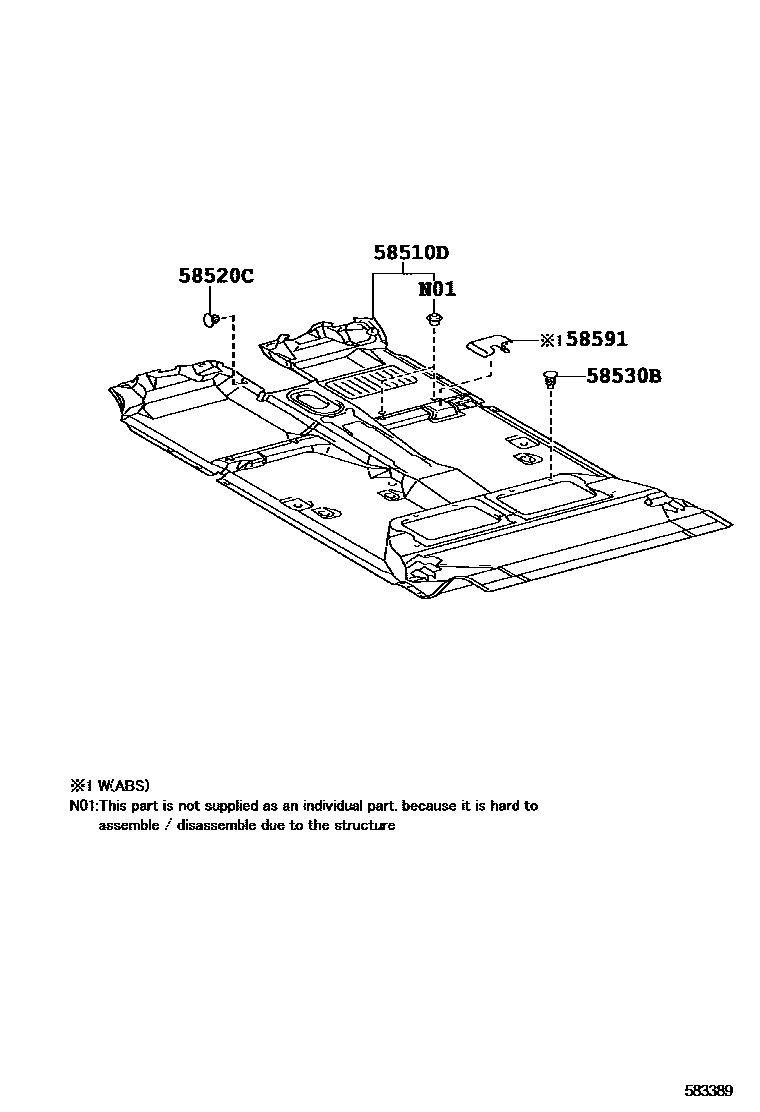

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-0K010-A0i200408-200808
IVORY,TRIM0#
main58510-0K030-B0i200502-200808
MID. GRAY,TRIM1#
main58510-0K040-B0i200502-200608
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0K060-B0i200502-200808
MID. GRAY,TRIM1#
main58510-0K070-B0i200502-200608
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0K080-B0i200502-200808
MID. GRAY,TRIM1#
main58510-0K090-B0i200408-200808
MID. GRAY,TRIM1#
main58510-0K110-A0i200411-200808
IVORY,TRIM0#
sub58510-0K110
main58510-0K110-B0i200411-200808
MID. GRAY,TRIM1#
sub58510-0K110
main58510-0K110-B0i200608-200808
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
sub58510-0K110
main58510-0K110-D0i200608-200808
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),RED,TRIM3#
sub58510-0K110
main58510-0K110-D0i200708-200808
RED,TRIM3#
sub58510-0K110
main58510-0K130-B0i200502-200808
MID. GRAY,TRIM1#
sub58510-0K130
main58510-0K130-D0i200507-200808
RED,TRIM3#
sub58510-0K130
main58510-0K140-B0i200502-200608
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0K150-B0i200502-200808
MID. GRAY,TRIM1#
sub58510-0K150
main58510-0K150-D0i200507-200808
RED,TRIM3#
sub58510-0K150
main58510-0K160-B0i200411-200808
MID. GRAY,TRIM1#
main58510-0K160-B0i200502-200608
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0K180-B0i200507-201108
MID. GRAY,TRIM1#
main58510-0K200-B0i200507-201108
MID. GRAY,TRIM1#
main58510-0K210-B0i200504-201108
MID. GRAY,TRIM1#
main58510-0K210-B0i200507-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0K230-B0i200507-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0K260-B0i200507-201108
MID. GRAY,TRIM1#
main58510-0K290-B0i200507-201108
MID. GRAY,TRIM1#
main58510-0K330-B0i200501-201110
MID. GRAY,TRIM1#
main58510-0K330-B0i200810-201010
CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER),MID. GRAY,TRIM1#
main58510-0K330-B0i201010-201110
TIRE & DISC WHEEL-265/70R16 7J,MID. GRAY,TRIM1#
main58510-0K340-B0i200501-201110
MID. GRAY,TRIM1#
main58510-0K350-B0i200501-201110
MID. GRAY,TRIM1#
main58510-0K370-B1i200502-201107
MD.GRAY,TRIM1#
main58510-0K370-B1i200507-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1#
main58510-0K380-B1i200502-200608
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1#
main58510-0K390-B1i200502-201108
MD.GRAY,TRIM1#
main58510-0K400-B1i200409-201107
MD.GRAY,TRIM1#
main58510-0K410-B1i200502-200608
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1#
main58510-0K420-B1i200502-201107
MD.GRAY,TRIM1#
main58510-0K430-B1i200502-201109
MD.GRAY,TRIM1#
main58510-0K450-B1i200502-200608
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1#
main58510-0K460-B1i200502-201107
MD.GRAY,TRIM1#
main58510-0K460-D1i200507-201107
RED,TRIM3#
main58510-0K480-B1i200507-201107
MD.GRAY,TRIM1#
main58510-0K480-D1i200507-201107
RED,TRIM3#
main58510-0K490-A0i200408-200808
IVORY,TRIM0#
main58510-0K490-B1i201008-201108
MID. GRAY,TRIM1#
main58510-0K500-B1i200502-201107
MID. GRAY,TRIM1#
main58510-0K510-B0i200408-201107
MID. GRAY,TRIM1#
main58510-0K530-B1i200502-201008
MID. GRAY,TRIM1#
main58510-0K550-B1i200608-201107
CONSOLE BOX-W(COMPARTMENT DOOR) & W/O(RR CUP HOLDER),MID. GRAY,TRIM1#
main58510-0K770-B0i200502-201110
MD.GRAY,TRIM1#
main58510-0K780-B0i200502-201110
MD.GRAY,TRIM1#
main58510-0K880-B1i200504-200710
SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID. GRAY,TRIM1#
main58510-0K890-A1i200504-200810
IVORY,TRIM0#
main58510-0K890-B1i200710-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID. GRAY,TRIM1#
main58510-0K890-B1i200710-201010
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0K890-B1i200504-201108
MID. GRAY,TRIM1#
main58510-0KA00-B0i200502-200608
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0KA10-B0i200502-200808
MID. GRAY,TRIM1#
sub58510-0KA10
main58510-0KA10-D0i200507-200808
RED,TRIM3#
sub58510-0KA10
main58510-0KA20-B0i200504-201110
MID. GRAY,TRIM1#
main58510-0KA30-B1i200502-201107
MD.GRAY,TRIM1#
main58510-0KB10-B0i200508-201204
MD.GRAY,TRIM1#
main58510-0KB20-B1i200502-200608
MD.GRAY,TRIM1#
main58510-0KB40-B0i200507-201204
MID. GRAY,TRIM1#
main58510-0KB50-B0i200507-201204
MID. GRAY,TRIM1#
main58510-0KB60-B0i200507-201204
MID. GRAY,TRIM1#
main58510-0KB70-B0i200507-201204
MID. GRAY,TRIM1#
main58510-0KB80-B1i200710-201201
MID. GRAY,TRIM1#
main58510-0KB90-B0i201010-201108
FRONT SEAT-PASSENGER SEAT(FOR TWO PERSONS),MID. GRAY,TRIM1#
main58510-0KB90-B0i200710-201010
MID. GRAY,TRIM1#
main58510-0KC00-B0i200710-201108
MID. GRAY,TRIM1#
main58510-0KC10-B0i200508-201204
MD.GRAY,TRIM1#
main58510-0KC30-A0i200503-200809
IVORY,TRIM0#
main58510-0KC30-B0i200503-201109
MID. GRAY,TRIM1#
main58510-0KC30-E0i200809-200909
SAND BEIGE,TRIM4#
main58510-0KC50-B1i200507-201108
MD.GRAY,TRIM1#
main58510-0KC60-B1i200708-201107
MD.GRAY,TRIM1#
main58510-0KC70-B1i200507-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1#
main58510-0KC70-D0i200608-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),RED,TRIM3#
main58510-0KC80-B1i200507-201108
MD.GRAY,TRIM1#
main58510-0KD50-B0i200608-200808
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0KD60-B0i200608-201107
MD.GRAY,TRIM1#
main58510-0KD60-B0i200608-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1#
main58510-0KD70-B0i200608-201107
MD.GRAY,TRIM1#
main58510-0KE20-B0i200708-200808
MID. GRAY,TRIM1#
main58510-0KE30-B0i200708-200808
MID. GRAY,TRIM1#
main58510-0KE50-B0i200708-201107
MID. GRAY,TRIM1#
main58510-0KE50-D0i200708-201107
RED,TRIM3#
main58510-0KE60-B0i200708-201107
MD.GRAY,TRIM1#
main58510-0KE70-B0i200908-201107
CONSOLE BOX-W(COMPARTMENT DOOR) & W/O(RR CUP HOLDER)&REAR SEAT-WITHOUT,MID. GRAY,TRIM1#
main58510-0KE80-B0i200710-201010
MID. GRAY,TRIM1#
main58510-0KE80-B0i201010-201108
FRONT SEAT-PASSENGER SEAT(FOR TWO PERSONS),MID. GRAY,TRIM1#
main58510-0KF00-B0i200710-201108
MID. GRAY,TRIM1#
main58510-0KF40-B0i200908-201107
MID. GRAY,TRIM1#
main58510-0KF40-B0i200908-201107
CONSOLE BOX-W(COMPARTMENT DOOR) & W/O(RR CUP HOLDER),MID. GRAY,TRIM1#
main58510-0KF40-E0i200809-201107
SAND BEIGE,TRIM4#
main58510-0KG40-B0i201008-201107
MID. GRAY,TRIM1#
sub58510-0KG41
main58510-0KG40-E0i200808-201107
SAND BEIGE,TRIM4#
sub58510-0KG41
main58510-0KG50-B0i200808-201107
MID. GRAY,TRIM1#
main58510-0KG50-B0i201008-201107
SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,MID. GRAY,TRIM1#
main58510-0KG50-E0i201008-201107
SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,SAND BEIGE,TRIM4#
main58510-0KG60-B0i200808-201107
MID. GRAY,TRIM1#
main58510-0KG70-B0i200808-201202
MID. GRAY,TRIM1#
main58510-0KG80-B0i200808-201107
MID. GRAY,TRIM1#
main58510-0KJ00-B0i200810-201009
MD.GRAY,TRIM1#
main58510-0KJ10-B0i200908-201107
MD.GRAY,TRIM1#
main58510-0KJ70-B0i201010-201202
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,MID. GRAY,TRIM1#
main58510-0KJ70-B0i200808-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0KK00-B0i200808-201107
MID. GRAY,TRIM1#
main58510-0KK00-D0i200808-201107
RED,TRIM3#
main58510-0KK10-B0i200808-201107
MID. GRAY,TRIM1#
main58510-0KK20-B0i200808-201107
MID. GRAY,TRIM1#
main58510-0KK20-D0i200808-201107
RED,TRIM3#
main58510-0KK30-B0i200808-201107
MID. GRAY,TRIM1#
main58510-0KK40-B0i200808-201107
MID. GRAY,TRIM1#
main58510-0KK60-B0i200808-201107
MID. GRAY,TRIM1#
main58510-0KK60-B0i200808-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#
main58510-0KK60-B0i201008-201107
TIRE & DISC WHEEL-265/70R16 7J,MID. GRAY,TRIM1#
main58510-0KK60-D0i200808-201107
RED,TRIM3#
main58510-0KK60-D0i200808-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),RED,TRIM3#
main58510-0KK60-E0i200808-201107
SAND BEIGE,TRIM4#
main58510-0KK70-B0i200808-201107
MID. GRAY,TRIM1#
main58510-0KK70-D0i200808-201107
RED,TRIM3#
main58510-0KL30-B0i200908-201008
MID. GRAY,TRIM1#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-T0029-B0i200408-201204
MD.GRAY,TRIM1#
main90467-T0029-B0i201008-201107
CONSOLE BOX-W(COMPARTMENT DOOR) & W/O(RR CUP HOLDER)&REAR SEAT-WITHOUT,MD.GRAY,TRIM1#
main90467-T0029-B0i201010-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1#
main90467-T0029-B0i201008-201107
CONSOLE BOX-W(COMPARTMENT DOOR) & W/O(RR CUP HOLDER),MD.GRAY,TRIM1#
main90467-T0029-B0i201008-201107
SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,MD.GRAY,TRIM1#
main90467-T0029-D0i200507-201107
RED,TRIM3#
main90467-T0029-E0i200408-200809
MD.NEUTRAL BONE,TRIM0#
main90467-T0029-E4i200808-201107
SAND BEIGE,TRIM4#
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-T0031-B0i201008-201107
CONSOLE BOX-W(COMPARTMENT DOOR) & W/O(RR CUP HOLDER),MD.GRAY,TRIM1#
main90467-T0031-B0i200408-201204
MD.GRAY,TRIM1#
main90467-T0031-B0i201008-201107
SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,MD.GRAY,TRIM1#
main90467-T0031-B0i201008-201107
CONSOLE BOX-W(COMPARTMENT DOOR) & W/O(RR CUP HOLDER)&REAR SEAT-WITHOUT,MD.GRAY,TRIM1#
main90467-T0031-B0i201010-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1#
main90467-T0031-D0i200507-201107
RED,TRIM3#
main90467-T0031-E0i200408-200809
MD.NEUTRAL BONE,TRIM0#
main90467-T0031-E2i200808-201107
SAND BEIGE,TRIM4#
58591COVER, FLOOR CARPET
main58591-0K010-B0i200808-201107
VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
sub58591-0K010
main58591-0K010-B0i200808-201107
GRAY,TRIM1#
sub58591-0K010
main58591-0K010-B0i200808-201107
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,GRAY,TRIM1#
sub58591-0K010
main58591-0K010-B0i201008-201107
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)&VSC-WITH,GRAY,TRIM1#
sub58591-0K010
main58591-0K010-D0i200808-201107
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,RED,TRIM3#
sub58591-0K010
main58591-0K010-E0i200808-201107
SAND BEIGE,TRIM4#
sub58591-0K010
main58591-0K010-E0i200808-201107
VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
sub58591-0K010
main58591-0K010-E0i200808-201107
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,SAND BEIGE,TRIM4#
sub58591-0K010

4 parts on this diagram · 3 diagrams in section
