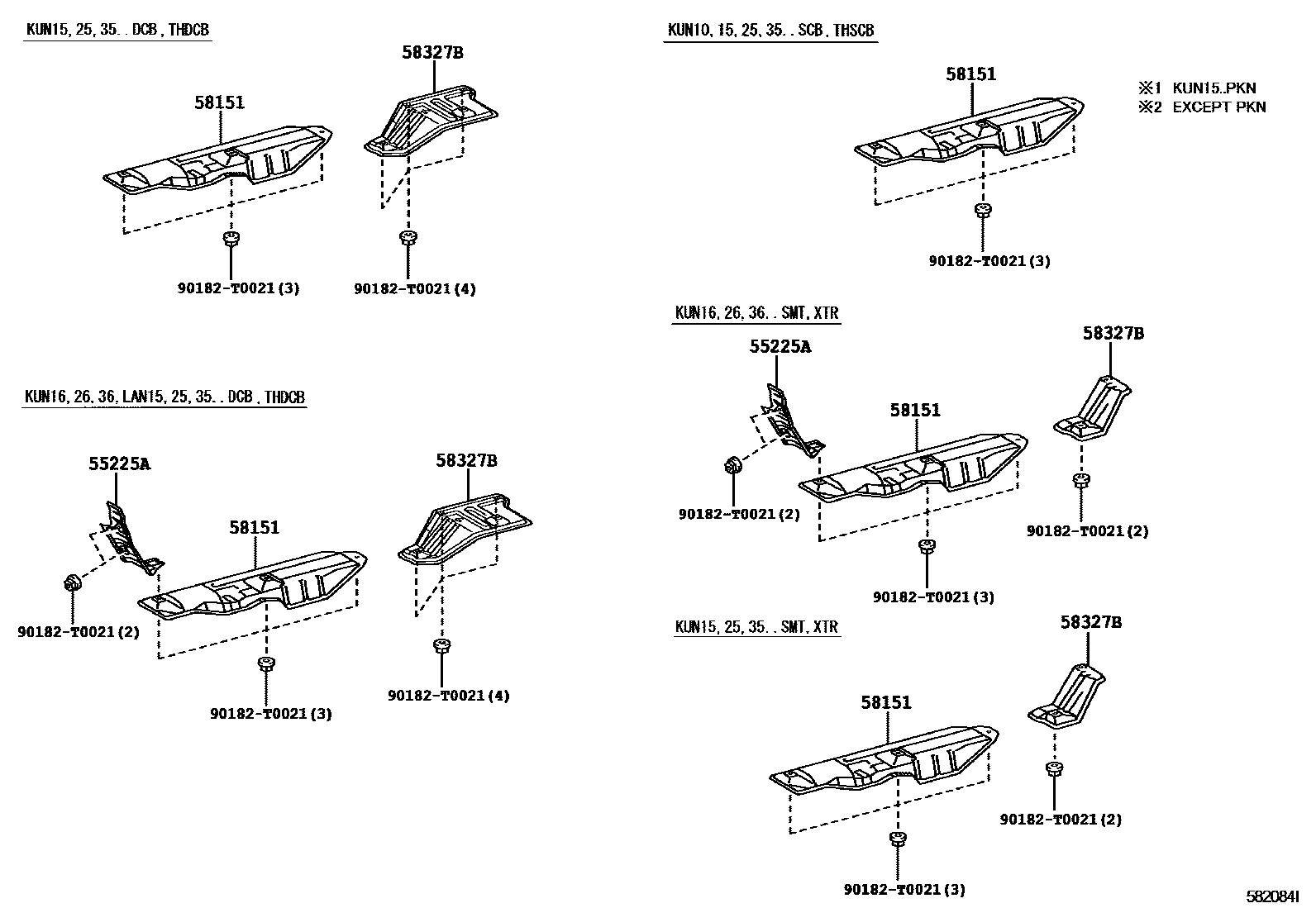

FLOOR INSULATOR

0001 1 0003 1 0004 1 0006 1

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K010iTGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL200408-201105

sub55225-0K030

main55225-0K030iTGN16..XTR;GGN15..DCB..DLX;TGN16..ARL,GCC,SA,TH;GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN16,TGN15..(DCB,SCB)..(ARL,GCC,SA)..CBU;GGN35201010-201108

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

sub58151-0K030

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K010iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,3200408-201107

sub58327-0K011

main58327-0K020iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR200408-201108

sub58327-0K021

90182T0021

main90182-T0021

4 parts on this diagram · 4 diagrams in section
