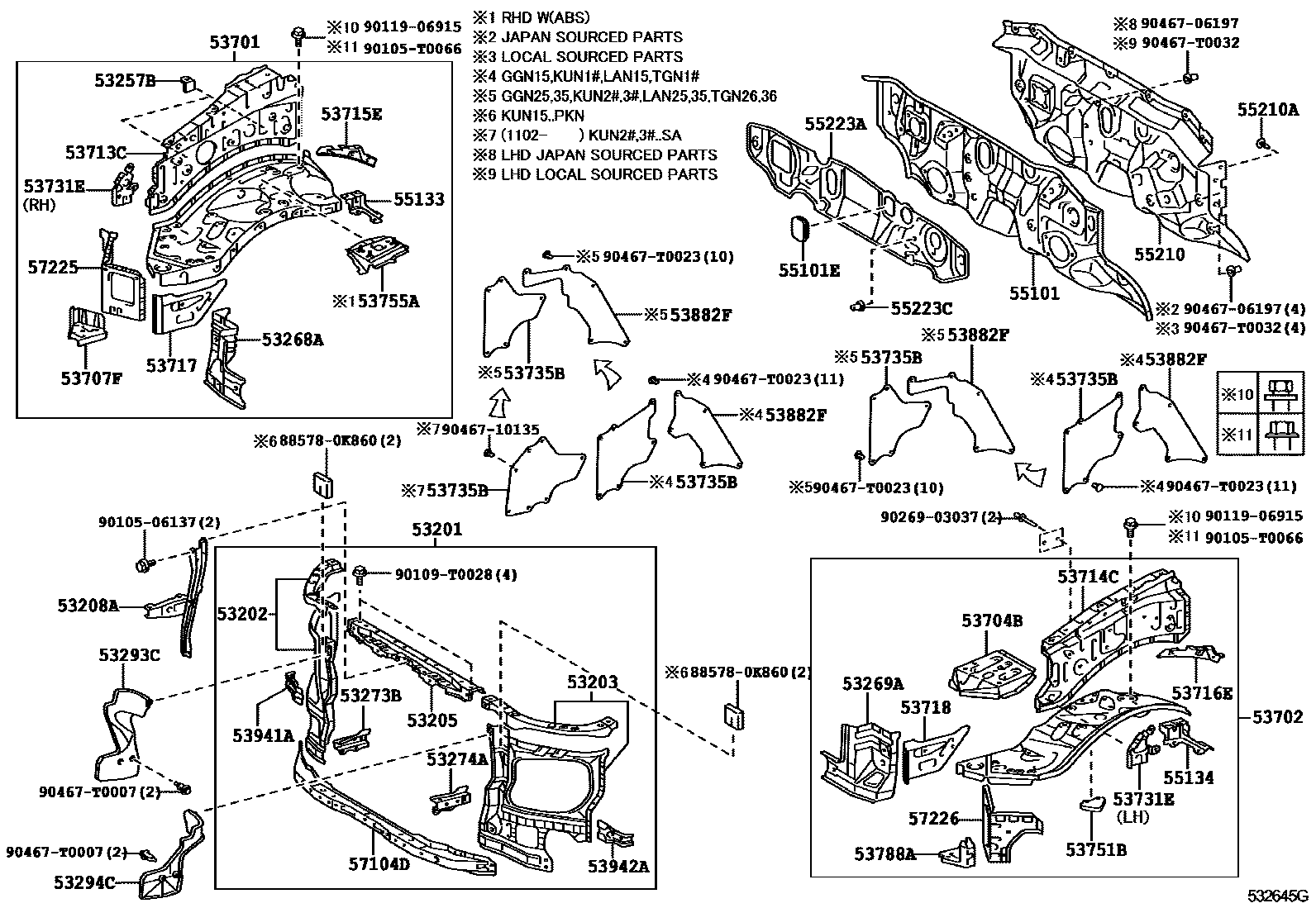

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iKUN26..DCB..5F..SA;GGN25,KUN36,LAN15,25,35..(DCB,SCB)..(5F,5FC)..(PKN,SA)200408-201202

main53257-35030iKUN35..SR..SA;GGN25,35,KUN26,36,LAN15,25,35..(DCB,SCB)..SA200810-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH

main53273-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0K010iKUN2#,36,TGN26;KUN15..DCB,SCB;KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN10,16,35,LAN15,25,35,TGN1#,36..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA200408-200711

sub53293-0K011

main53293-0K011iTGN16..TH200711-201202

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0K010iKUN2#,36,TGN26;KUN15..DCB,SCB;KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN10,16,35,LAN15,25,35,TGN1#,36..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA200408-200711

sub53294-0K011

main53294-0K011iTGN16..TH200711-201202

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0K010iKUN25..SR..MA;KUN16..DCB..TH;KUN26..4FC..TH200408-200512

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub53701-0K011

main53701-0K011iKUN25..SR..MA;KUN26..4FC..TH;KUN15,26,36..XTR..SA;GGN25,KUN16..(DCB,XTR)..(4FC,5F)..SR..(ARL,TH)200808-201105

VSC-WITH

sub53701-0K012

main53701-0K011iKUN25..SR..MA;KUN16..DCB..TH;KUN26..4FC..TH200601-200809

sub53701-0K012

main53701-0K011iKUN25..SR..MA;KUN26..4FC..TH;KUN15,26,36..XTR..SA;GGN25,KUN16..(DCB,XTR)..(4FC,5F)..SR..(ARL,TH)200808-201105

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub53701-0K012

main53701-0K012iKUN26..DCB..ARL..CBU201106-201107

VSC-WITH

main53701-0K012iKUN16,26..4FC..TH;KUN26,36..XTR..SA;GGN25,KUN25..DCB..(4FC,5F)..SR..(ARL,MA)201106-201109

main53701-0K012iKUN26..DCB..ARL..CBU201106-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

main53701-0K012iGGN25..XTR;KUN16..DCB..5F..TH201106-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K020iTGN16,26,36..RHD..SR200501-200512

sub53701-0K021

main53701-0K021iTGN16,26,36..RHD..(DCB,SCB,XTR)..SR200601-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub53701-0K022

main53701-0K021iTGN36..SA;TGN16..4FC..TH200809-201105

sub53701-0K022

main53701-0K022iTGN36..SA201106-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K030iKUN16..SCB,XTR;KUN26..4FC..(ARL,LA,PHL);KUN16,25..DLX..(ARL,MA)..CBU;KUN15,25,35..ANCOM,GCC,GEN,LA,PHL,SA,TH;GGN15,25,KUN10,26,36..(5F,5FC)..(ANCOM,ARL,GCC,LA,PHL,T200408-200601

sub53701-0K031

main53701-0K031iKUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..DCB,SCB,SMT;GGN25..5FC..SR..ARL;KUN25,35..SR..(PHL,TH);KUN26..4FC..(ARL,GEN,LA,PHL);GGN25,KUN25,35..DLX..(A200601-201203

sub53701-0K190

main53701-0K040iTGN36..LHD;TGN1#,26..5F200501-200512

sub53701-0K041

main53701-0K041iTGN16..DCB,SCB,XTR;TGN10,11,15..GCC,IDN,SA;TGN36..5F..DLX..LA..CBU;TGN26..LHD..(GCC,GEN,SA);TGN16,26..(DCB,SMT)..DLX..(LA,TH)200601-201203

sub53701-0K200

main53701-0K050iLAN15,25,35200507-200512

sub53701-0K051

main53701-0K051iLAN15,25,35200601-201107

sub53701-0K052

main53701-0K180iGGN25,KUN26,36..SA200504-200512

sub53701-0K181

main53701-0K181iKUN15,25,35,LAN15,25,35..RHD..DLX..SA200601-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub53701-0K182

main53701-0K190iKUN15..PKN201010-201202

main53701-0K200iTGN16..(DCB,SCB)..GEN201010-201108

main53701-0K330iTGN26,36..LA201010-201109

sub53701-0K331

main53701-0K340iKUN2#,3#..LA201010-201109

sub53701-0K341

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0K010iGGN25..5FC..SA;TGN36..DCB..SA;TGN36..SCB..CBU;GGN25..DCB..ARL;TGN36..ANCOM..IV3;TGN36..DCB..DLX..LA;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;KUN15..(DLX,STD)..PHL200408-201203

sub53702-0K011

main53702-0K011iKUN15..PKN201107-201202

main53702-0K020iKUN15,26,TGN36..SR..PHL200501-200812

sub53702-0K021

sub44507-0K011

sub44590-0K011

sub44590-0K021

sub90179-08249

main53702-0K020iTGN36..4FC..ANCOM;GGN25,KUN15,26,3#,TGN26,36..LHD..SR200808-201203

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub53702-0K021

sub44507-0K011

sub44590-0K011

sub44590-0K021

sub90179-08249

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0K010iKUN2#,3#..LA;TGN26..DCB..DLX..LA;TGN36..5F..DLX..LA..CBU200408-201202

main53713-0K040iKUN2#,3#,TGN26,36..LA201010-201204

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

53717PLATE, FENDER APRON, RH

main53717-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53718PLATE, FENDER APRON, LH

main53718-0K010iTGN15..IV3;KUN15..SR..SA200408-201202

53731EPATCH, FRONT FENDER APRON

main53731-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

RH

main53732-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

LH

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-0K010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main53735-0K020iKUN2#,3#..SA201102-201108

LH

main53735-0K020iGGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN35,LAN25,35,TGN36..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,M200408-201107

main53735-0K050iKUN2#,3#..SA201102-201108

RH

53751BBRACKET, CHARCOAL CANISTER MOUNTING

main53751-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

main53755-0K010iKUN26..4FC..TH;GGN25..DCB..5F..SR..ARL;KUN2#,3#,TGN36..SR..(MA,SA);GGN25,35,KUN16,TGN16..(4FC,5FC)..(SA,TH)200408-201109

main53755-0K010iKUN16..DCB..TH;KUN26,TGN16,26..4FC..TH200408-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53755-0K010iGGN25..XTR;KUN16..DCB..5F..TH200808-201107

VSC-WITH

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53882FSEAL, FRONT FENDER

main53885-0K010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

main53885-0K020iKUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..200408-201107

53941ABRACKET, FRONT END PANEL, NO.1 RH

main53941-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

53942ABRACKET, FRONT END PANEL, NO.1 LH

main53941-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

55101PANEL SUB-ASSY, DASH

main55101-0K010iKUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN26,36,TGN16..RHD..5F..(ARL,GEN,SA,TH);KUN15,25,35,LAN15,25,35,TGN10,15,36..RHD..(DCB,SCB,SMT)..5F..(DLX,SR)..CB200408-201202

main55101-0K020iGGN25..RHD..5FC..CBU;GGN15,35,KUN16,2#,36,TGN16..RHD..(4FC,5FC)200408-201109

main55101-0K030iTGN26..DCB..DLX..LA;KUN35,TGN36..LHD..5F..DLX;TGN26..LHD..5F..(ANCOM,GCC,GEN,SA);KUN10,15,2#,36,LAN15,25,TGN1#..LHD..5F200411-201107

main55101-0K040iGGN25,KUN26..LHD..(4FC,5FC);TGN26,36..4FC..(ANCOM,GCC,PHL)200411-201010

main55101-0K110iGGN15,25..5F..ARL200502-201107

main55101-0K140iTGN10..IV3200908-201107

main55101-0K160iKUN2#,3#,TGN26,36..5F..LA201010

main55101-0K170iKUN26..4FC..LA201010

55101EGROMMET, DASH PANEL, NO.2

main87128-0K010iGGN15..SCB,XTR;GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..DCB..ANCOM;TGN36..ANCOM..IV3;GGN15..DCB..5FC..SR;TGN26..LHD..(GCC,LA,SA);GGN25..DCB..(ANCOM,ARL,LA);TGN15,36..(200501-201202

main87128-0K010iGGN15..5F..SR;GGN25..SCB,XTR200808-201107

FRONT HEATER-WITH

main87128-0K010iGGN15..5F..SR;GGN25..SCB,XTR200808-201107

FRONT HEATER-WITH(EVAPORATOR)&AIR CONDITIONER-SINGLE AIR CONDITIONER

main87128-0K010iGGN15..5F..SR;GGN25..SCB,XTR200808-201107

AIR CONDITIONER-SINGLE AIR CONDITIONER

main87128-0K060iKUN15,16,2#,36,TGN10,15,16,26,36..(DCB,SCB,XTR)..(GEN,IDN,MA,PHL,TH)200408-201109

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-0K010iTGN15..IV3;KUN15..SR..SA200408-201202

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

55210INSULATOR ASSY, DASH PANEL

main55210-0K010iGGN15,25,KUN15,16,2#,TGN16,26..RHD..(ARL,GEN,MA,TH)200408-200511

sub55210-0K011

main55210-0K011iKUN26..IDN;GGN25..SCB,XTR;GGN15,KUN16..DCB..5F..SR200512-201202

main55210-0K020iKUN10,15,2#,TGN1#,26,36..LHD..(GCC,GEN,PHL)200411-200511

sub55210-0K021

main55210-0K021iKUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL)200512-201107

main55210-0K030iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..(DCB,SCB)..SA200504-201108

main55210-0K040iTGN36..DLX;TGN26..DCB..DLX..LA;TGN26..LHD..(ANCOM,SA);GGN25,KUN15,2#,3#,LAN15,25,TGN16..LHD..(ANCOM,LA,SA)200501-200812

main55210-0K080iKUN16,26..ARL200608-201107

sub55210-0K081

55210ACLIP

main90467-T0004-A0iKUN26,TGN16..(DCB,XTR)..SR..(GCC,PHL,SA,TH);GGN15,25,KUN15,16,25,36,TGN26,36..(DCB,SCB,XTR)..SR..(ARL,MA,PHL,SA,TH)200408-200810

IVORY,TRIM0#

main90467-T0004-B0iKUN10,15,25,TGN1#,26..GCC200507-201107

LT.GRAY,TRIM1#,3#

main90467-T0004-B0iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);200408-201204

LT.GRAY,TRIM1#

main90467-T0004-E1iKUN35..SR..PHL;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,26,36,TGN16..SR..(IDN,PHL,TH)200808-201109

SAND BEIGE,TRIM4#

55223AINSULATOR, DASH PANEL, OUTER

main55223-0K010iKUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN2#,3#,LAN15,25,35..RHD..(DLX,SR)..(ARL,GEN,MA,PKN,SA,TH)200408-201202

main55223-0K020iKUN35..LHD..DLX;KUN10,15,2#,36,LAN15,25..LHD200411-200812

55223CCLIP

main90467-06197iKUN16..DCB,SCB;KUN16..XTR..TH;KUN25..SCB..MA;KUN25..RHD..(GEN,SA);KUN25..(DCB,XTR)..SR;KUN15,26,3#,LAN15,25,35..RHD..(DCB,SCB,XTR)200607-201108

(J)

main90467-06197iKUN15,16,2#,3#,LAN15,25,35..RHD200408-200607

main90467-T0032iKUN15..SR..SA200607-201202

(L)

57104DMEMBER SUB-ASSY, FRONT CROSS

main57161-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-0K010iTGN36..4FC..ANCOM;KUN26,36..SR..(GEN,LA);TGN26..SR..(ANCOM,GEN);GGN25,TGN10..ANCOM,IDN200501-201108

885780K860PAKING, COOLER AIR DUCT

main88578-0K860

9010506137

main90105-06137

90105T0066

main90105-T0066

90109T0028

main90109-T0028

9011906915

main90119-06915

9026903037

main90269-03037

9046706197

main90467-06197

9046710135

main90467-10135

90467T0007

main90467-T0007

90467T0023

main90467-T0023

90467T0032

main90467-T0032

52 parts on this diagram · 1 diagram in section
