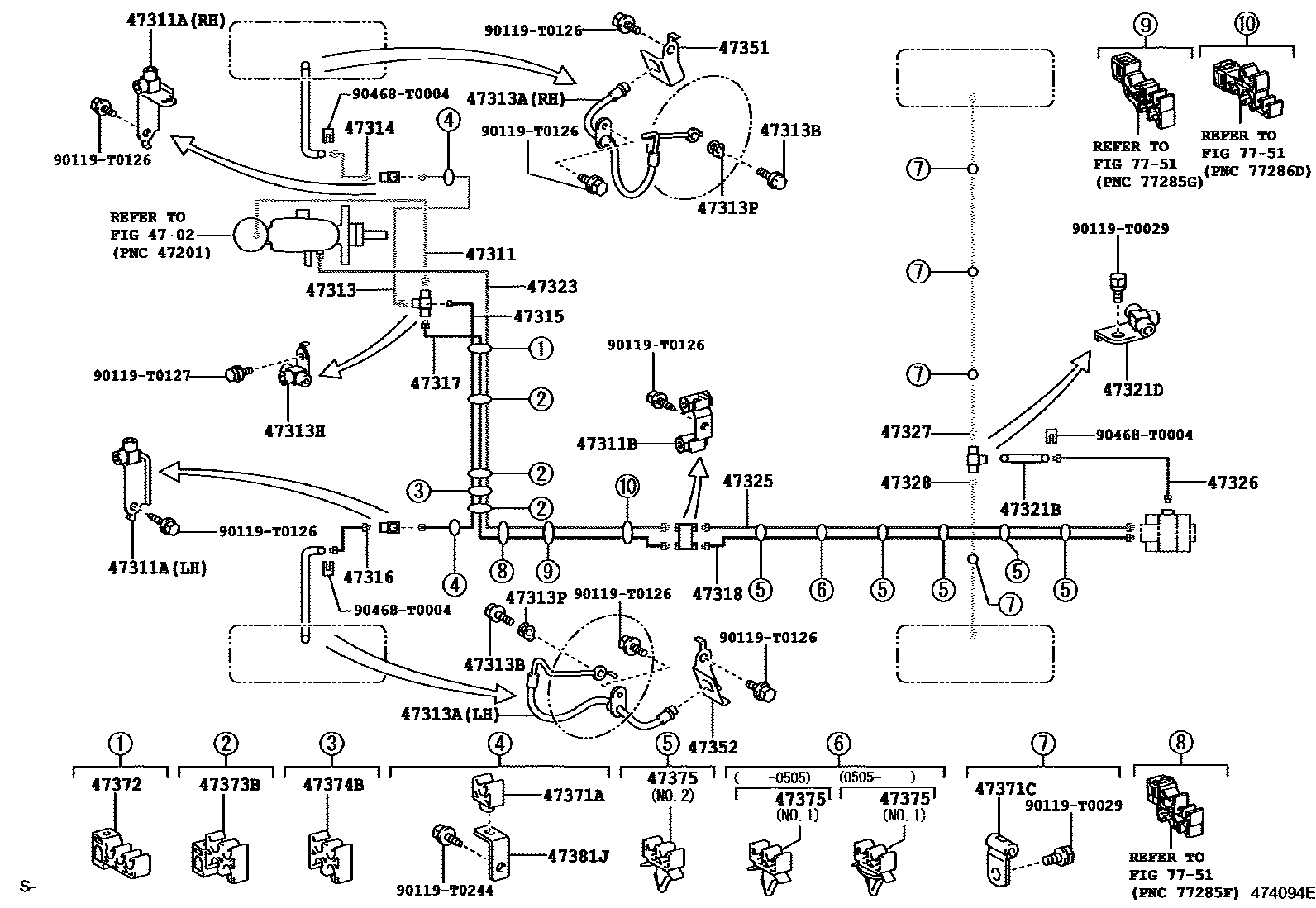

BRAKE TUBE & CLAMP

0001 1 0003 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1W(ABS) 0014 1W(ABS) 0017 1W(ABS) 0019 1W(ABS) 0020 1W(ABS) 0025 1W(ABS) 0026 1W(ABS) 0030 1W(ABS) 0036 1W(VSC) 0038 1W(ABS) 0041 1W(ABS) 0044 1W(VSC) 0046 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0K010supersedes 47311-0K150iKUN15,26,36..XTR..SA;KUN26..RHD..4FC..(ARL,GEN);KUN25..RHD..(GEN,MA,PKN,TH);KUN26..RHD..5F..(ARL,GEN,IDN,TH);GGN15,25,KUN15,16,3#,TGN10,16..RHD..(ARL,GEN,IDN,TH)200808-201202

main47311-0K020iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200810

main47311-0K030iKUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL)200411-200808

main47311-0K040iKUN2#,3#,LAN15,25,TGN16,26,36..LHD..(LA,SA)200501-200610

main47311-0K041iKUN15,2#,3#,LAN15,25,TGN16,26,36..LHD..(LA,SA)200610-200810

main47311-0K050iKUN25..MA200503-200706

main47311-0K070iGGN25,KUN25,35,TGN26,36..ANCOM200812-201204

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10251iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

RH

main90412-10252iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200808

LH

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10253iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

47313TUBE, FRONT BRAKE, NO.3

main47313-0K010supersedes 47313-0K020iGGN25..IV3;KUN26..IDN;GGN15..5F..SR200808-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47313-0K020iKUN25..TH;TGN16..SMT..DLX;TGN16..RHD..(DCB,SCB);GGN15,25,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..RHD..4FC..(ARL,GEN);GGN15,25..DCB..5FC..SR..ARL;KUN26..RHD.200808

main47313-0K030iKUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA200504-200810

main47313-0K040supersedes 47313-0K050iKUN26,36..LHD..DLX;TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);KUN10,15,25,35,LAN15,25,TGN1#..LHD..(DCB,SCB,THDCB,XTR)..5F..(GCC,GEN,SA)200501-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47313-0K050iKUN10,25,35,TGN1#..LHD..(GCC,GEN);KUN15,26,TGN26..LHD..DLX..(GCC,GEN,PHL)200411-200808

main47313-0K060iKUN36..DCB..DLX;KUN15,2#,35,LAN15,25,TGN16,26,36..LHD..DLX..(LA,SA)200501-200810

main47313-0K070iKUN25..SR..MA200503-200706

main47313-0K080iKUN25..DLX..MA200503-200706

main47313-0K100iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM200812

main47313-0K110iKUN25,35,TGN26,36..5F..DLX..ANCOM200812

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94029×2iTGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,M200808

main90947-T2004iTGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH200808-201108

RH

main90947-T2005iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90413-10309iKUN16..DCB..TH;GGN25,KUN2#,36,TGN36..SR..(MA,SA);KUN26,TGN16,26..(DCB,XTR)..4FC..TH200408-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main90413-10312supersedes 90414-10055iTGN36..4FC..ANCOM;TGN26..SR..(ANCOM,GEN);GGN25,KUN26,36..SR..(ANCOM,GEN,LA)200501-200812

main90414-10055iTGN15..IV3200808-201108

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iTGN15..GCC,SA;TGN16..DCB,SCB,XTR;GGN15,KUN1#,LAN15,TGN10,11..ARL,GCC,GEN,IDN,PHL,SA,TH200808-201008

main47389-50021×2iKUN15..PKN201010-201202

47314TUBE, FRONT BRAKE, NO.4

main47314-0K020iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

main47314-0K030iKUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)200408-200810

main47314-0K050iGGN25,KUN25,35,TGN26,36..ANCOM200503-200812

47315TUBE, FRONT BRAKE, NO.5

main47315-0K010supersedes 47315-0K020iKUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..200408-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47315-0K020iKUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15200408-201202

main47315-0K030iKUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA200504-200810

main47315-0K040supersedes 47315-0K050iKUN26,36..LHD..DLX;TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);KUN10,15,25,35,LAN15,25,TGN1#..LHD..(DCB,SCB,THDCB,XTR)..5F..(GCC,GEN,SA)200501-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47315-0K050iKUN10,25,35,TGN1#..LHD..(GCC,GEN);KUN15,26,TGN26..LHD..DLX..(GCC,GEN,PHL)200411-200808

main47315-0K060iKUN36..DCB..DLX;KUN15,2#,35,LAN15,25,TGN16,26,36..LHD..DLX..(LA,SA)200501-200810

main47315-0K070iKUN25..SR..MA200503-200706

main47315-0K080iKUN25..DLX..MA200503-200706

main47315-0K100iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM200812

main47315-0K110iKUN25,35,TGN26,36..5F..DLX..ANCOM200507-200812

47316TUBE, FRONT BRAKE, NO.6

main47316-0K020iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

main47316-0K030iKUN26..IDN;GGN25..SCB,XTR200808-201107

main47316-0K050iKUN25..MA200503-200706

47317TUBE, FRONT BRAKE, NO.7

main47317-0K010iKUN26..IDN;GGN25..SCB,XTR;GGN15,KUN16..DCB..5F..SR200808-201107

main47317-0K020iKUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL)200411-200808

main47317-0K030iKUN15,2#,3#,LAN15,25,TGN16,26,36..LHD..(LA,SA)200501-200810

main47317-0K040iKUN25..MA200503-200706

main47317-0K050iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200810

main47317-0K060iGGN25,KUN25,35,TGN26,36..ANCOM200507-200812

47318TUBE, FRONT BRAKE, NO.8

main47318-0K010iKUN10,TGN10,11200808-201107

main47318-0K020iTGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,200408-200810

main47318-0K040iKUN25..MA200503-200706

main47318-0K070iKUN25..SR..MA;KUN25..SCB..MA200706-201202

47321TUBE, REAR BRAKE, NO.1

main47321-0K010supersedes 47321-0K110iKUN16..DCB..TH;KUN26,TGN16,26..4FC..TH200408-200809

main47321-0K020iGGN25,35,KUN26,3#,TGN36..(DCB,SCB)..SR..SA200810-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47321-0K030iKUN15,26,35,TGN26..LHD..SR..(GEN,PHL)200808-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47321-0K040iKUN25,TGN26..LHD..SA;KUN15,26,36,LAN15,25,TGN16..LHD..DLX..(LA,SA)200501-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47321-0K050iKUN25..SR..MA200503-200706

main47321-0K060iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM200507-200812

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2011iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

main90947-T2015supersedes 90947-T2058iTGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN35,KUN25,3#,LAN25,35;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN26..4FC..(ARL,GEN,LA200808

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10308iKUN26..IDN;GGN25..SCB,XTR200808-201107

main90413-10311iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

47323TUBE, REAR BRAKE, NO.3

main47323-0K010supersedes 47323-0K130iKUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..200408-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47323-0K020iKUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15200408-201202

main47323-0K030iKUN15,25,35,LAN15,25,35,TGN15..RHD..DLX..SA200810-201108

main47323-0K040supersedes 47323-0K050iTGN16..XTR;TGN16..GCC,SA;KUN25..LHD..SCB..SA;TGN26..DCB..DLX..LA;TGN36..DLX..LA..CBU;TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);KUN25,35..LHD..(DCB,THDCB)..(GCC,GEN,LA,SA)200808

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47323-0K050iKUN10,25,35,TGN1#..LHD..(GCC,GEN);KUN15,26,TGN26..LHD..DLX..(GCC,GEN,PHL)200411-200808

main47323-0K060iKUN36..DCB..DLX;KUN15,2#,35,LAN15,25,TGN16,26,36..LHD..DLX..(LA,SA)200501-200810

main47323-0K070iKUN25..SR..MA200503-200706

main47323-0K080iKUN25..DLX..MA200503-200706

main47323-0K100iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM200507-200812

main47323-0K110iKUN25,35,TGN26,36..5F..DLX..ANCOM200507-200812

47325TUBE, REAR BRAKE, NO.5

main47325-0K010iKUN10,TGN10,11200808-201107

main47325-0K020supersedes 47325-0K120iTGN16..XTR;GGN25..5FC..SA;GGN25..DCB..ARL;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;TGN26..LHD..(GCC,GEN,SA);KUN26..4FC..(ARL,GEN,PHL,SA);200808-201108

main47325-0K050iGGN25,KUN25,35,TGN26,36..ANCOM200503-200812

main47325-0K090iTGN26..DCB..DLX..LA;KUN25,TGN36..5F..DLX..LA;KUN15,26,3#,LAN15..LA,PKN200501-201202

47326TUBE, REAR BRAKE, NO.6

main47329-0K011iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

main47329-0K021supersedes 47326-0K010iKUN25..SR..MA;KUN25..SCB..MA200709-200812

main47329-0K080iKUN25..MA200503-200709

47327TUBE, REAR BRAKE, NO.7

main47327-0K010iKUN16..DCB,SCB;KUN16,TGN16..XTR..TH;GGN15,KUN10,15,LAN15,TGN1#..(DCB,SCB,XTR)..(5F,5FC)..(DLX,SR)200408-200810

main47327-0K011iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR201008-201107

main47327-0K020iKUN26..5F;GGN25..ARL,LA;GGN25..5FC..SA;TGN36..(LA,SA)..CBU;TGN26..LHD..(GCC,GEN,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);GGN35,KUN25,3#,LAN25,35..GCC,GEN,LA,PHL,SA,TH200808-201007

main47327-0K021supersedes 47327-0K091iGGN25..DCB..(ARL,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN35,KUN25,3#,LAN25,35,TGN26,36..GCC,GEN,LA,PHL,PKN,SA,TH201008

main47327-0K030iKUN25..MA200503-200706

main47327-0K031iGGN25,KUN25,35,TGN26,36..ANCOM201012

main47327-0K100iLAN15..PKN200710-201008

main47327-0K101iKUN15..PKN201010-201202

main47327-0K120iKUN25..MA200809-201008

main47327-0K121iKUN25..MA201009-201109

47328TUBE, REAR BRAKE, NO.8

main47328-0K010iKUN16..DCB,SCB;KUN16,TGN16..XTR..TH;GGN15,KUN10,15,LAN15,TGN1#..(DCB,SCB,XTR)..(5F,5FC)..(DLX,SR)200408-200810

main47328-0K011iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR201008-201107

main47328-0K020iKUN26..5F;GGN25..ARL,LA;GGN25..5FC..SA;TGN36..(LA,SA)..CBU;TGN26..LHD..(GCC,GEN,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);GGN35,KUN25,3#,LAN25,35..GCC,GEN,LA,PHL,SA,TH200808-201007

main47328-0K021supersedes 47328-0K091iGGN25..DCB..(ARL,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN35,KUN25,3#,LAN25,35,TGN26,36..GCC,GEN,LA,PHL,PKN,SA,TH201008

main47328-0K030iGGN25,KUN25,35,TGN26,36..ANCOM200812-201011

main47328-0K031iGGN25,KUN25,35,TGN26,36..ANCOM201012

main47328-0K100iLAN15..PKN200710-201008

main47328-0K101iKUN15..PKN201010-201202

main47328-0K140iKUN25..MA200706-200809

main47328-0K141iKUN25..MA201009-201109

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-0K010iKUN26..IDN;GGN25..SCB,XTR200808-201107

main47353-0K010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-0K030iKUN26..IDN;GGN25..SCB,XTR200808-201107

main47354-0K010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

47371ACLAMP, BRAKE TUBE, NO.1

main90949-T1011iTGN16..XTR;TGN16..GCC,SA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD200808

47371CCLAMP, BRAKE TUBE, NO.7

main90461-T0001×4iTGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,LA,SA,TH);GGN15,25,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,200408-200810

main90461-T0002×4iKUN25..ANCOM;KUN25..SR..MA;KUN25..SCB..MA;GGN25,KUN15,35,LAN15,TGN26,36..ANCOM,PKN200503-201202

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1014iTGN15..IV3;KUN15..SR..SA200808-201108

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1008×3iTGN15..IV3;KUN15..SR..SA200808-201108

main90949-T1012×4iTGN16..XTR;TGN16..GCC,SA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD200808

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1009iKUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(200408-201202

47375CLAMP, BRAKE TUBE, NO.5

main90469-T0006iTGN26..ANCOM;TGN36..5F..DLX;TGN36..4FC..ANCOM;KUN26,3#..ANCOM,LA;KUN25..SCB..(LA,MA);TGN26..DCB..DLX..LA;KUN25..DCB..(ANCOM,LA);GGN25,KUN15,25,LAN15..(SR,STD)..(ANC200505-201202

NO.1

main90469-T0007iTGN16..XTR;GGN25..5FC..SA;GGN25..DCB..ARL;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;TGN26..LHD..(GCC,GEN,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,200808-201108

NO.1

main90949-T1004×5iTGN26..LA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25,KUN2#,3#..ANCOM,LA,MA,PKN200809

NO.2

main90949-T1006×4iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

NO.2

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main90949-T2001×2iKUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(200408-201202

7751

90119T0029

main90119-T0029

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0244

main90119-T0244

90468T0004

main90468-T0004

37 parts on this diagram · 21 diagrams in section
