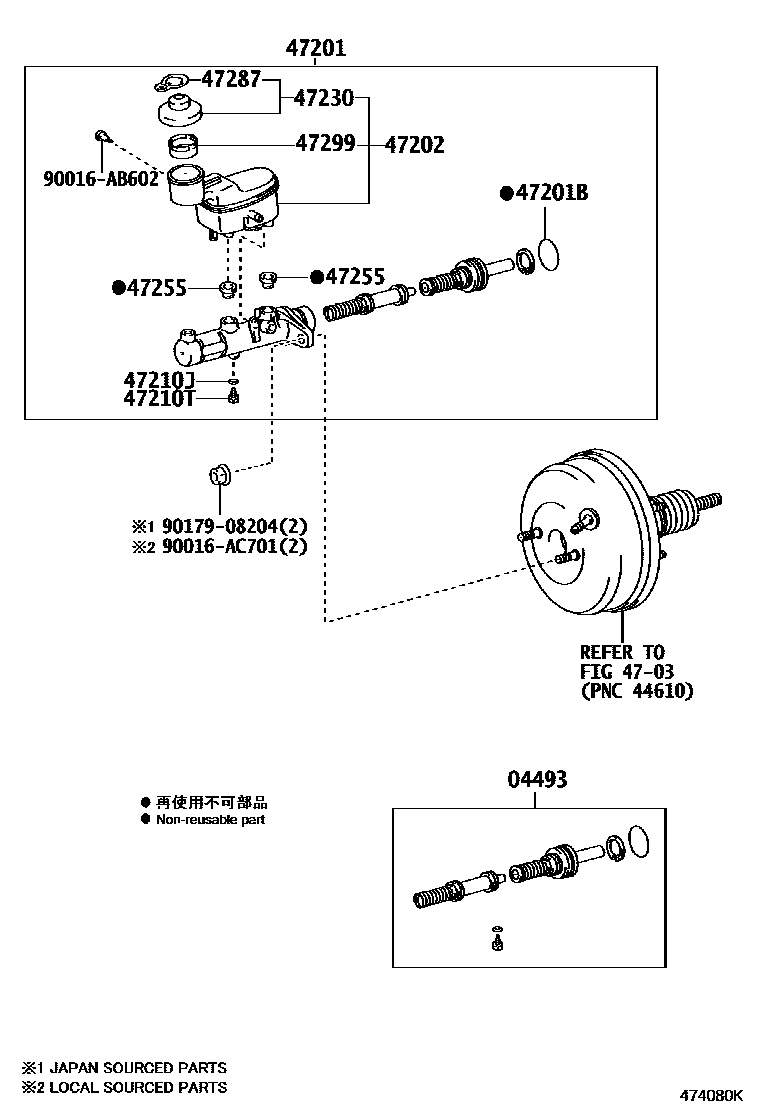

BRAKE MASTER CYLINDER

0001 1 0006 1 0007 1W(VSC) 0009 1MALAYSIA SPEC & W/O(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-0K010iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..4FC..(ARL,GEN,PHL);KUN26..5F..(ARL,GEN,PHL,TH);KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DC200408-201202

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09200iGGN25,35,KUN26,36..(4FC,5FC)..SA200504-201108

main47201-09210iKUN15,2#,3#,LAN15,25,TGN16,26,36..LHD..5F..(LA,SA)200501-200810

main47201-09230iKUN25..RHD..SCB..SA200504-201108

main47201-09240iGGN25,KUN26,TGN26,36..(4FC,5FC)..LA200501-200810

main47201-0K010iTGN16..TH;GGN15,25,KUN16,2#,TGN26..(4FC,5FC)..(ARL,MA,TH)200408-201109

main47201-0K020iKUN16..XTR..TH;KUN25..SCB..MA;KUN25..(DCB,XTR)..5F..SR;KUN25,TGN16..RHD..5F..(ARL,GEN);KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,TGN10..RHD..(DCB,SCB)..5F..(DLX,SR);200408-201202

main47201-0K030iGGN25,KUN26,TGN26,36..(4FC,5FC)..(ANCOM,GCC,GEN,PHL)200411-200812

main47201-0K040iKUN15,26..LHD..5F..(GCC,GEN,PHL);KUN10,25,35,TGN1#,26,36..LHD..5F..(ANCOM,GCC,GEN)200411-201204

main47201-0K140iKUN26..4FC..TH200808-201107

MALAYSIA SPEC&VSC-WITHOUT

sub47201-0K141

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iKUN26..DCB..5F..TH200808-201107

VSC-WITH

main90016-AH901iKUN15..SR..SA200408-201202

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09070iGGN25,KUN26..(4FC,5FC)..(LA,SA)200501-200810

main47220-09080iKUN25..LHD..SCB;KUN25..DCB..(LA,SA);GGN25,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..5F..(LA,SA)200501-201108

main47220-0K010iKUN26..4FC..ARL..CBU200808-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

main47220-0K010iTGN16..XTR..TH;GGN15,25,KUN16,2#,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)200408-200812

main47220-0K020iKUN26..DCB..5F..ARL..CBU200808-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

main47220-0K020iKUN16..XTR..TH;KUN25..SCB..MA;KUN15..PHL..CBU;KUN26..THDCB..5F;KUN25..ANCOM,GCC,GEN;KUN25..(DCB,XTR)..5F..SR;KUN16,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(DCB,SCB,XT200408-201202

main47220-0K020iKUN26..IDN;GGN25..(SCB,XTR)..5F;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

VSC-WITH

main47220-0K080iKUN26..4FC..TH200808-201107

MALAYSIA SPEC&VSC-WITHOUT

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iKUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..200408-201202

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..200408-201202

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0K010iKUN25..RHD..SCB..SA200408-201202

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iKUN25..RHD..SCB..SA200408-201202

main90016-AT001iKUN26..4FC..TH200808-201107

VSC-WITH

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iKUN25..RHD..SCB..SA200408-201202

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iKUN25..RHD..SCB..SA200408-201202

90016AB602

main90016-AB602

90016AC701

main90016-AC701

9017908204

main90179-08204

14 parts on this diagram · 4 diagrams in section
