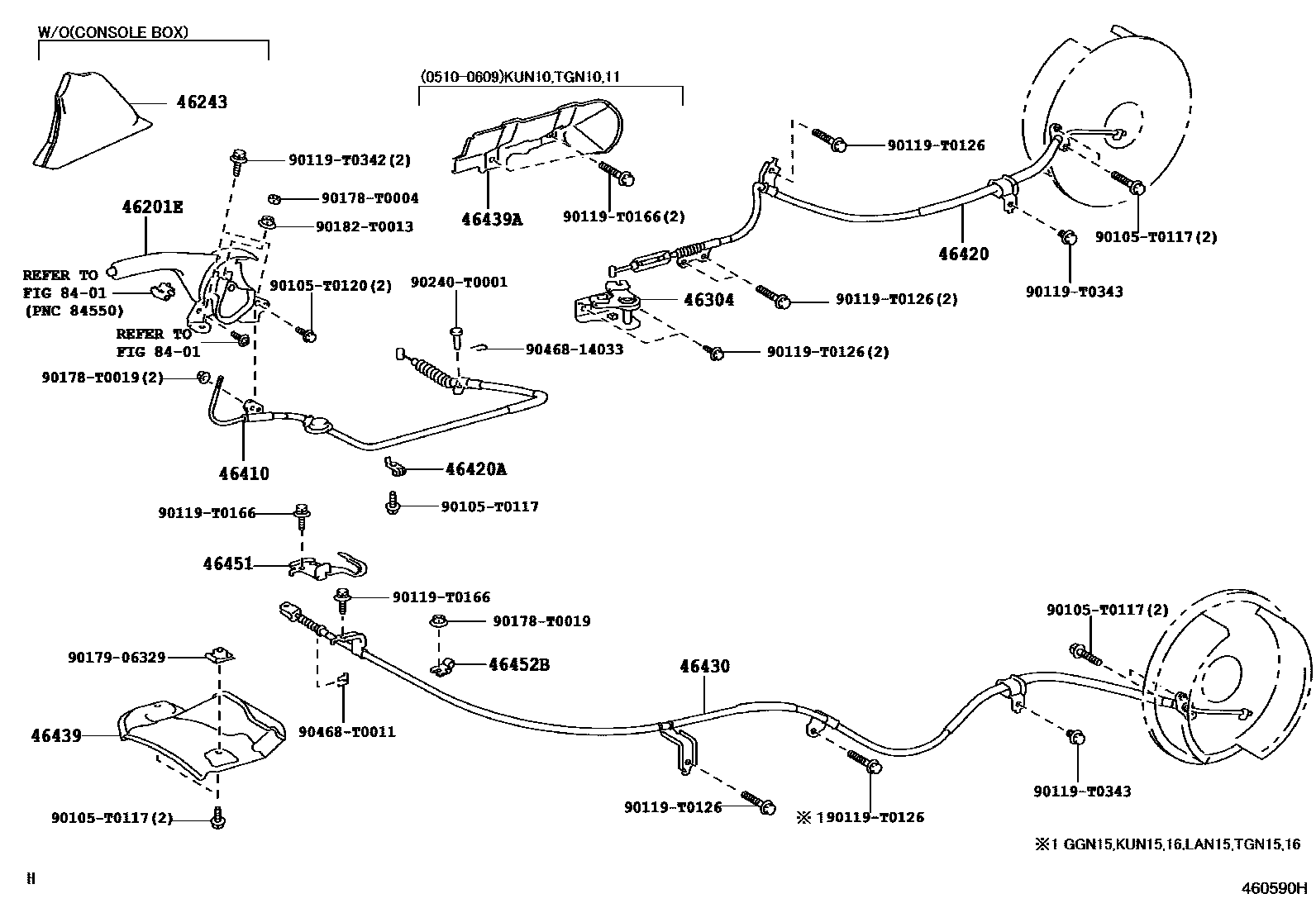

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K010-A0iGGN15,25,KUN15,16,2#,36,TGN16,26,36..(DCB,XTR)..SR..(ARL,GCC,MA,PHL,TH)200408-200808

IVORY,TRIM0#

sub46201-0K011

main46201-0K010-B0iKUN10,15,25,TGN1#,26..GCC200507-200908

GRAY,TRIM1#,3#

sub46201-0K011

main46201-0K010-B0iKUN10,15,25,TGN1#,26..GCC200408-200909

GRAY,TRIM1#

sub46201-0K011

main46201-0K010-E0iKUN35..TH200808-200909

SAND BEIGE,TRIM4#

sub46201-0K011

main46201-0K011-B0iKUN15,LAN15..PKN200909-201202

GRAY,TRIM1#

main46201-0K011-B0iKUN10,15,25,TGN1#,26..GCC200909-201107

GRAY,TRIM1#,3#

main46201-0K011-E0iKUN35..TH;KUN35..SR..PHL;KUN15,16,2#,36,TGN16..SR..(IDN,PHL,TH)200909-201107

SAND BEIGE,TRIM4#

main46201-0K030-B0iTGN36..4FC..SR;TGN26..ANCOM..CBU;GGN25,KUN25,35,TGN36..ANCOM200501-201204

GRAY,TRIM1#

main46201-0K040-B0iKUN25..RHD..SCB..SA200504-201108

GRAY,TRIM1#

main46201-0K060-B0iTGN36..5F..LA;TGN36..4FC..DLX..LA;GGN25,KUN2#,3#,TGN26..LA200906-201110

GRAY,TRIM1#

46243COVER, PARKING BRAKE LEVER

main46243-0K010-B0iKUN10,15,25,TGN1#,26..5F..GCC200507-201107

GRAY,TRIM1#,3#

main46243-0K010-B0iKUN25..RHD..SCB..SA200409-201204

GRAY,TRIM1#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K010iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,LA,PHL,TH200408-200504

main46304-0K021iKUN25..DCB..SA;KUN25..LHD..SCB..SA;GGN25,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..SA200504-201108

main46304-0K030iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200503-201202

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K010iKUN10,TGN10,11200510-201107

sub46410-0K011

main46410-0K040iKUN25..RHD..SCB..SA200408-201202

sub46410-0K041

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K010iTGN10..IDN200510-200609

sub46420-0K011

main46420-0K011iKUN10,TGN10,11200609-201107

main46420-0K030iGGN15,KUN15,16,LAN15,TGN15,16..ARL,GCC,GEN,PHL,SA,TH200408-201202

main46420-0K040iKUN26..DLX;KUN26..LHD..4FC;KUN25,3#,TGN26,36;KUN26..5F..(PHL,TH)200408-200503

sub46420-0K041

main46420-0K041iKUN25..RHD..SCB..SA200503-201204

main46420-0K090iGGN25,KUN26..(5F,5FC)..ARL200501-200503

sub46420-0K091

main46420-0K090iKUN26..DLX200501-200502

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub46420-0K091

main46420-0K091iKUN26..5F..SR..LA;KUN26..5F..(ARL,SA);KUN36..5F..SR..(LA,SA)200503-201204

main46420-0K100iKUN26..4FC..TH200408-200502

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub46420-0K101

main46420-0K100iKUN25..GEN200408-200503

sub46420-0K101

main46420-0K101iKUN26..DCB..5F..TH200808-200906

VSC-WITH

main46420-0K101iKUN26..4FC..TH;KUN25..SCB..GEN;KUN25..DCB..(GEN,MA)200503-201107

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01799iKUN25..RHD..SCB..SA200408-201202

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K010iKUN10,TGN10,11200510-201107

main46430-0K030iKUN16..DCB,SCB;KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,LAN15,TGN15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA)200408-201202

main46430-0K040iKUN25,35..SCB..LA;GGN25,KUN26,TGN26..ARL,GEN200408-200503

sub46430-0K041

main46430-0K041iKUN25..RHD..SCB..SA200503-200808

DIFFERENTIAL-WITH(LSD)

main46430-0K041iKUN26..PHL200503-201204

main46430-0K090iKUN25..XTR200408-200502

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub46430-0K091

main46430-0K090iKUN25..GEN200408-200503

sub46430-0K091

main46430-0K091iKUN25..MA,TH;KUN26..4FC..TH;KUN26..5F..PHL200808-200906

VSC-WITH

main46430-0K091iKUN26..4FC..TH;KUN25..SCB..GEN;KUN25..DCB..(GEN,MA)200503-201107

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K010iKUN25..RHD..SCB..SA200408-201202

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main46439-0K020iKUN10,TGN10,11200510-200609

46451BRACKET, CABLE SUPPORT

main46451-0K040iKUN25..RHD..SCB..SA200408-201202

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-0K010iKUN25..RHD..SCB..SA200408-201202

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90178T0004

main90178-T0004

90178T0019

main90178-T0019

9017906329

main90179-06329

90182T0013

main90182-T0013

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

25 parts on this diagram · 2 diagrams in section
