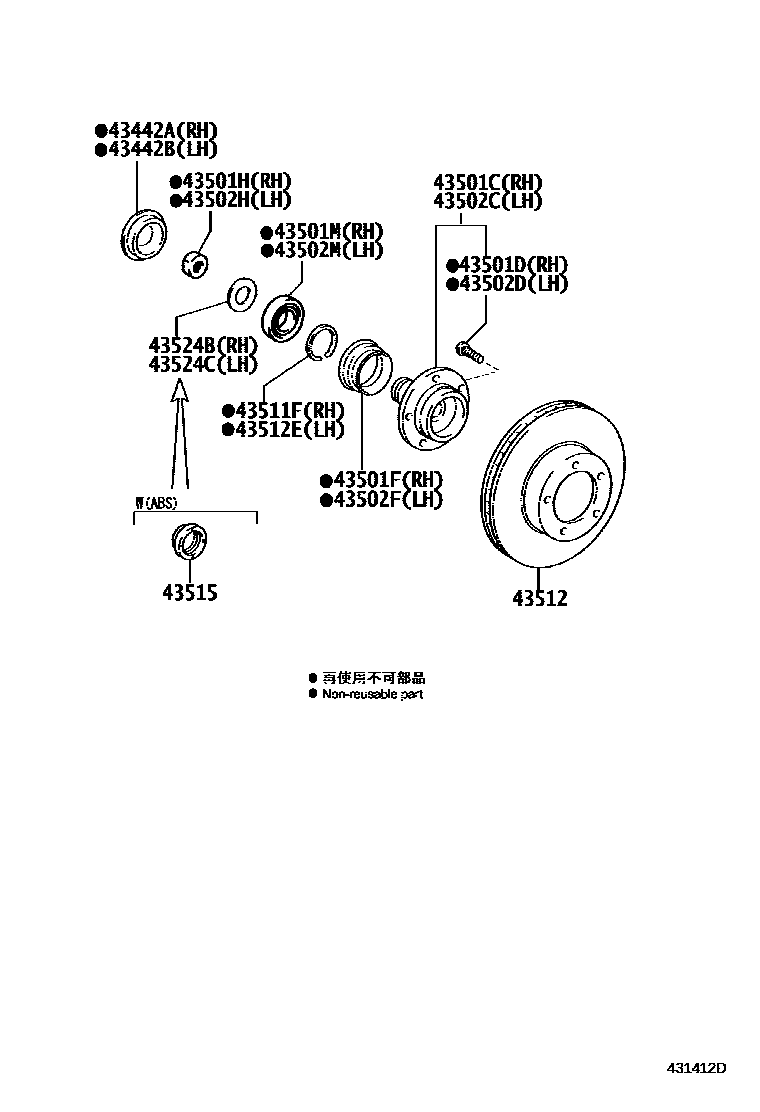

FRONT AXLE HUB

0001 1 0002 1 0003 1

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-0K010iKUN35..SCB..ANCOM200602-201202

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-0K010×2iKUN35..SCB..ANCOM200508-200602

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0K010iKUN15,LAN15,TGN15,16..DLX..SA200808-201108

main43502-0K030iGGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH200808

main43502-0K050iTGN36..SCB;KUN35..DCB..ANCOM;TGN36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN36..DCB..(ANCOM,PHL,SA);KUN35,LAN35..DLX..(GEN,LA,SA)200501-200812

main43502-0K090iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,TGN10,11,15..GCC,GEN,IDN,PHL,TH200812-201108

sub43502-KK030

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6iTGN36..SCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;TGN26..A200408-200812

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-T0010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

sub90311-T0090

main90312-T0001iKUN26..IDN;GGN25..SCB,XTR200808-201107

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-T0002iGGN15,KUN1#,LAN15,TGN1#200408-200605

main90178-28002iGGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH200808

main90178-T0040iGGN25,KUN2#,LAN25,TGN26200408-200605

main90179-24010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200606-201202

main90179-28007iGGN25,KUN2#,LAN25,TGN26200606-200704

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-36205iKUN15,LAN15,TGN15,16..SA200504-200810

main90080-37030iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..(DCB,SCB)..SA200810-201108

main90366-T0007iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

main90369-T0003iTGN36..DLX;KUN35..SCB..LA;KUN25..SCB..MA;TGN26..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,TH;KUN35..LHD..(DCB,THDCB)..DLX;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA;KUN25,TGN36..(DC200408-200812

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0K010iKUN16..DCB,SCB;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN,SA);GGN15,KUN10,15,LAN15,TGN10,11,15..DCB,SCB,XTR200408-200903

main43502-0K030iGGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH200808

main43502-0K050iKUN35..SCB..ANCOM200508-200602

main43502-0K090iKUN15,LAN15..PKN200903-201202

sub43502-KK030

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6iKUN35..SCB..ANCOM200508-200602

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-T0010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

sub90311-T0090

main90312-T0001iKUN35..SCB..ANCOM200508-200602

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-T0002iGGN15,KUN1#,LAN15,TGN1#200408-200605

main90178-28002iKUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THD200705-200812

main90178-T0040iGGN25,KUN2#,LAN25,TGN26200408-200605

main90179-24010iTGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH200808-201108

main90179-28007iGGN25,KUN2#,LAN25,TGN26200606-200704

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-36205iKUN15,LAN15,TGN15,16..SA200504-200810

main90080-37030iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..(DCB,SCB)..SA200810-201108

main90366-T0007iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

main90369-T0003iKUN26,36..XTR..SA;TGN26..GCC,GEN,LA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25,TGN36..(DCB,SCB)..(ANCOM,ARL,LA)..CBU;KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,T200808

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-T0003iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

43512DISC, FRONT

main43512-0K010×2iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

main43512-0K030×2iKUN15,LAN15,TGN15,16..SA200504-200810

main43512-0K060×2iKUN26..IDN;GGN25..SCB,XTR200808-201107

main43512-0K070×2iKUN25..DCB..SA;KUN25..LHD..SCB..SA;GGN25,KUN26,3#,LAN25,35,TGN26,36..SA200504-200810

sub43512-0K071

main43512-0K080×2iTGN26..DLX..LA;TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;KUN25,35,TGN36..5F..DLX..(ANCOM,LA)200810-201204

main43512-0K090×2iKUN26..THDCB;KUN26..4FC..TH200808-201107

VSC-WITH

main43512-0K100×2iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200810-201108

sub43512-0K101

main43512-0K110×2iTGN26,36..SR..LA;TGN36..4FC..DLX..LA;GGN25,KUN26,36..ANCOM,LA200810-201204

main43512-0K120×2iKUN15..SR..SA;GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH200808-201108

main43512-0K130×2iKUN15,LAN15,TGN15,16..DLX..SA200810-201108

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-T0003iTGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH200808-201108

43515ROTOR, SKID CONTROL, FRONT

main43515-0K010×2supersedes 43515-0K010iTGN16..TH;KUN16..DCB..TH200408-200808

main43515-0K020×2supersedes 43515-0K020iTGN36..4FC..ANCOM;KUN36..5F..SR..(LA,SA);KUN26..4FC..(GEN,LA,TH);TGN26..SR..(ANCOM,GEN,TH);GGN25,KUN25,TGN36..SR..(ANCOM,MA,SA);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,200408-200812

43524BSPACER, FRONT WHEEL INNER BEARING, RH

main43524-0K010iKUN15..XTR..TH;KUN16..DCB..ARL;TGN16..SMT..DLX;KUN16..SCB,SMT,XTR;KUN15..(DLX,STD)..PHL;KUN15..(DCB,SCB,SMT)..(GCC,GEN,SA,TH);GGN15,KUN10,LAN15,TGN1#..(DCB,SCB,XTR)200808-201108

main43524-0K020iKUN26..4FC..LA200810-201204

43524CSPACER, FRONT WHEEL INNER BEARING, LH

main43524-0K010iKUN15..SR..PHL200408-200708

main43524-0K020iKUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THD200408-200812

18 parts on this diagram · 3 diagrams in section
