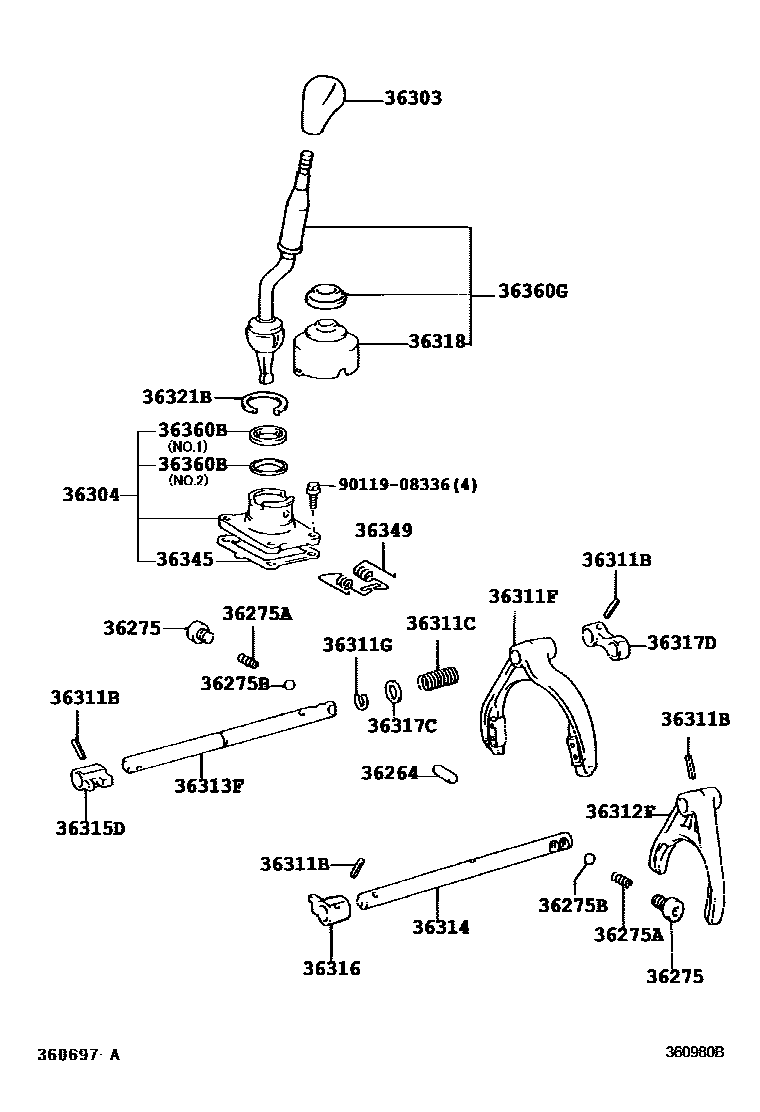

TRANSFER LEVER & SHIFT ROD

0001 1 0004 1

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020iKUN2#,LAN25;GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA)200808-201204

L=25.7,OD=9.53

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014×2iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-200808

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116×2iKUN2#,LAN25;GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA)200808-201204

L=23

36275BBALL, SHIFT DETENT

main90360-10003×2iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-200808

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-0K020-B0iGGN25,KUN2#,TGN26..ARL,GEN,PHL,TH200408-200808

DK.GRAY,TRIM1#

main36303-0K020-E0iGGN25,KUN2#,TGN26..SR..(ARL,PHL,TH)200408-200808

SANDAL WOOD,TRIM0#

main36303-0K020-E1iKUN2#..(DCB,SMT)..(IDN,MA,PHL,TH)200808-201107

ASH BROWN,TRIM4#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-0K020iKUN25..5F..(ANCOM,LA,MA,SA,TH);KUN26..(DCB,SCB,SMT,XTR)..5F..(GEN,IDN,LA,SA,TH)200808-201204

TYPE C:REFER 33-01

main36304-0K030iKUN2#..5F..(ARL,GCC,GEN,PHL)200411-200808

main36304-35051iKUN2#..5F..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,SA)200808-201204

TYPE D:REFER 33-01

main36304-35061iGGN25,LAN25,TGN26..5F..(LA,SA)200502-200810

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×4iKUN2#;GGN25,TGN26..4FC,5FC200808-201204

L=22

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-20088iKUN2#,LAN25;GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA)200808-201204

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35020iTGN26..5F..DLX..(GCC,GEN);GGN25,KUN2#..DLX..(ARL,GCC,GEN)200501-200808

main36311-35030supersedes 36311-35020iKUN26..SR;LAN25..RHD;TGN26..4FC;KUN25..SCB..SA;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN26..5F..SR..(GEN,LA);GGN25..SR..(ANCOM,ARL,LA);KUN25..(DCB,SMT)..(ANCOM,MA,SA,TH)200808-201204

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iGGN25,KUN25..ANCOM200408-200812

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35040iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-200810

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35070iGGN25,TGN26..5F..(ARL,GCC,GEN)200502-200808

main36313-35080iTGN26..4FC;KUN2#..ARL,GCC,GEN,PHL,TH200408-200808

main36313-71010iGGN25..ANCOM200502-200812

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35110iKUN25..MA200408-200809

main36314-35140iGGN25,LAN25,TGN26..5F..(LA,SA)200502-200810

main36314-71010iGGN25..5FC..SA200502-200810

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36315-35010iKUN2#..ARL,GCC,GEN,PHL,TH;GGN25,TGN26..(4FC,5FC)..(ARL,GCC,TH)200408-200808

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-35020iKUN2#..ARL,GCC,GEN,PHL,TH;GGN25,TGN26..(4FC,5FC)..(ARL,GCC,TH)200408-200808

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-35020iKUN2#..ARL,GCC,GEN,PHL,TH;GGN25,TGN26..(4FC,5FC)..(ARL,GCC,TH)200408-200808

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-35030iGGN25,KUN25,TGN26..ANCOM200408-200812

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-200808

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iKUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THD200408-200812

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35040iKUN25..4FC200408-200809

main36345-35050iTGN26..ANCOM200502-200812

36349SPRING, TRANSFER SELECT RETURN

main36349-35010iGGN25,TGN26..5F..(ARL,GCC,GEN)200502-200808

main36349-35020iGGN25,KUN25..ANCOM200408-200812

36360BSEAT, TRANSFER SHIFT LEVER BALL

main33556-14010iKUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THD200408-200812

NO.1

main33556-14020iKUN2#,LAN25;GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA)200808-201204

NO.2

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-71040iTGN26..TH200501-200808

main36360-71050iTGN26..SCB..SA200504-200810

main36360-71060iTGN26..DCB..DLX..LA;TGN26..LHD..5F..(ANCOM,GCC,GEN,SA)200502-200812

main36360-71110iKUN2#..RHD..4FC200808-201109

main36360-71120iKUN2#..RHD..5F200808-201202

main36360-71130iKUN26..LHD..4FC200411-200810

main36360-71140iKUN2#..LHD..5F200411-200812

main36360-71180iLAN25..LHD200810-201108

main36360-71230iGGN25..RHD..5FC200502-200810

main36360-71240iLAN25..RHD;GGN25..5F..ARL200808-201108

main36360-71250iGGN25..ANCOM200507-200812

main36360-71260iTGN26..4FC200808-201107

9011908336

main90119-08336

24 parts on this diagram · 2 diagrams in section
