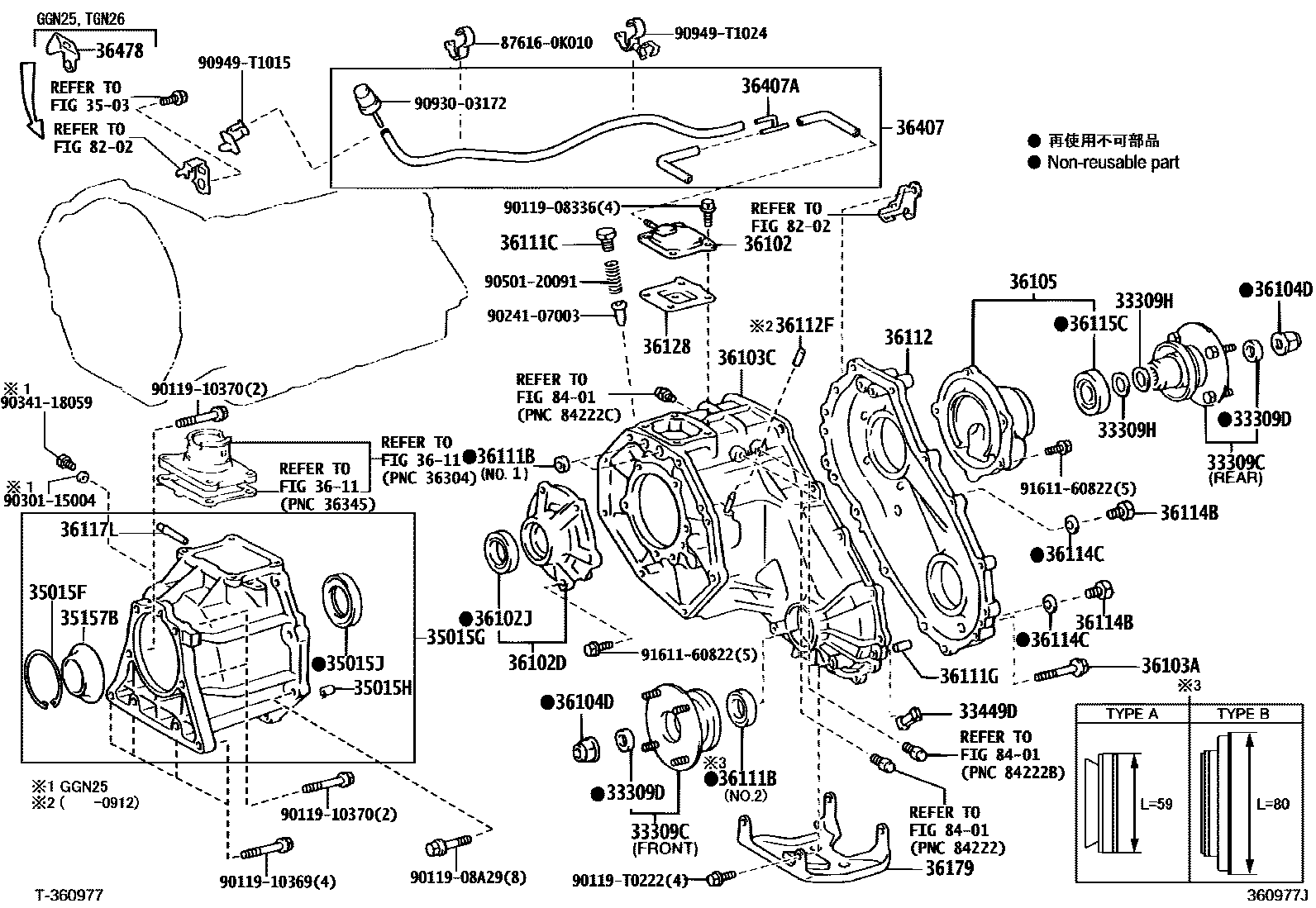

TRANSFER CASE & EXTENSION HOUSING
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,FRONT,*338
sub33309-35113
sub90311-41017
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,FRONT,*339
sub33309-35112
sub90311-41017
main33309-35111iKUN2#,LAN25;GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA)200808-201204
FRONT
sub33309-35112
sub90311-41017
REAR
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,REAR
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
33309HWASHER, TRANSFER OUTPUT SHAFT
N=30,OD=38
N=30,OD=38,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
33449DMAGNET (FOR TRANSFER CASE)
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)
35015GADAPTER, TRANSFER, REAR
35015HPIN, RING(FOR TRANSFER CASE)
35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)
3503
35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL
36102COVER SUB-ASSY, TRANSFER CASE
36102DRETAINER SUB-ASSY, TRANSFER RH BEARING
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX55-30,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
*8-1.25PX55-30
36103CCASE, TRANSFER, FRONT
sub36111-60261
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
sub36111-60261
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
3611
36111BSEAL, OIL (FOR TRANSFER CASE)
main90311-15008iKUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THD200408-201204
NO.1
NO.2T/P A:REF.ILLUST
main90311-41013iKUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THD200807-200812
NO.2T/P B:REF.ILLUST
main90311-41013iKUN2#,LAN25;GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA)200808-201204
NO.2
36111CPLUG (FOR TRANSFER CASE)
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
main90250-10214iKUN2#,LAN25;GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA)200408-201204
L=14,OD=10
L=14,OD=10,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
36112CASE, TRANSFER, REAR
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
36112FCAP, TRANSFER, REAR CASE
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
36114BPLUG, NO.1 (FOR TRANSFER CASE)
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
36114CGASKET, NO.1 (FOR TRANSFER CASE)
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
sub90311-41020
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
sub90311-41020
36117ADAPTER, TRANSFER
TYPE C:REFER 33-01
TYPE C:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
36117LTUBE(FOR TRANSFER ADAPTER)
sub90406-T0007
36128DEFLECTOR, BREATHER OIL
DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
36179PROTECTOR, TRANSFER CASE LOWER
sub36179-0K011
36407HOSE SUB-ASSY, TRANSFER BREATHER
36407AWAY, 3(FOR TRANSFER BREATHER HOSE)
36478BRACKET, TRANSFER BREATHER
8202
8401
876160K010CLAMP, COOLING UNIT CASE
main87616-0K010
9011908336
main90119-08336
9011908A29
main90119-08A29
9011910369
main90119-10369
9011910370
main90119-10370
90119T0222
main90119-T0222
9024107003
main90241-07003
9030115004
main90301-15004
9034118059
main90341-18059
9050120091
main90501-20091
9093003172
main90930-03172
90949T1015
main90949-T1015
90949T1024
main90949-T1024
9161160822
main91611-60822
