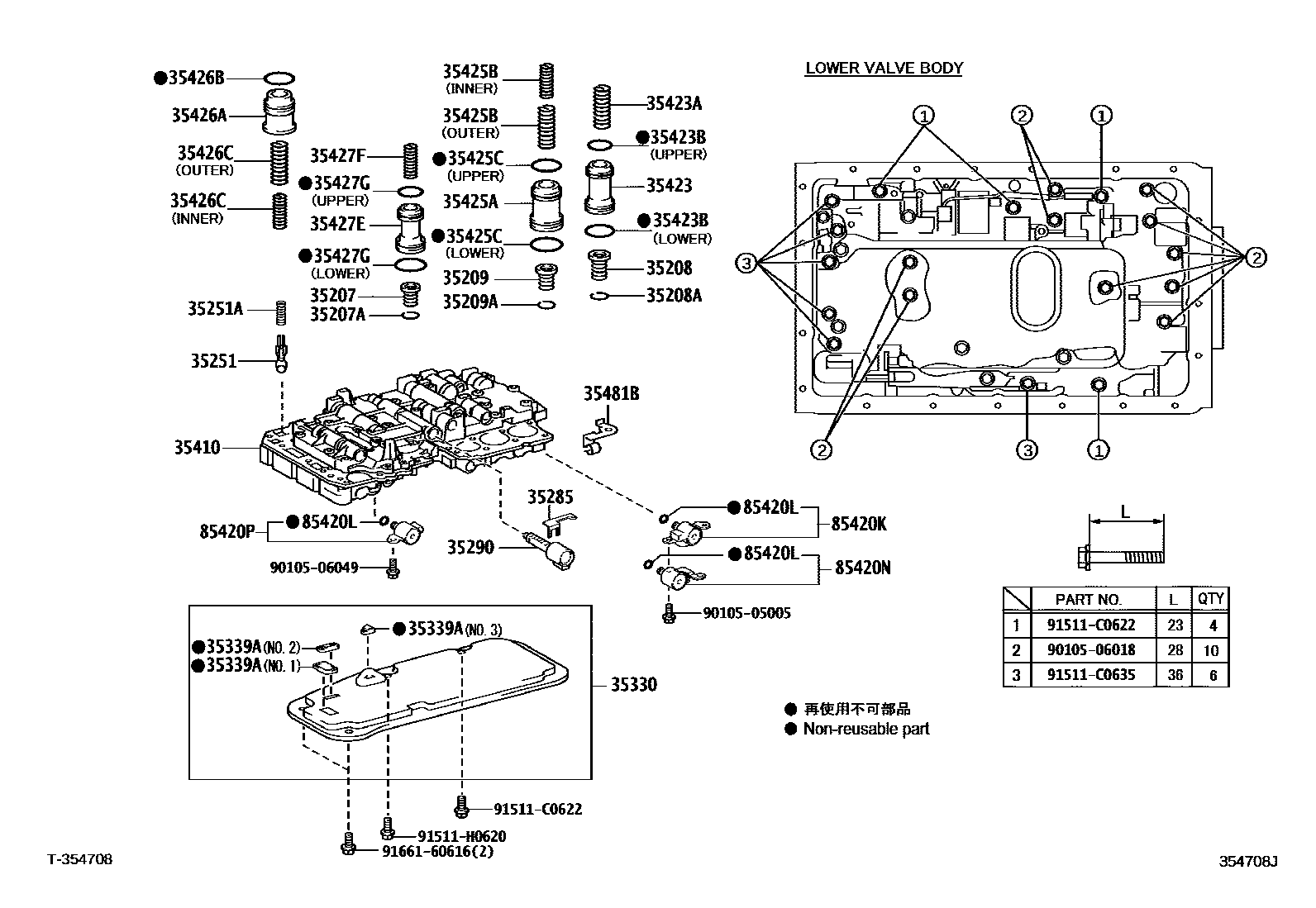

VALVE BODY & OIL STRAINER (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F 0003 1A340E,A340F,A343E,A343F 0004 1A750E,A750F

35207SPRING SUB-ASSY, B-0 ACCUMULATOR

main35207-22010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

main90521-22004iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-22010iKUN16,26..4FC200408-200810

main35208-30010iKUN25,TGN16,26,36..4FC200501-200812

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35209SPRING SUB-ASSY, C-2 ACCUMULATOR

main35209-22020iKUN16,26..4FC200408-200810

main35209-24010iKUN25..4FC200503-201109

main35209-50020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35251BODY, CHECK BALL

main35251-30020iTGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)200408-201107

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iGGN25..5FC..CBU;GGN15,35,KUN16,2#,36,TGN16,26,36..4FC,5FC200408-201107

35285PLATE, SOLENOID LOCK

main35285-24020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35285-34010iGGN15,35..5FC;GGN25..5FC..CBU200502-201107

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-34010iGGN25..5FC..IV3200611-201107

main35290-50010iGGN15,25..5FC200502-200611

sub35290-34010

main35290-71010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35330STRAINER ASSY, VALVE BODY OIL

main35330-60030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35330-60050iGGN25..5FC..IV3200502-201107

35339AGASKET, OIL STRAINER, NO.1

main35339-30080iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

NO.1

main35339-30090iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

NO.2

main35339-30100iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

NO.3

35410BODY ASSY, TRANSMISSION VALVE

main35410-60580iGGN25..5FC..IV3200502-201107

sub35410-35870

main35410-71010iTGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

main35410-71020iTGN26..4FC200501-201107

main35410-71030iKUN16,36..4FC200408-201108

main35410-71040iKUN26..4FC200408-200810

main35410-71060iKUN25..4FC200503-201109

35423PISTON, B-2 ACCUMULATOR

main35423-30030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-22015iTGN16,26,36..4FC200501-200812

main90501-25026iKUN25..4FC200503-201109

main90501-25028iKUN16,26..4FC200408-200810

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

UPPER

main90301-31010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

LOWER

35425APISTON, C-2 ACCUMULATOR

main35425-30020iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main35425-50020iGGN15,35..5FC;GGN25..5FC..CBU200608-201107

main35425-60060iGGN15,25..5FC200502-200608

sub35425-50020

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22015iKUN16,26..4FC200408-200810

OUTER

main90501-22062iGGN25..5FC..IV3200502-201107

main90501-23135iKUN25..4FC200503-201109

OUTER

main90501-24015iTGN16,26,36..4FC200501-200812

OUTER

main90501-25027iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

INNER

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-20008iGGN15,25..5FC200502-201107

UPPER

main90301-25010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

UPPER

main90301-28008iGGN25..5FC..IV3200502-201107

LOWER

main90301-31010iKUN16,2#,36,TGN16,26,36..4FC200408-200812

LOWER

35426APISTON, C-0 ACCUMULATOR

main35426-40010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-24010iKUN16,2#,36,TGN16,26,36..4FC200408-200812

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-22008iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

INNER

main90501-23073iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

OUTER

35427EPISTON, B-0 ACCUMULATOR

main35427-30040iKUN16,2#,36,TGN16,26,36..4FC200408-200812

35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

main90501-21006iTGN16,26,36..4FC200501-200812

main90501-23095iKUN16,2#..4FC200408-200810

35427GRING, O (FOR B-0 ACCUMULATOR PISTON)

main90301-20008iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

UPPER

main90301-26011iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

LOWER

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-24010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35481-60010iGGN15,25..5FC200502-201107

85420KSOLENOID ASSY, TRANSMISSION

main35250-30050iKUN16,2#,36,TGN16,26,36..4FC200408-200812

85420LRING, O(FOR TRANSMISSION SOLENOID)

main90301-06004iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

85420NSOLENOID ASSY, TRANSMISSION

main35250-30070iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

85420PSOLENOID ASSY, TRANSMISSION

main35250-50030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

9010505005

main90105-05005

9010506018

main90105-06018

9010506049

main90105-06049

91511C0622

main91511-C0622

91511C0635

main91511-C0635

91511H0620

main91511-H0620

9166160616

main91661-60616

37 parts on this diagram · 4 diagrams in section
