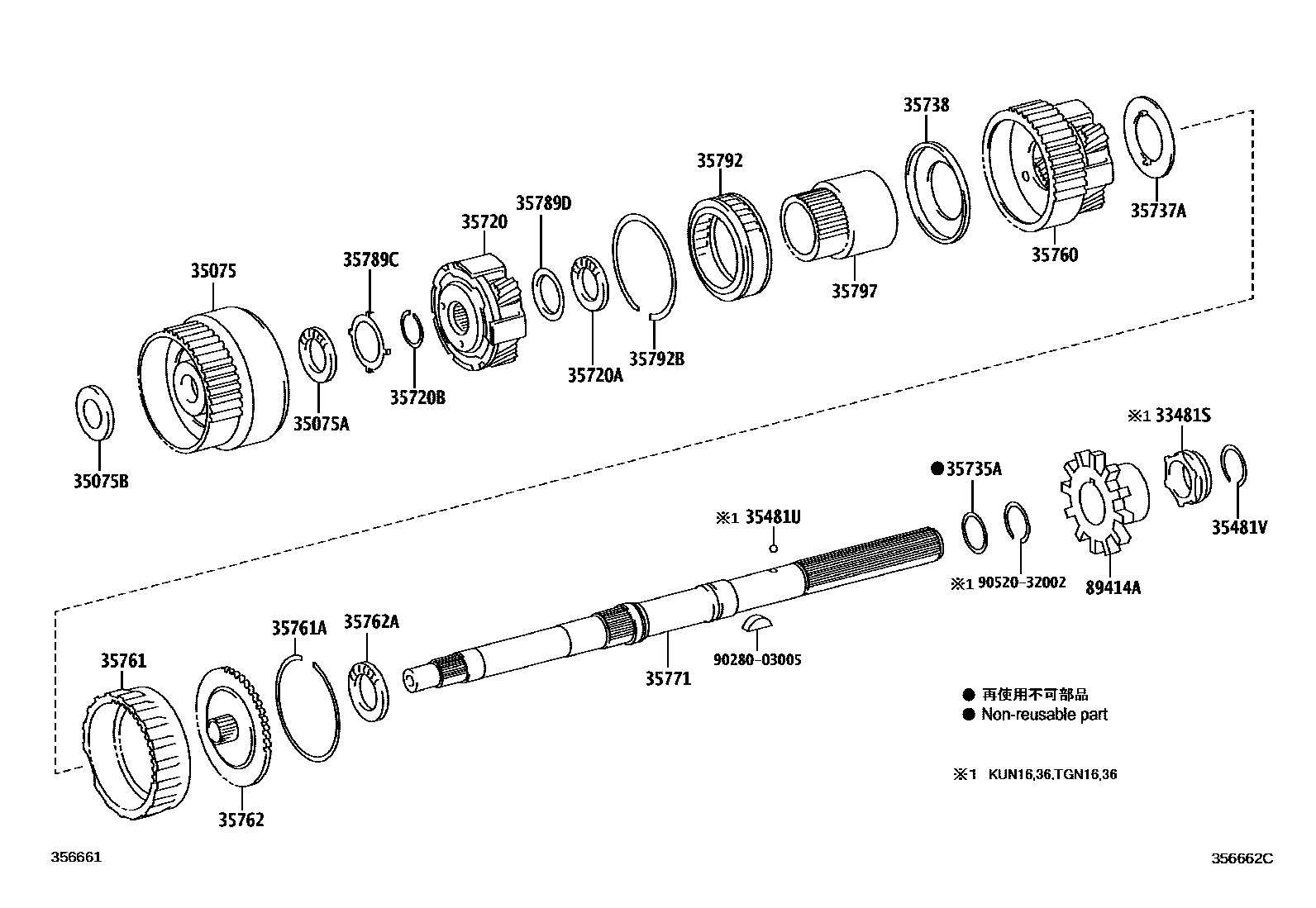

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F

33481SGEAR, SPEEDOMETER DRIVE (ATM)

main33481-24010iKUN16,36..4FC200408-201108

N=6

main33481-30060iTGN16,36..4FC200501-200812

N=6

main33481-34020iGGN35200810-201108

N=7

main33481-71030iGGN15..5FC200502-201107

N=7

35075GEAR SUB-ASSY, FRONT PLANETARY RING

main35075-50010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35075ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING)

main90374-35004iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35075BRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRONT)

main35789-30120iKUN16,2#,36,TGN16,26,36..4FC200408-200812

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iKUN16,TGN16,36..(DCB,XTR)..4FC..(ANCOM,PHL,TH)200408-200812

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iKUN16,36,TGN16,36..4FC200408-200812

T=1.50,OD=33.8

main90520-29004iKUN2#,TGN26..4FC200408-200810

T=1.50,OD=34.8

35720GEAR ASSY, FRONT PLANETARY

main35720-30080iKUN25,TGN16,26,36..4FC200501-200812

main35720-35030iKUN16,26..4FC200408-200810

main35720-60070iGGN15,25..5FC200502-201107

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-35001iKUN16,2#,36,TGN16,26,36..4FC200408-200812

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main90520-24026iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-30020iKUN16,2#,36,TGN16,26,36..4FC200408-200812

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-30030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35737-60030iGGN15,25..5FC200502-201107

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-60030iGGN25..5FC..IV3200502-201107

main35739-30030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35760GEAR ASSY, REAR PLANETARY

main35705-30010iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main35760-60061iGGN25..5FC200502-200905

main35760-60100iGGN25..5FC..IV3200905-201107

main35760-71011iGGN15,35..5FC200502-200905

main35760-71020iGGN15,35..5FC200905-201108

35761GEAR, REAR PLANETARY RING

main35761-30020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35761-60040iGGN15,25..5FC200502-201107

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90521-99024iKUN16,2#,36,TGN16,26,36..4FC200408-200812

35762FLANGE, REAR PLANETARY RING GEAR

main35762-30040iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-36001iGGN15,35..5FC200502-201108

main90374-38003iKUN16,2#,36,TGN16,26,36..4FC200408-200812

35771SHAFT, OUTPUT

main35073-35030iKUN2#,TGN26..4FC200408-200911

main35073-35060iKUN2#,TGN26..4FC200911

main35771-30040iKUN16,TGN16,36..(DCB,XTR)..4FC..(ANCOM,PHL,TH)200408-200911

main35771-30130iKUN16,36,TGN16,36..4FC200911

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-30080iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-30100iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35792CLUTCH, 1 WAY, NO.2

main35792-14020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-87001iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35797RACE, 1 WAY CLUTCH INNER

main35797-50010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

89414AROTOR, SENSOR

main89414-35030iKUN16,TGN16,36..(DCB,XTR)..4FC..(ANCOM,PHL,TH)200408-200812

main89414-60020iKUN2#,TGN26..4FC200408-200810

9028003005

main90280-03005

9052032002

main90520-32002

26 parts on this diagram · 2 diagrams in section
