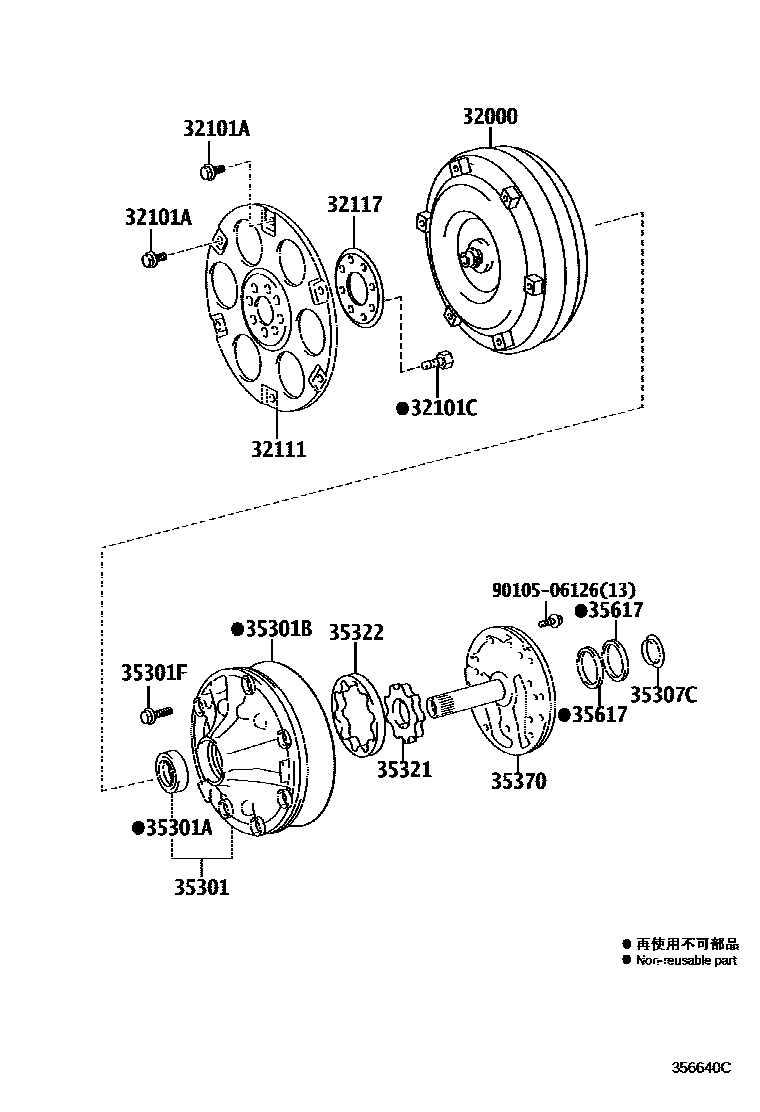

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A340E,A340F 0002 1A343E,A343F 0003 1A750E,A750F

32000CONVERTER ASSY, TORQUE

main32000-35240iKUN16,26..4FC200408-201110

main32000-60240iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-201204

main32000-71010iKUN25..4FC200503-201109

main32000-71020iGGN15,25..5FC200502-201204

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

main32101-60060iGGN15,25..5FC200502-200812

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iKUN16,26,36..4FC200408-200810

*10-1.5PX11-8,SILVER WHITE

main90105-10414iKUN16,26..4FC200408-200503

*10-1.5PX11-7.9,WHITE

main90105-10546iKUN16,26,36..4FC200503-200810

*10-1.5PX11-8,BLACK

main90119-09009iKUN25..4FC200503-200809

*9-1.25PX12.8-8.8,SILVER WHITE

main90119-09010iKUN25..4FC200503-200809

*9-1.25PX12.8-9,BLACK

main90119-09026iTGN16..XTR..TH;GGN15,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,PHL,SA,TH)200501-200812

*9-1.25PX12.8-9,GREEN OR BLACK

main90119-09027iTGN16..XTR..TH;GGN15,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,PHL,SA,TH)200501-200812

*9-1.25PX12.8-8.8,YELLOW OR SILVER

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-201204

*10-1.25PX30-17.5

main90105-10543iGGN15,25..5FC200502-200812

*10-1.25PX22-15

main90105-T0113iKUN16,2#,36..4FC200408-201204

*13-1.5PX43.5-23.5

32111PLATE, PUMP IMPELLER DRIVE

main32111-35030iKUN26..4FC..LA200408-201009

sub32111-60080

main32111-60050iKUN25..4FC200503-201109

main32111-60080iKUN16,26,36..4FC201010

sub32111-71010

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTGN16,26,36..4FC200501-200812

main32117-60050iKUN16,2#..4FC200408-200810

main32117-60060iGGN15,25,35..5FC200502-200812

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-50020iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main35301-60030iGGN15,25..5FC200502-200812

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38083iGGN15,25,35..5FC200502-200812

main90311-38087iKUN16,2#,36,TGN16,26,36..4FC200408-200812

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main90301-99139iGGN15,25..5FC200502-200812

OUTER

main90301-99148iGGN15,25,35..5FC200502-200812

INNER

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

*8-1.25PX35-35

main90105-08451iGGN15,25,35..5FC200610-200812

*8-1.25PX40-30

main91511-K0840iGGN15,25..5FC200502-200610

*8-1.25PX40-30

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30340iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.7

35321GEAR, FRONT OIL PUMP DRIVE

main35321-30030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=11.690-11.699

main35321-30040iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=11.700-11.709

main35321-30050iKUN16,2#,36,TGN16,26,36..4FC200408-200812

T=11.710-11.720

main35321-30060iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=11.721-11.730

main35321-30070iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=11.731-11.740

main35321-50010iGGN15,25,35..5FC200502-200812

T=10.736-10.742

main35321-50020iGGN15,25..5FC200502-200812

T=10.743-10.749

main35321-50030iGGN15,25,35..5FC200502-200812

T=10.750-10.756

main35321-50040iGGN15,25,35..5FC200502-200812

T=10.757-10.763

main35321-50050iGGN15,25..5FC200502-200812

T=10.764-10.770

main35321-50060iGGN15,25..5FC200502-200812

T=10.771-10.777

main35321-50070iGGN15,25,35..5FC200502-200812

T=10.778-10.784

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-30020iKUN16,2#,36,TGN16,26,36..4FC200408-200812

T=11.690-11.699

main35322-30030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=11.700-11.709

main35322-30040iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=11.710-11.720

main35322-30050iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=11.721-11.730

main35322-30060iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=11.731-11.740

main35322-50010iGGN15,25..5FC200502-200812

T=10.736-10.742

main35322-50020iGGN15,25,35..5FC200502-200812

T=10.743-10.749

main35322-50030iGGN15,25..5FC200502-200812

T=10.750-10.756

main35322-50040iGGN15,25,35..5FC200502-200812

T=10.757-10.763

main35322-50050iGGN15,25..5FC200502-200812

T=10.764-10.770

main35322-50060iGGN15,25..5FC200502-200812

T=10.771-10.777

main35322-50070iGGN15,25..5FC200502-200812

T=10.778-10.784

35370SHAFT ASSY, STATOR

main35370-30060iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main35370-50030iGGN15,25..5FC200502-200812

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35617-50030iGGN15,25..5FC200709-200812

main35617-60020iGGN15,25..5FC200502-200709

9010506126

main90105-06126

16 parts on this diagram · 3 diagrams in section
