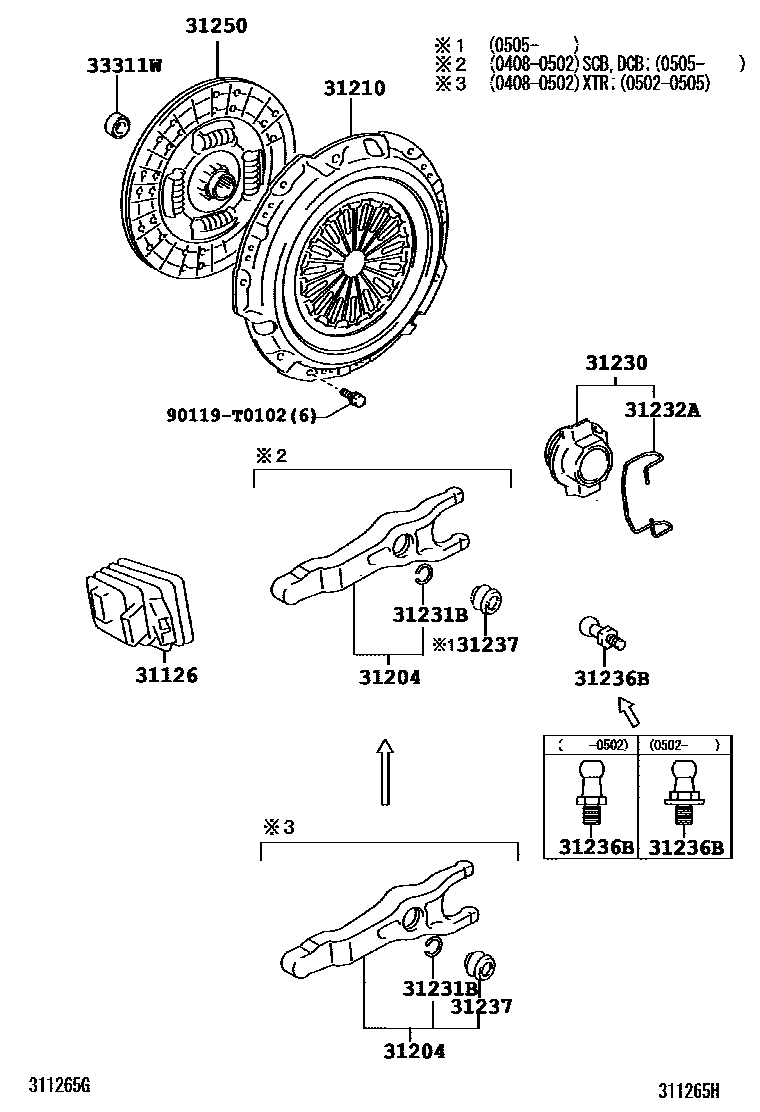

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1 0011 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0K030iTGN10,15..GCC,GEN,IDN200502-200808

sub31126-26020

main31126-0K030iTGN10,15..GCC,GEN,IDN200808-201107

TYPE D:REFER 33-01

sub31126-26020

main31126-0K050iKUN15..SR..SA;KUN10,16,2#,3#..5F;KUN15..GCC,GEN,PHL,TH200808-201204

TYPE D:REFER 33-01

main31126-0K050iKUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

main31126-0K070iTGN11,16..5F;TGN36..5F..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA)200808-201204

TYPE D:REFER 33-01

main31126-0W010iLAN15..PKN200710-200911

sub31126-20070

main31126-0W011iLAN15..PKN200911-201009

(L)

main31126-20070iLAN15,25,35..SA200507-200908

main31126-26020iTGN10,15..GCC,IDN200810-201108

TYPE A:REFER 33-01

main31126-26020iTGN15..SA200504-200810

main31126-36080iTGN11,16,26..5F..(ARL,GCC,GEN)200810-201204

TYPE C:REFER 33-01

main31126-36080iTGN16..SR..GCC200808-201107

TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

main31126-36080iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

main31126-36080iTGN16,26..ARL,GEN200502-200505

TYPE A:REFER 33-01

main31126-36080iTGN11,16,26..5F..(ARL,GCC,GEN)200505-200808

TYPE B:REFER 33-01

main31126-60081iKUN26,36..XTR..SA;KUN15,25,35..HDCR..(GCC,GEN,PHL,TH);KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH)200505-201108

TYPE B:REFER 33-01

main31126-60081iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)200408-201108

TYPE A:REFER 33-01

main31126-60081iKUN15..SA200504-200812

main31126-60081iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main31126-60081iKUN35..DLX..PHL;KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36..(DCB,SCB,SMT,XTR)..5F..(GEN,IDN,LA,SA,TH)200808-201204

TYPE C:REFER 33-01

main31126-60110iLAN15,25,35..SA200908-201108

main31126-60110iLAN15..PKN200911-201009

(J)

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K010iKUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH)200408-200502

TYPE C:REFER 33-01

sub31204-0K080

sub31236-71010

main31204-0K020iTGN26..ANCOM..CBU;TGN26..5F..(LA,SA);TGN16,36..5F..(ANCOM,LA,SA)200810-201204

TYPE C:REFER 33-01

main31204-0K020iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

main31204-0K030iTGN10,15..GCC,GEN,IDN200502-200808

(L)

sub31204-20071

main31204-0K030iTGN10,15..GCC,GEN,IDN200808-201107

TYPE D:SEE 33-01,(L)

sub31204-20071

main31204-0K040iLAN15..PKN200710-201009

(L)

main31204-0K050iKUN15..DCR200408-200502

sub31204-60090

main31204-0K060iGGN15,25..5F200502-200505

TYPE C:REFER 33-01

sub31204-0K061

sub31237-60010

main31204-0K061iGGN25..5F..SA200505-200707

TYPE B:REFER 33-01

main31204-0K061iGGN15,25..5F200912-201107

TYPE D:REFER 33-01,TYPE B:REFER 33-01

main31204-0K070iKUN10,15..DCR..(GCC,GEN,PHL,TH)200502-200803

sub31204-0K180

sub31236-35050

main31204-0K071iKUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200803-201202

sub31204-0K180

main31204-0K071iKUN15..SR..SA;KUN10,16,2#,3#..5F;KUN15..GCC,GEN,PHL,TH200808-201204

TYPE D:REFER 33-01

sub31204-0K180

main31204-0K080iKUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH)200502-200505

TYPE C:REFER 33-01

sub31204-0K081

sub31237-60010

main31204-0K081iKUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH)200505-201204

TYPE C:REFER 33-01

sub31204-0K160

main31204-0K081iKUN25..SCB..MA;KUN25..5F..SR..MA;KUN36..5F..(LA,SA);KUN26..DCB..5F..(LA,SA);KUN25,35..DLX..(ANCOM,LA,SA)200808-200812

sub31204-0K160

main31204-0K100iGGN25..5F..SA200707-200808

TYPE B:REFER 33-01

sub31204-0K061

main31204-0K100iGGN15,25..5F..ARL200808-200912

TYPE D:REFER 33-01,TYPE B:REFER 33-01

sub31204-0K061

main31204-0K100iGGN25..5F..SA200808-200810

sub31204-0K061

main31204-20071iTGN15..SA200504-200810

main31204-20071iTGN10,15..GCC,GEN,IDN200502-200808

(J)

main31204-20071iTGN10,15..GCC,GEN,IDN200808-201107

TYPE D:SEE 33-01,(J)

main31204-20071iTGN15..SA200810-201108

TYPE A:REFER 33-01

main31204-35031iTGN11,16,26..5F..(ARL,GCC,GEN,TH)200808-201107

TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

main31204-35031iTGN11,16..5F;TGN36..5F..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA)200808-201204

TYPE D:REFER 33-01

main31204-35031iTGN16,26..ARL,GEN200502-200505

TYPE A:REFER 33-01

main31204-35031iTGN11,16,26..5F..(ARL,GCC,GEN)200505-200808

TYPE B:REFER 33-01

main31204-35050iLAN15,25,35..SA200507-201108

main31204-35050iLAN15..PKN200710-201009

(J)

main31204-35070iKUN26,36..XTR..SA;KUN15,25,35..HDCR..(GCC,GEN,PHL,TH);KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH)200505-201108

TYPE B:REFER 33-01

sub31204-35071

main31204-35070iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

sub31204-35071

main31204-35070iKUN15..SA200504-200810

sub31204-35071

main31204-35070iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)200408-201108

TYPE A:REFER 33-01

sub31204-35071

31210COVER ASSY, CLUTCH

main31210-0K020iKUN10,15..DCR..(GCC,GEN,PHL,TH)200408-200701

sub31210-0K021

main31210-0K021iKUN10,15..DCR..(GCC,GEN,PHL,TH)200702-200703

sub31210-0K022

main31210-0K022iKUN10,15..DCR..(GCC,GEN,PHL,TH)200703-200709

sub31210-0K023

main31210-0K023iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)200710-201202

main31210-0K040iKUN15,25..HDCR..TH200408-201204

main31210-0K050iKUN25,35..SA200504-201108

main31210-0K060iKUN25,35..LA200501-201110

main31210-0K070iKUN25..TH;KUN15..DCB..HDCR200408-200908

main31210-0K080iKUN26..5F..SA200504-200910

main31210-0K090iKUN26,36..5F..LA200501-201110

main31210-0K100iTGN10,15..GCC,GEN,IDN200502-200703

sub31210-0K101

main31210-0K101iTGN10,15..GCC,GEN,IDN200704-201107

main31210-0K110iTGN15..SA200504-201108

main31210-0K130iTGN11,16,26,36..5F..(ANCOM,ARL,GCC,GEN)200502-200703

sub31210-0K131

main31210-0K131iTGN11,16,26,36..5F..(ANCOM,ARL,GCC,GEN)200704-201204

main31210-0K140iTGN16,26,36..SA200504-201108

sub31210-0K141

main31210-0K150iTGN26,36..5F..LA200504-201110

sub31210-0K151

main31210-0K160iGGN15,25..5F..ARL200502-200808

main31210-0K170iGGN25..5F..SA200504-200810

main31210-0K190iKUN15,25..HDCR..TH;KUN36..(DCB,SCB)..5F..SA200808-201108

main31210-0K200iGGN15,25..5F..ARL200808-201107

main31210-0K210iKUN15,LAN15,25,35..DLX..SA200810-201108

main31210-26163iLAN15..PKN200710-200902

sub31210-26164

main31210-26164iLAN15..PKN200903-201009

main31210-35241iKUN15,LAN15,25,35..SA200504-200810

sub31210-0K210

31230BEARING ASSY, CLUTCH RELEASE

main31230-35061iLAN15,25,35200507-201108

main31230-35091iTGN10,15..GCC,GEN,IDN200808-201107

TYPE D:REFER 33-01

main31230-35091iTGN10,15200502-200810

main31230-35091iTGN10,15..GCC,IDN200810-201108

TYPE A:REFER 33-01

main31230-71010iKUN25..SCB..MA;KUN25,36..5F..SR..(LA,MA,SA)200808-200810

sub31230-71011

main31230-71010iKUN16,2#..XTR..TH;KUN16,2#..5F..(ARL,GEN,PHL)200408-200808

TYPE A:REFER 33-01

sub31230-71011

main31230-71010iKUN15..XTR..HDCR;KUN16,2#,35..5F..(ARL,GCC,GEN,PHL)200505-200808

TYPE B:REFER 33-01

sub31230-71011

main31230-71010iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

sub31230-71011

main31230-71010iKUN16..5F..TH;KUN15,2#,36..5F..SR..TH200808-200809

TYPE A:REFER 33-01,TYPE C:REFER 33-01

sub31230-71011

main31230-71011iKUN35..DLX..PHL;KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36..(DCB,SCB,SMT,XTR)..5F..(GEN,IDN,LA,SA,TH)200809-201204

TYPE D:REFER 33-01

main31230-71011iKUN26..DCB..5F..(LA,SA);KUN25,3#..DLX..(ANCOM,LA,SA)200809-200812

main31230-71011iKUN35..SR..PHL;KUN26..THDCB..5F;KUN26..5F..(ARL,PHL);KUN16,25,35..ARL,GCC,GEN200902-201204

TYPE C:REFER 33-01

main31230-71011iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200809-201107

TYPE A:REFER 33-01

main31230-71011iKUN26,36..XTR..SA;KUN15,25,35..HDCR..(GCC,GEN,PHL,TH);KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH)200809-201108

TYPE B:REFER 33-01

main31230-71020iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

main31230-71020iTGN26..ANCOM..CBU;TGN26..5F..(LA,SA);TGN16,36..5F..(ANCOM,LA,SA)200810-201204

TYPE C:REFER 33-01

main31230-71020iTGN11,16,26..5F..(ARL,GCC,GEN)200505-200808

TYPE B:REFER 33-01

main31230-71020iTGN11,16,26..5F..(ARL,GCC,GEN,TH)200808-201107

TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

main31230-71020iTGN16,26..ARL,GEN200502-200505

TYPE A:REFER 33-01

main31230-71020iTGN11,16..5F;TGN36..5F..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA)200808-201204

TYPE D:REFER 33-01

main31230-71030iKUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

main31230-71030iKUN15..DLX..SA200810-201108

TYPE A:REFER 33-01

main31230-71030iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)200808-201108

TYPE D:REFER 33-01

main31230-71040iGGN25..5F..SA200502-200808

TYPE C:REFER 33-01

main31230-71040iGGN15,25..5F..ARL200808-201107

TYPE B:REFER 33-01,TYPE D:REFER 33-01

main31230-71040iGGN15,25..5F..ARL200505-200808

TYPE B:REFER 33-01

main31230-71040iGGN25..5F..SA200808-200810

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main90520-T0031iKUN25..PKN200808-201204

TYPE D:REFER 33-01

main90520-T0031iKUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

main90521-22003iKUN26..IDN;KUN16..DCB..5F..TH200505-201107

TYPE B:REFER 33-01

main90521-22003iKUN15..HDCR;KUN15..DLX..SA;KUN2#,3#..5F..TH;KUN16..(SCB,SMT)..CBU200408-201108

TYPE A:REFER 33-01

main90521-22003iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90521-22003iKUN15..SA200504-200812

main90521-22003iKUN35..DLX..PHL;KUN16..(SCB,SMT)..CBU;KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN26,36..(DCB,SCB,SMT,XTR)..5F..(GEN,LA,SA,TH)200808-201204

TYPE C:REFER 33-01

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLAN15,25,35..SA200507-201108

TYPE A:REFER ILLUST.

main31232-35030iLAN15..PKN200710-201009

main31232-35030iLAN15,25,35..SA200507-201108

TYPE B:REFER ILLUST.

main31232-35040iTGN10,15200502-200810

main31232-35040iTGN10,15200808-201108

TYPE B:REFER ILLUST.

main31232-71010iKUN16,2#..XTR..TH;KUN16,2#..5F..(ARL,GEN,PHL)200408-201107

TYPE A:REFER 33-01

main31232-71010iKUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH)200408-201204

TYPE C:REFER 33-01

main31232-71010iKUN15..XTR..HDCR;KUN16,2#,35..5F..(ARL,GCC,GEN,PHL)200505-201108

TYPE B:REFER 33-01

main31232-71010iKUN15..(DCB,XTR)..HDCR;KUN16..(DCB,SCB,XTR)..5F..TH200608-200812

main31232-71010iKUN35..DLX..PHL;KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36..(DCB,SCB,SMT,XTR)..5F..(GEN,IDN,LA,SA,TH)200808-201204

TYPE D:REFER 33-01

main31232-71020iTGN11,16,26..5F..(ARL,GCC,GEN,TH)200808-201107

TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

main31232-71020iTGN16,26..ARL,GEN200502-200505

TYPE A:REFER 33-01

main31232-71020iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

main31232-71020iTGN11,16..5F;TGN36..5F..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA)200808-201204

TYPE D:REFER 33-01

main31232-71020iTGN26..ANCOM..CBU;TGN26..5F..(LA,SA);TGN16,36..5F..(ANCOM,LA,SA)200810-201204

TYPE C:REFER 33-01

main31232-71020iTGN11,16,26..5F..(ARL,GCC,GEN)200505-200808

TYPE B:REFER 33-01

main31232-71030iKUN15..DLX..SA200810-201108

TYPE A:REFER 33-01

main31232-71030iKUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

main31232-71030iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)200808-201108

TYPE D:REFER 33-01

main31232-71040iGGN15,25..5F..ARL200505-200808

TYPE B:REFER 33-01

main31232-71040iGGN15,25..5F..ARL200502-200808

TYPE C:REFER 33-01

main31232-71040iGGN25..5F..SA200808-200810

main31232-71040iGGN15,25..5F..ARL200808-201107

TYPE B:REFER 33-01,TYPE D:REFER 33-01

31236BSUPPORT, RELEASE FORK

main31236-26010iTGN15;LAN15,25,35,TGN10..CBU200502-201009

main31236-26010iLAN15,25,35..SA200810-201108

TYPE A:REFER 33-01

main31236-26010iTGN10,15..GCC,GEN,IDN200808-201107

TYPE D:REFER 33-01

main31236-35030iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

main31236-35030iTGN16,26..ARL,GEN200502-200505

TYPE A:REFER 33-01

main31236-35030iTGN11,16,26..5F..(ARL,GCC,GEN)200505-200808

TYPE B:REFER 33-01

main31236-35030iTGN26..ANCOM..CBU;TGN26..5F..(LA,SA);TGN16,36..5F..(ANCOM,LA,SA)200810-200911

TYPE C:REFER 33-01

main31236-35030iTGN11,16,26..5F..(ARL,GCC,GEN,TH)200808-200911

TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

main31236-60060iGGN15,25..5F..ARL200505-200808

TYPE B:REFER 33-01

main31236-60060iGGN25..5F..SA200808-200810

main31236-60060iGGN15,25..5F..ARL200808-200904

TYPE D:REFER 33-01,TYPE B:REFER 33-01

main31236-60060iGGN15,25..5F..ARL200408-200808

TYPE C:REFER 33-01

main31236-71010iKUN1#..5F..(ARL,GCC,GEN,PHL,TH);KUN2#,3#..5F..(ARL,GCC,GEN,LA,MA,PHL,SA,TH)200505-200811

TYPE B:REFER 33-01

sub31236-71011

main31236-71010iKUN16,2#..XTR..TH;KUN16,2#..5F..(ARL,GEN,PHL)200408-200808

TYPE A:REFER 33-01

sub31236-71011

main31236-71010iKUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH)200502-200808

TYPE C:REFER 33-01

sub31236-71011

main31236-71010iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

sub31236-71011

main31236-71010iKUN10,15..DCR200502-200811

sub31236-71011

main31236-71011iKUN35..DLX..PHL;KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36..(DCB,SCB,SMT,XTR)..5F..(GEN,IDN,LA,SA,TH)200811-201204

TYPE D:REFER 33-01

main31236-71011iKUN35..SR..PHL;KUN26..THDCB..5F;KUN26..5F..(ARL,PHL);KUN16,25,35..ARL,GCC,GEN200902-201204

TYPE C:REFER 33-01

main31236-71011iGGN15,25..5F200811-201108

TYPE B:REFER 33-01

main31236-71011iKUN25..ANCOM;KUN15,35..ANCOM,PKN200811-201202

main31236-71011iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)201103-201108

TYPE A:REFER 33-01

main31236-71030iTGN16..SR..GCC200911-201107

TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

main31236-71030iTGN11,16,26,36..5F200911-201204

TYPE D:REFER 33-01

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-0K010iKUN15..SR..SA200808-201204

TYPE D:REFER 33-01

main31237-0K010iKUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200803-201202

main31237-60010iKUN15..HDCR;KUN15..DLX..SA;KUN2#,3#..5F..TH;KUN16..(SCB,SMT)..CBU200408-201108

TYPE A:REFER 33-01

main31237-60010iKUN35..DLX..PHL;KUN16..(SCB,SMT)..CBU;KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN26,36..(DCB,SCB,SMT,XTR)..5F..(GEN,LA,SA,TH)200502-201204

TYPE C:REFER 33-01

main31237-60010iGGN15,25..5F..ARL200505-201107

TYPE B:REFER 33-01

main31237-60010iKUN15..XTR..DLX;KUN10,15..(DCB,SCB)..DCR..(GCC,GEN,PHL,TH)200502-200812

main31237-60010iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

31250DISC ASSY, CLUTCH

main31250-0K010iLAN15,25,35..SA200507-200812

sub31250-0K011

main31250-0K011iLAN15,25,35..SA200901-201108

main31250-0K020iKUN10,15..DCR..(GCC,GEN,PHL,TH)200408-200702

sub31250-0K210

main31250-0K030iKUN15..SA200504-201108

main31250-0K060iKUN26,36..5F..SA200810-201108

OD=260

sub31250-0K061

main31250-0K060iKUN2#,3#..SA200504-200810

sub31250-0K061

main31250-0K070iKUN36..DCB..LA;KUN2#,35..5F..LA200501-201110

sub31250-0K071

main31250-0K080iTGN10,15..GCC,GEN,IDN200502-201107

main31250-0K090iTGN15..SA200504-201108

main31250-0K110iTGN11,16,26,36..5F..(ANCOM,ARL,GCC,GEN)200502-200708

sub31250-0K150

main31250-0K120iTGN16,26,36..SA200504-200805

sub31250-0K121

main31250-0K121iTGN16,26,36..SA200806-201108

main31250-0K130iTGN26,36..LA200504-200805

sub31250-0K131

main31250-0K131iTGN26,36..LA200806-201110

main31250-0K150iTGN11,16,26,36..5F..(ANCOM,ARL,GCC,GEN)200708-201007

sub31250-0K151

sub31250-36580

main31250-0K151iTGN11,16,26,36..5F..(ANCOM,ARL,GCC,GEN,TH)201008-201204

sub31250-0K152

main31250-0K170iGGN15,25..5F..ARL200502-200808

main31250-0K180iGGN25..5F..SA200504-200810

main31250-0K200iKUN16,26..5F;KUN15,25..HDCR200408-200409

sub31250-0K201

main31250-0K201iKUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)200409-200509

sub31250-0K202

main31250-0K202iKUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)200509-200510

sub31250-0K203

main31250-0K203iKUN16,26,36..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)200511-200606

sub31250-0K204

main31250-0K204iKUN16..XTR..TH;KUN25..SCB..MA;KUN25..ANCOM,GCC,GEN;KUN16..(DCB,SCB)..5F;KUN25,36..(DCB,XTR)..5F..SR..(MA,TH);KUN26..(DCB,SCB,THDCB,XTR)..5F..(ARL,GEN,PHL,TH);KUN15,200607-200812

sub31250-0K205

main31250-0K204iKUN15,25..HDCR..TH200808-201007

OD=260

sub31250-0K205

main31250-0K205iKUN25,35..5F..(ANCOM,GCC,GEN,MA,PHL,PKN)201008-201204

main31250-0K210iKUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200702-201202

main31250-0K220iKUN16,3#..5F..(ARL,TH);KUN26..5F..(ARL,GEN,IDN,PHL,TH)200808-201007

OD=275

sub31250-0K221

main31250-0K221iKUN15,25,35..HDCR..TH;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,SA,TH)201008-201108

OD=275

sub31250-0K222

main31250-0K230iGGN15,25..5F..ARL200808-201007

sub31250-0K231

main31250-0K231iGGN15,25..5F201008-201107

main31250-26220iLAN15..PKN200710-201009

sub31250-26221

33311WBEARING (FOR INPUT SHAFT)

main90080-36198iKUN15,2#,3#..SA200504-200610

main90080-36198iKUN15,2#,3#..SA200610-200810

(L)

main90080-36199iKUN36..DCB..LA;KUN2#,35..5F..LA200501-200810

main90363-12002iKUN35..SCB..SA;KUN26..DCB..5F..SA;KUN15,25,36..RHD..(DCB,SCB)..5F..SA200604-201202

(J)

sub90363-12024

main90363-12002iGGN15,25,LAN15,25,35..5F200502-201009

sub90363-12024

main90363-T0006iKUN15..PKN201010-201202

(L)

main90363-T0006iKUN15,26,36..XTR..SA;TGN26..5F..(GCC,GEN);KUN25..5F..(ANCOM,GCC,GEN,MA,PKN,TH);KUN1#,26,3#,TGN1#..5F..(ANCOM,ARL,GCC,GEN,IDN,PHL,TH)200408-200812

main90363-T0019iTGN36..SCB;TGN36..DCB..SA;TGN15,16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

(L)

main90363-T0019iTGN26..ANCOM..CBU;TGN26..5F..(LA,SA);TGN15,16,36..5F..(ANCOM,LA,SA)200810

90119T0102

main90119-T0102

11 parts on this diagram · 10 diagrams in section
