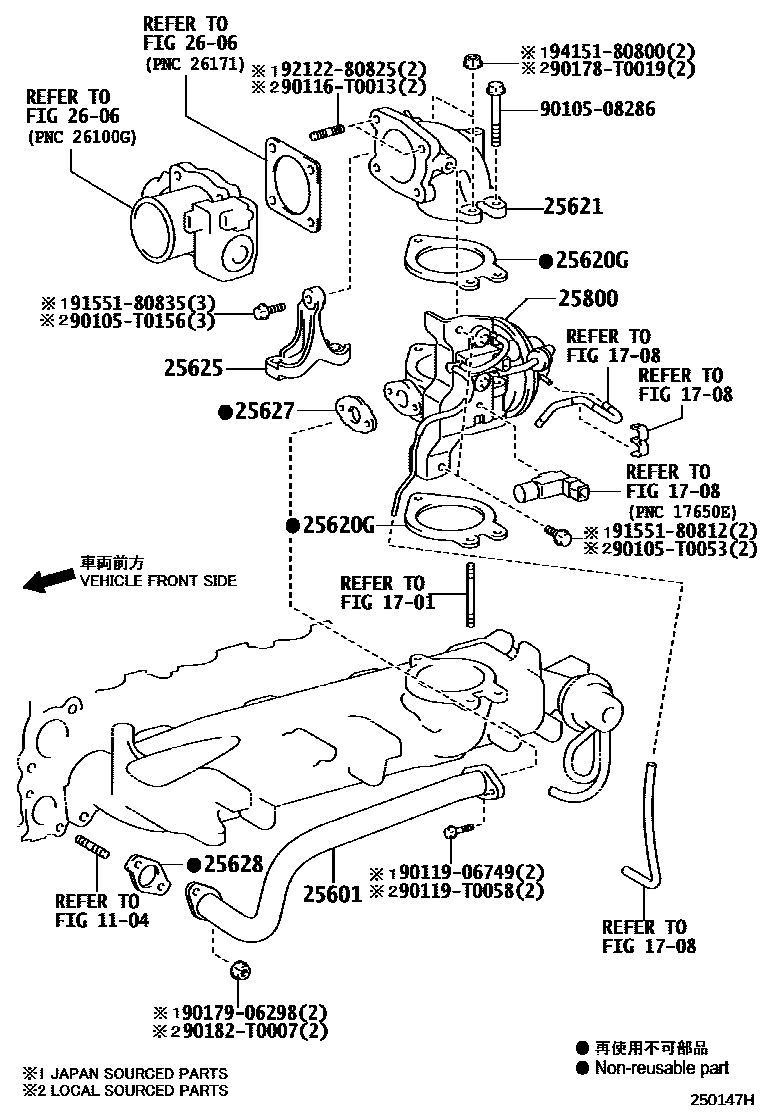

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0003 1 0004 1 0010 1 0011 1CHILE SPEC

1104

1701

1708

25601PIPE SUB-ASSY, EGR, NO.1

main25601-0L010i1KDFTV,2KDFTV..KUN15,2#,3#..SA200408-201204

*130

main25601-0L010i2KDFTV..KUN25,35..SR..TH200908-201107

main25601-30070i2KDFTV..KUN25,35..ANCOM;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA200507-201204

*163 OR *184

main25601-30080i1KDFTV..KUN16,26..ARL200608-201107

sub25601-0L020

25620GGASKET, DIESEL THROTTLE

main26171-0L010i2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..XTR..SA;2KDFTV..KUN15..SCB..(PHL,TH);1KDFTV..KUN16,26,36..IDN,LA,PHL,TH;2KDFTV..KUN35..DLX..(ANCOM,LA,PHL,TH);2KDFTV..KUN15200408-201204

*130

main26171-0L010i2KDFTV..KUN15,25..HDCR..TH200408-200808

main26171-0L010i2KDFTV..KUN25,35..SR..TH200908-201107

NO.1

main26171-0L030i2KDFTV..KUN25,35..SR..TH200908-201107

NO.2

main26171-30030i2KDFTV..KUN35..SCB..SA;1KDFTV,2KDFTV..KUN15,2#,36..RHD..SA200507-201204

*163 OR *184

main26171-30030i1KDFTV..KUN16,26..ARL200608-201107

NO.1

main26171-30050i1KDFTV..KUN16,26..ARL200608-201107

NO.2

25621CONNECTOR, INTAKE AIR(FOR GASKET)

main17861-0L010i2KDFTV..KUN35..SR..SA;2KDFTV..KUN35..(SCB,THDCB)..(GEN,SA);1KDFTV,2KDFTV..KUN2#..(THDCB,THSCB)..5F;1KDFTV,2KDFTV..KUN15,2#,36..RHD..(DCB,SCB)..5F..SA200408-201112

*130

main17861-0L010i2KDFTV..KUN25,35..ANCOM201112-201204

*130,(L)

main17861-0L030i2KDFTV..KUN25,35..SR..TH200908-201107

main17861-30070i2KDFTV..KUN15,25..MA,PHL;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25,35..RHD..SCB..SA;2KDFTV..KUN35..DLX..(GEN,PHL,TH);1KDFTV..KUN26..(DCB,SCB,SMT)..(IDN,PHL,SA,TH);1200507-201204

*163 OR *184

main17861-30070i2KDFTV..KUN25,35..ANCOM201112-201204

*130,(J)

main17861-30090i1KDFTV..KUN16,26..ARL200608-201107

25625BRACKET, EGR VALVE

main26127-0L010i2KDFTV..KUN15,25,35..SA200408-201204

*130

main26127-0L010i1KDFTV..KUN16,26;2KDFTV..KUN15,25..HDCR200408-200409

main26127-0L020i2KDFTV..KUN25,35..SR..TH200908-201107

main26127-30010i2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH;1KDFTV..KUN16,26,36..(DCB,SCB,THDCB,XTR)..(GEN,LA,PHL,SA,TH)200409-201110

main26127-30010i2KDFTV..KUN25..TH200808-201108

*163 OR *184

main26127-30020i2KDFTV..KUN15..SR..SA;2KDFTV..KUN25,35..ANCOM200507-201204

*163 OR *184

main26127-30030i1KDFTV..KUN16,26..ARL200608-201107

25627GASKET, EGR VALVE

main25627-0L010i2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(LA,PHL,TH);1KDFTV,2KDFTV..KUN16,3#.200408-201204

*130

main25627-0L010i2KDFTV..KUN25,35..SR..TH200908-201107

NO.1

main25627-30010i1KDFTV..KUN16,26..ARL200608-201011

main25627-30030i2KDFTV..KUN25..TH200507-201204

*163 OR *184

main25627-30060i1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB201011-201107

CHILE SPEC

main25627-30060i2KDFTV..KUN25,35..SR..TH200908-201107

NO.2

25628GASKET, EGR INLET

main25628-0L010i2KDFTV..KUN25,35..SR..TH200408-201107

main25628-0L010i1KDFTV..KUN16,26..ARL200408-201204

*130

main25628-30020i2KDFTV..KUN35..SCB..SA;1KDFTV,2KDFTV..KUN15,2#,36..RHD..SA200507-201204

*163 OR *184

main25628-30030i1KDFTV..KUN16,26..ARL200608-201106

sub25628-30031

main25628-30031i1KDFTV..KUN16,26..ARL201106-201107

CHILE SPEC

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0L010i1KDFTV..KUN26,36..XTR..SA200809-201108

*163 OR *184

main25800-0L010i1KDFTV..KUN16,26..ARL200408-201110

main25800-0L020i2KDFTV..KUN25..RHD..DCB..SA200809-201204

*163 OR *184

sub25800-0L050

main25800-0L020i2KDFTV..KUN35..SR..SA;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15,25..RHD..DLX..SA;2KDFTV..KUN35..(SCB,THDCB)..(GEN,SA)200809-201204

*130

sub25800-0L050

main25800-0L020i2KDFTV..KUN15..SR..DCR..TH200408-201107

sub25800-0L050

main25800-0L040i1KDFTV..KUN16,26,36..PHL,TH200808-200809

*163 OR *184

sub25800-0L010

main25800-0L040i1KDFTV..KUN26,36..LA,SA200803-200810

sub25800-0L010

main25800-0L050i2KDFTV..KUN35..GEN,PHL;2KDFTV..KUN15,25..PHL,TH;2KDFTV..KUN25..THDCB,THSCB200808-200809

PHILIPPINES SPEC,*163 OR *184,*130

sub25800-0L020

main25800-0L050i2KDFTV..KUN25,35..THDCB200808-200809

*130

sub25800-0L020

main25800-0L050i2KDFTV..KUN25,35..THDCB200808-200809

*163 OR *184

sub25800-0L020

main25800-0L050i2KDFTV..KUN25,35..THDCB200808-200809

ECUADOR & COLOMBIA SPEC,*130

sub25800-0L020

main25800-0L050i2KDFTV..KUN15,25..PHL,TH;2KDFTV..KUN25,35..THDCB,THSCB200803-200808

ECUADOR OR COLOMBIA SPEC

sub25800-0L020

main25800-0L050i2KDFTV..KUN25,35..ANCOM,LA,MA200803-200810

sub25800-0L020

main25800-0L080i2KDFTV..KUN25,35..SR..TH200908-201107

main25800-30120i1KDFTV..KUN16,26..ARL200608-201107

main25800-30180i1KDFTV..KUN16,26..ARL200803-200809

sub25800-30120

2606

9010508286

main90105-08286

90105T0053

main90105-T0053

90105T0156

main90105-T0156

90116T0013

main90116-T0013

9011906749

main90119-06749

90119T0058

main90119-T0058

90178T0019

main90178-T0019

9017906298

main90179-06298

90182T0007

main90182-T0007

9155180812

main91551-80812

9155180835

main91551-80835

9212280825

main92122-80825

9415180800

main94151-80800

24 parts on this diagram · 5 diagrams in section
